Solar support system is an important part of the solar power station, bearing the power generation main body of the solar power station. Therefore, the selection of mounting system directly affects the operation safety, damage rate and construction investment income of PV panel modules. Today Kinsend takes you to learn an installation scheme applicable to roof and ground: Concrete foundation solar mounting system

Applicable environment:

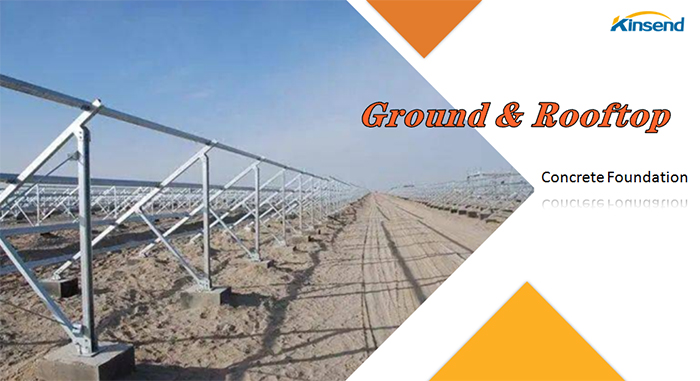

Flat Roof Mounting : large shopping malls, commercial office buildings, industrial plants, etc

Ground Mounting : Even ground, Soft ground

Installation introduction:

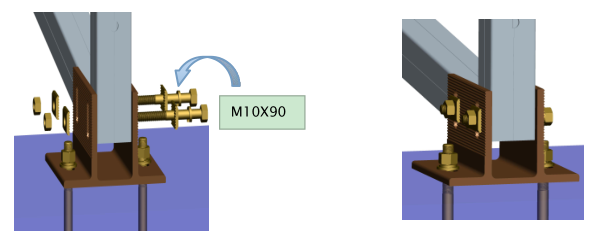

Precast reinforced concrete piles are driven into the soil by embedded concrete pipe piles with a diameter of about 300 mm or prefabricated reinforced concrete square piles with a section size of about 200 * 200 mm, and the top reserved steel plates or bolts are connected with the front and rear columns of the upper support. Kinsend's highly pre-assembled support system directly opens the pre-assembled support during the on-site construction process, and fixes the column base with the embedded bolts. Install the guide rail according to the design drawing, and the whole bracket is basically fixed; Install PV panels in sequence.

Design standard:

JIS 2011 ,JISE2017

ASCE 7-10

…..

According to the design requirements of different country projects.

Design scheme:

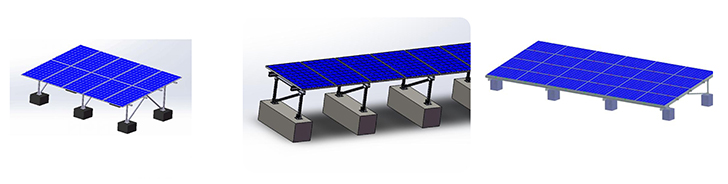

The most commonly used design schemes for Kinsend concrete foundation solar projects are AG2, AG3 and AG4. The safest design scheme shall be selected according to the geographical location of the project and the arrangement of the panels, and the best model of aluminum support guide rail shall be selected according to the environmental factors that the project needs to bear pressure (maximum wind speed, snow load, anti-corrosion grade requirements). For different safety strength coefficient standards, the selection of profile thickness and flexibility requirements must be reasonable.

Scheme advantages:

The flat roof is installed with a concrete foundation photovoltaic system, which can insulate the house in high temperature environment and fully absorb light energy to maximize the power generation. The price of ground concrete foundation is more favorable than that of piling foundation ground and ground pile foundation system. Good ground protection. This design scheme is recommended for soft ground with low N value detected by soil test. Strong installation flexibility. The customer can adjust the installation position according to the ground conditions.

The concrete foundation scheme is the most widely used in countries, with the largest number of customers in the Middle East and Europe. Kinsend technical team looks forward to your consultation and project cooperation. More detailed design details and quotations can be provided by contacting us. Mail: Info@kinsend.com   Web: www.kinsend.com
