Adjustable Foot _Flat Roof and Metal Roof Solar Mounting System

The adjustable solar roof mounting systems could be fixed or adjustable tilt, meeting project specific adjustments to optimize the solar output.
  • Item no.:

    KS-AJ-RL01
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days
  • Product Detail




The adjustable solar rooftop mounting system easily fits rooftop due to its variable tilt angle and footing options. It could be fixed or adjustable tilt, meeting project specific adjustments to optimize the solar output. This innovated design eliminate the need of on-site cutting, welding, features low cost and quick install.




  • Metal rooftop and flat roofs are available
  • Anti-slip and anti-out design
  • Double side lock, better strength
  • Adjustable to get the max efficients for different condition

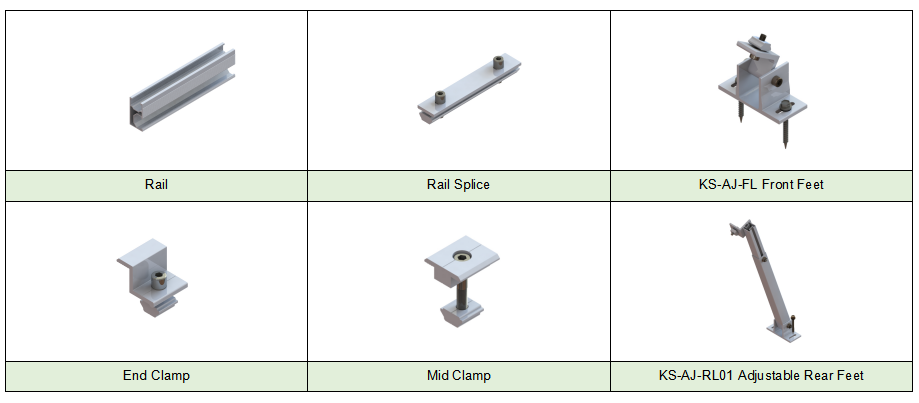

Components List



  Installation Site

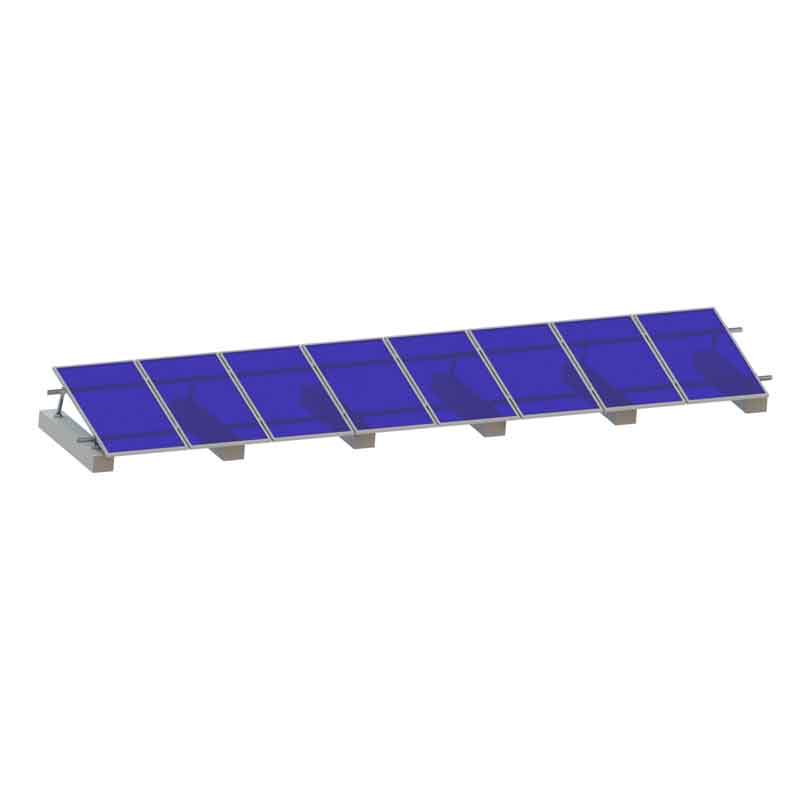

Adjustable tilt solar rooftop mounting system

  Installation Base

Used for metal roof and concrete roof

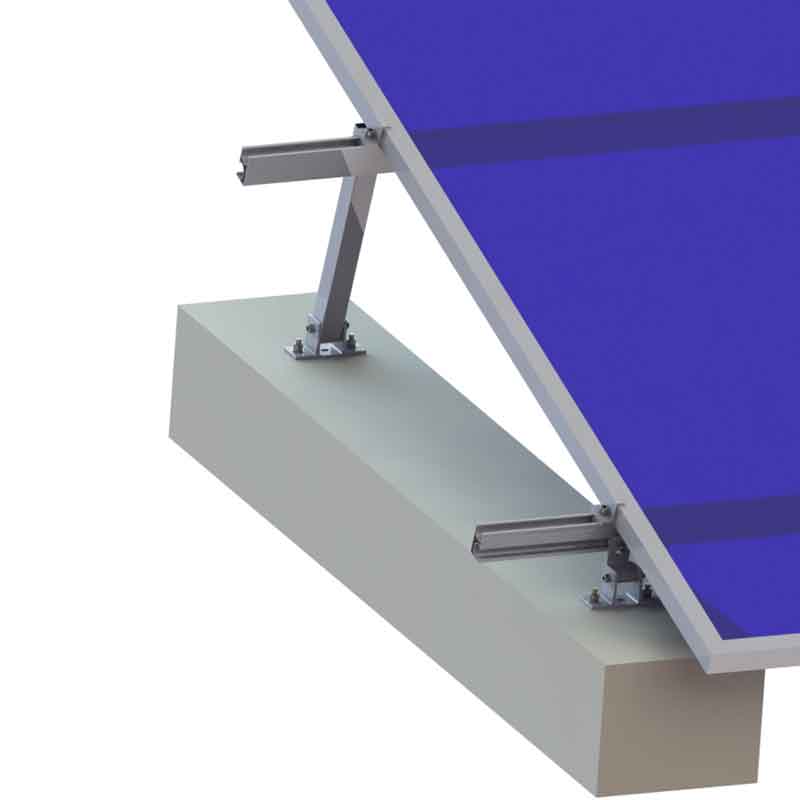

Riveted or screwed onto raised corrugations, or mounted onto the Concrete block

Roof Pitch

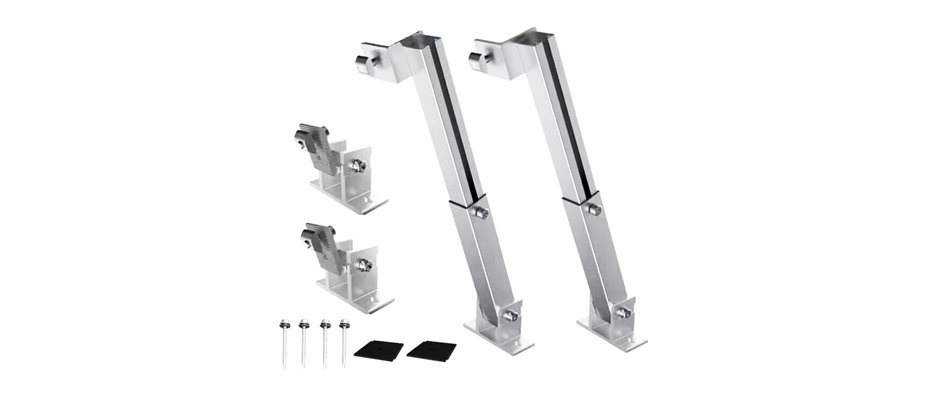

KS-AJ-RL01: Adjustable rear leg 10-15°

KS-AJ-RL02: Adjustable rear leg 15-30°

KS-AJ-RL03: Adjustable rear leg 30-60°

Module orientation

Landscape/portrait

    Max Wind Speed

< 60m/s

    Snow Load

< 80cm

    Standards

AS/NZS 1170 &JIS C 8955-2011 , 2017 ; ASCE 7-10

 Material

Al6005-T5 for aluminum profiles and clamps.

Stainless steel for fasten bolt and nut.

    Warranty / Duration

 12 years/ More than 25 years
