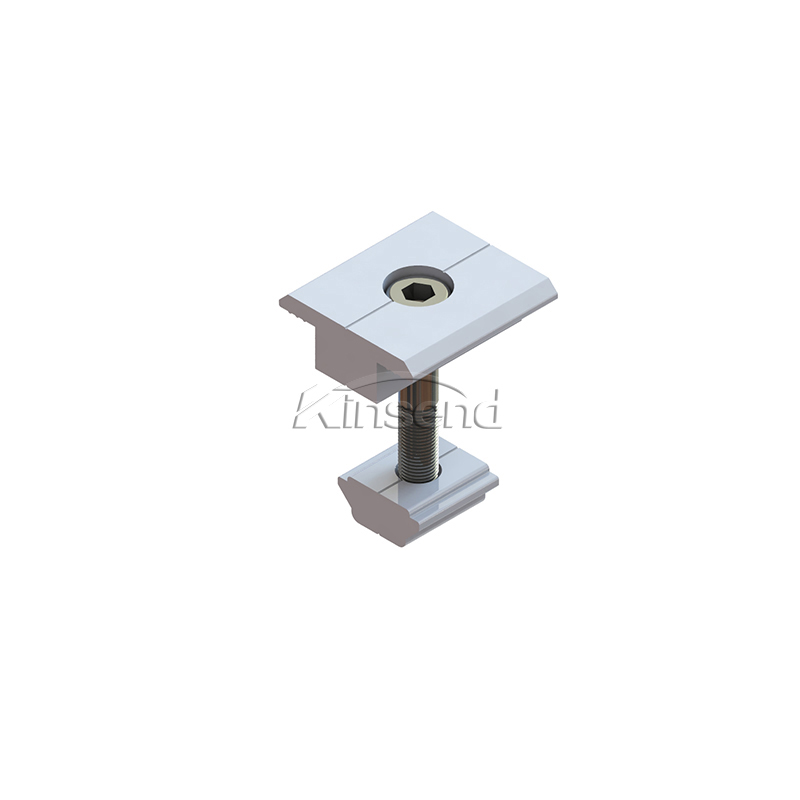

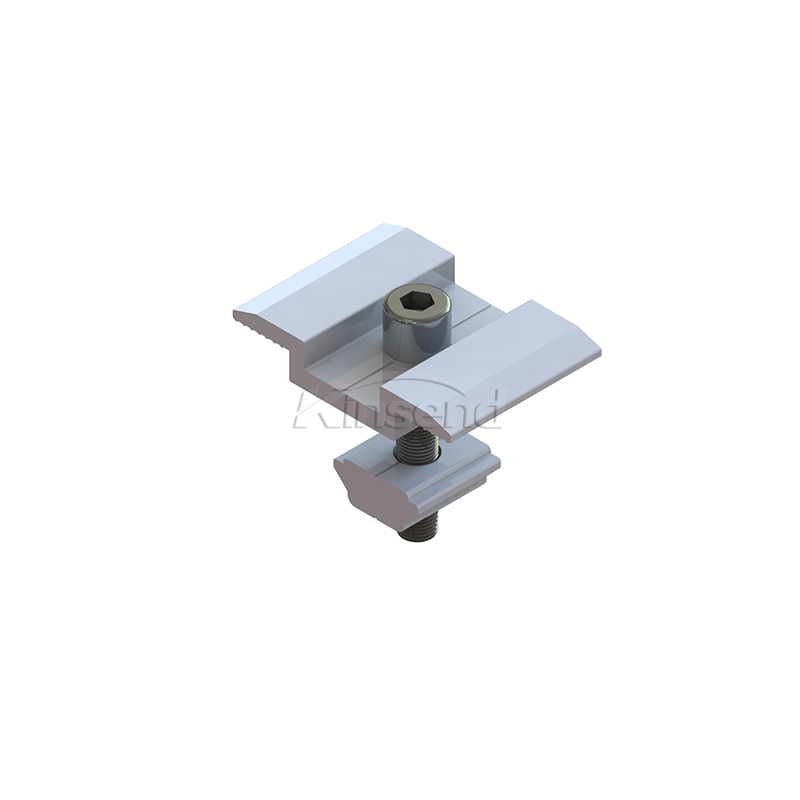

Solar Mid Clamps

Item no.:
KS-IC2-F30,35,40
Payment:
T/T,L/C
Product origin:
China
Color:
Silver, Black
Shipping port:
Xiamen, China
Lead Time:
7-14 days

Inquire now

Categories

New Products

Product Detail

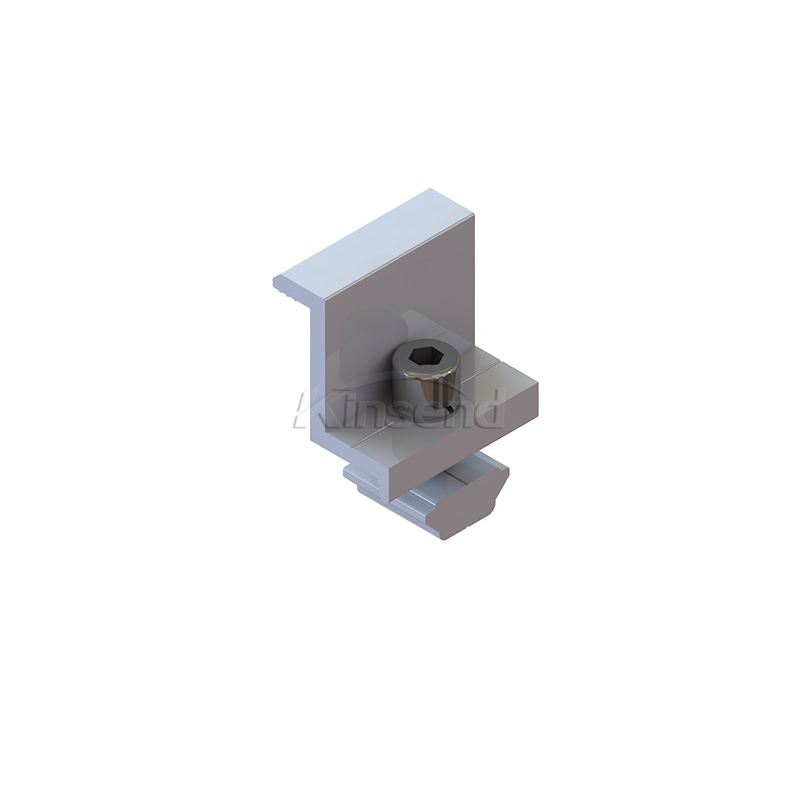

Main material is AL6005-T5 with average 12μm anodizing film. Unique design of Mid & End clamps are used in different types of solar panels. Special design of rail can make intallation simpler and faster. Parts have been high pre-assembly on factory to save your installation time.

Directly connect with rail, side fixed
Low fitting costs
Every size of module array possible
For all common rather distances

Installation Site	Fix solar panel , End clamp & Mid clamp
Installation Base	Suit for panel thickness 30mm,35mm,40mm
Economic layout	Landscape/portrait
Max Wind Speed	< 60m/s
Snow Load	< 80cm
Standards	AS/NZS 1170, DIN 1055, JIS C 8955:2011
Material	Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304
Anti-corrosive	Anodized
Warranty / Duration	12 years/ More than 25 years

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
