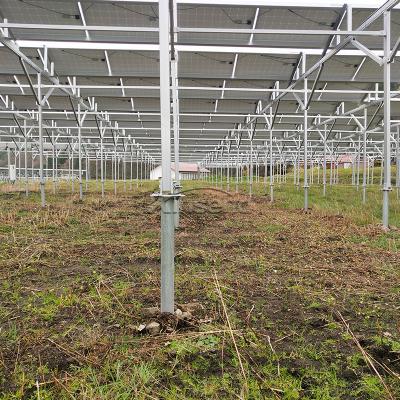

Agricultural solar mounting system_Ground Screw

The Solar Farm Mounting System is suitable for open field area. Dual-use of land improve the economic benefit.

Special greenhouse Agricultural Solar Mounting Systems allow crops to grow at a suitable temperature, increasing yields while allowing sunlight to be utilized. Farmers can fully exploit the sun energy for daily basic activities like irrigation, heating and lighting.  A solution with enough space, benefits to the machine work Excellent anti-corrosive performance Pre-assembled components, Customed shading rate     Installation Site Open Field Area, Above the planting Farmland    Installation Base Ground screw, ground clearance Over 1800mm Tilt angle Customized tilt angle Module orientation Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011    Material      Material: Anodized aluminum 6005 T6 stainless steel 304, 410; Hot-dipped galvanized steel Q235B    Warranty / Duration  12 years/ More than 25 years

Solar carport Mounting System adopts anodized aluminum material，40% components are pre-assembled in factory ensure the bracket with fast installation Save your labor costs. The panel can be directly installed on the waterproof carport structure, and the quickly installed waterproof guide rail makes the entire system more concise and beautiful. Excellent waterproof performance  High corrosion resistance, anodized aluminum profiles High pre-assembly on factory to save your installation time  Building on parking lot, saving land resources    Installation Site Open Field Area, or Supper Mall Parking Area ,    Installation Base Concrete base, Ground Clearance Over 2000mm Tilt angle Up to 20° or Customized tilt angle Economic layout Customized waterproof rail 3 rows of modules with vertical assembly 6 rows of modules with horizontal assembly    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years Details

Lightweight rails can be installed on metal roofs, The U-shaped structure is a combination of guide rails and clamp. low cost and quick installation. Riveted or screwed onto raised corrugations. Every size of module array possible Simple and fast installation No Rails necessary Low material / Low fiting costs Details      Installation Site Trapezoidal and corrugated sheet metal    Installation Base Riveted or screwed onto raised corrugation    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011     Material Al6005-T5 & Stainless steel     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years

The Universal U Shape Mid Clamp is applicable for the mounting of 30-50mm framed or frameless solar panel, easy to install.

Kensend's lengthened type L foot hook is widely used in PV systems in Korea and Europe for trapezoidal metal tin roof PV mounting systems.
