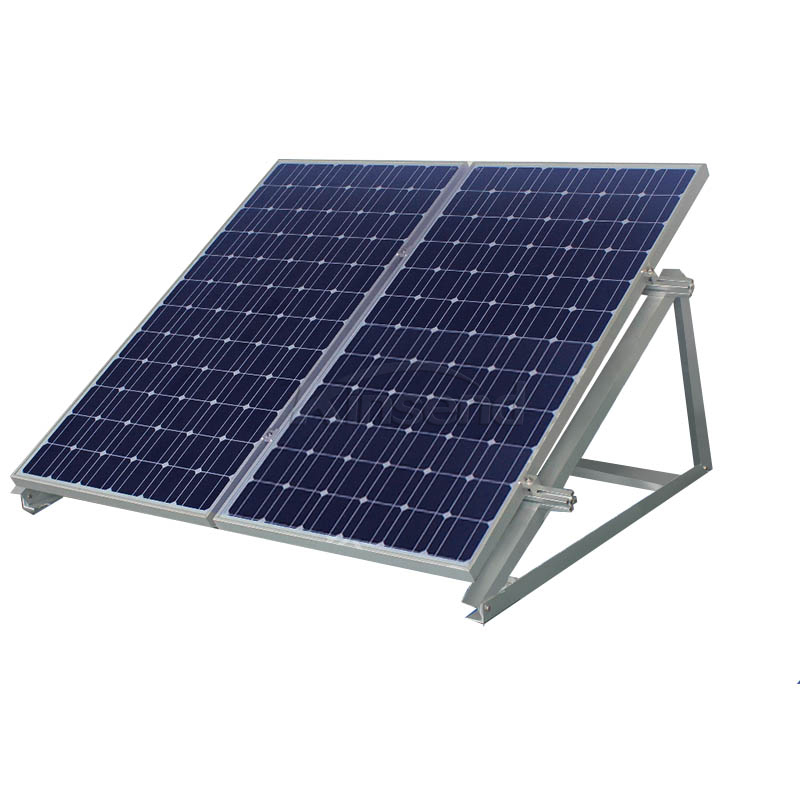

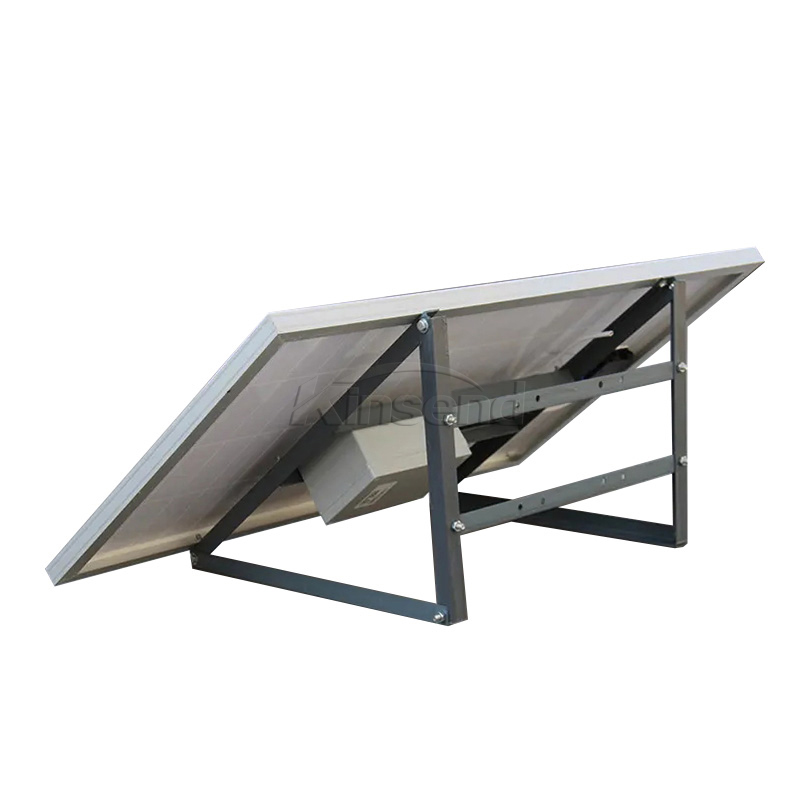

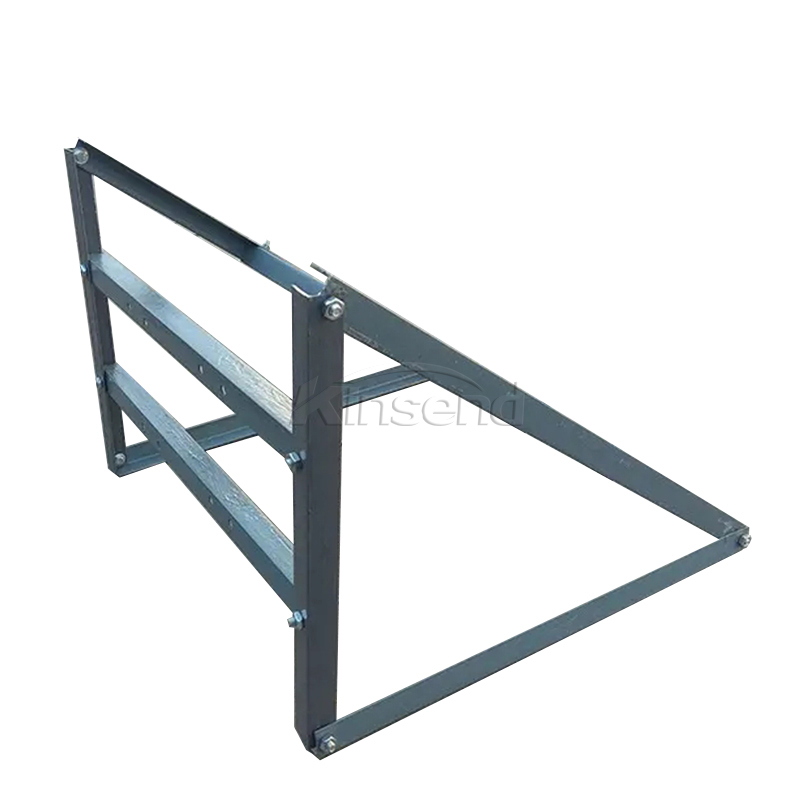

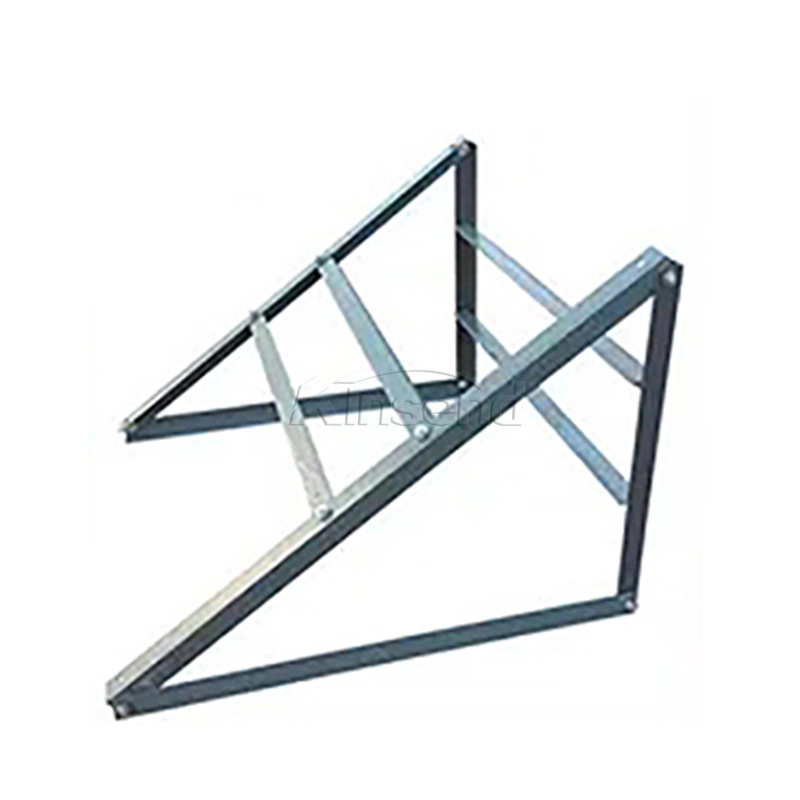

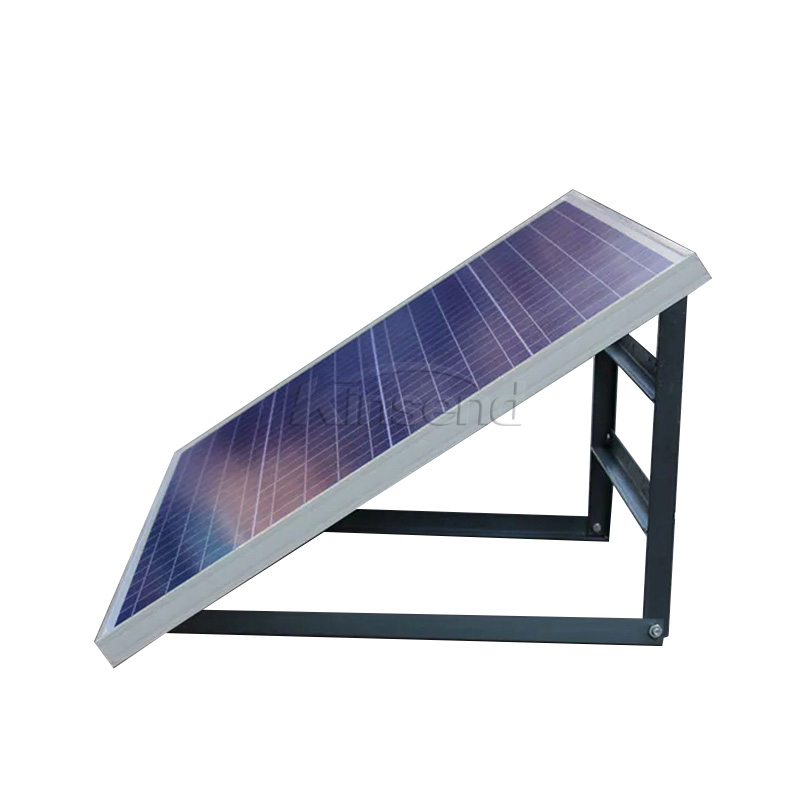

Adjustable portable brackets available on RVs, marine RVs, RVs, and rooftops,The installation holes on the solar panel frame match the installation holes on our bracket. Equipped with stainless steel accessories for fixation and installation.
The balcony solar mount system is made of high-corrosion aluminum, lightweight and high-corrosion, and can be installed at different angles according to the requirements of sunlight exposure conditions.
Description
The Universal T Shape Mid Clamp is applicable for the mounting of 30-50mm framed or frameless solar panel, patented D block could be easily installed in the rails.
Metal Roof Solar Mounting System Solar Hanger Bolt Solar L Feet ,Parts have been high pre-assembly on factory to save your installation time.Install in Trapezoidal and corrugated sheet metal. Height adjustable via elongated hole in the sheet metal bracket.
Low fitting costs
Every size of module array possible
Height adjustable via elongated hole in the sheet metal bracket
Suitable for large distances between rafters
Installation Site
Trapezoidal
and corrugated sheet metal
Fastening
Riveted or screwed onto raised corrugated
Economic layout
Landscape/portrait
Max Wind Speed
< 60m/s
Snow Load
< 80cm
Standards
AS/NZS 1170, DIN 1055, JIS C 8955:2011
Material
Anodized aluminum 6005 T6 , Fasten bolt and nut
stainless steel 304
Anti-corrosive
Anodized
Warranty / Duration
12 years/ More than 25 years
