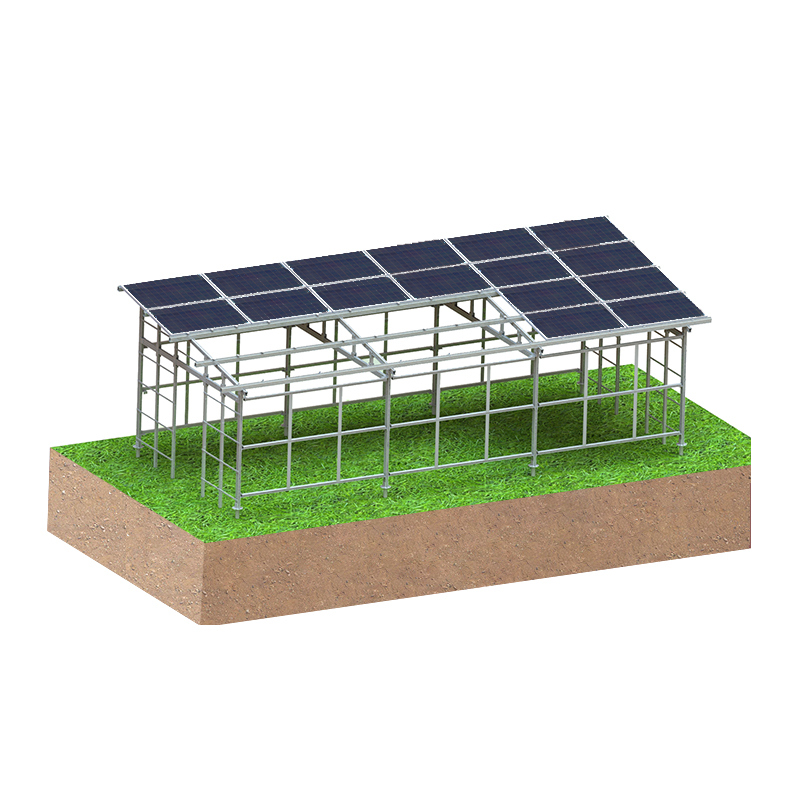

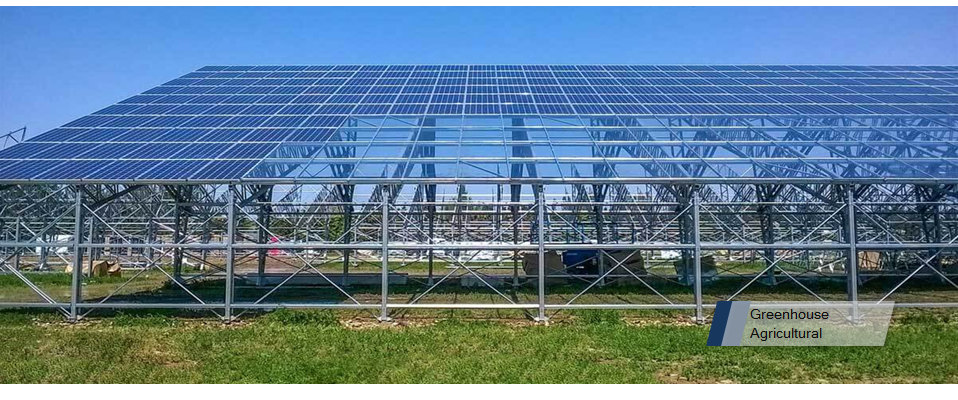

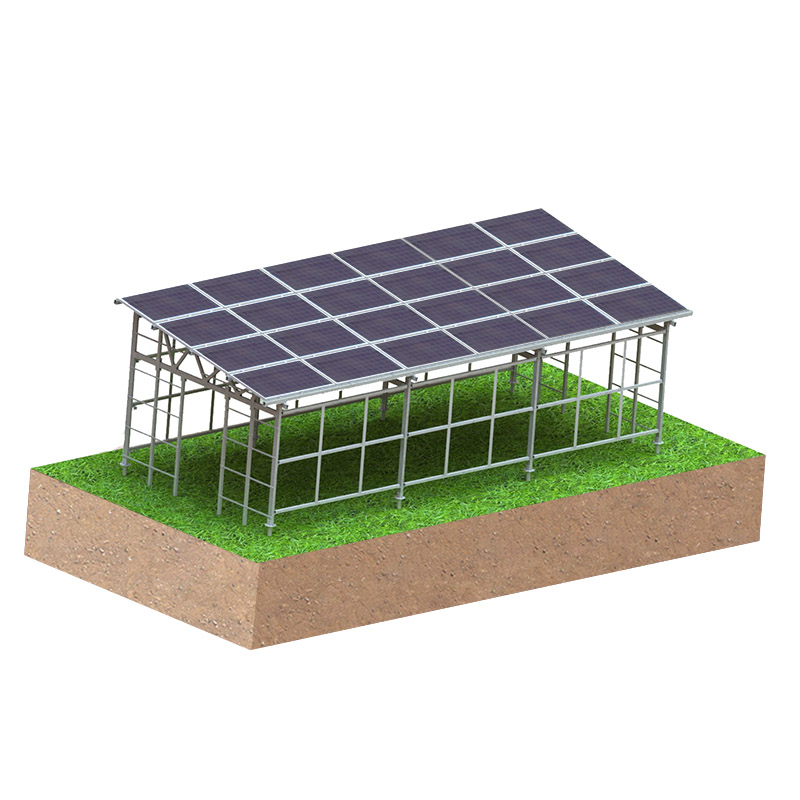

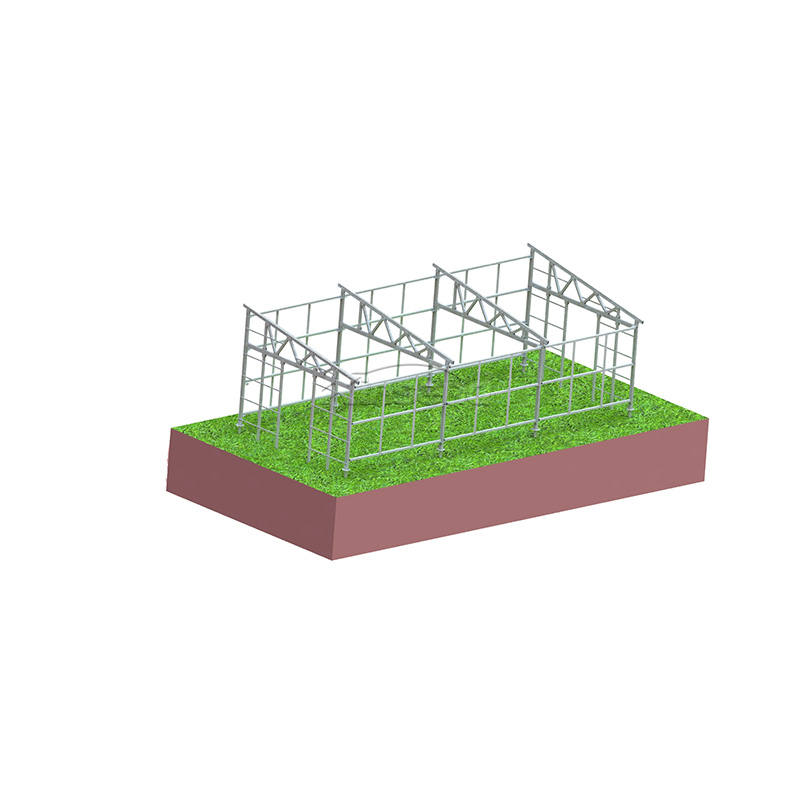

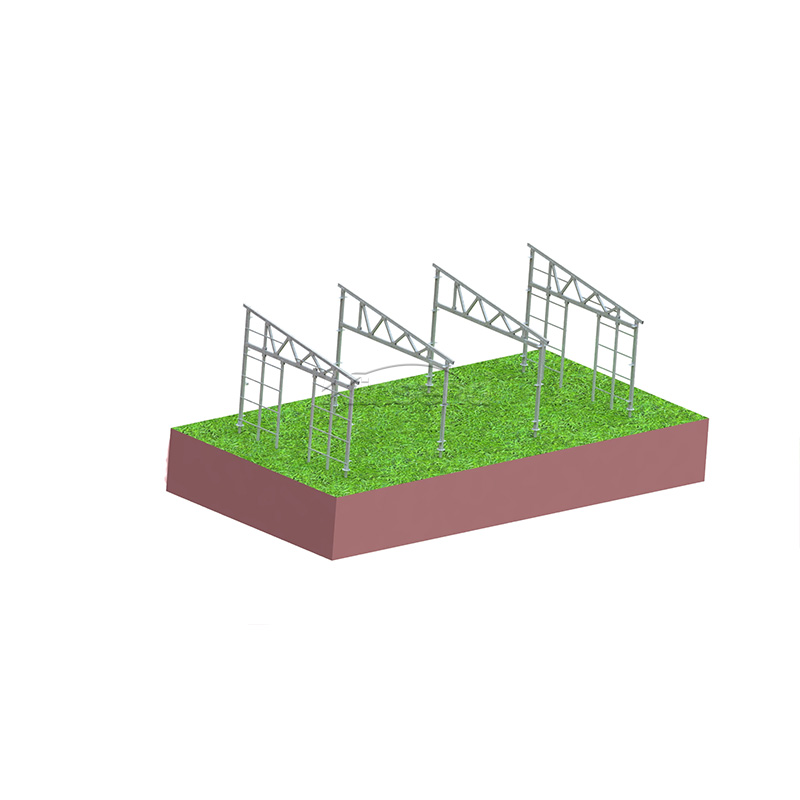

Greenhouse Agricultural Solar Mounting System

The Solar Farm Mounting System is suitable for open field area. Dual-use of land improve the economic benefit.

Agricultural solar mounting systems can make use of land that may not be otherwise suitable for farming or other uses, such as sloping or rocky land. Fram solar mounting bracket are designed to be durable and long-lasting,

The Copper Lines Assembly, which is also called ground lug, helps to connect the whole system to ground.

L feet brackets mainly applied to trapezoidal metal sheet roofs and corrugated metal sheet. It can be directly fixed on the roof beam with screw. Hanger bolt and Screw St6.3x80 apply to install on steel beam and Wooden beam. Making installation faster, competitive and reliable. Systems are fully compliant with international standards on wind & snow load. Low fitting costs Every size of module array possible Height adjustable via elongated hole in the sheet metal bracket Suitable for large distances between rafters    Installation Site Trapezoidal and corrugated sheet metal Fastening Riveted or screwed onto raised corrugated Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years Details

The main material of the pv ground mounting system is high-purity aluminum alloy, which is light in weight, pre-assembled components are simple structural design, effectively reducing the onsite  cost. The support surface is anodized, with high corrosion resistance. The ground system with ground screws foundation has strong environmental adaptability and can be widely used in power station solar ground projects in different terrains. High pre assembly reduces on-site installation difficulties encountered. Light material, easy for install & delivery. Suitable for terrains environmental High pre-assembled in factory, save your on site cost & time 12 years warranty and 25 years service life Component List    Installation Site Open Field Area_Aluminum ground mounting system    Installation Base Ground screws and concrete foundations optional Tilt angle 0°- 45°    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011     Material Al6005-T5 for aluminum profiles and clamps.Stainless steel for fasten bolt and nut.     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years

The Earthing Clip is work to connect the solar systems with ground.

The solar carport system is arranged with reasonable spans according to the parking needs of customers, making it convenient for vehicles to enter and exit.
