BIPV_Solar Mounting System

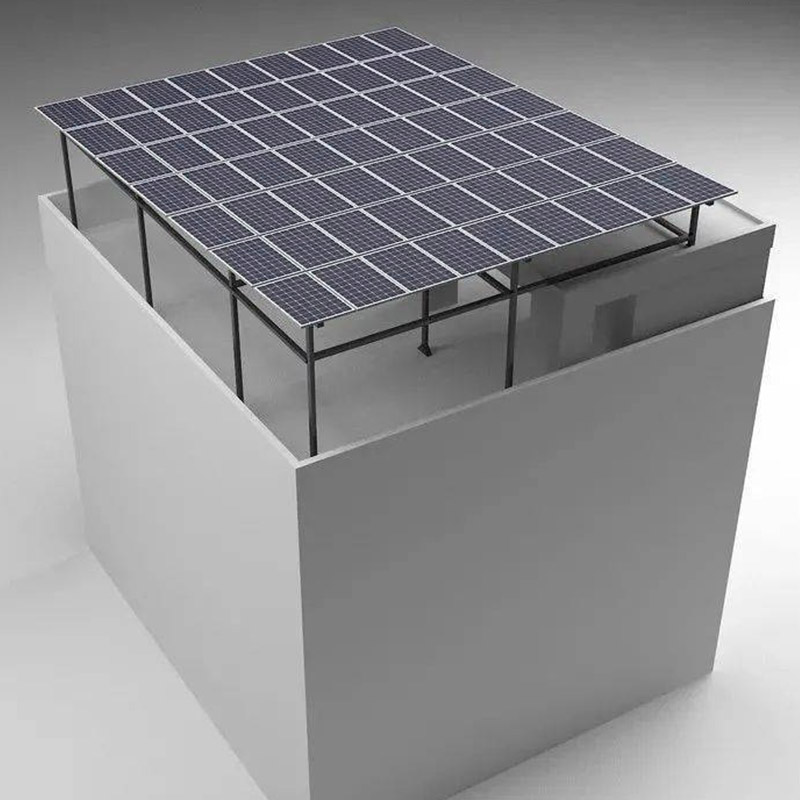

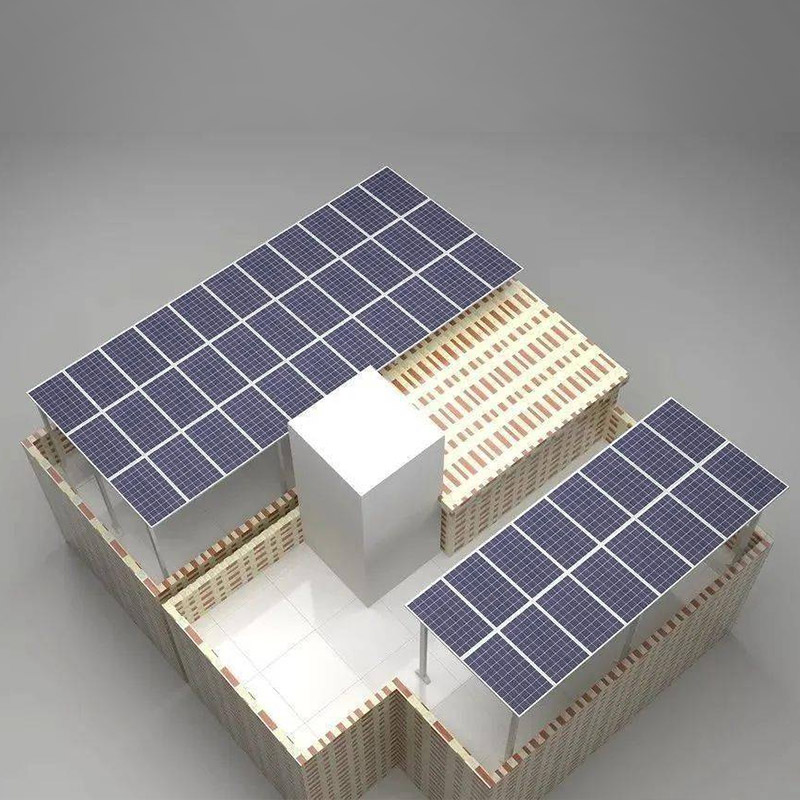

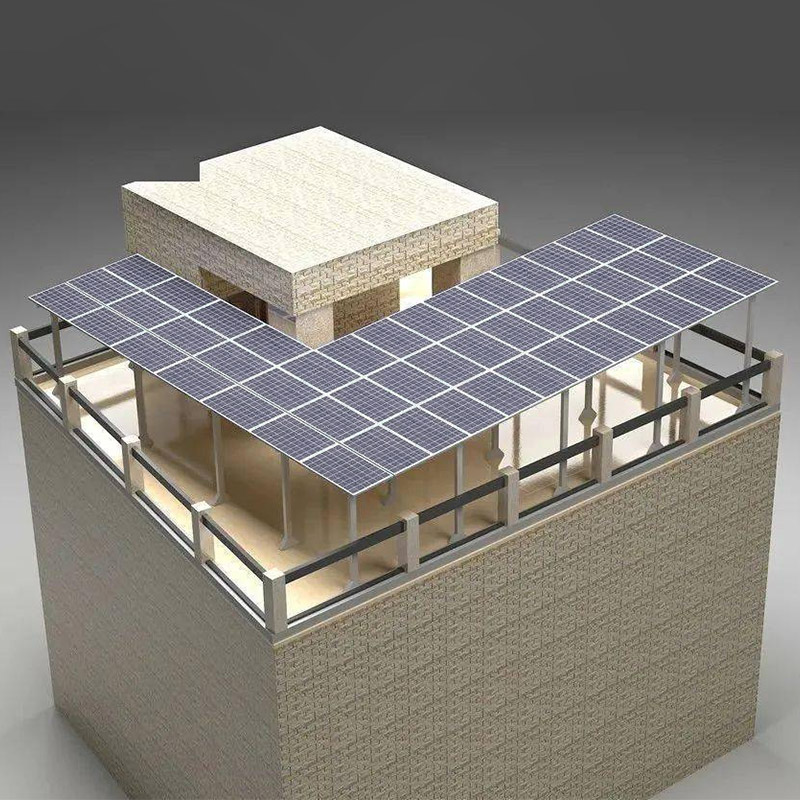

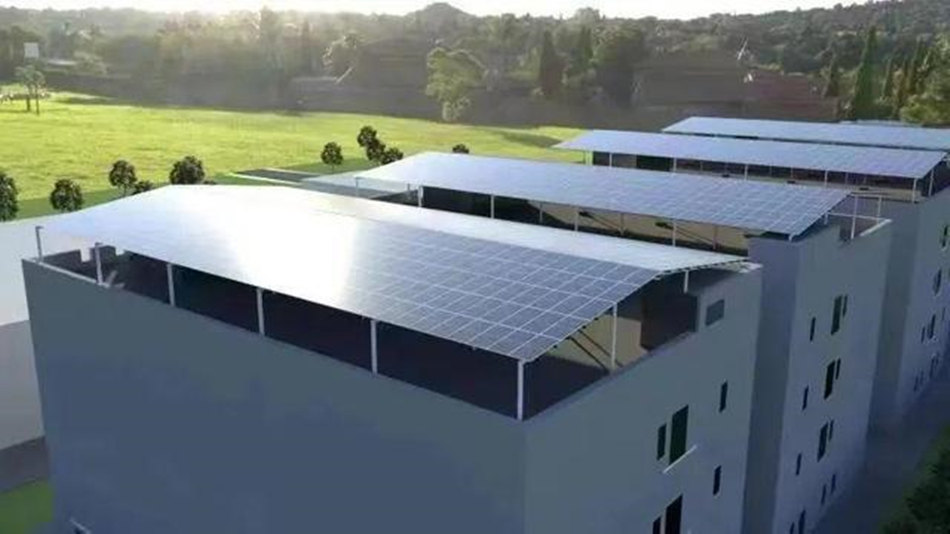

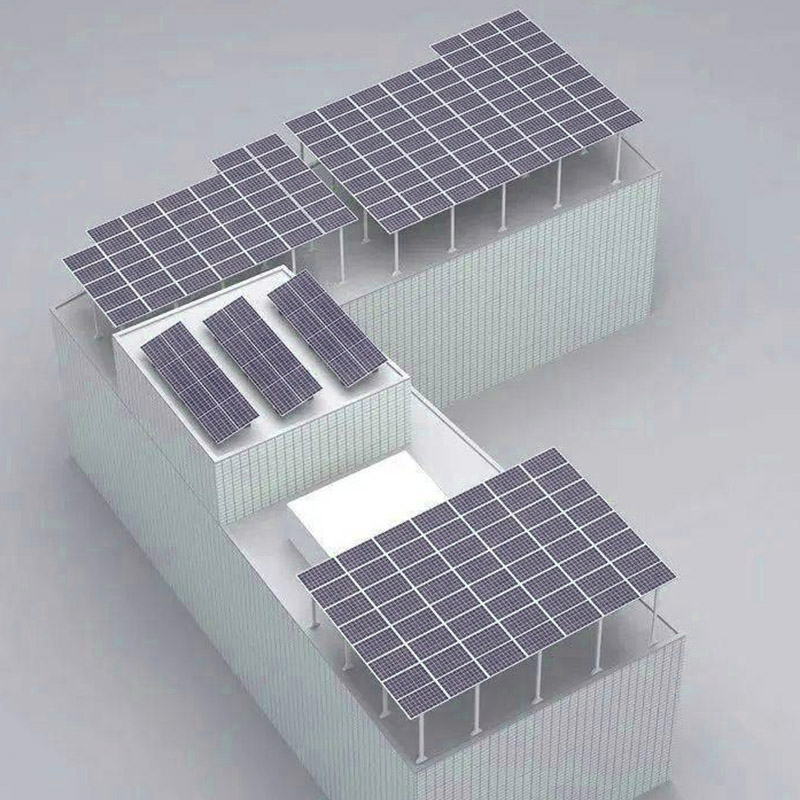

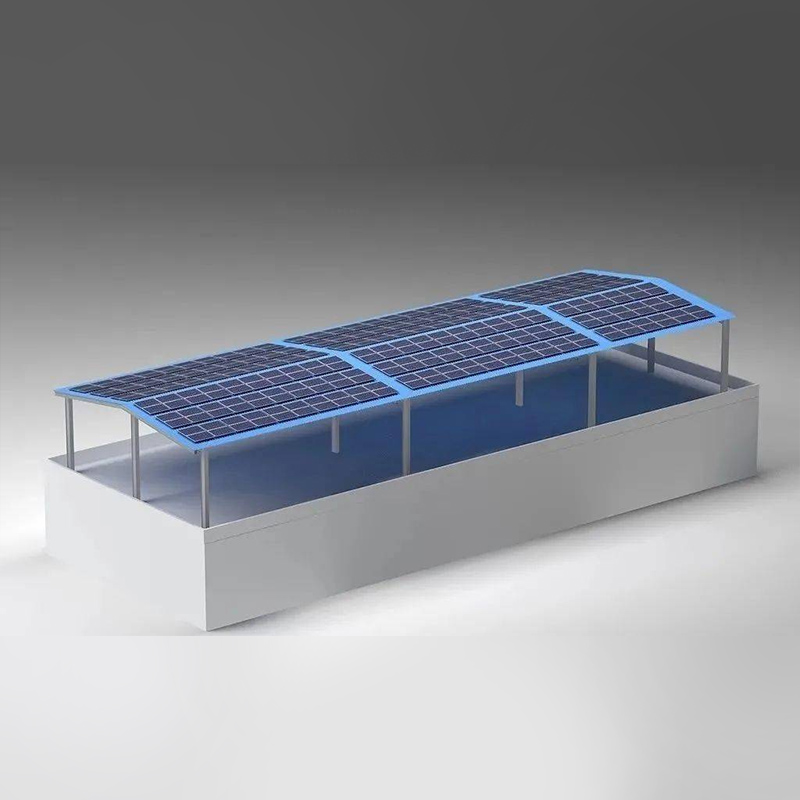

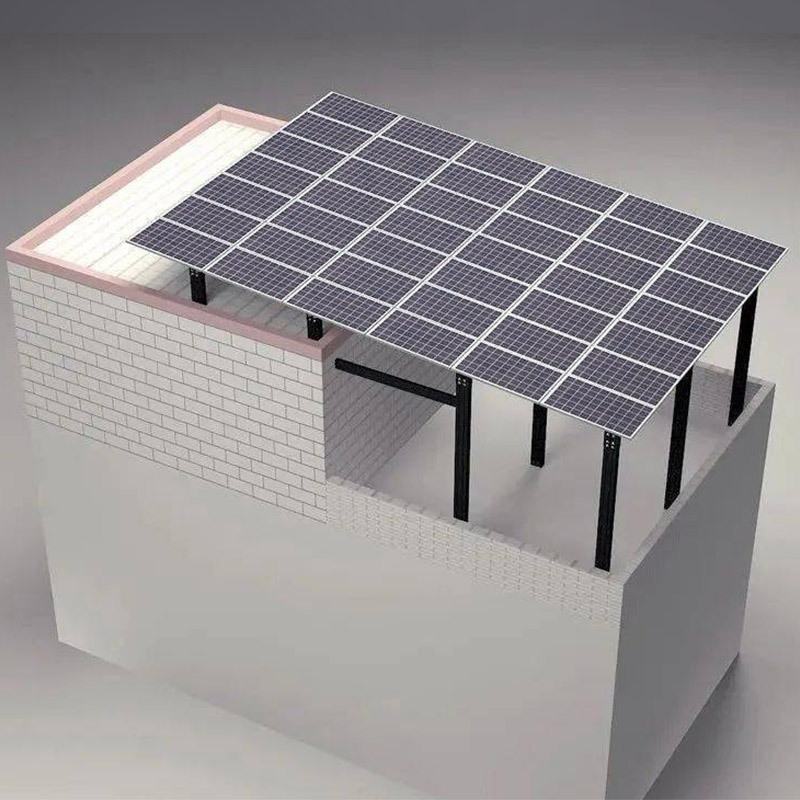

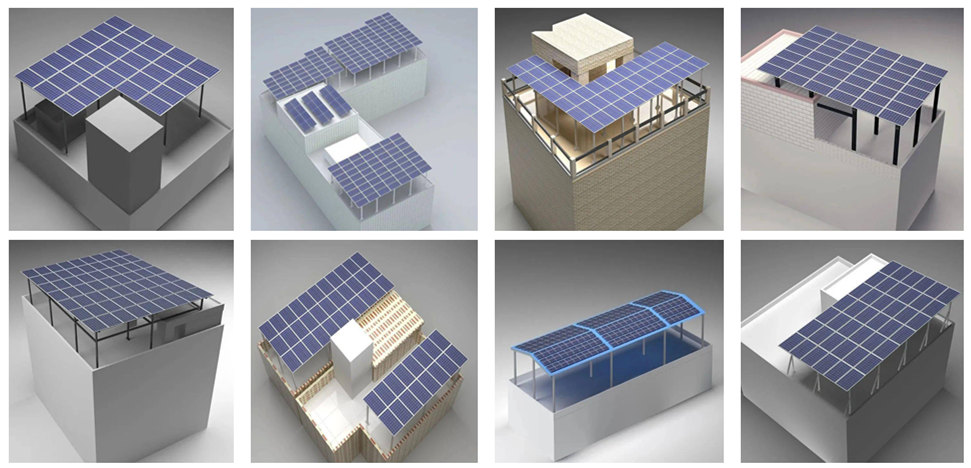

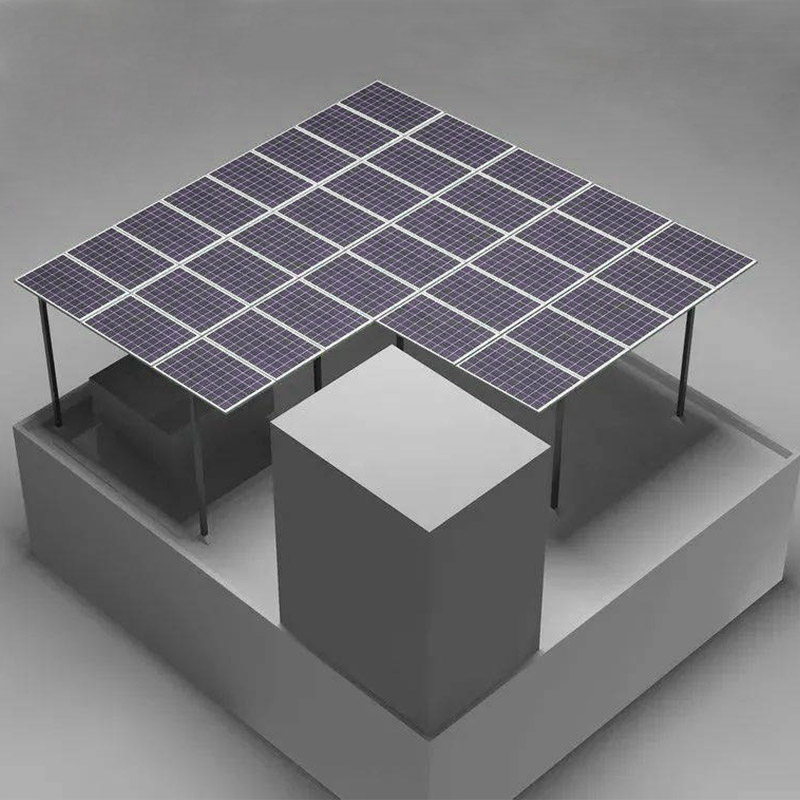

BIPV_Solar Mounting System is typically applied on flat open field ground or Rooftop. The concrete base is easy to build regardless of various soil conditions.
  • Item no.:

    KS-AG2-CB
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver, Black
  • Shipping port:

    Xiamen, China
  • Lead Time:

    7 days
  • Product Detail

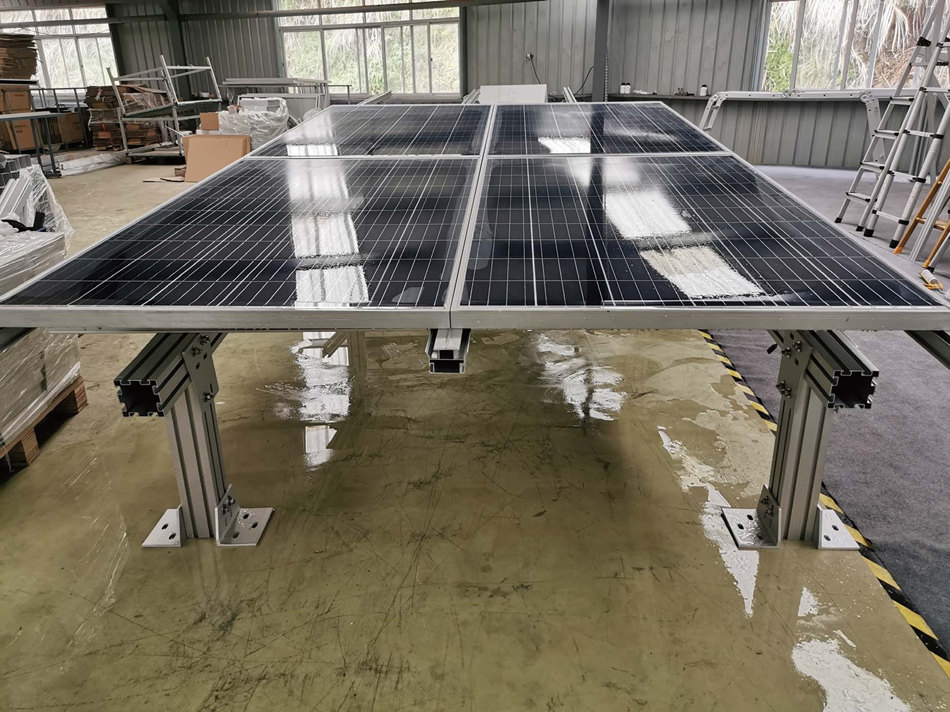

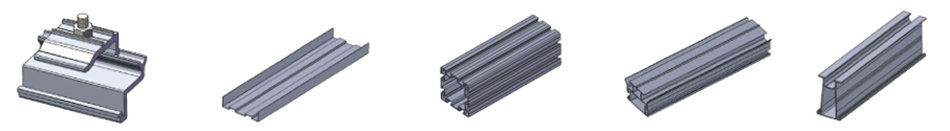

BIPV Solar mounting system is typically applied on flat open field ground or Rooftop. The  mounted solar structure with concrete base is easy to build. It is much easier to install. Main components of solar mount racking are high pre-assembled in our factory, which save lots of your on site installing time and cost. Components are full sides anodized even for small parts, which has a great anti-corrosion effect and long lifetime.




  • Pre-assembled in factory, save the onsite installing time and cost
  • Light material, easier for transportation
  • Longer lifetime comparing to steel
  • 12 years warranty and 25 years service life


Details



Related Products



   Installation Site

Open Field Area_Aluminum ground mounting system

   Installation Base

Ground screws and concrete foundations optional

Tilt angle

0°- 45°

   Max Wind Speed

< 60m/s

   Snow Load

< 80cm

   Standards

AS/NZS 1170 &JIS C 8955-2011

    Material

Al6005-T5 for aluminum profiles and clamps.Stainless steel for fasten bolt and nut.

    Anti-corrosive

 Anodized

    Warranty / Duration

 12 years/ More than 25 years
