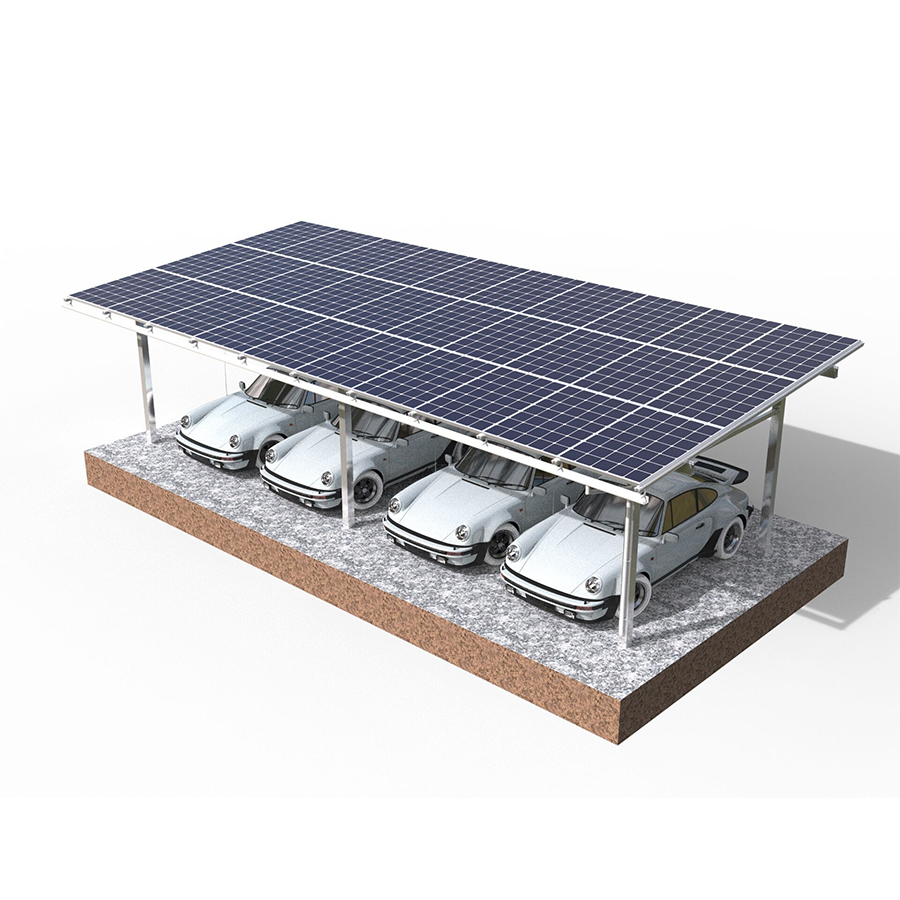

Waterproof Carport System Double Column

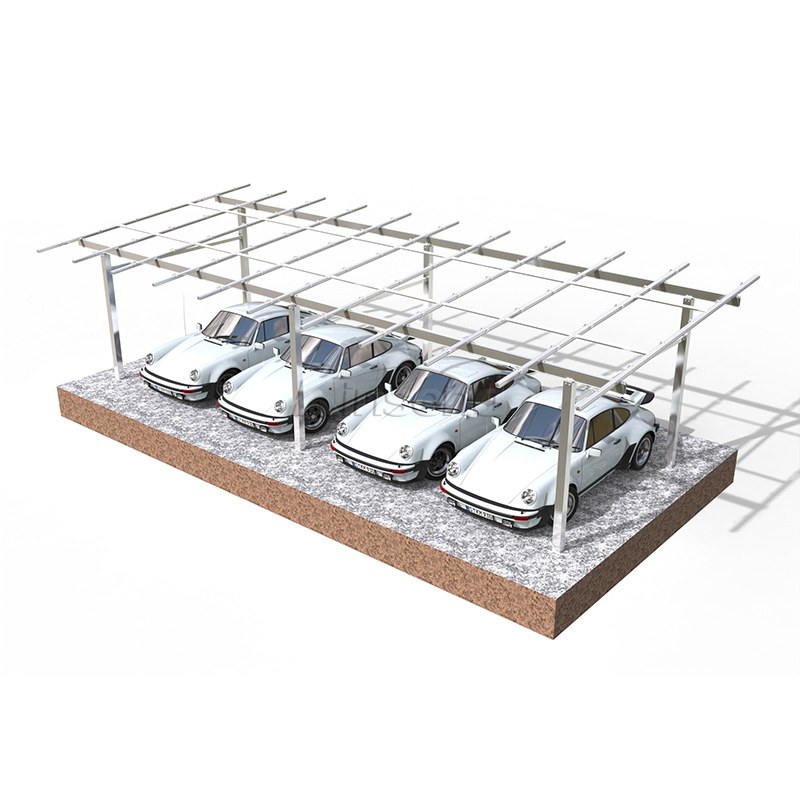

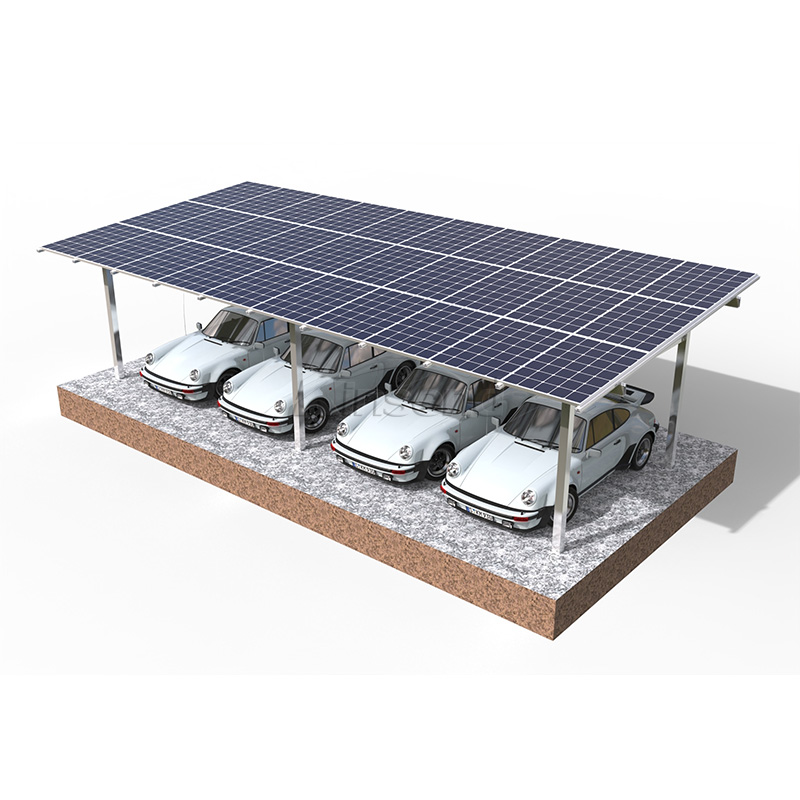

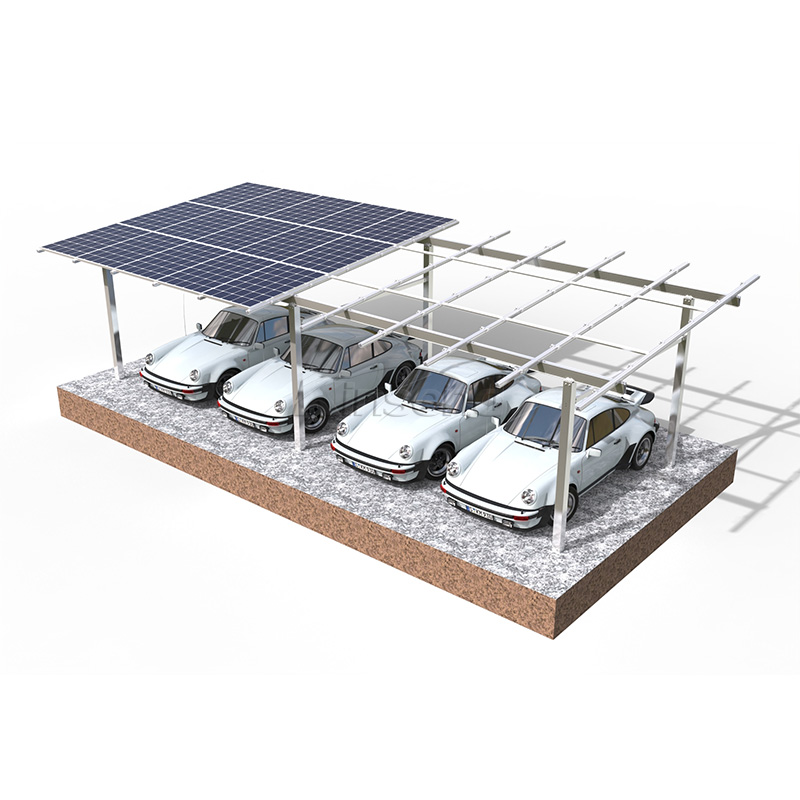

Solar carport with concrete base, which is convenient and easy to install, suitable for open land for residential or commercial buildings, like shopping mall.

The solar carport system is arranged with reasonable spans according to the parking needs of customers, making it convenient for vehicles to enter and exit.

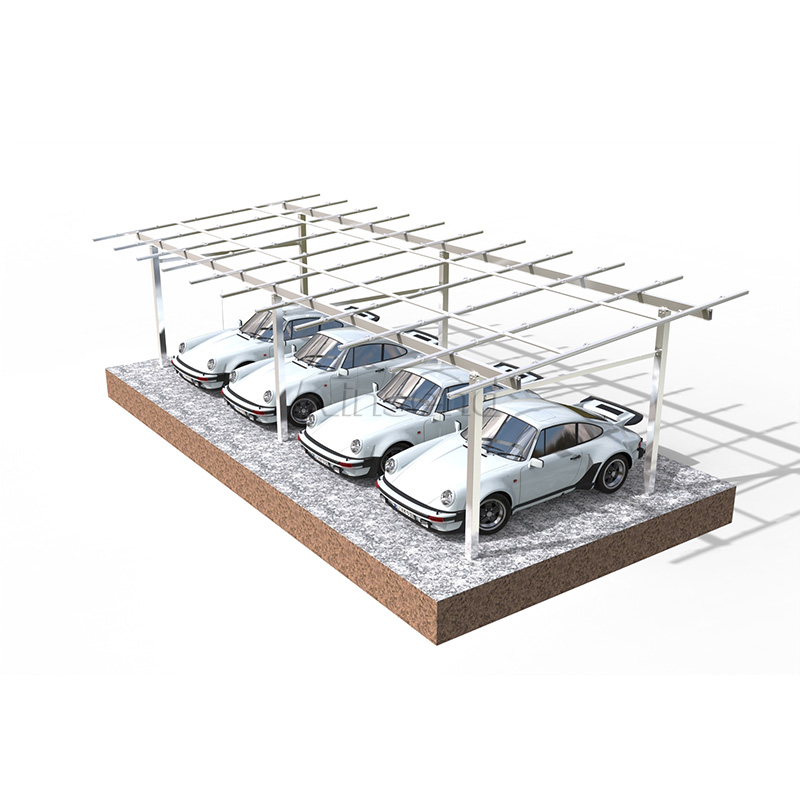

Fast Installation Solar Carport Racking，The N-shaped structure is more streamlined, reducing the cost of the entire carport system and reducing obstruction to vehicles.

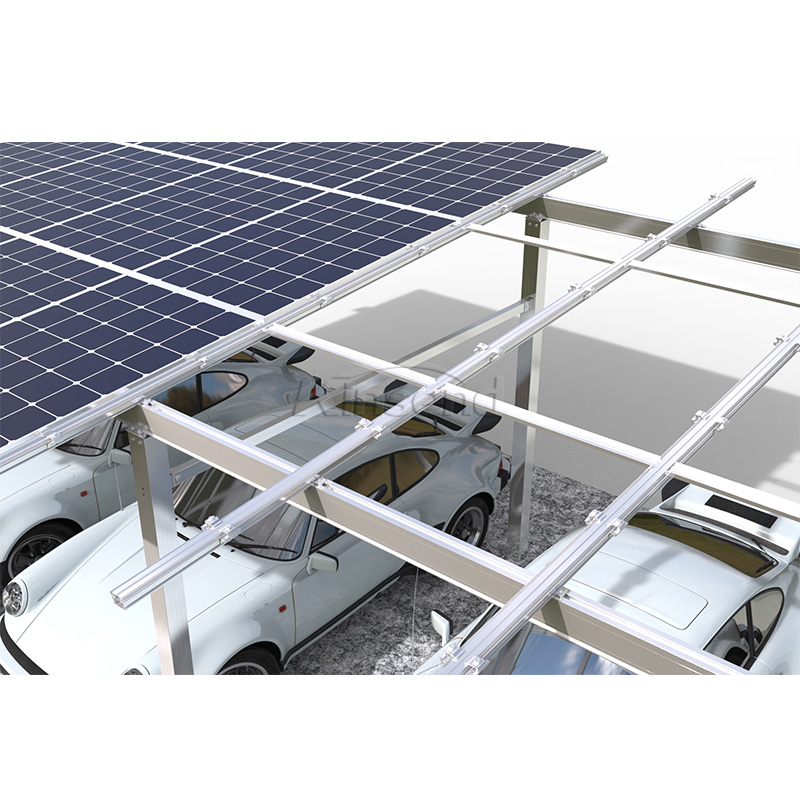

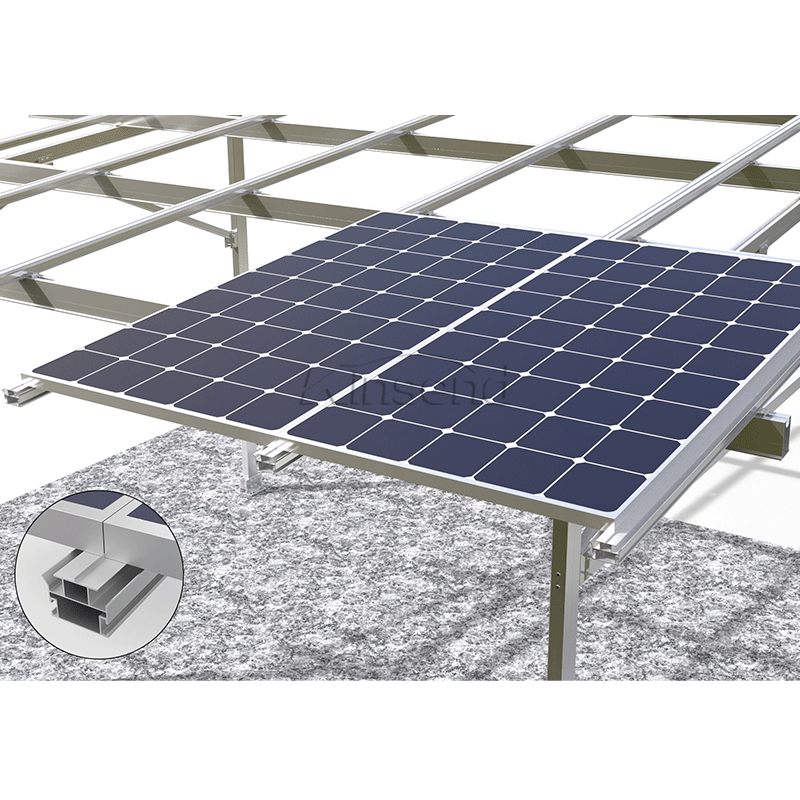

Solar carport Mounting System adopts anodized aluminum material，40% components are pre-assembled in factory ensure the bracket with fast installation Save your labor costs. The panel can be directly installed on the waterproof carport structure, and the quickly installed waterproof guide rail makes the entire system more concise and beautiful. Excellent waterproof performance  High corrosion resistance, anodized aluminum profiles High pre-assembly on factory to save your installation time  Building on parking lot, saving land resources    Installation Site Open Field Area, or Supper Mall Parking Area ,    Installation Base Concrete base, Ground Clearance Over 2000mm Tilt angle Up to 20° or Customized tilt angle Economic layout Customized waterproof rail 3 rows of modules with vertical assembly 6 rows of modules with horizontal assembly    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years Details

Solar carport bracket adopts thicker profiles, which can increase the span to make the carpark more concise and safe,

High suitability carport mounting system with panels horizontally layout , and solar installations in both waterproof and non waterproof carport structure are optional.

Lightweight rails can be installed on metal roofs, The U-shaped structure is a combination of guide rails and clamp. low cost and quick installation. Riveted or screwed onto raised corrugations. Every size of module array possible Simple and fast installation No Rails necessary Low material / Low fiting costs Details      Installation Site Trapezoidal and corrugated sheet metal    Installation Base Riveted or screwed onto raised corrugation    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011     Material Al6005-T5 & Stainless steel     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years
