Aluminum Solar Carport_N Type

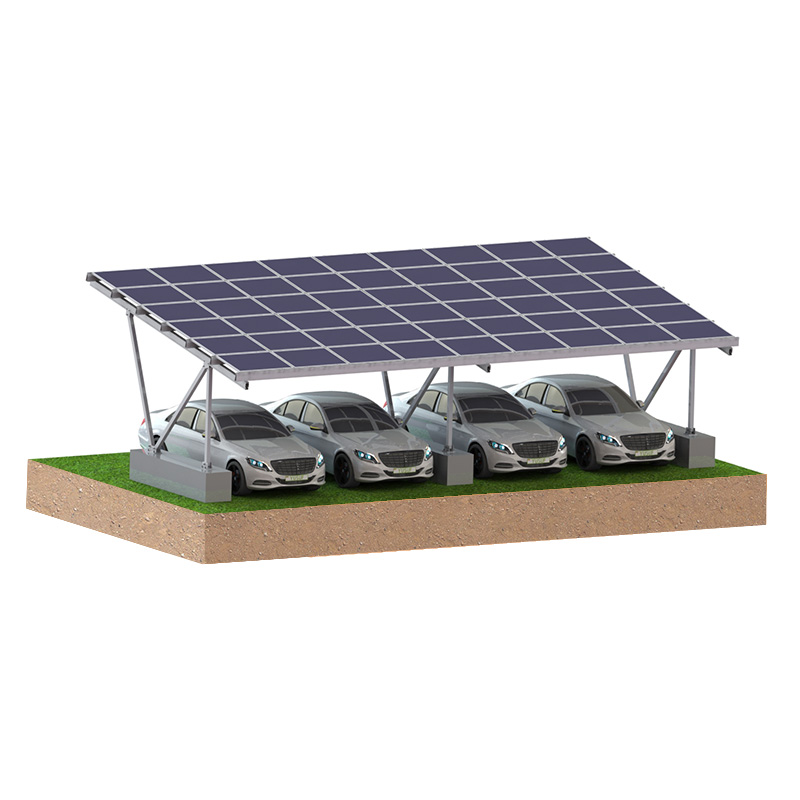

Fast Installation Solar Carport Racking,The N-shaped structure is more streamlined, reducing the cost of the entire carport system and reducing obstruction to vehicles.



  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver, Black
  • Shipping port:

    Xiamen, China
  • Lead Time:

    7-14 days
  • Product Detail



Fast Installation Solar Carport Racking,The N-shaped structure is more streamlined, reducing the cost of the entire carport system and reducing obstruction to vehicles. Lightweight aluminum bracket with high pre assembly service. Widely applicable to parks, residential areas, and other areas.




  • High pre-assembly on factory to save your installation time
  • Ground screw foundation and concrete foundation acceptable
  • High corrosion resistance, anodized aluminum profiles
  • Simple and fast installation




   Installation Site

Open Field Area, or Supper Mall Parking Area

   Installation Base

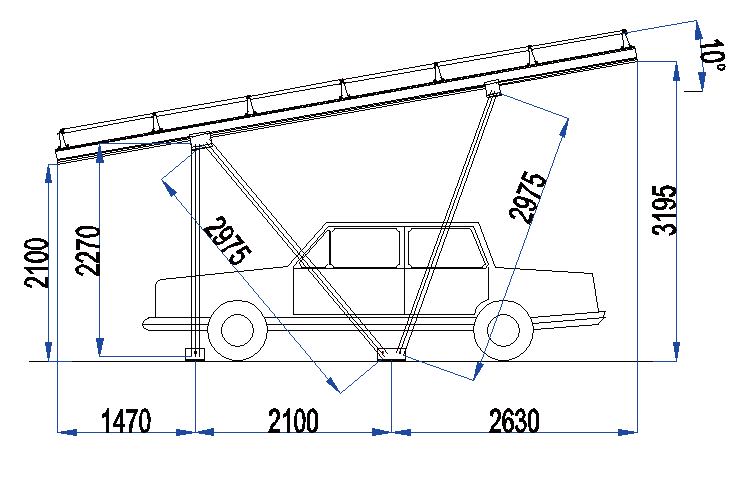

Concrete base, Ground Clearance Over 2000mm

Tilt angle

Up to 20° or Customized tilt angle

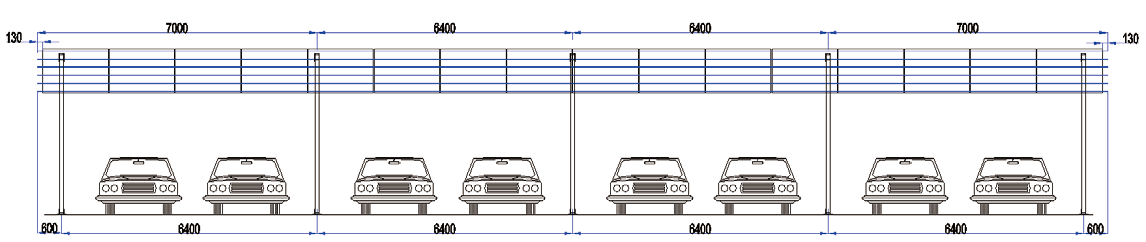

Economic layout

3 rows of modules with vertical assembly

6 rows of modules with horizontal assembly

   Max Wind Speed

< 60m/s

   Snow Load

< 80cm

   Standards

AS/NZS 1170 &JIS C 8955-2011

    Material

Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304

    Anti-corrosive

 Anodized

    Warranty / Duration

 12 years/ More than 25 years

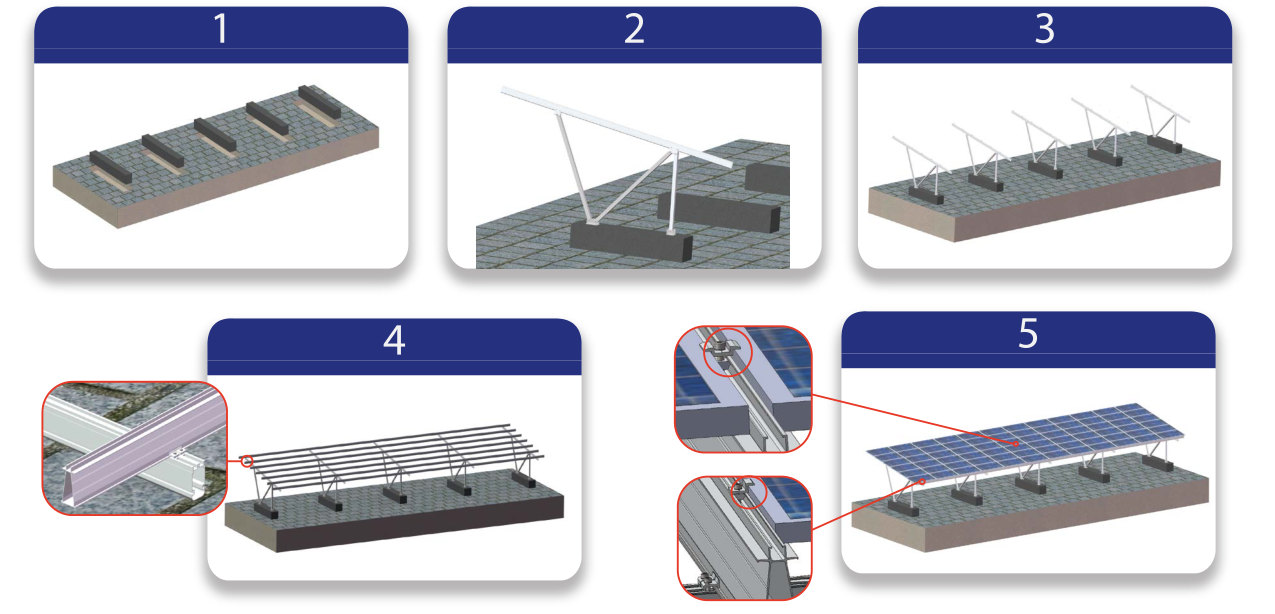

Details

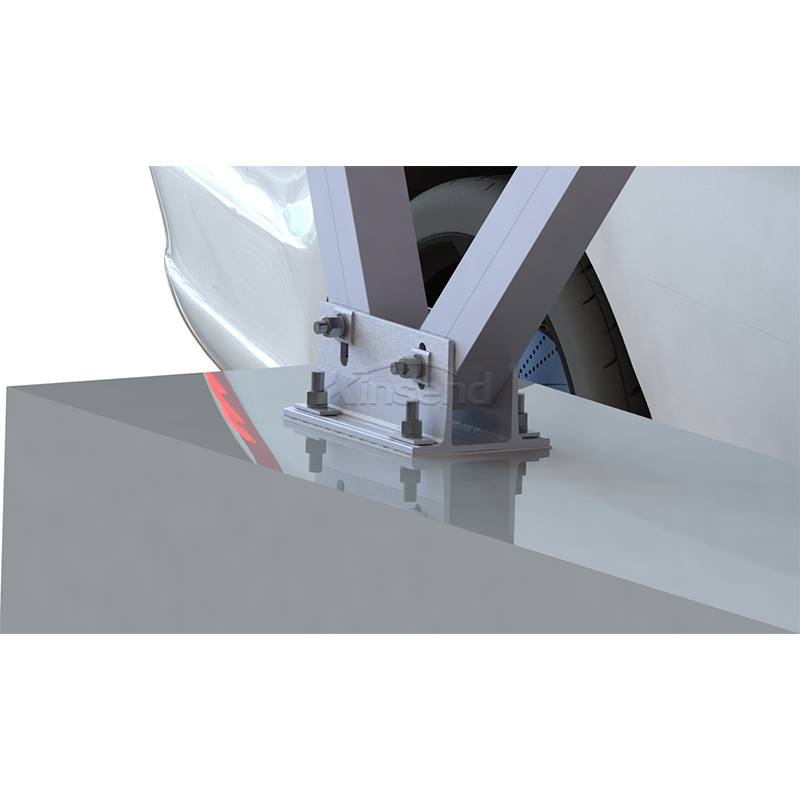

  1  Base installation :  Make the concrete foundation base, bury the L screw set.

  2. Open pre-assembly installation:   Supporting beam and feet installation .

  3. Complete the overall Feet and base installation installation:  Make sure they are on the same height

  4. Rail installation:  Rail splice connection,Fix the rail on the supporting beam with rail clamp.

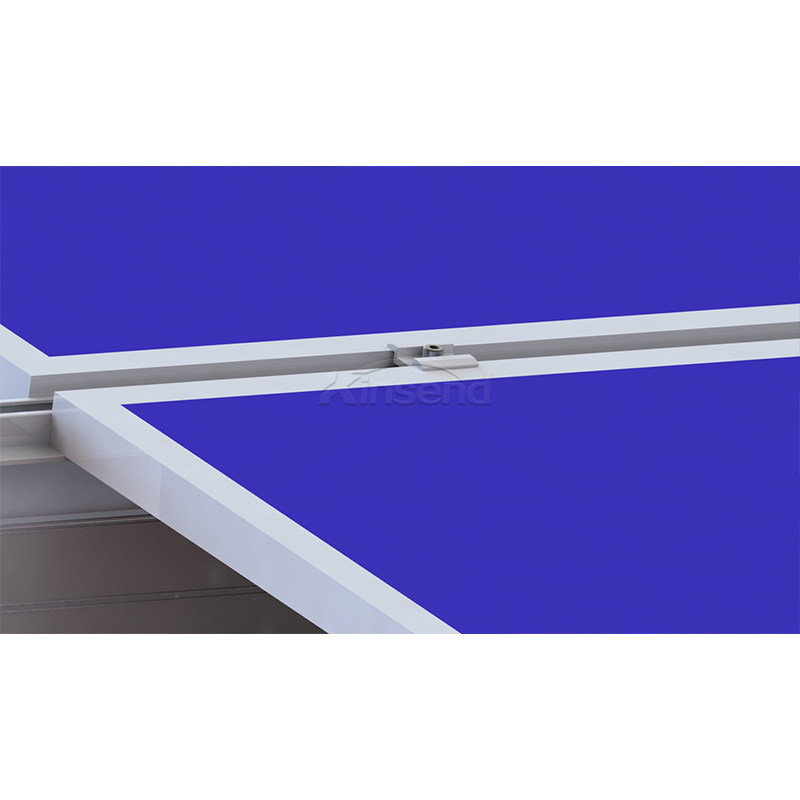

  5. Panel installation:   From end of rail one by one, Fix the end of panel with end clamp, fix the middle part with mid clamp.
