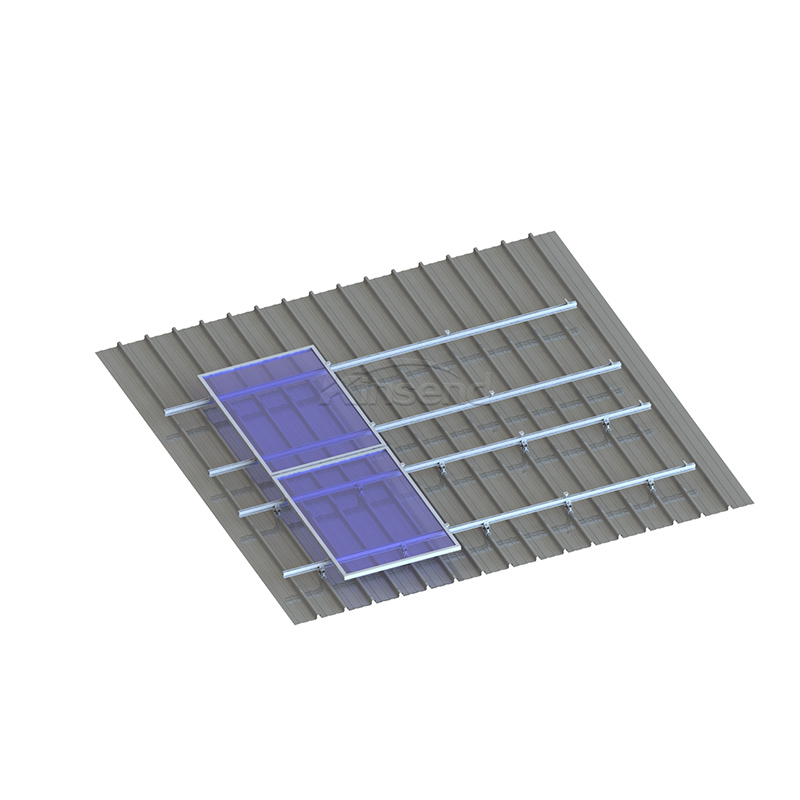

Standing Seam Solar Metal Roof Mount

The standing seam roof clamps easy mounting on the folded seam rooftops. The clamps are designed to catch the standing seams effectively with ease. Clamps offer a secure fastening without penetrating the roof sheets, with maximum stability and minimum weight.

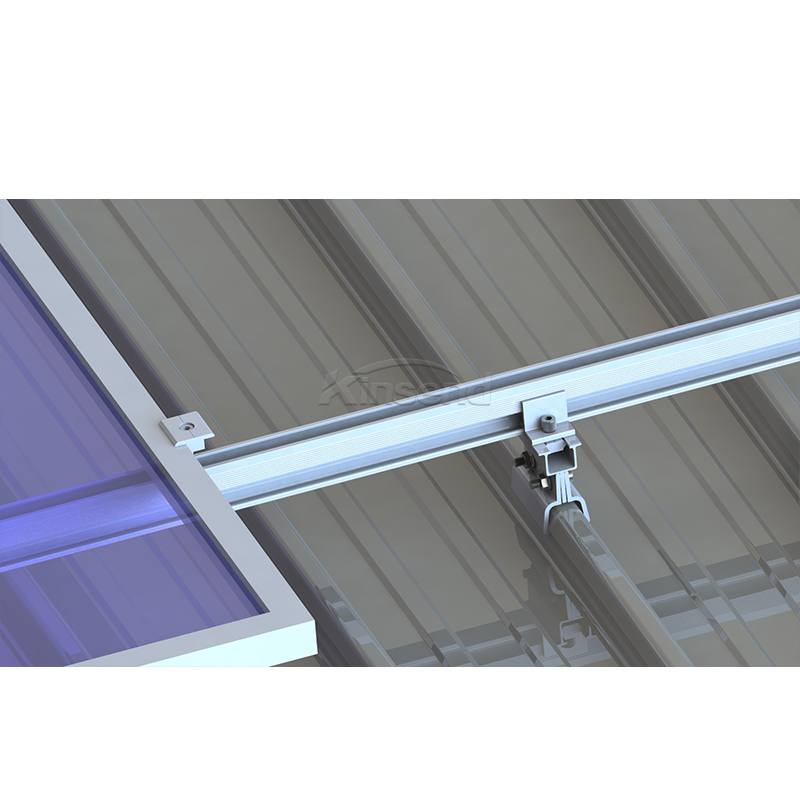

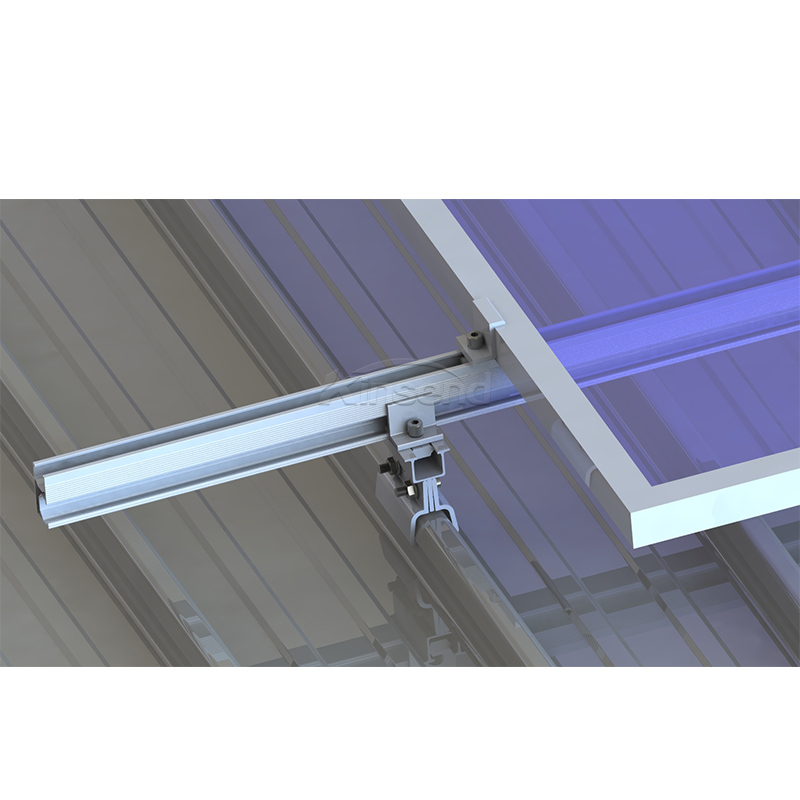

Kinsend's New ECO SYSTEM Is a more lightweight and easy to install system. Fix the 406 cliplock  on the rooftop metal plate and tighten the bolts. Fix the ECO rail on the 406 cliplock with Hex screw. PV module on the ECO Rail with mid clamps and end clamps.

The lightweight rail has a price advantage and is easy to install. Combined with Standing Seam Clamps, it ensures installation and safety,

KLIP-LOK 406 Roof Hook

KLIP-LOK 700 Roof Hook

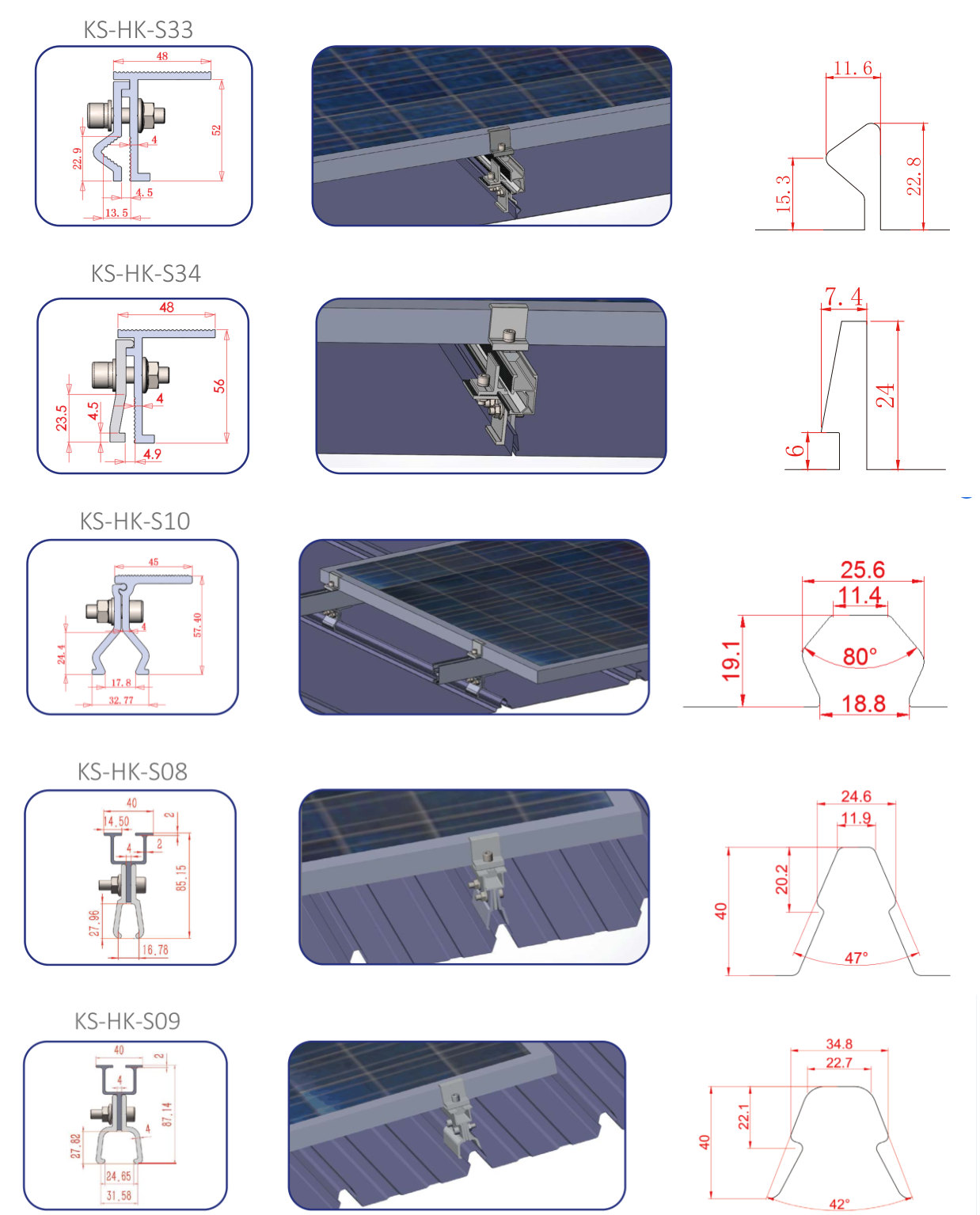

KLIP-LOK 406 Roof Hook , simply attached to the standing seams. Multiple types of clamps can be matched according to the Pitched roof mounting, so that it can be tightly clamped to ensure the firmness of the entire system. Aluminum hook & C block & Socket Head Screw. AL6005-T5 ,Clean Anodized with 12μm anodizing film thickness;  SUS 304 for fastener material    Directly connect with rail, side fixed Low fitting costs Every size of module array possible For all common rather distances Details     Related Products
