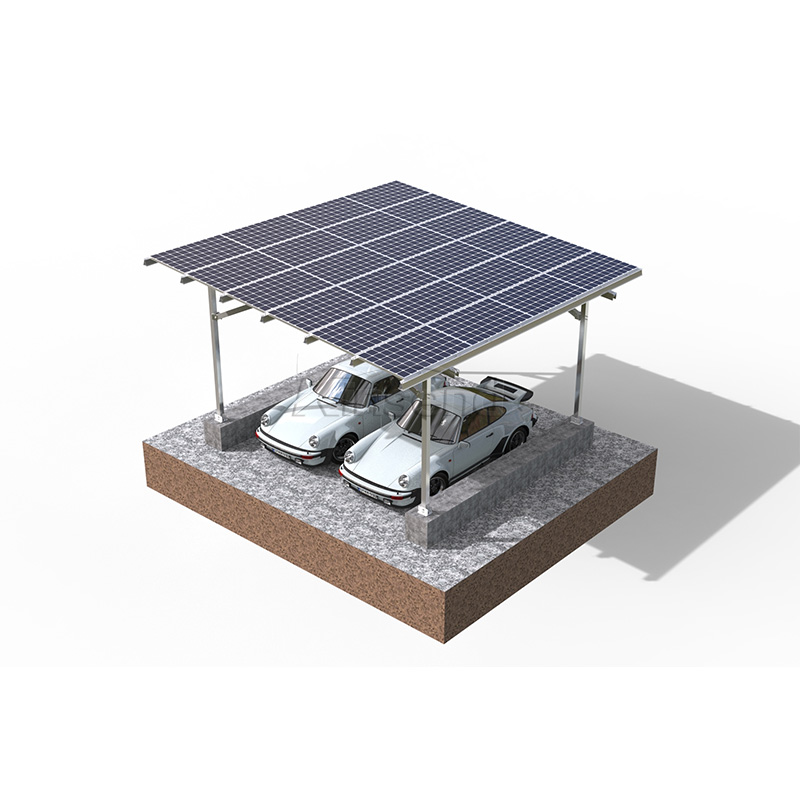

High Safety Carport Mounting System

Solar carport bracket adopts thicker profiles, which can increase the span to make the carpark more concise and safe,
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver, Black
  • Shipping port:

    Xiamen, China
  • Lead Time:

    7-14 days
  • Product Detail



Solar carport bracket adopts thicker profiles, which can increase the span to make the carpark more concise and safe, We have provided different design solutions for single row and double row parking lots. They are suitable for modules of any size.





  • Excellent waterproof performance
  • High corrosion resistance, anodized aluminum profiles
  • High pre-assembly on factory to save your installation time
  • Building on parking lot, saving land resources






   Installation Site

Open Field Area, or Supper Mall Parking Area

   Installation Base

Concrete base, Ground Clearance Over 2000mm

Tilt angle

Up to 20° or Customized tilt angle

Economic layout

3 rows of modules with vertical assembly

6 rows of modules with horizontal assembly

   Max Wind Speed

< 60m/s

   Snow Load

< 80cm

   Standards

AS/NZS 1170 &JIS C 8955-2011

    Material

Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304

    Anti-corrosive

 Anodized

    Warranty / Duration

 12 years/ More than 25 years
