Solar PV Mounting Tin Roof Hooks Aluminum L Feet Heightening type

Kensend's lengthened type L foot hook is widely used in PV systems in Korea and Europe for trapezoidal metal tin roof PV mounting systems.
  • Item no.:

    SHL-JTD-161
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver, Black
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days
  • Product Detail

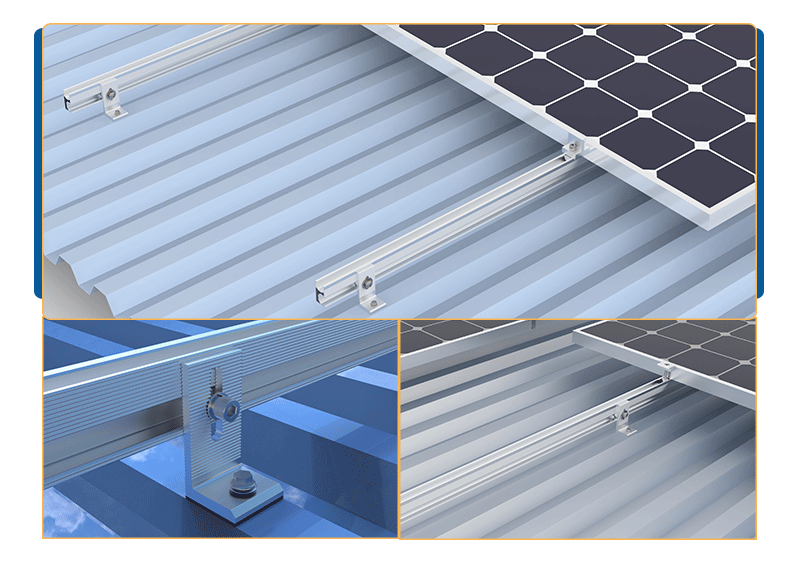

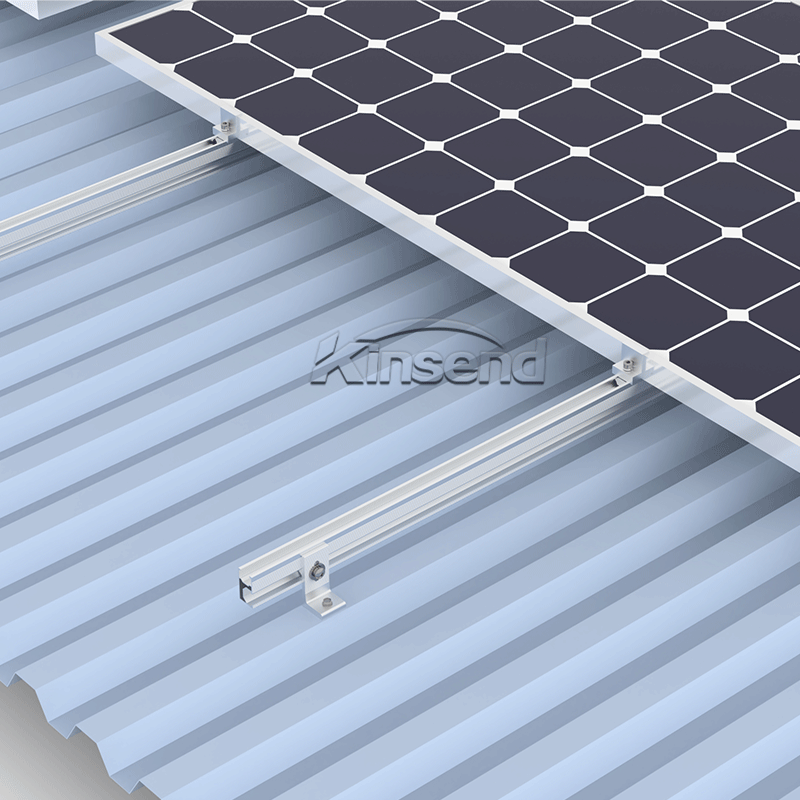

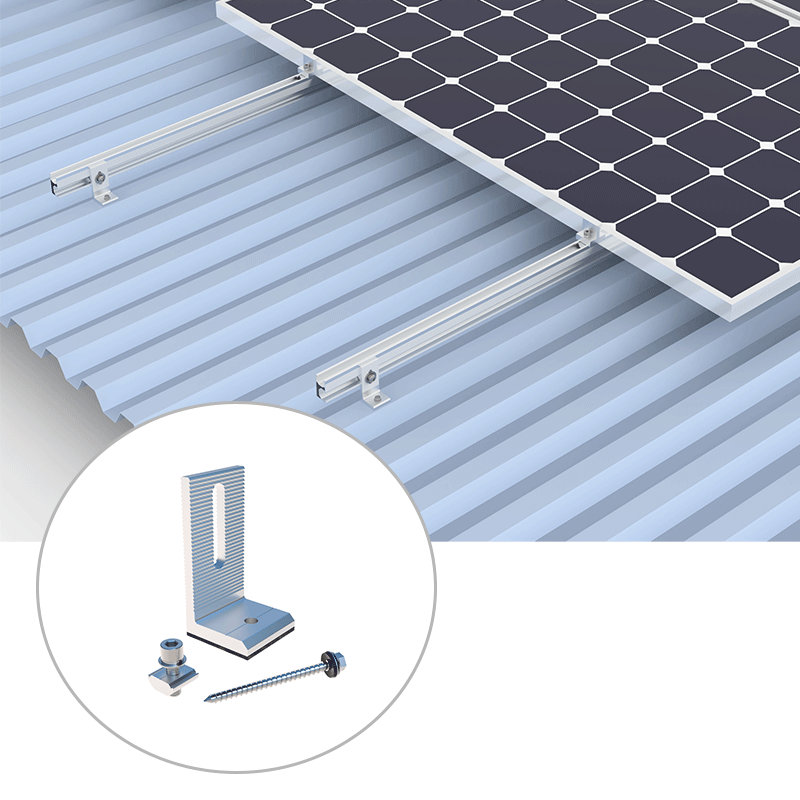

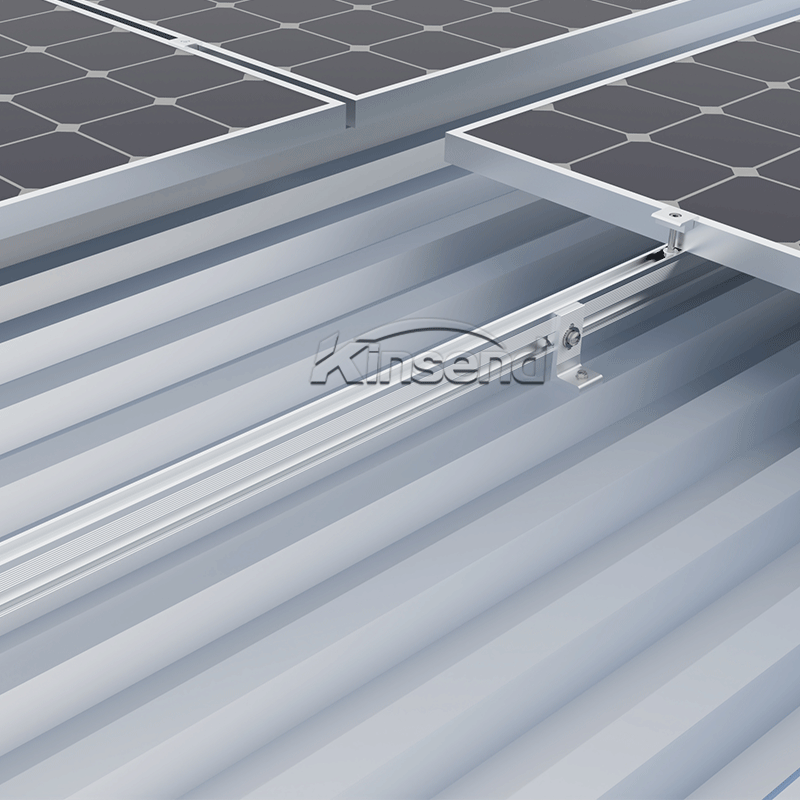

Kensend's lengthened type L foot hook is widely used in Korea and Europe for trapezoidal metal roof PV mounting systems. The heightening Solar Tin Roof L foot hook advantage for solar panel heat dissipation, because the solar panel is held higher .Trapezoidal metal roofing is the type of corrugated plate commonly Used on roofs of many buildings at present. L-foot scheme is adopted on trapezoidal metal roof mounting system , which is convenient for installation and lighter in overall weight.




  • Profile hardness requirements ≥13HW
  • After machining the surface anodized treatment, the minimum film thickness ≥10μm
  • Burr removal clean, sharp edge, sharp Angle are blunt
  • Full sides anodizing

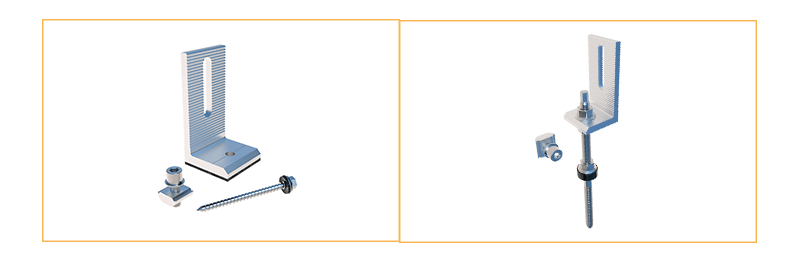

Components List

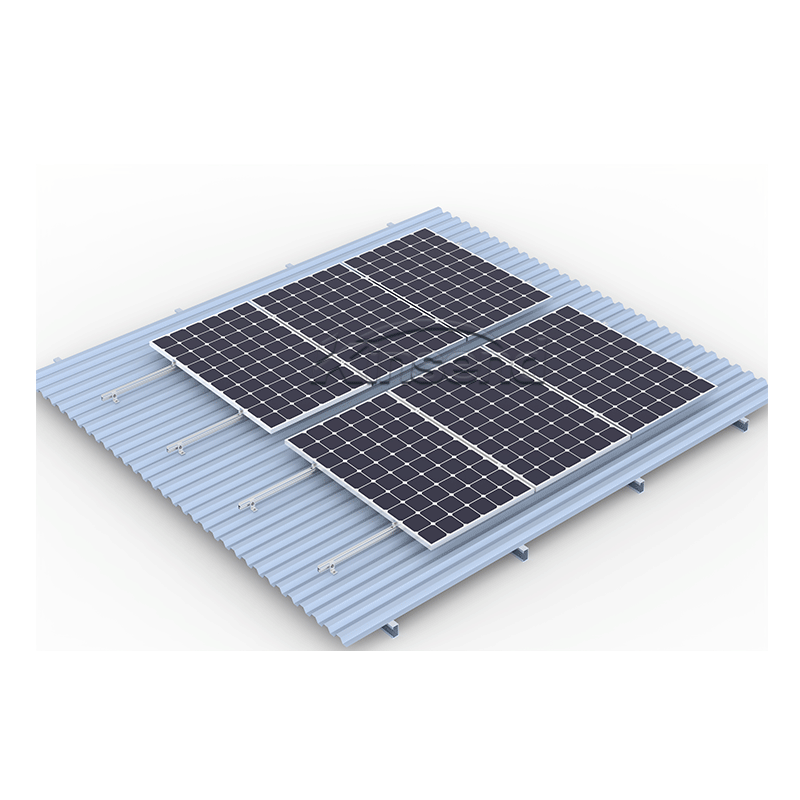

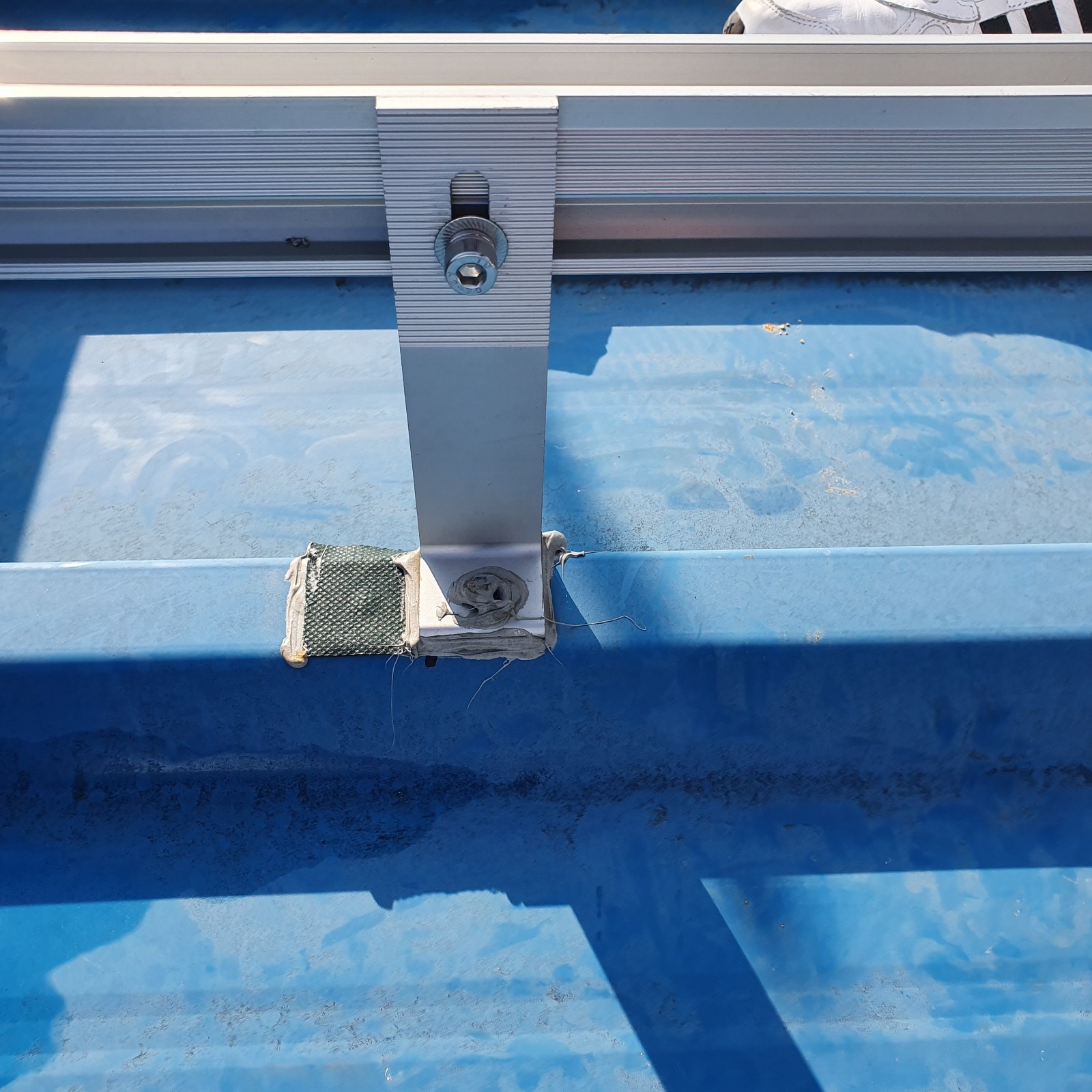

Install site Trapezoid / Corrugated Metal Rooftop
Max Wind Speed   ≤60m/s
Snow Load   ≤1.4KN/M2
Tilt Angle 0 degree
Applicable Module   Framed or frameless
Standards   AS/NZS 1170, ASCE 7-10, JIS2017
Material   AL6005-T5, SUS304
Anti-corrosive   Anodized
Color   Silver
Warranty   12 years warranty
