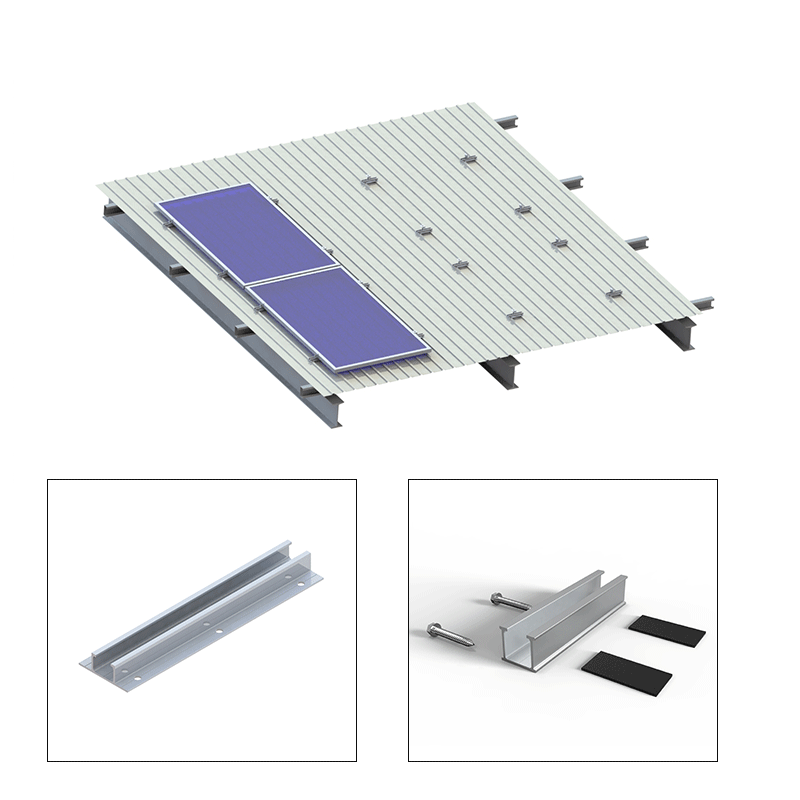

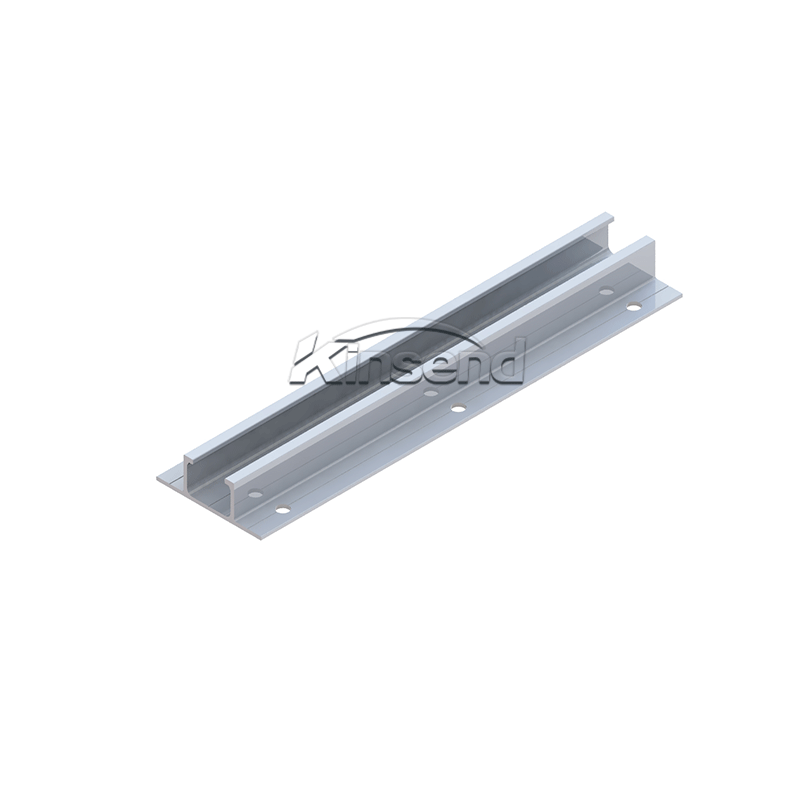

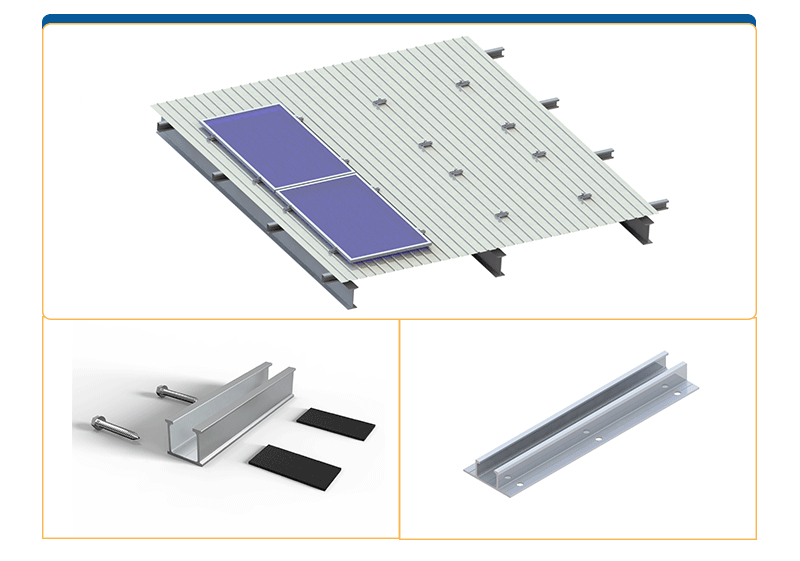

U Shape Aluminium Rails _Quickly Metal Mounting

Lightweight rails can be installed on metal roofs, The U-shaped structure is a combination of guide rails and clamp.
  • Item no.:

    KS-UR-1000
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver, Black
  • Shipping port:

    Xiamen, China
  • Lead Time:

    7-14 days
  • Product Detail

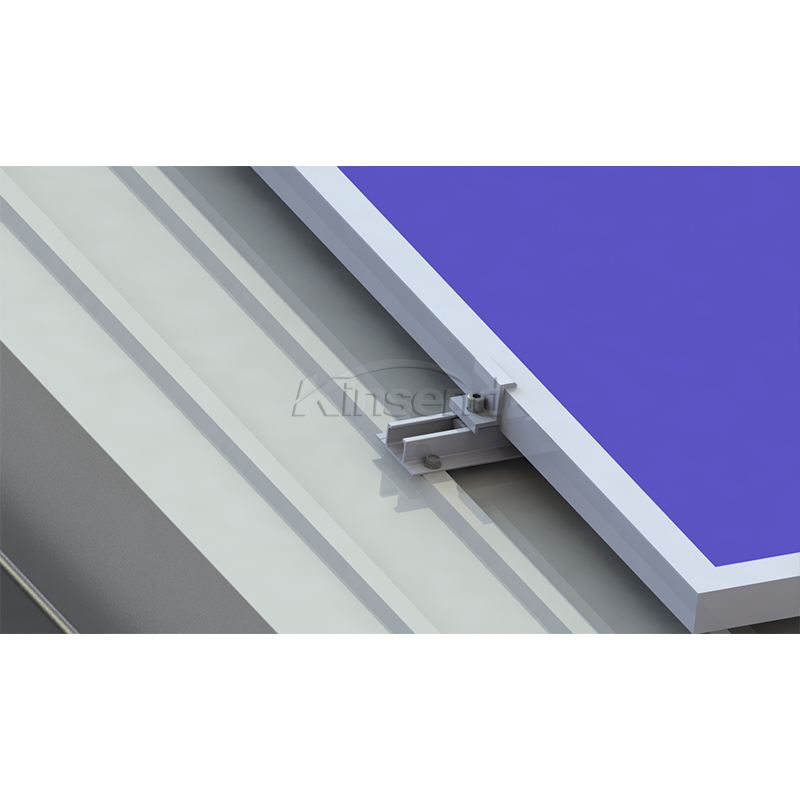

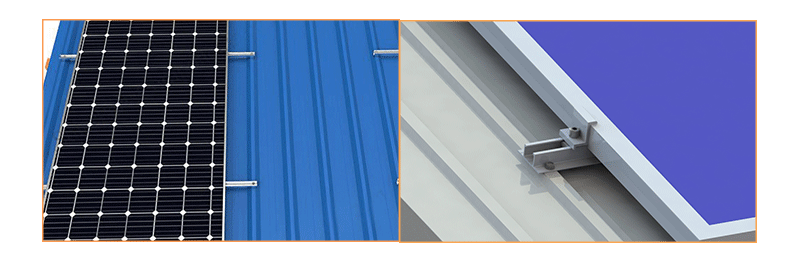

Lightweight rails can be installed on metal roofs, The U-shaped structure is a combination of guide rails and clamp. low cost and quick installation. Riveted or screwed onto raised corrugations.



  • Every size of module array possible
  • Simple and fast installation
  • No Rails necessary
  • Low material / Low fiting costs


Details


   Installation Site

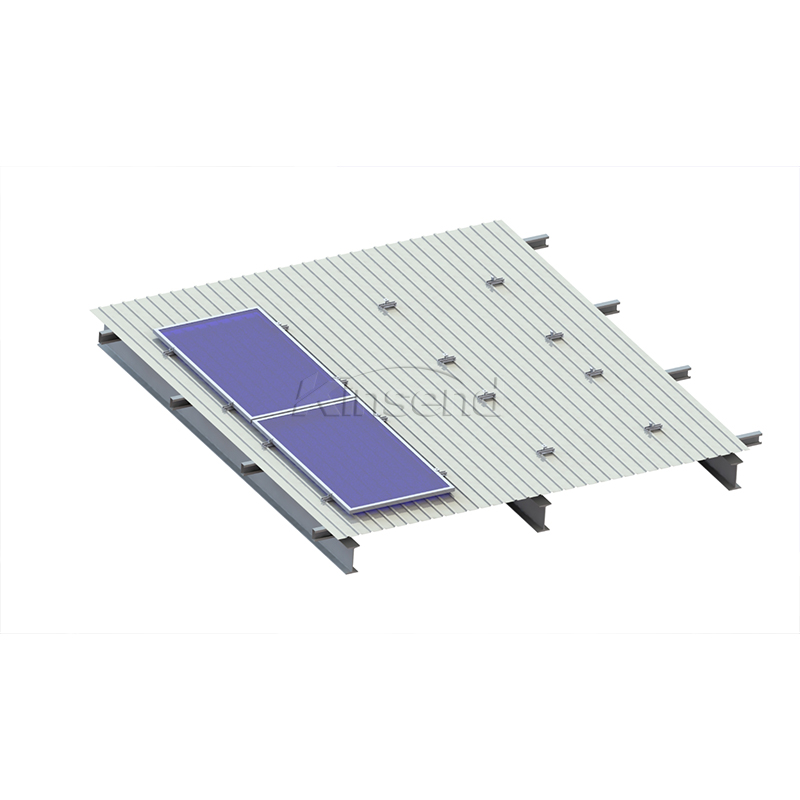

Trapezoidal and corrugated sheet metal

   Installation Base

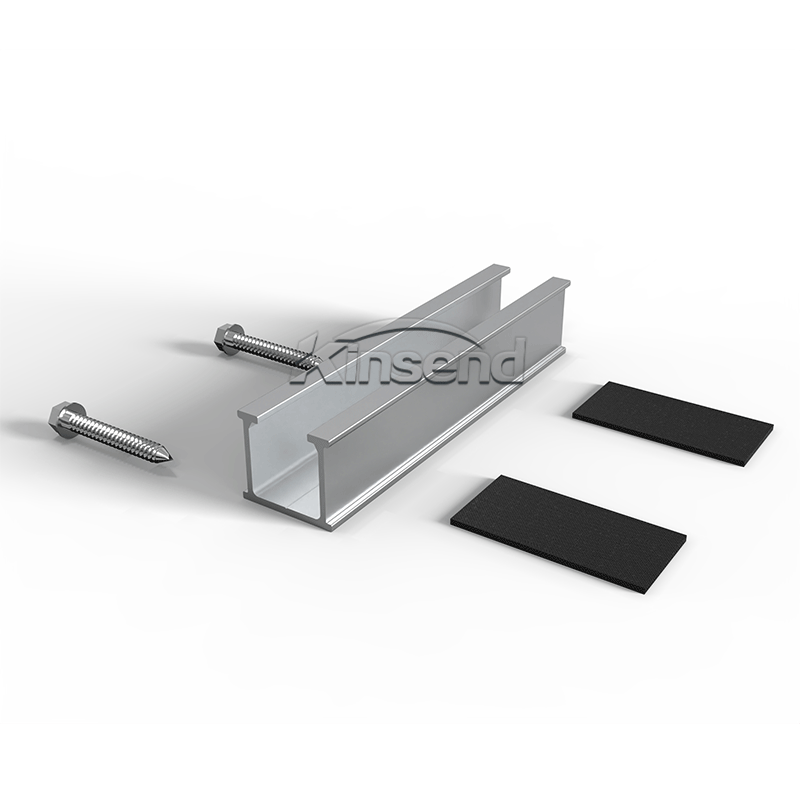

Riveted or screwed onto raised corrugation

   Max Wind Speed

< 60m/s

   Snow Load

< 80cm

   Standards

AS/NZS 1170 &JIS C 8955-2011

    Material

Al6005-T5 & Stainless steel

    Anti-corrosive

 Anodized

    Warranty / Duration

 12 years/ More than 25 years
