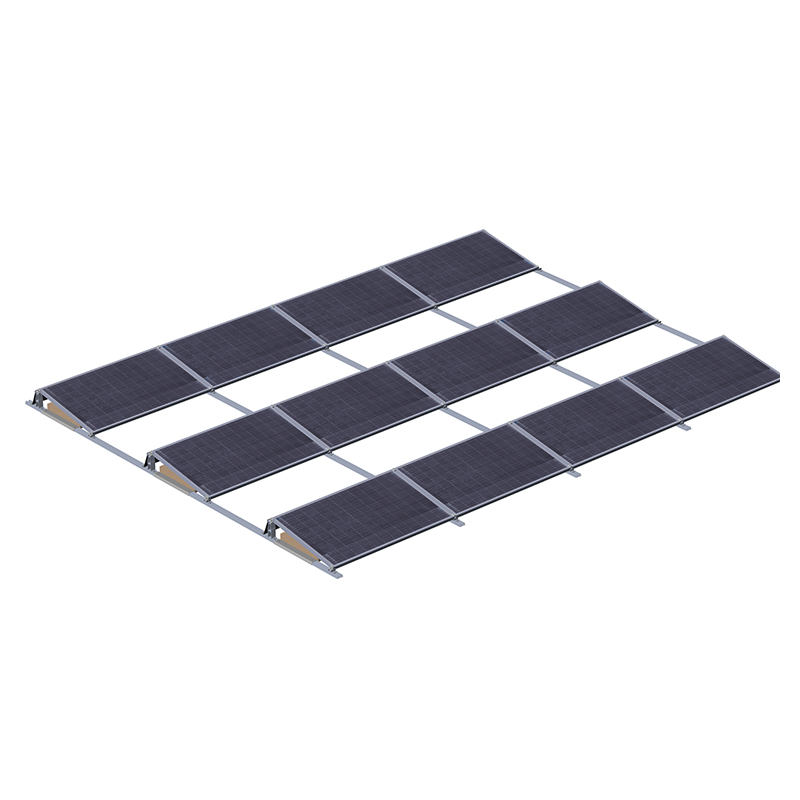

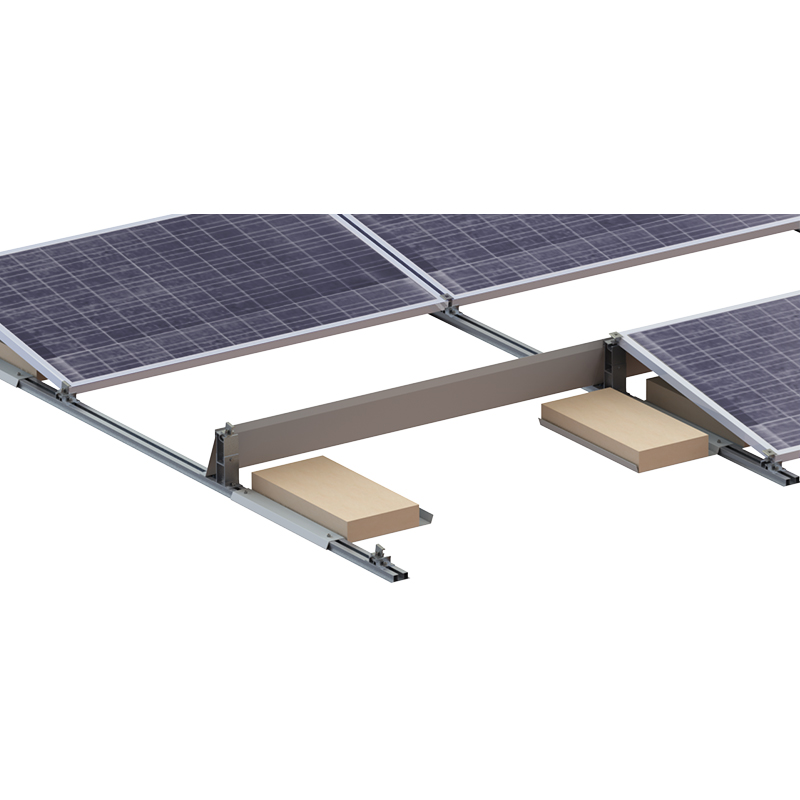

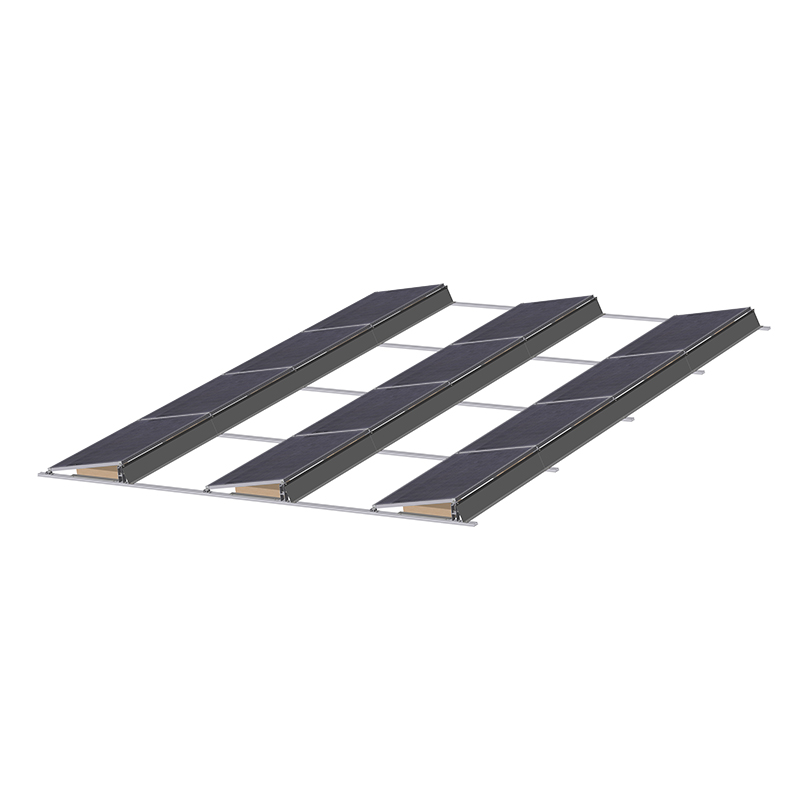

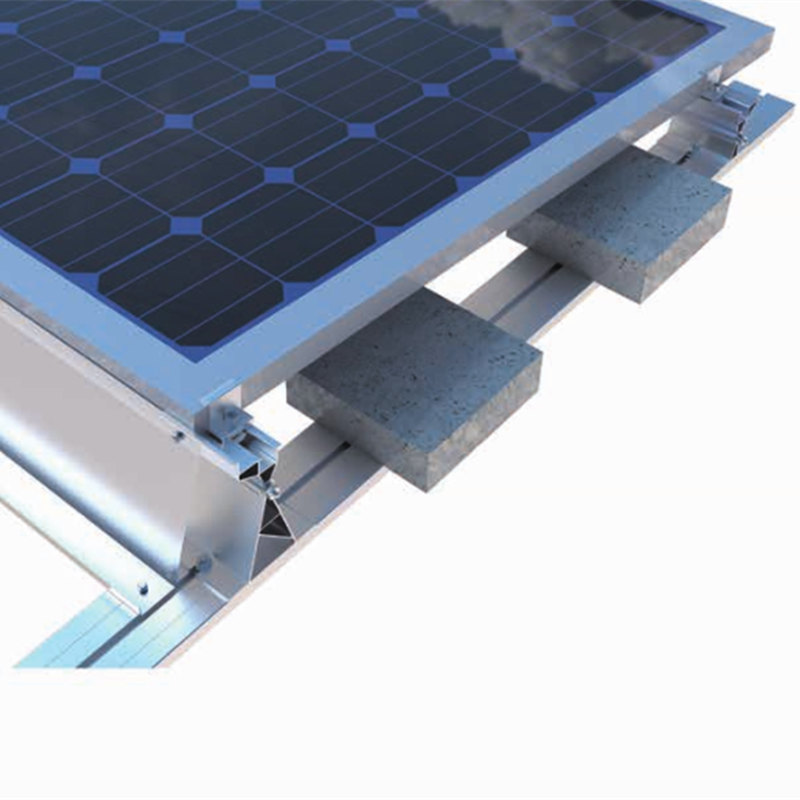

Ballast Solution Flat rooftop System Clamp Support

Ballast tripod flat rooftop mounting system is a type of solar panel mounting system that is designed for flat rooftops. This system uses a tripod structure that is weighted down with ballasts to provide a stable and secure foundation for the solar panels.
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver, Black
  • Shipping port:

    Xiamen, China
  • Lead Time:

    7-14 days
  • Product Detail



Ballast tripod flat rooftop mounting system is relatively easy to install and can be done quickly, which can reduce the installation time and labor costs. ballast tripod flat rooftop mounting system is an effective and efficient solution for flat rooftop solar panel installations that require stability and security without the need for roof penetration.




  • Reduce the installation time and labor costs
  • Makes it a versatile solution for a variety of flat rooftop applications
  • Pre-assembled Components Save Onsite Installation Time
  • Easy and quick installed by using our bolts and nuts

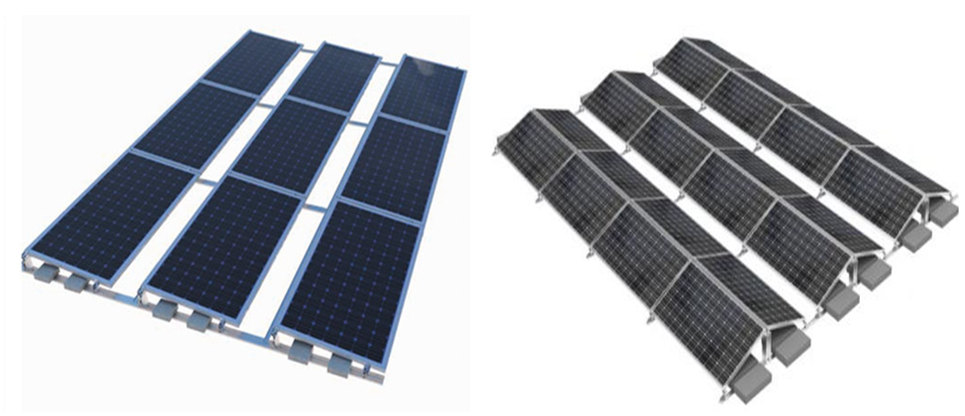

                          Single Row Solution                                    Double Rows Symmetrical Solution

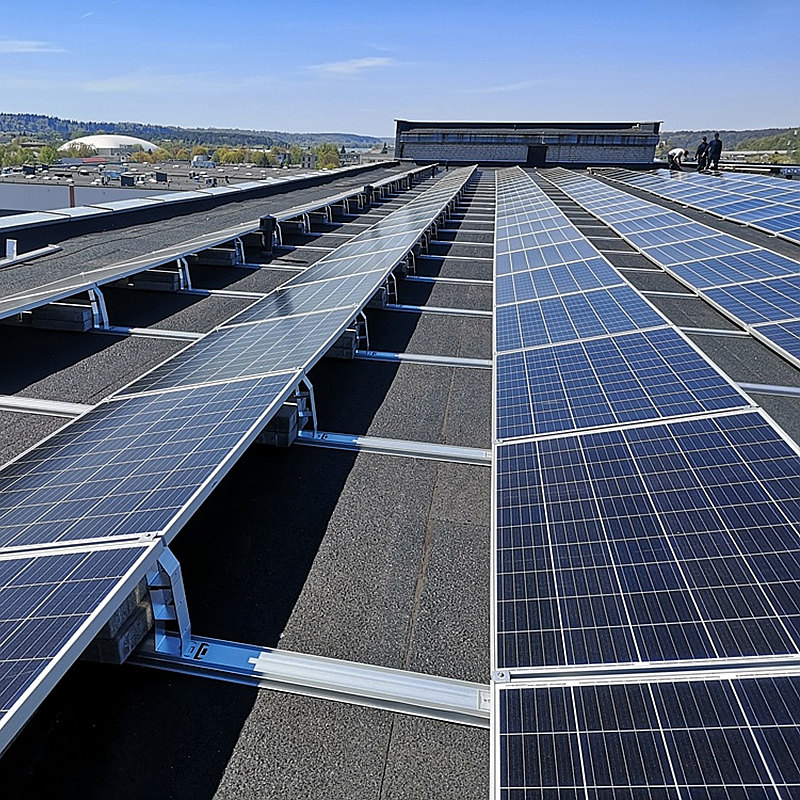

   Installation Site

Open Field Area_Flat rooftop or Ground

   Installation Base

Ballasted Tilt Solution

Tilt angle

5°- 45°

   Max Wind Speed

< 60m/s

   Snow Load

< 80cm

   Standards

AS/NZS 1170 &JIS C 8955-2011

    Material

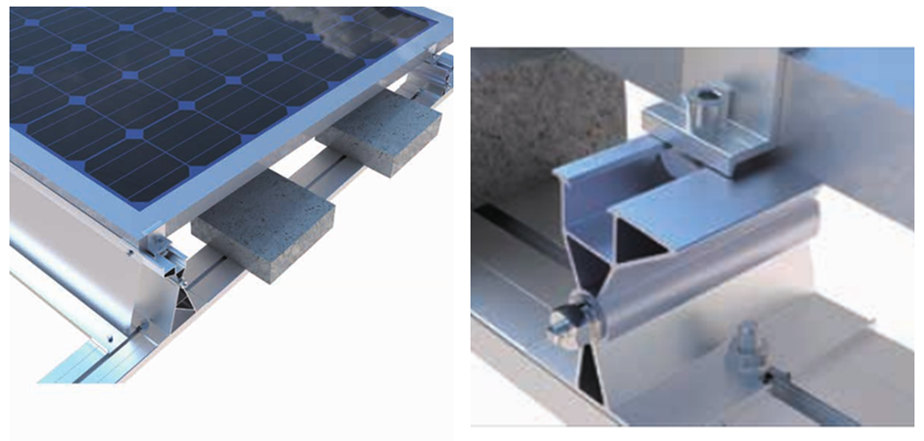

Al6005-T5 for aluminum profiles and clamps.Stainless steel for fasten bolt and nut.

    Anti-corrosive

 Anodized

    Warranty / Duration

 12 years/ More than 25 years
