Standing Seam Clamp Roof Mounting System

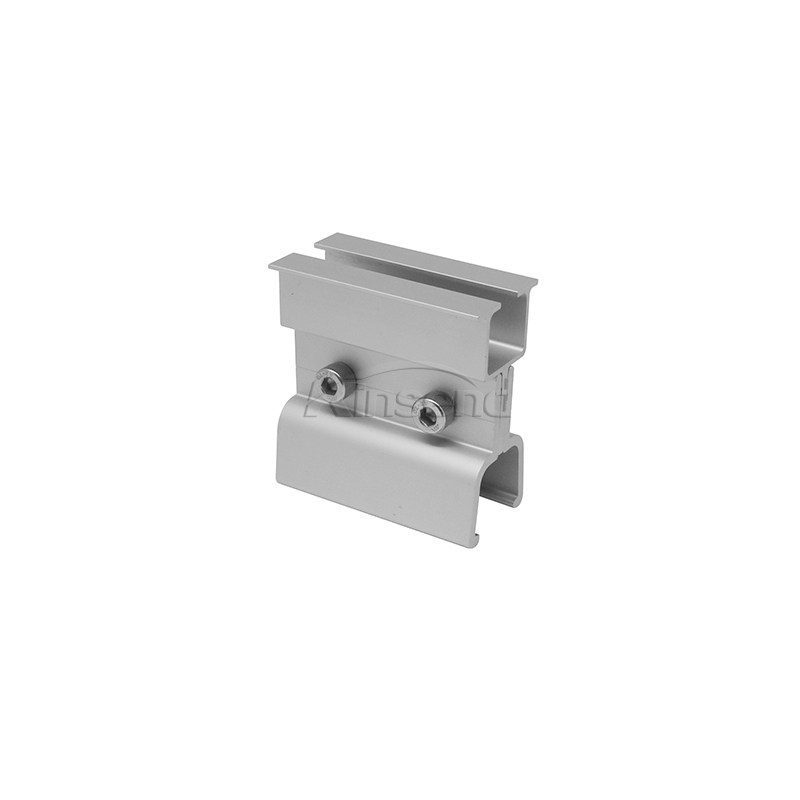

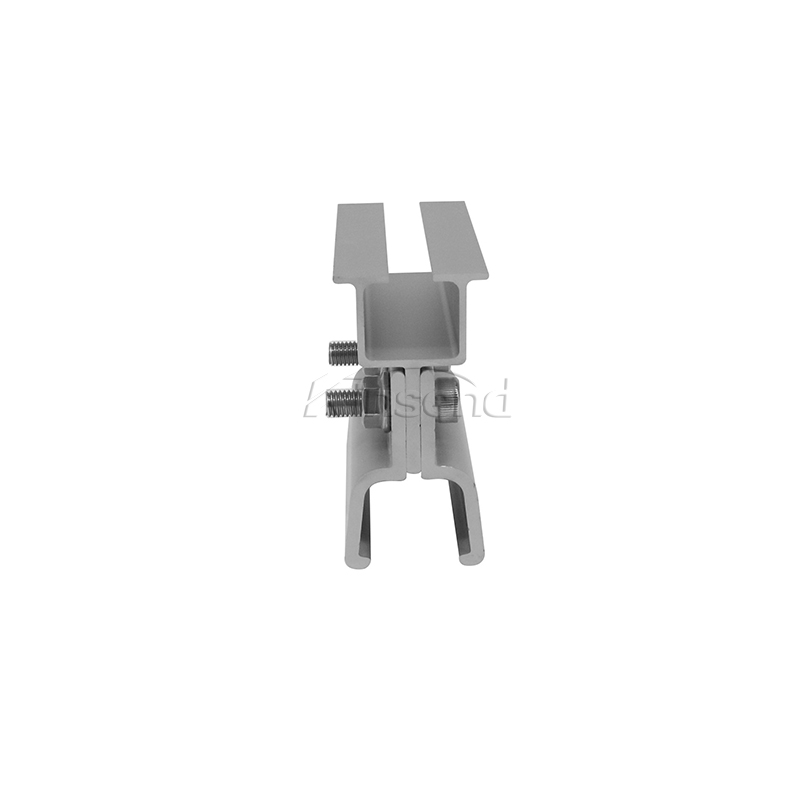

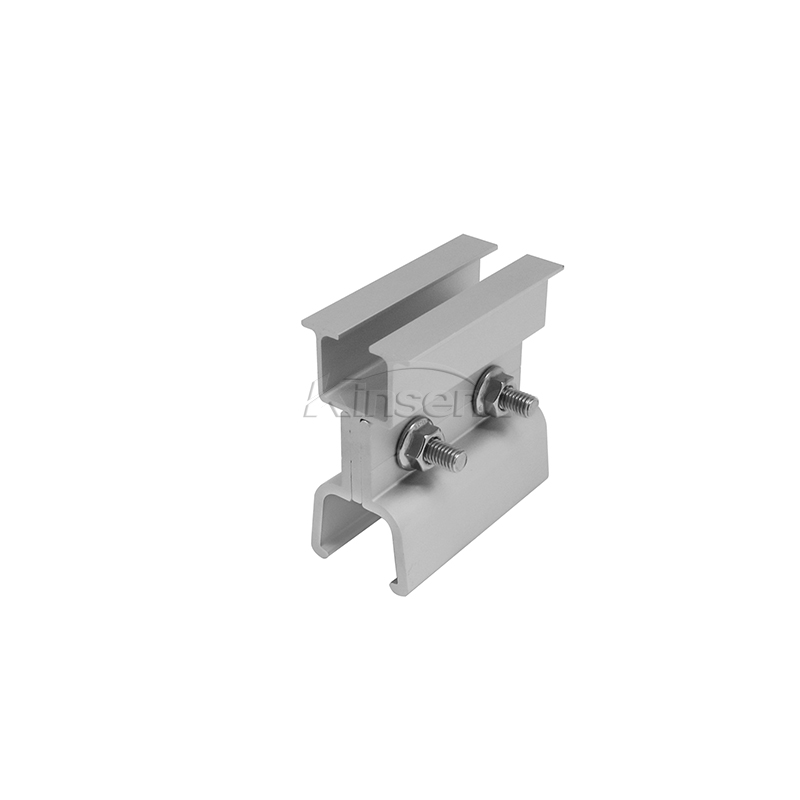

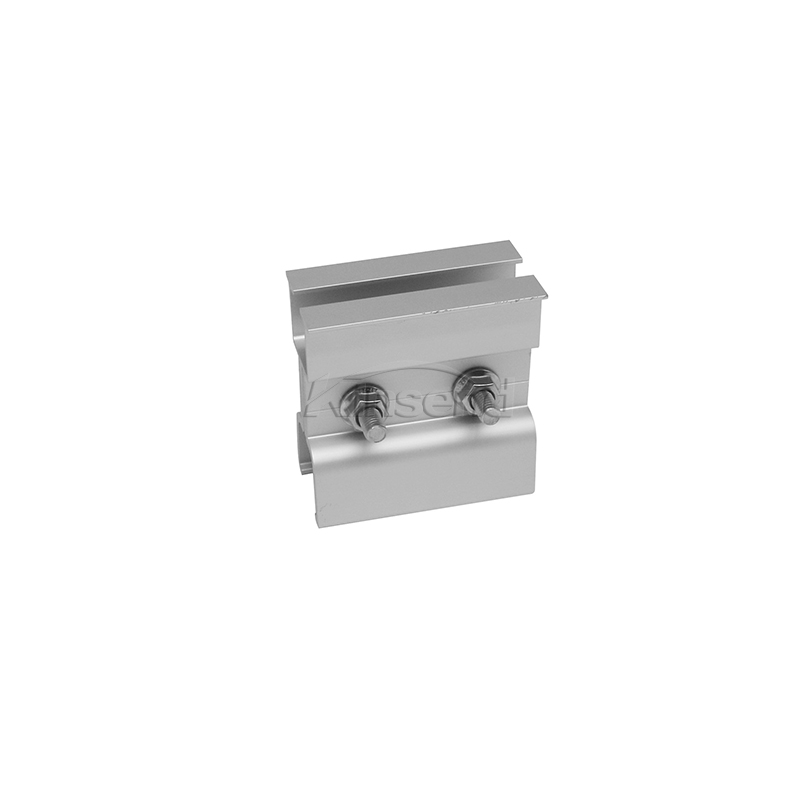

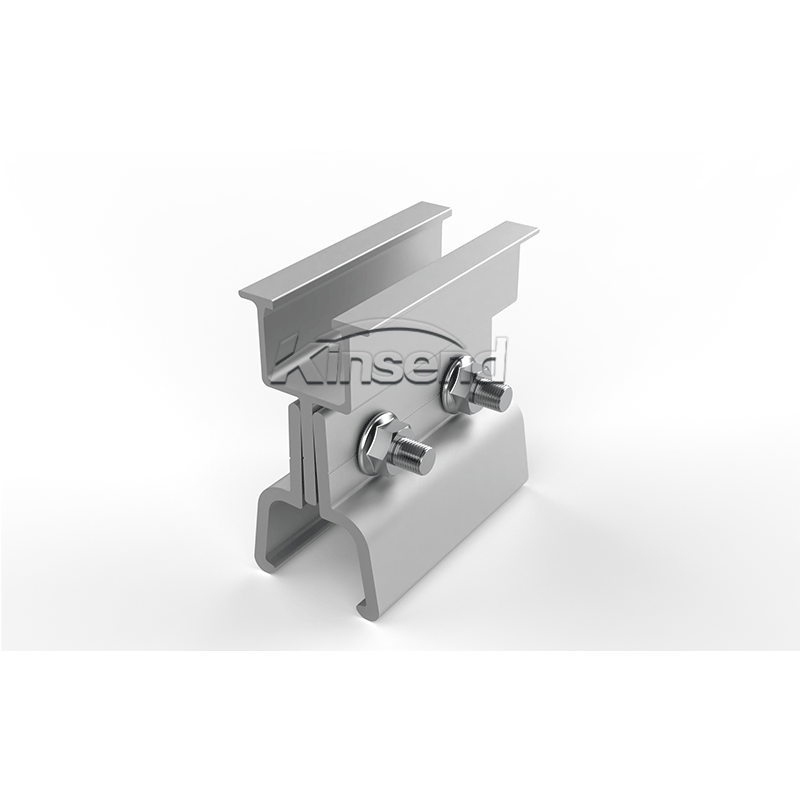

KLIP-LOK 700 Roof Hook
  • Item no.:

    KS-HK-S09
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver, Black
  • Shipping port:

    Xiamen, China
  • Lead Time:

    7-14 days
  • Product Detail

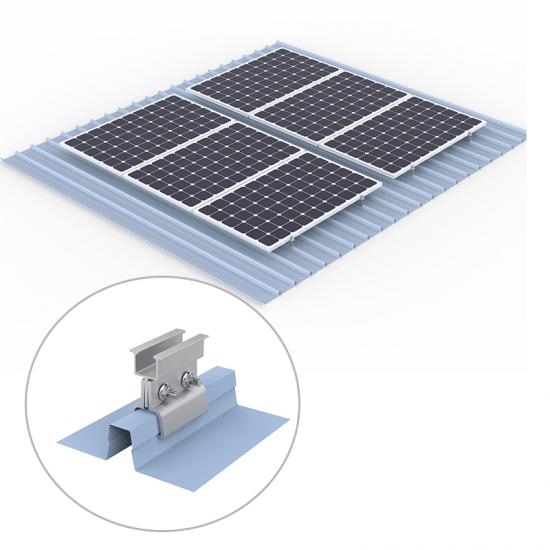

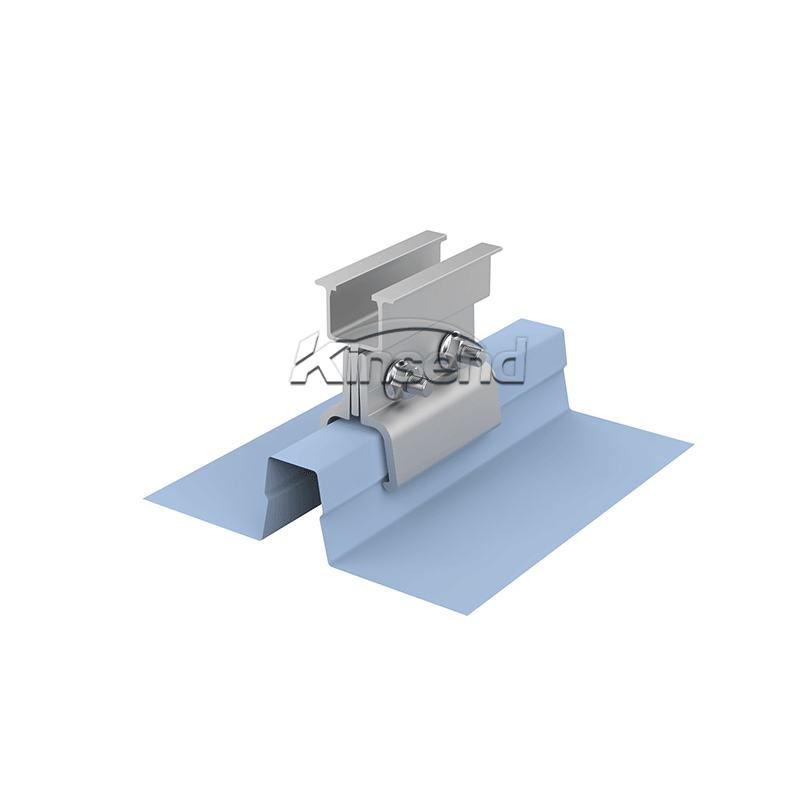

The standing seam roof clamps make mounting on folded seam roof particularly easy. The clamps are simply attached to the standing seams. Systems are fully compliant with international standards on wind & snow load.



  • Available quickly with low delivery costs
  • Fast installation
  • Flexible and universal implementation
  • Klip-lok 700,speed deck ultra and roofing profiles with similar dimension.

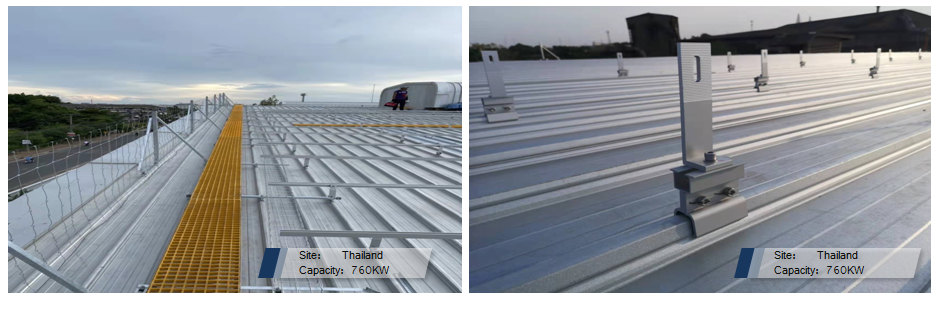

   Installation Site

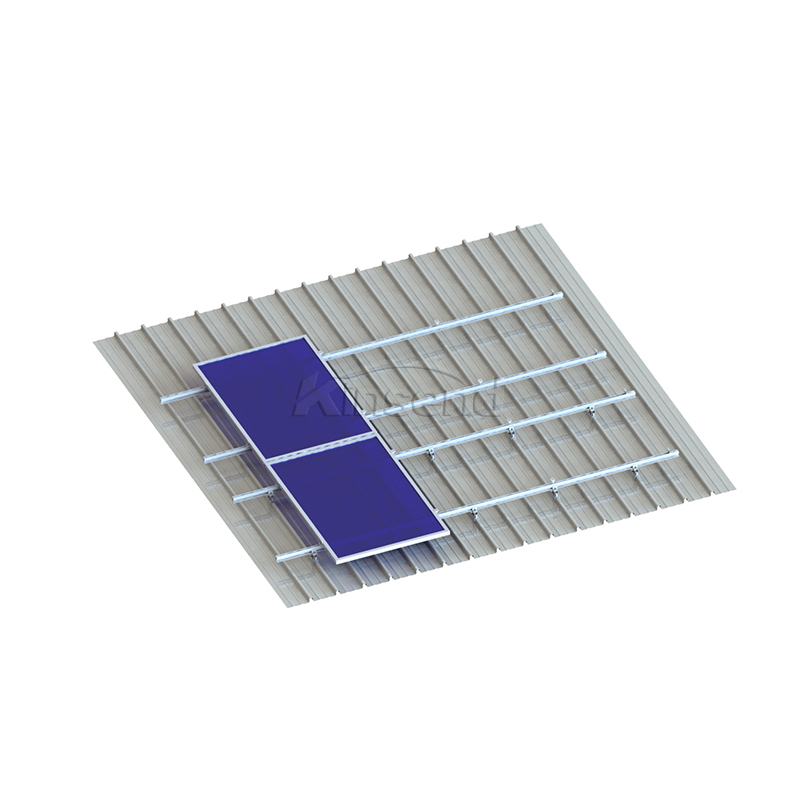

Pitched roof with Metal / Tin

   Installation Base

Standing Seam Roof

Fastening

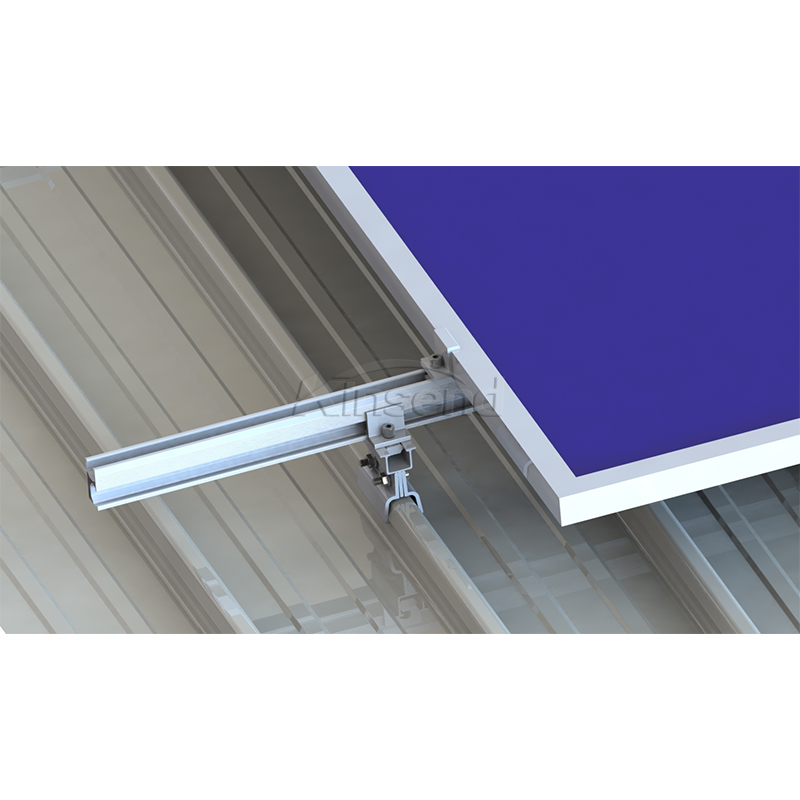

Roof hooks on Standing Seam Rib

   Max Wind Speed

< 60m/s

   Snow Load

< 80cm

   Standards

AS/NZS 1170 &JIS C 8955-2011

    Material

Al6005-T5 & SUS304 & EPDM

    Anti-corrosive

 Anodized

    Warranty / Duration

 12 years/ More than 25 years
