Ground Solar Mounting System_Ground Screw _ N Type

Commodity name： Ground Solar Mounting System_Ground Screw _ N Type

Kinsend offers solar PV mounting solutions supported by a veteran R&D team, which provides tailored efficient design as per customer’s budget and project conditions.

Type:

Aluminum Ground PV System

Email:

Whatsapp:

Product Description
右侧描述

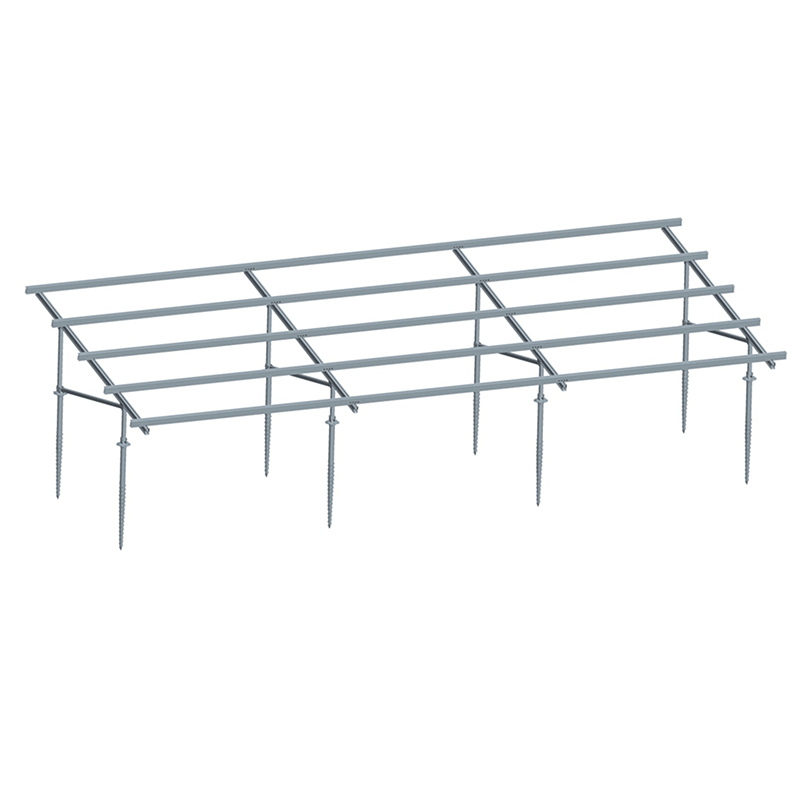

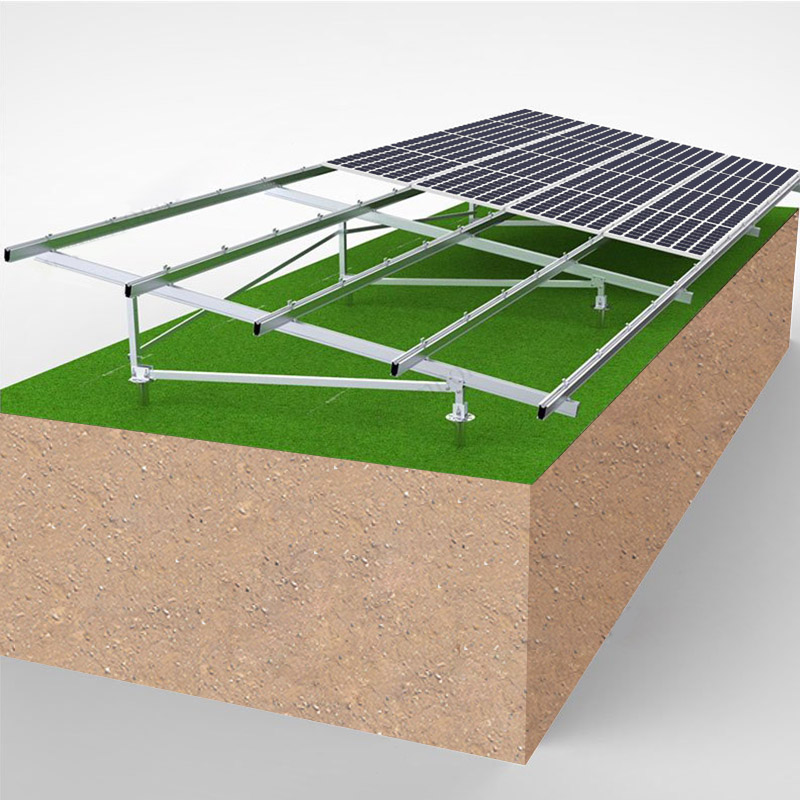

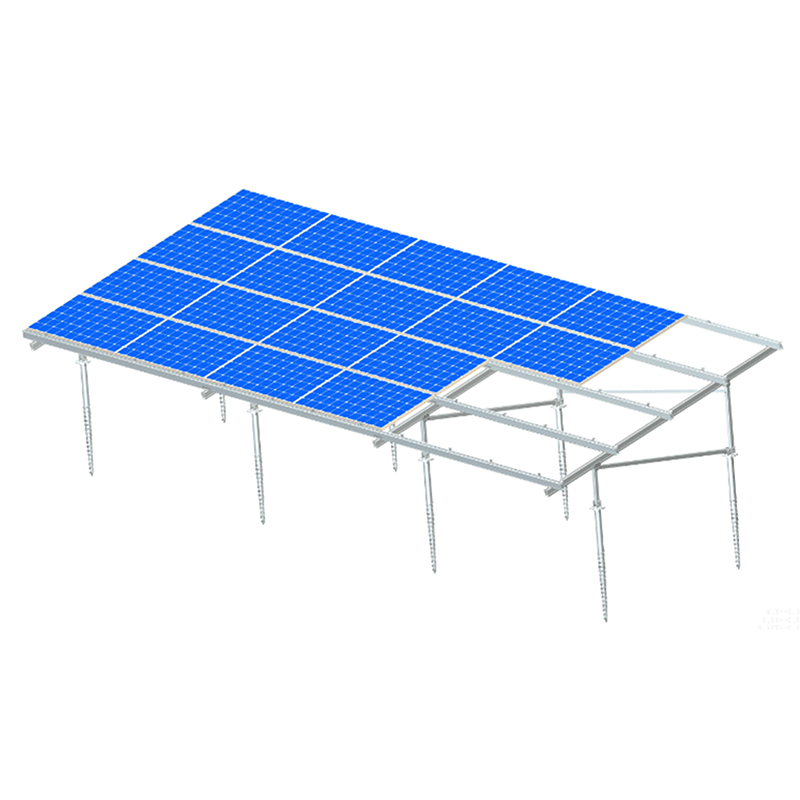

The main material of the pv ground mounting system is high-purity aluminum alloy, which is light in weight, pre-assembled components are simple structural design, effectively reducing the onsite cost. The support surface is anodized, with high corrosion resistance. The ground system with ground screws foundation has strong environmental adaptability and can be widely used in power station solar ground projects in different terrains. High pre assembly reduces on-site installation difficulties encountered.

Light material, easy for install & delivery.
Suitable for terrains environmental
High pre-assembled in factory, save your on site cost & time
12 years warranty and 25 years service life

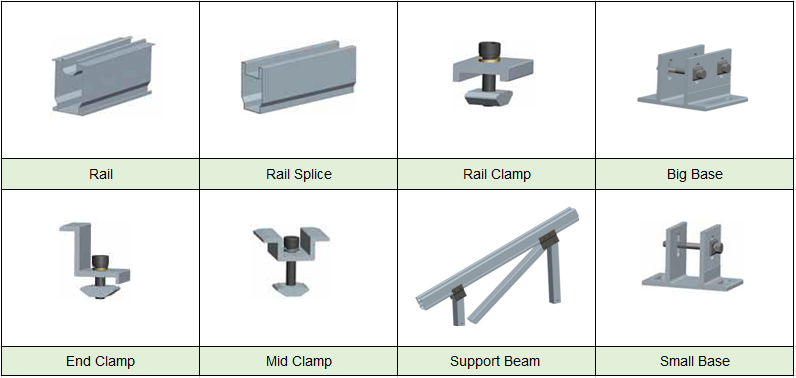

Component List

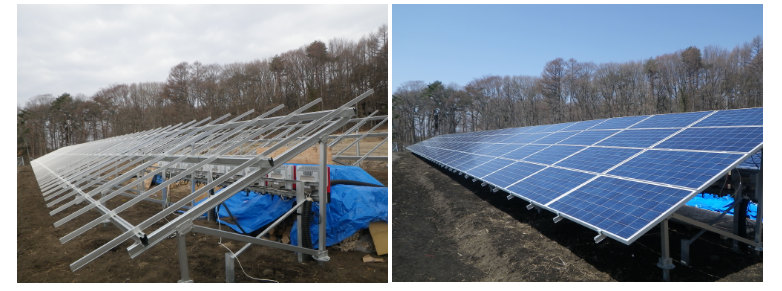

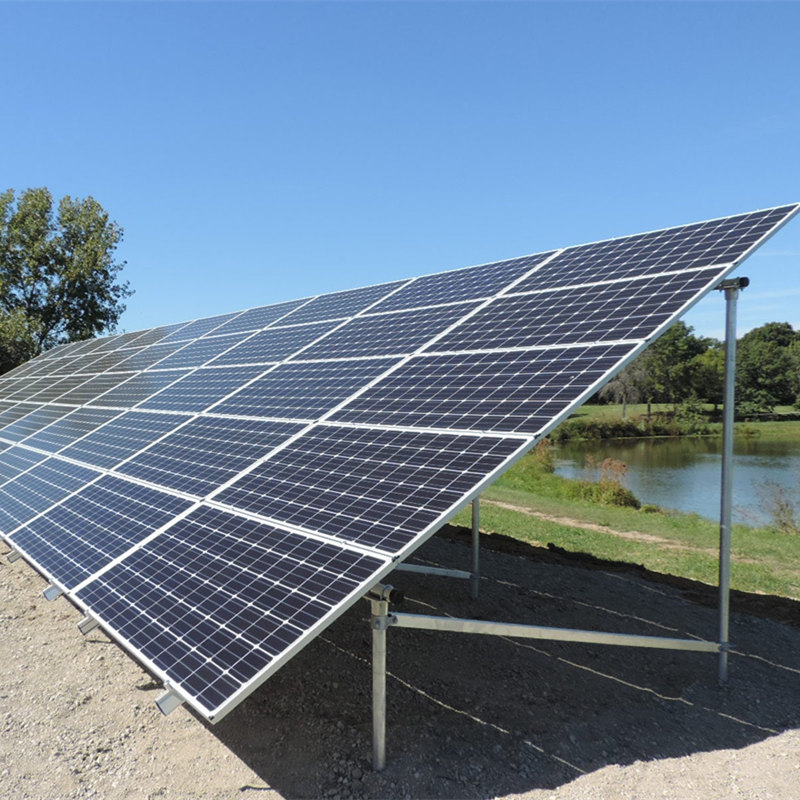

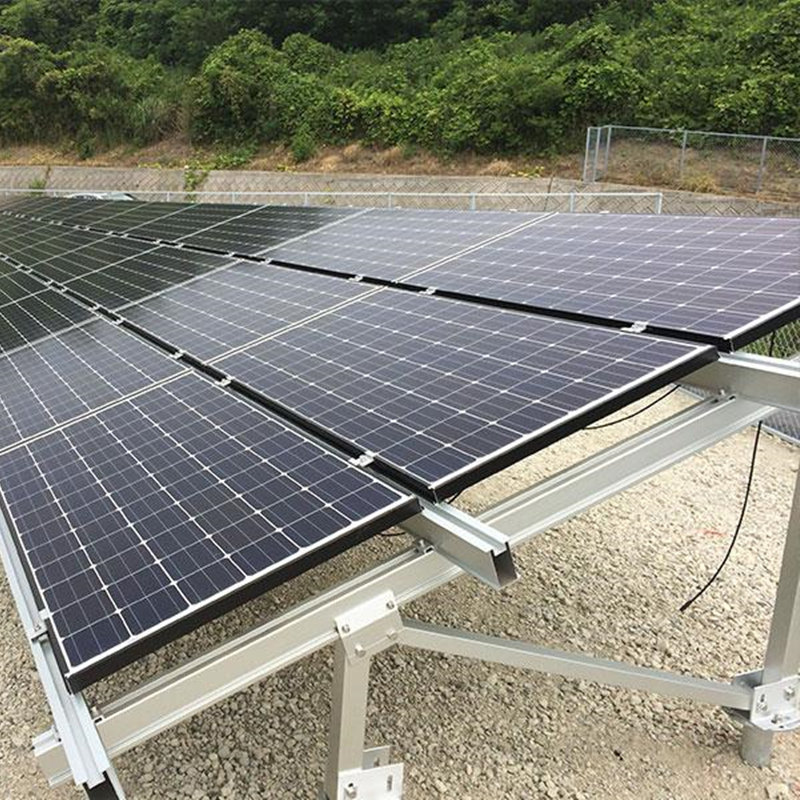

Installation Site	Open Field Area_Aluminum ground mounting system

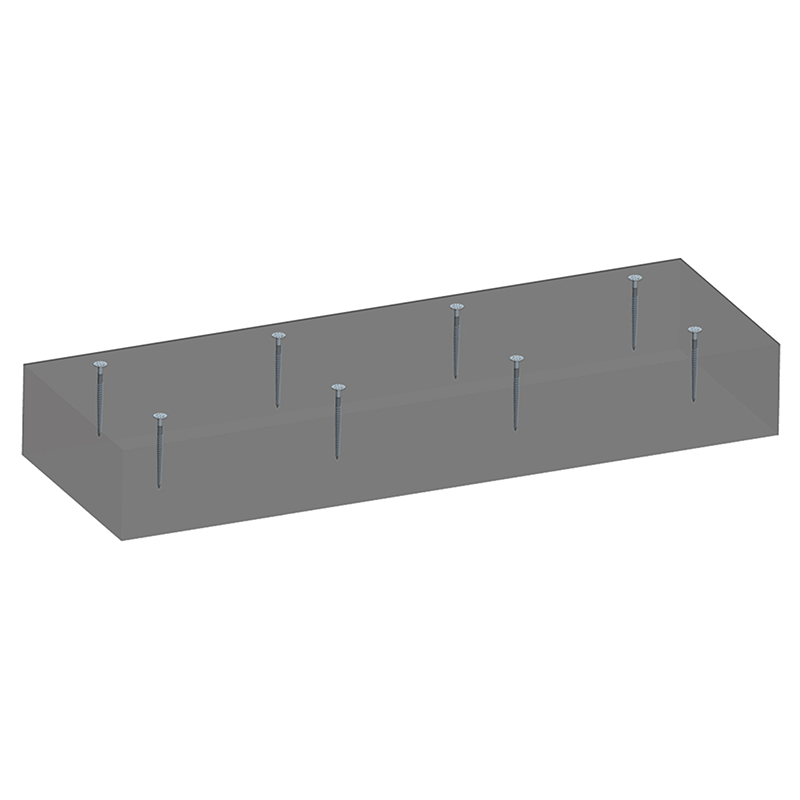

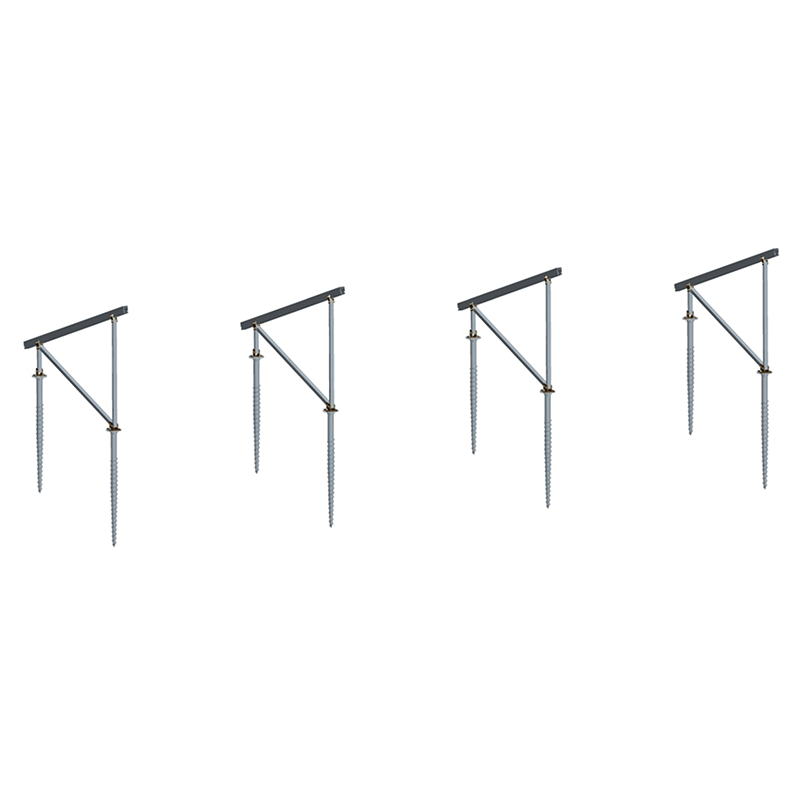

Installation Base	Ground screws and concrete foundations optional
Tilt angle	0°- 45°
Max Wind Speed	< 60m/s
Snow Load	< 80cm
Standards	AS/NZS 1170 &JIS C 8955-2011
Material	Al6005-T5 for aluminum profiles and clamps.Stainless steel for fasten bolt and nut.
Anti-corrosive	Anodized
Warranty / Duration	12 years/ More than 25 years
