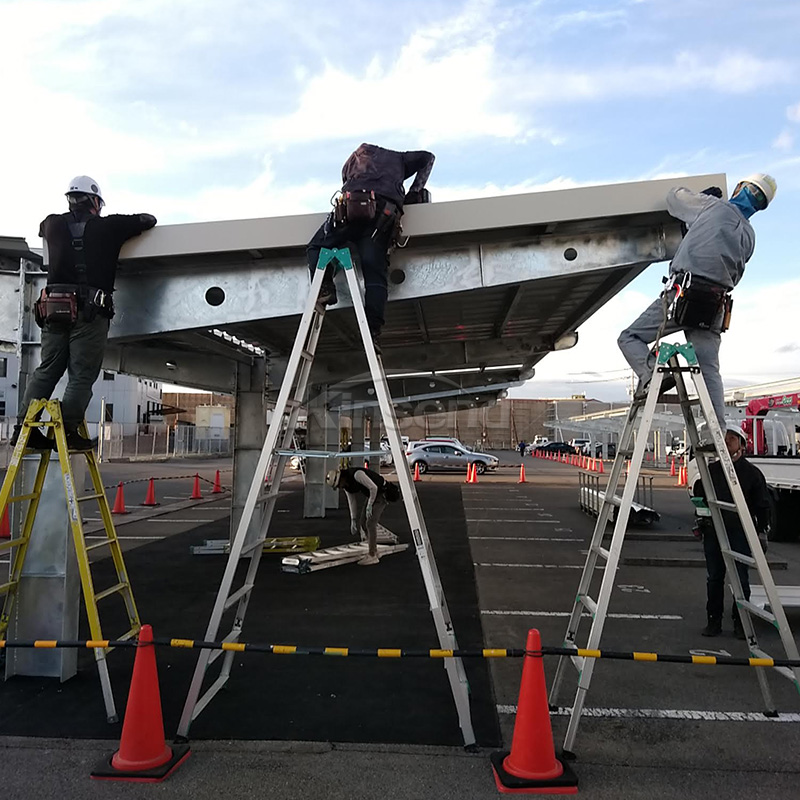

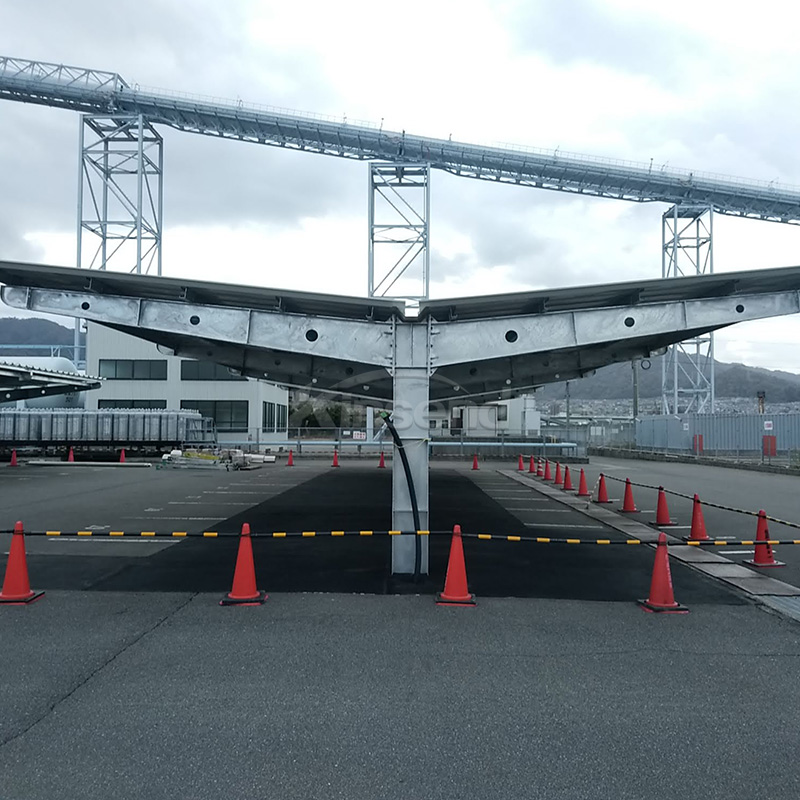

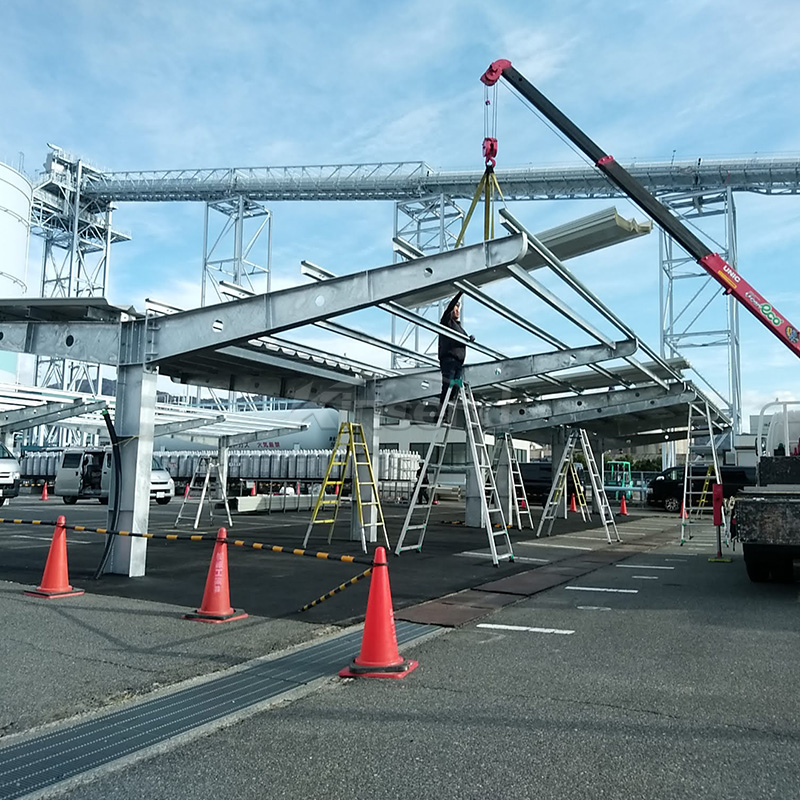

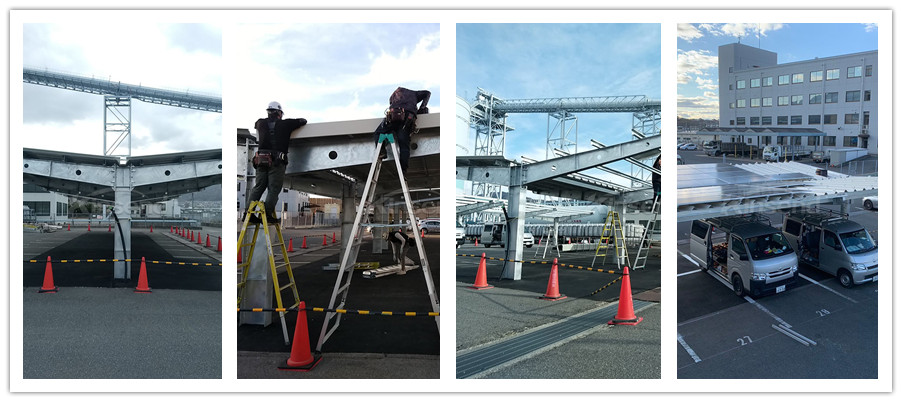

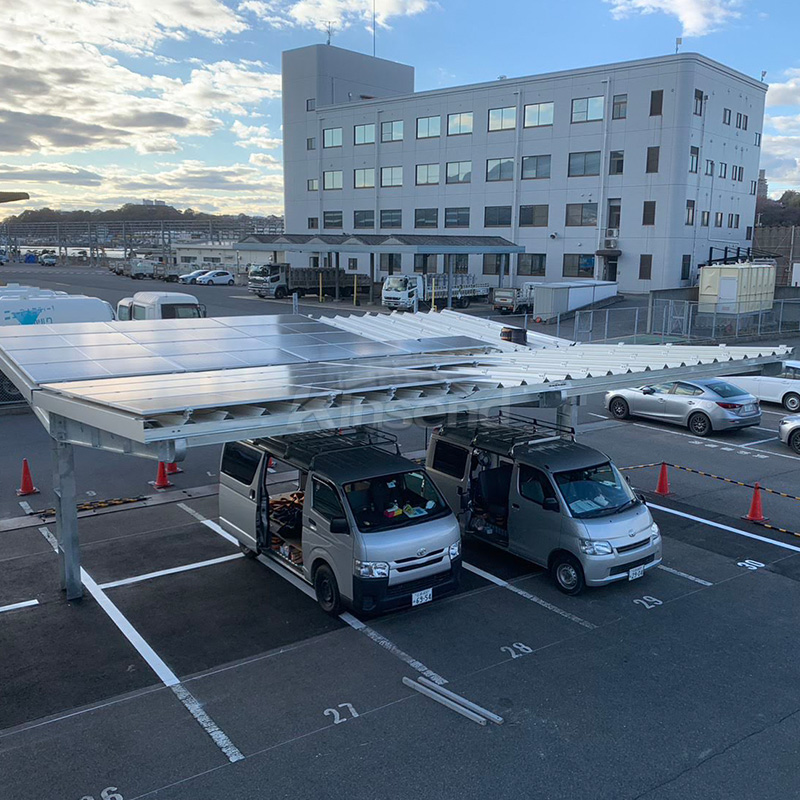

Carbon Steel Carport Mounting System_High Security

The streamlined design of the ZAM steel carport support system reduces the obstruction of the pillars, reducing obstacles to the parking position of the vehicle and providing strong flexibility

The CR3 Economic Solar Rail is made of material Aluminum AL6005-T5,suitable for the mounting of solar rooftop systems with small wind speed.

The Copper Lines Assembly, which is also called ground lug, helps to connect the whole system to ground.

Ballast tripod flat rooftop mounting system is a type of solar panel mounting system that is designed for flat rooftops. This system uses a tripod structure that is weighted down with ballasts to provide a stable and secure foundation for the solar panels.

The main material of the pv ground mounting system is high-purity aluminum alloy, which is light in weight, pre-assembled components are simple structural design, effectively reducing the onsite  cost. The support surface is anodized, with high corrosion resistance. The ground system with ground screws foundation has strong environmental adaptability and can be widely used in power station solar ground projects in different terrains. High pre assembly reduces on-site installation difficulties encountered. Light material, easy for install & delivery. Suitable for terrains environmental High pre-assembled in factory, save your on site cost & time 12 years warranty and 25 years service life Component List    Installation Site Open Field Area_Aluminum ground mounting system    Installation Base Ground screws and concrete foundations optional Tilt angle 0°- 45°    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011     Material Al6005-T5 for aluminum profiles and clamps.Stainless steel for fasten bolt and nut.     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years

The metal roof mounting system is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. L Feet .Tin roof solution, is available for almost all type of tin roof. Product designed with high strength which can resist max wind speed at 60m/s. Main material is AL6005-T5 with average 12μm anodizing film. Fasteners are stainless steel material which featured with high strength and high anti-corrosion.  Low fitting costs Every size of module array possible Height adjustable via elongated hole in the sheet metal bracket Suitable for large distances between rafters Details    Installation Site Trapezoidal and corrugated sheet metal Fastening Riveted or screwed onto raised corrugated Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years

The streamlined design of the ZAM steel carport support system reduces the obstruction of the pillars, reducing obstacles to the parking position of the vehicle and providing strong flexibility

This clamp is used to fix the rail ，Made of aluminum, each section is anodized. Kinsend manufacture solar accessories for solar panel mounting system, like solar hook, end clamps, mid clamp and rail. We have normal type and can also customized as clients' requirement. Solar clamps can work with most types of solar panels and rails. Quick and easy installation Strict QC over all components ensure the high reliability of the strength Made of aluminum, each section is anodized    Installation Site Fixed rail installation    Installation Base Match with SHL-JTD036 rail installation Module orientation Vertical    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011    Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304    Packaging Detail  Export Standard Carton With Pallet,interleaving each profile to protect the surface    Warranty / Duration  12 years/ More than 25 years Related Products
