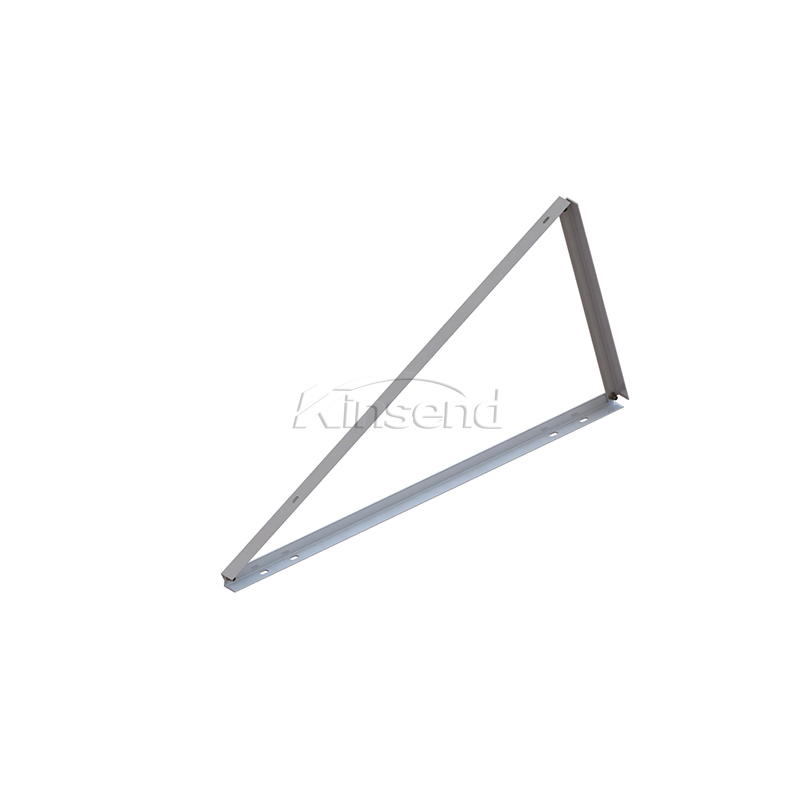

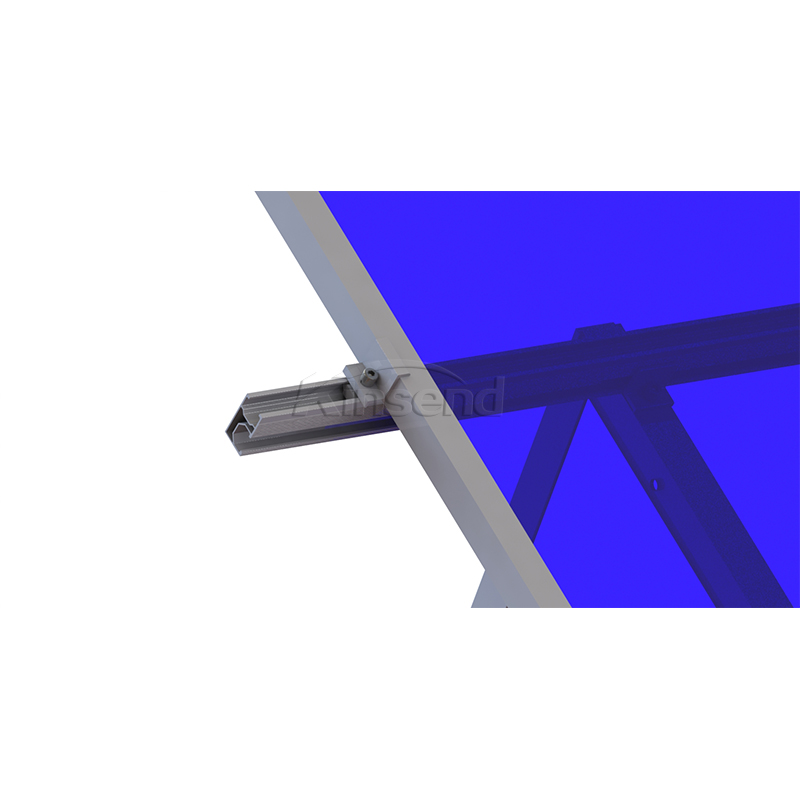

Fixed Triangle Bracket for Flat Roof Mounting

The Flat Roof Solar Panel Mounting Triangle Bracket is pre-assebled in our factory, which save lost of your on site installing time and cost.
  • Item no.:

    KS-TR10-01
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days
  • Product Detail




The Flat Roof Solar Panel Mounting Triangle Bracket is pre-assebled in our factory, which save lost of your on site installing time and cost. All the components are full sides anodized even the cutting part of small components, which get a perfect anti-corrosion effect.





  • Highly pre-assembly, easy installation
  • Perfect also for small systems of 1,2,4 or 8 modules
  • Fixed angle, adjustable angle both available
  • Quick mounting solution

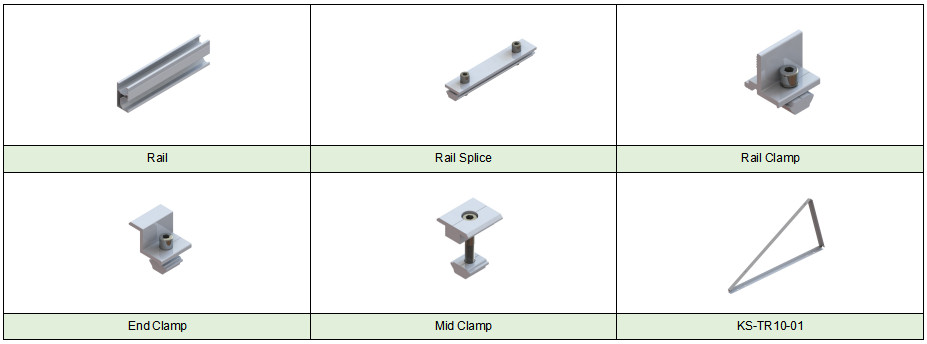

Components List

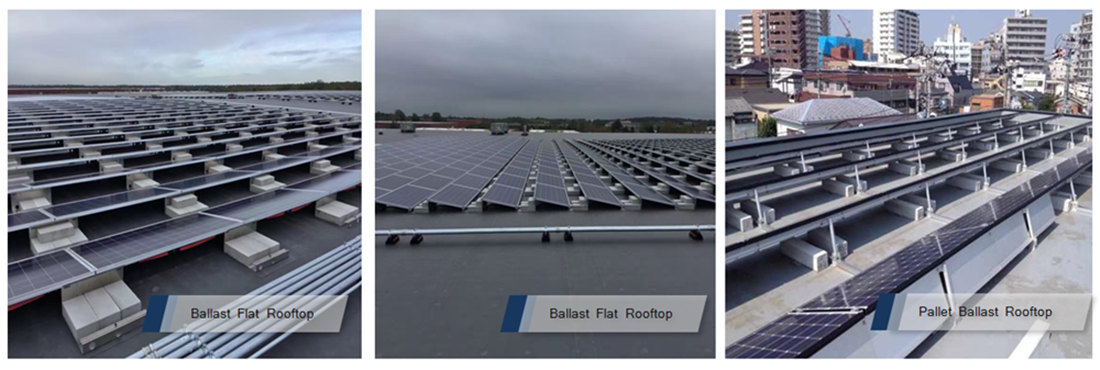

 Installation Site

Cements Roof / Metal Roof

   Installation Base

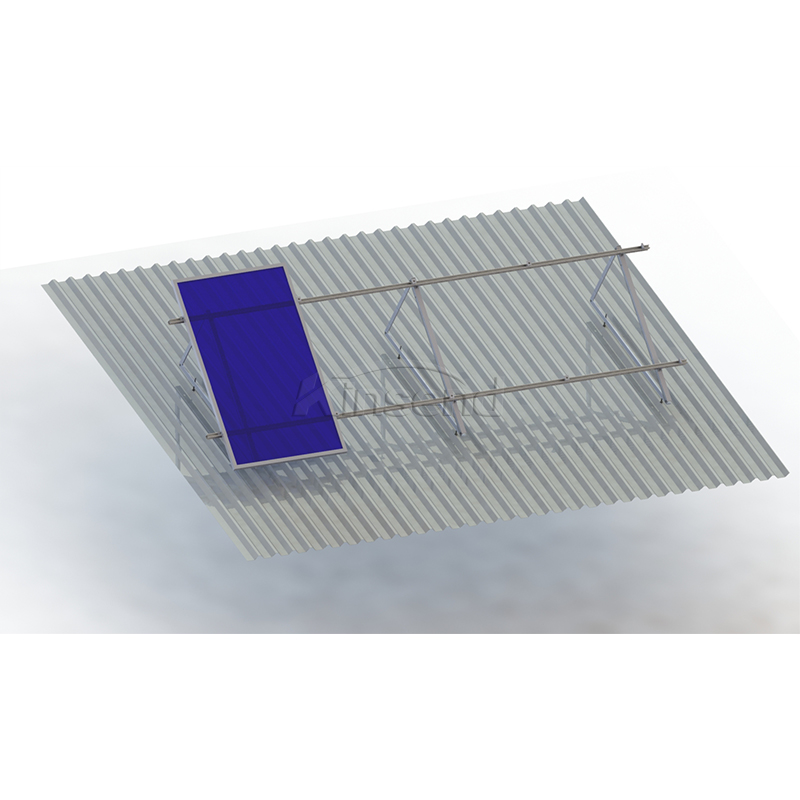

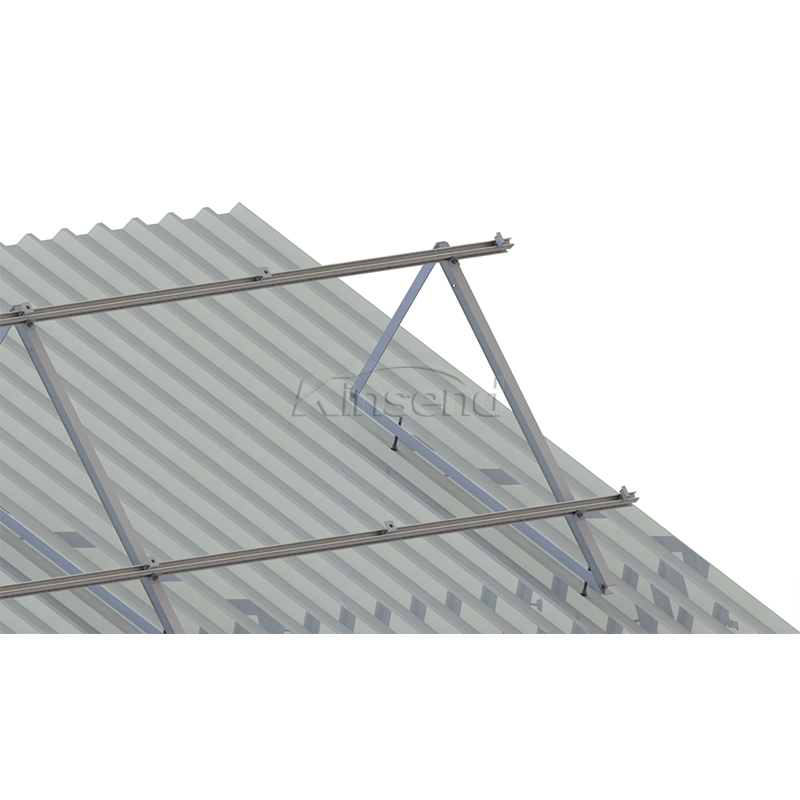

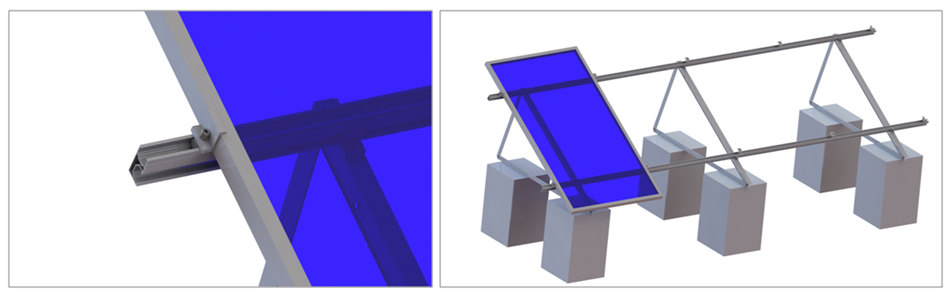

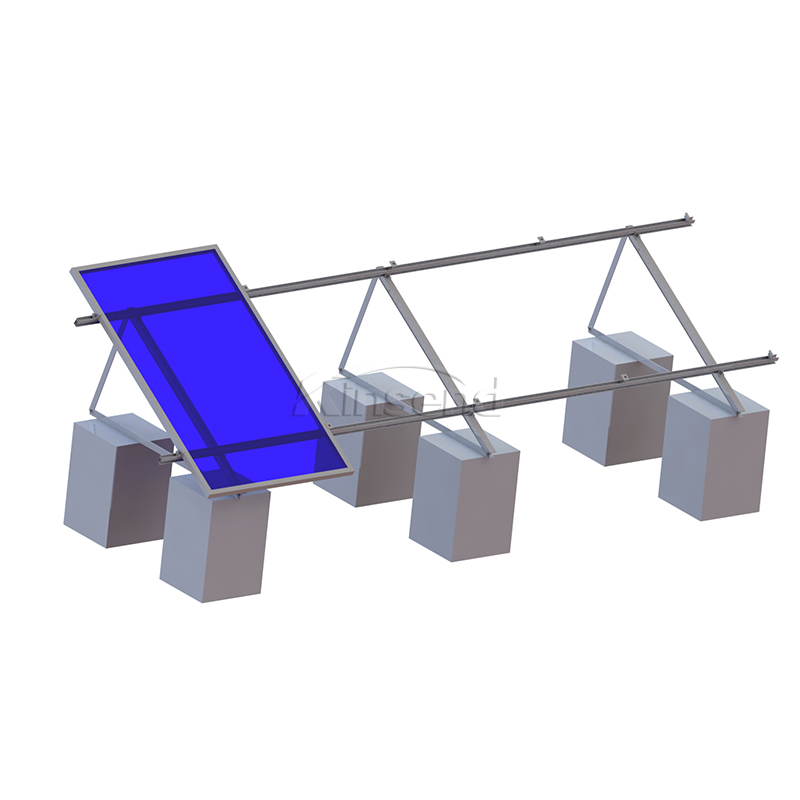

Riveted or screwed onto raised corrugations on metal roof, ormounted onto the Concrete block

Tilt angle

Up to 60 degrees

Tilt angle: 10°, 15°, 20°, 30°  (commonly used angle)

   Max Wind Speed

< 60m/s

   Snow Load

< 80cm

   Standards

AS/NZS 1170 &JIS C 8955-2011

    Material

Al6005-T5 for aluminum profiles and clamps

Stainless steel for fasten bolt and nut

    Anti-corrosive

 Anodized

    Warranty / Duration

 12 years/ More than 25 years
