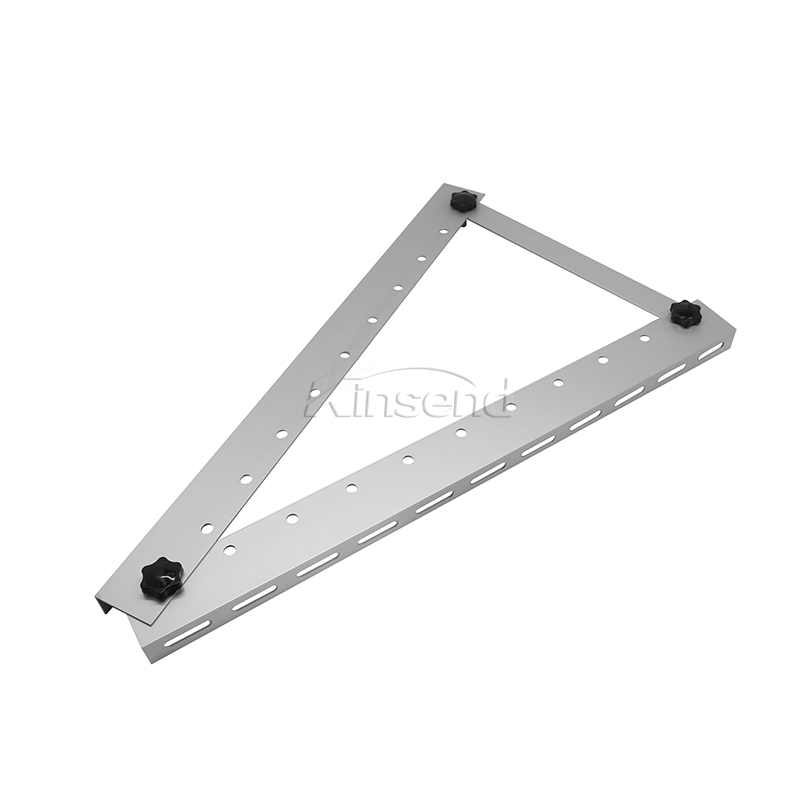

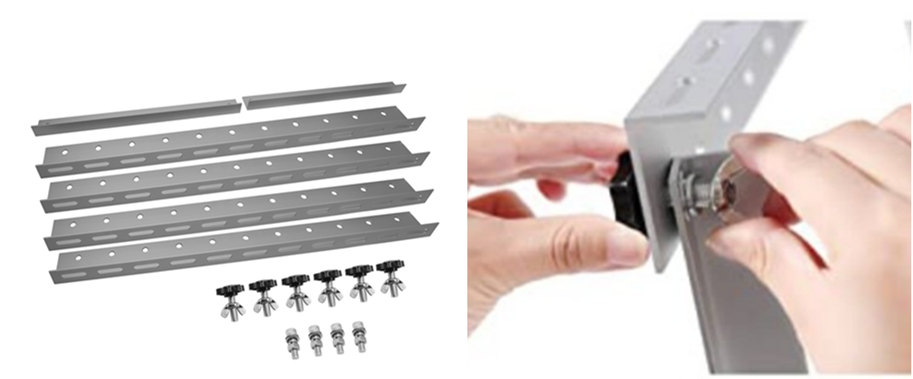

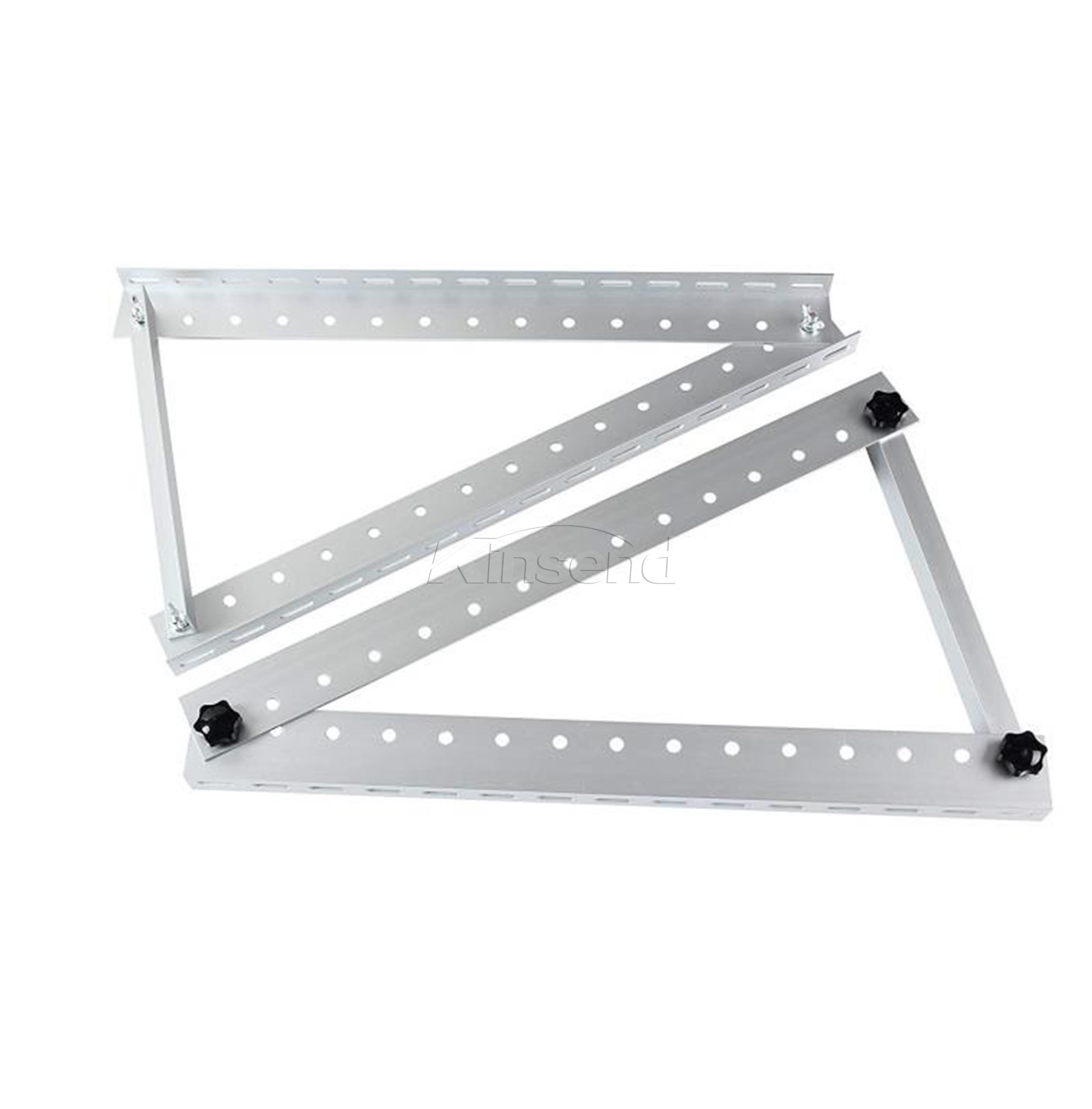

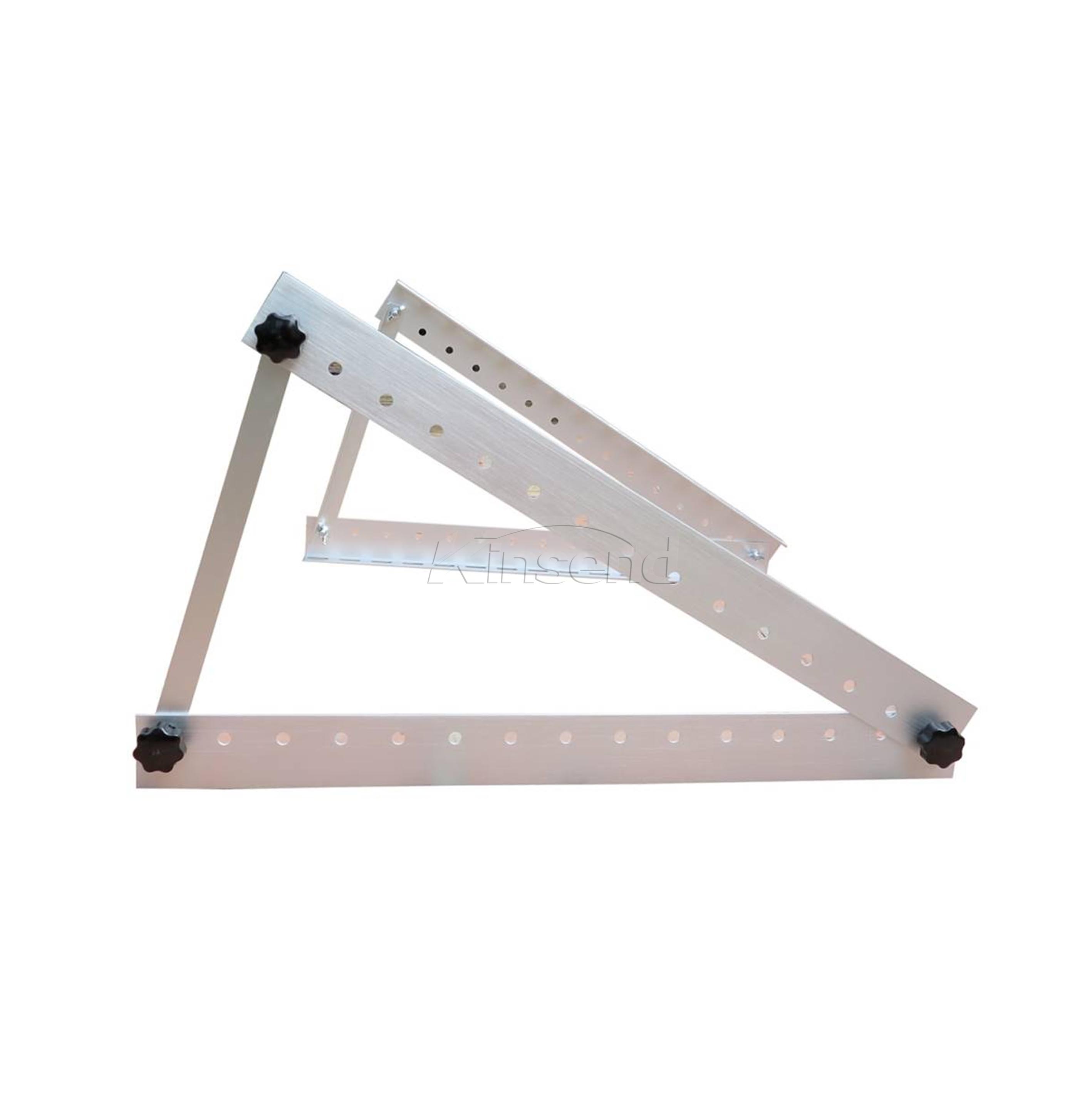

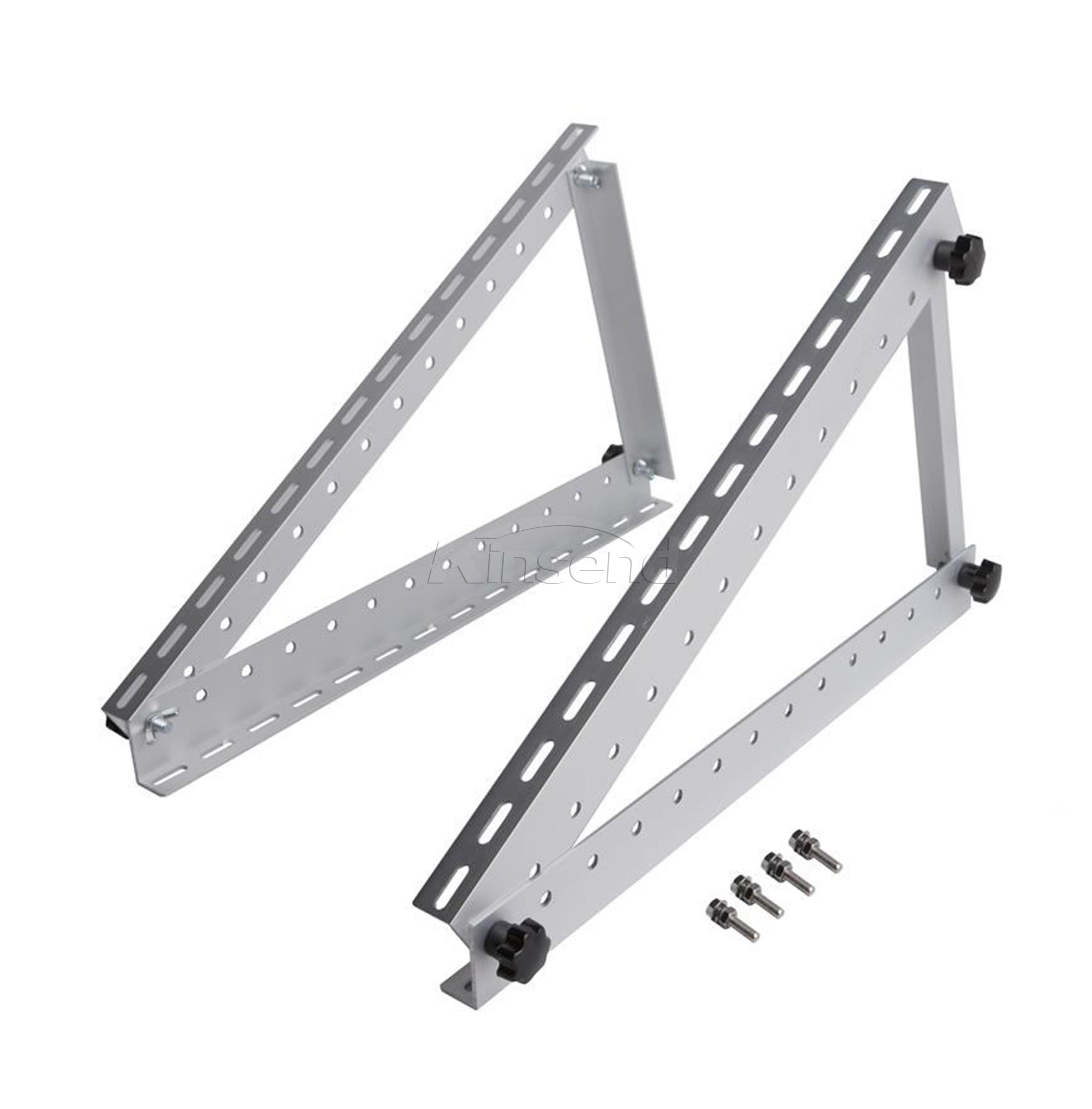

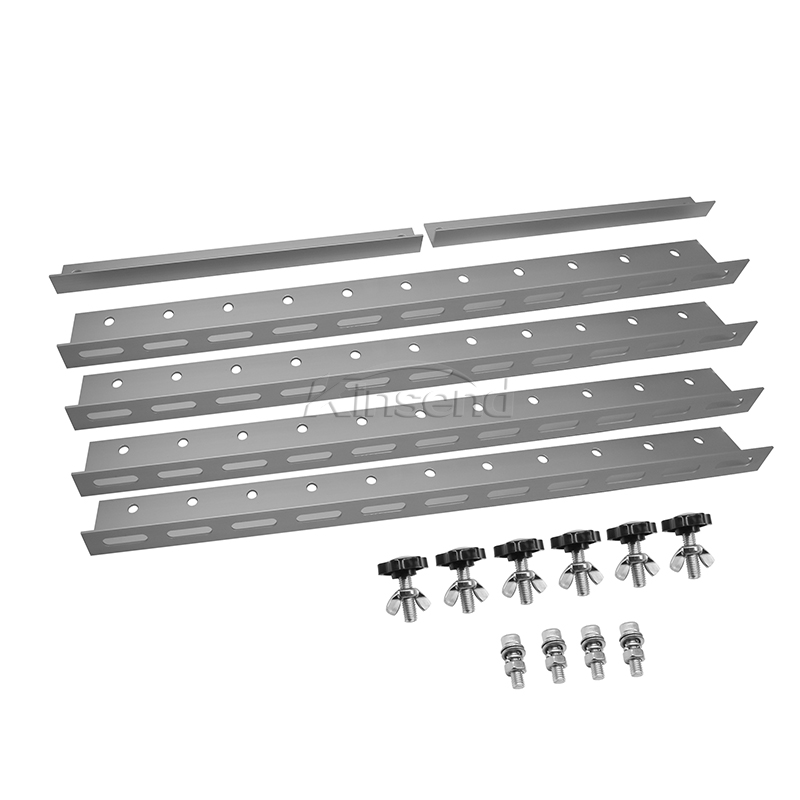

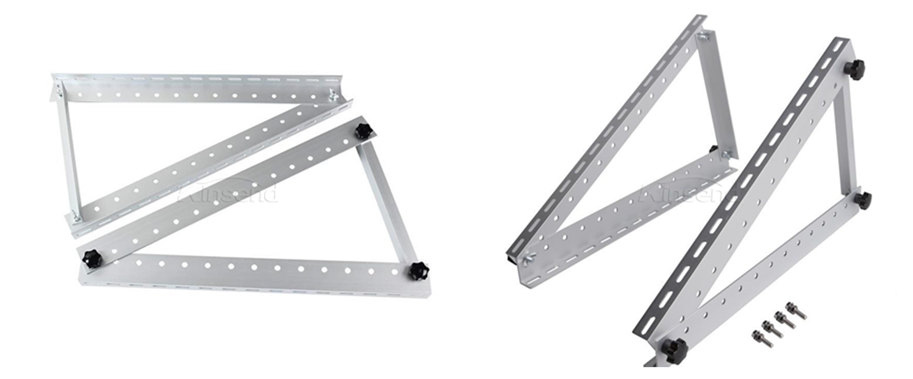

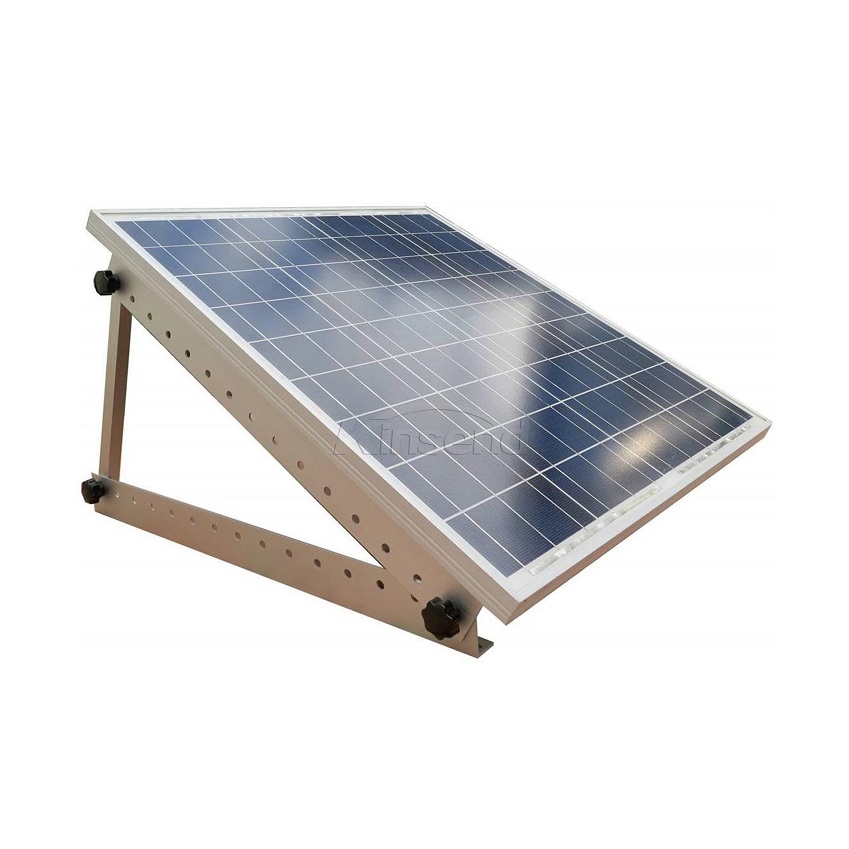

Adjustable solar panel bracket

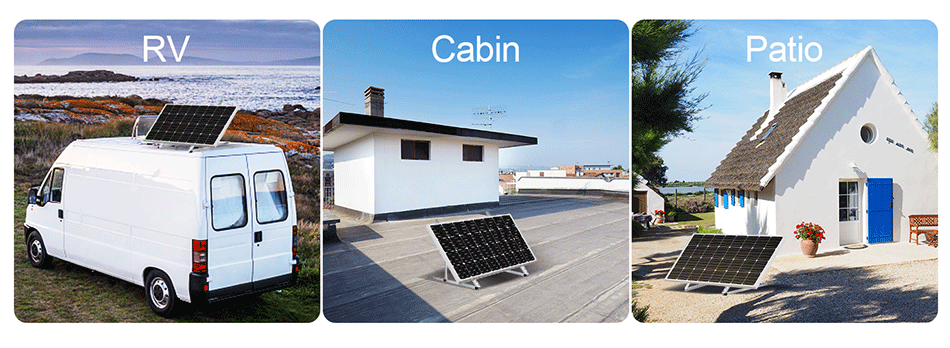

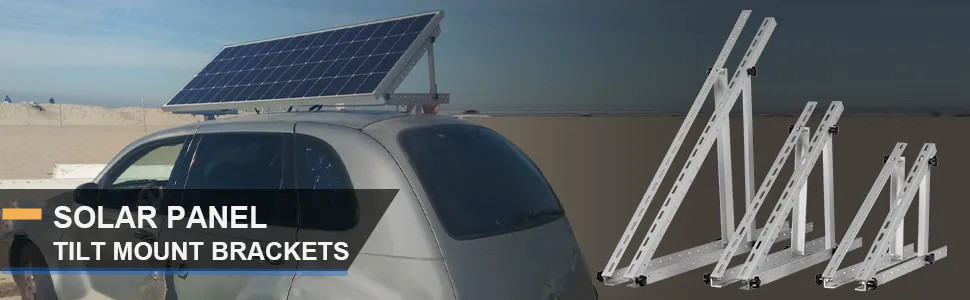

Portable tripod brackets suitable for installation of solar panels mount in different sites.

The balcony solar mount system is made of high-corrosion aluminum, lightweight and high-corrosion, and can be installed at different angles according to the requirements of sunlight exposure conditions.

The Slate Tile Roof Solar Mounting System is applicable for commercial and residential slate tile roof, fix the roof hooks onto rafters. Low fitting cost. Every size of module array possible.

The Anodized Angle Aluminum, which works as a part for Tri-angle bracket, reinforcing beam. Full sides anodizing get a great anti-corrosion effect.

Main material is AL6005-T5 with average 12μm anodizing film. Unique design of Mid & End clamps are used in different types of solar panels. Special design of rail can make intallation simpler and faster. Parts have been high pre-assembly on factory to save your installation time. Directly connect with rail, side fixed Low fitting costs Every size of module array possible For all common rather distances    Installation Site Fix solar panel , End clamp & Mid clamp Installation Base Suit for panel thickness 30mm,35mm,40mm Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years

L feet brackets mainly applied to trapezoidal metal sheet roofs and corrugated metal sheet. It can be directly fixed on the roof beam with screw. Hanger bolt and Screw St6.3x80 apply to install on steel beam and Wooden beam. Making installation faster, competitive and reliable. Systems are fully compliant with international standards on wind & snow load. Low fitting costs Every size of module array possible Height adjustable via elongated hole in the sheet metal bracket Suitable for large distances between rafters    Installation Site Trapezoidal and corrugated sheet metal Fastening Riveted or screwed onto raised corrugated Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years Details

Tile roof hook kit solar mounting systems is designed for solar installation on most types tile roofs.
