Tile Roof Mounting System

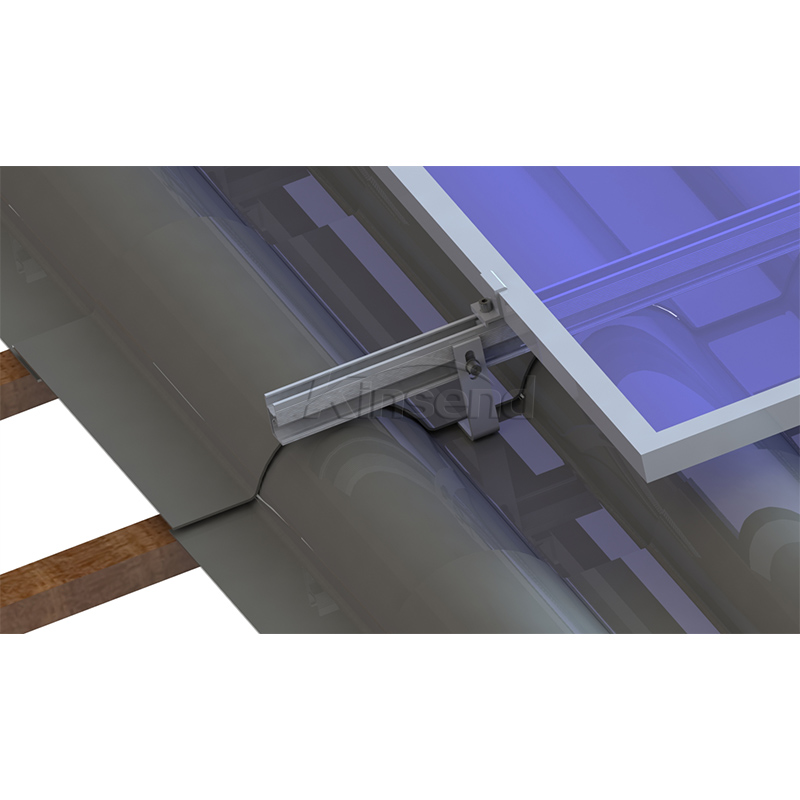

Use universal stainless steel roof hook for tile roof rack mounting system，stainless roof hook installation with Self-tapping screw M6.3*80mm

Tile roof hooks are applied to solar installation on slate tiles, The tile hooks are compatible with most common rails and are made of stainless steel,

The steel solar ground installation structure is designed for large-scale commercial use on the ground and can be used with grounding screws or concrete bases.

This clamp for fix rails . Main material is AL6005-T5 with average 12μm anodizing film. Unique design of Mid & End clamps are used in different types of solar panels. Special design of rail can make intallation simpler and faster. Parts have been high pre-assembly on factory to save your installation time. Solar clamps can work with most types of solar panels and rails. Quick and easy installation Strict QC over all components ensure the high reliability of the strength Made of aluminum, each section is anodized Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years Details

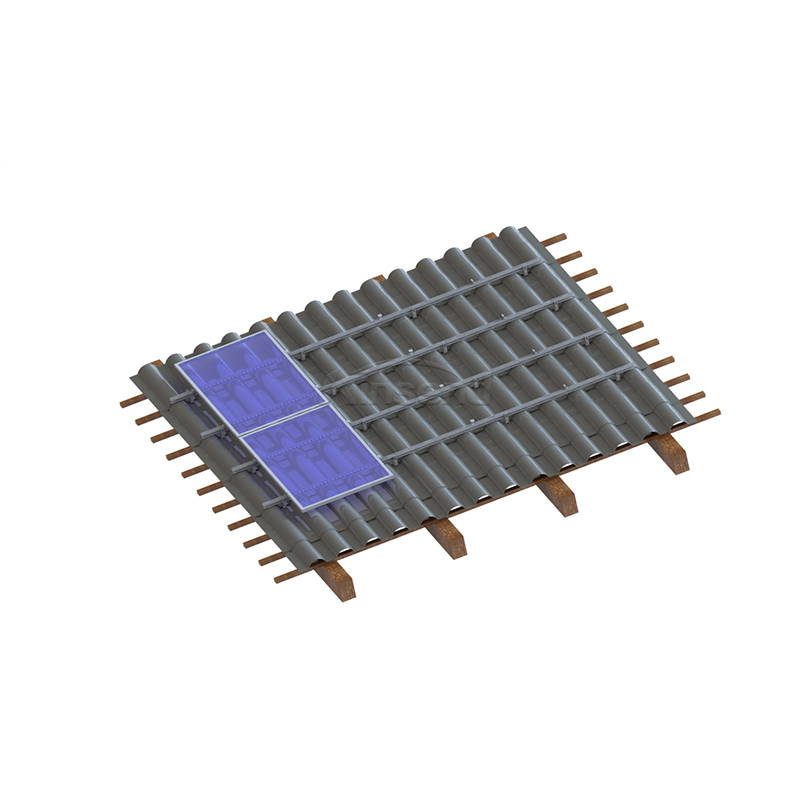

Tile roof hook kit solar mounting systems is designed for solar installation on most types tile roofs. Applicable to Portrait & Landscape orientation panel layout. Made of SUS 304 and firmly bottom fixing. Multiple styles of adjustable and fixed tile hooks. Pre-assembled Components Save Onsite Installation Time Flexibility and Adjustability Suitable for installing framed and frameless modules Safety & Reliable    Installation Site Pitched roof with tiles    Installation Base Slate tile roof Roof Pitch Up to 60° Module orientation Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011    Material ·   Stainless steel 304 Hook    Warranty / Duration  12 years/ More than 25 years

The Copper Lines Assembly, which is also called ground lug, helps to connect the whole system to ground.
