U Shape Aluminium Rails _Quickly Metal Mounting

Kensend's lengthened type L foot hook is widely used in PV systems in Korea and Europe for trapezoidal metal tin roof PV mounting systems.

The metal rooftop triangle bracket mounting system is a type of mounting system designed for metal rooft.. It uses triangular-shaped brackets that are attached to the metal roof using screws or other fasteners.

L feet brackets mainly applied to trapezoidal metal sheet roofs and corrugated metal sheet. It can be directly fixed on the roof beam with screw. Hanger bolt and Screw St6.3x80 apply to install on steel beam and Wooden beam. Making installation faster, competitive and reliable. Systems are fully compliant with international standards on wind & snow load. Low fitting costs Every size of module array possible Height adjustable via elongated hole in the sheet metal bracket Suitable for large distances between rafters    Installation Site Trapezoidal and corrugated sheet metal Fastening Riveted or screwed onto raised corrugated Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years Details

Metal Roof Solar Panel Mount Tripod Angle Aluminum It can be installed on metal roof clamp or penetrate into concrete. Highly pre-assembly, easy installation Perfect also for small systems of 1,2,4 or 8 modules, Fixed angle, adjustable angle both available. Highly pre-assembly, easy installation Fixed angle, adjustable angle both available Tilt angle: 5-45° Strong structure with most competitive price    Installation Site Flat Roof or inclined metal/tin roof Tilt angle 5-45° Economic layout Landscape/portrait , Perfect also for small systems of 1,2,4 or 8 modules    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years Details

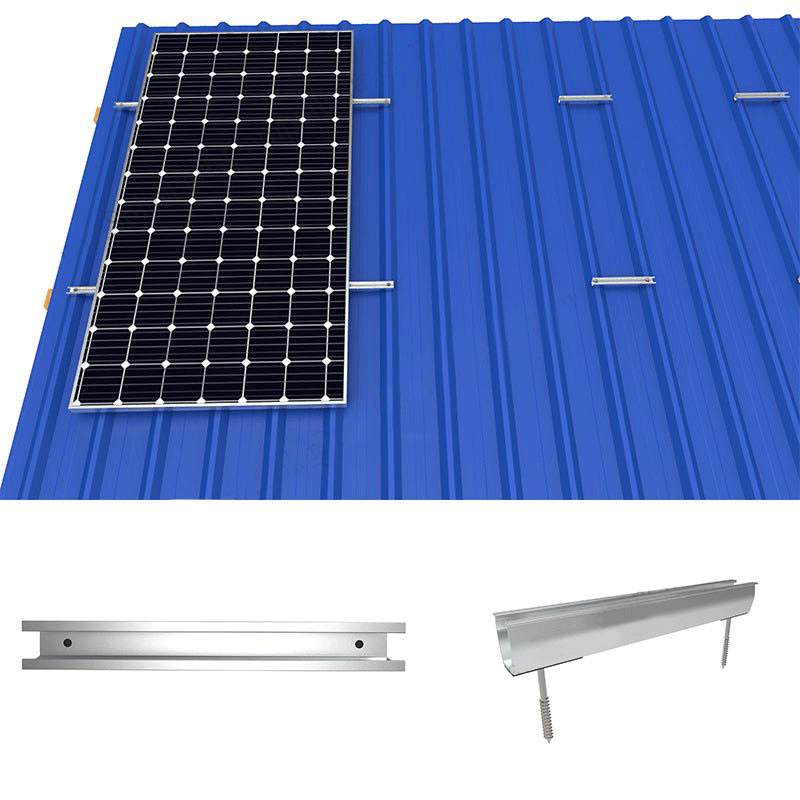

Lightweight rails can be installed on metal roofs, The U-shaped structure is a combination of guide rails and clamp.

The adjustable solar roof mounting systems could be fixed or adjustable tilt, meeting project specific adjustments to optimize the solar output.

The Slate Tile Roof Solar Mounting System is applicable for commercial and residential slate tile roof, fix the roof hooks onto rafters. Low fitting cost. Every size of module array possible.

KLIP-LOK 406 Roof Hook
