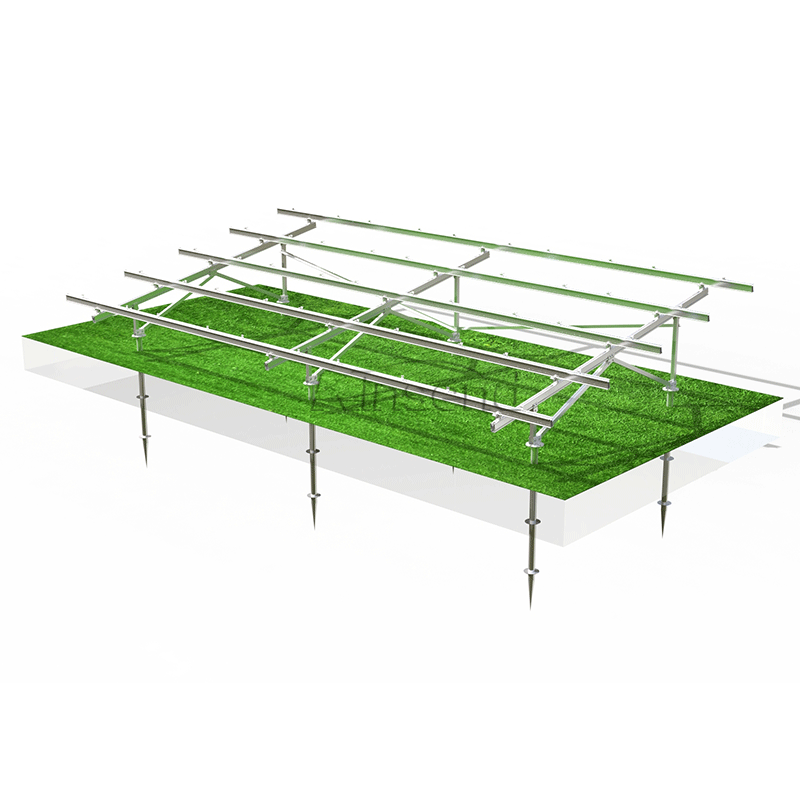

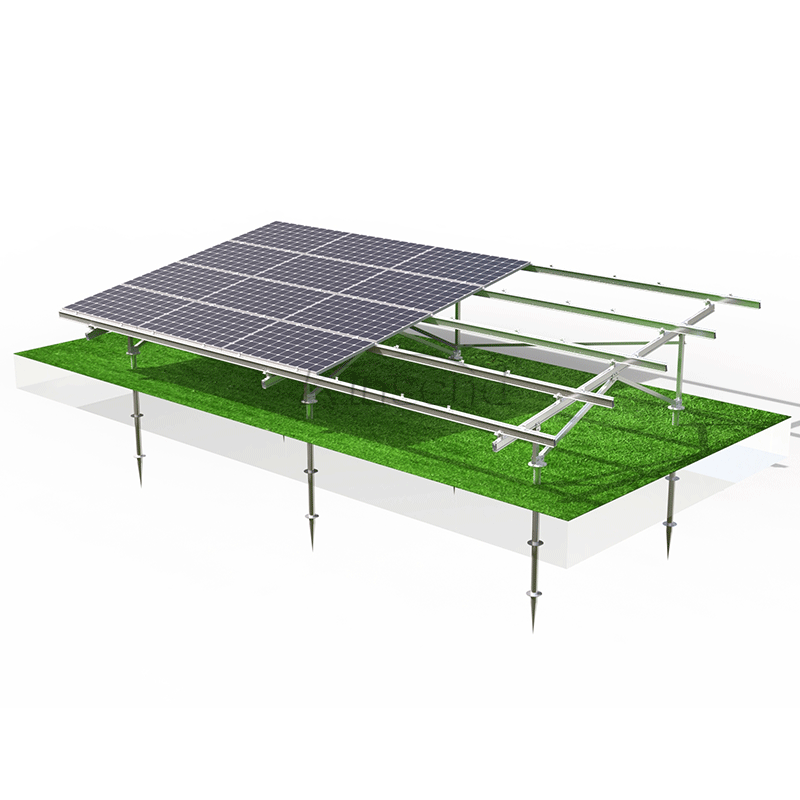

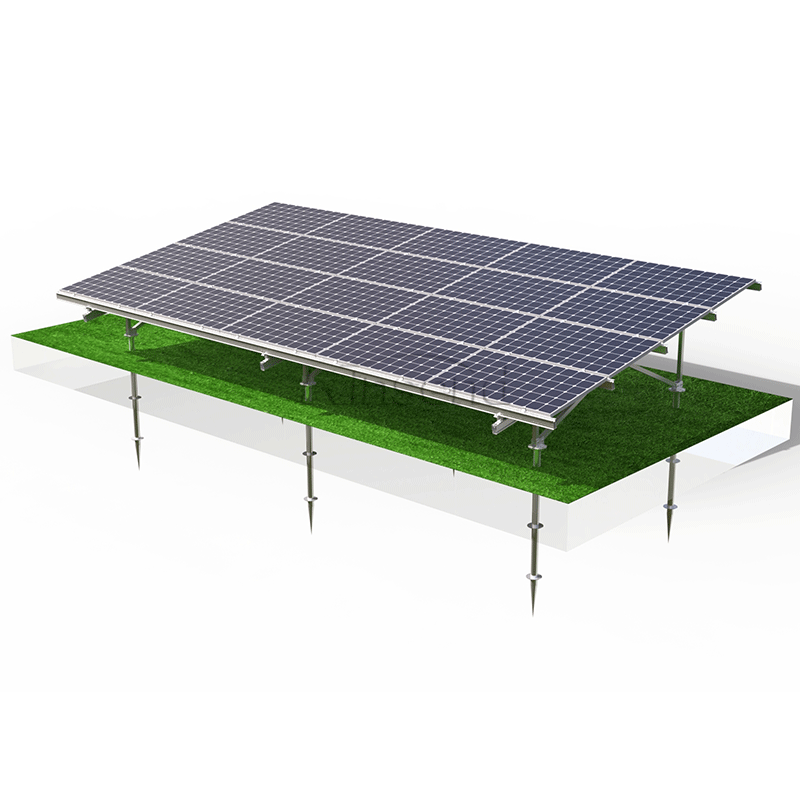

Double blade ground screw foundation ground system, suitable for sandy environment, with strong structural stability, Parts have been high pre-assembly on factory to save your installation time. Products using aluminum alloy 6005-T5 (AL6005-T5) and stainless steel 304 (SUS304), high strength, corrosion resistance is good. Ground screws and concrete foundations optional. there is no need to drilling,cutting and other operations on site,simply adjust locking to complete the installation.
- Simple and fast installation
- high pre-assembly on factory to save your installation time
- Ground screw foundation and concrete foundation acceptable
- High corrosion resistance, anodized aluminum profiles

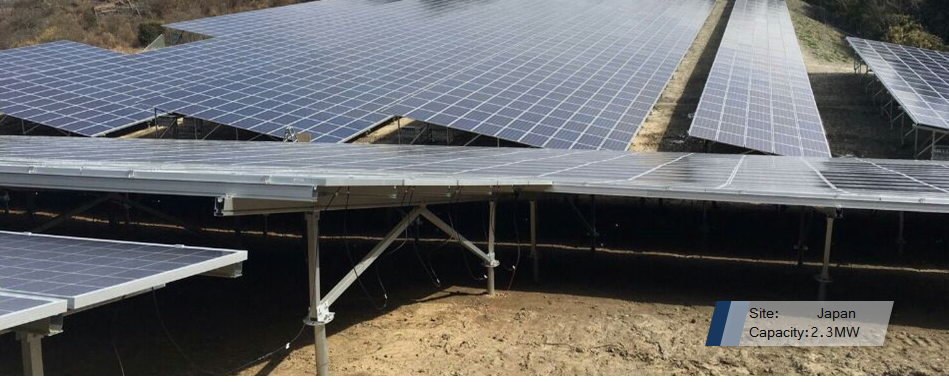

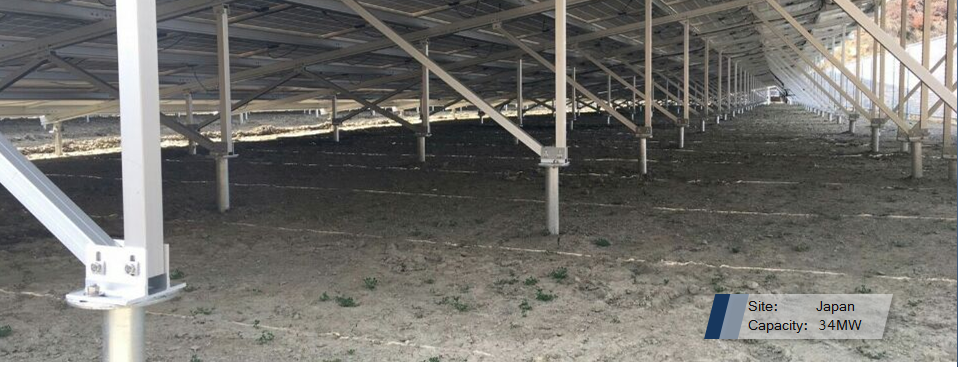

Installation Site |
Open Field Area_Aluminum ground mounting system |
Installation Base |
Ground screws and concrete foundations optional |
Tilt angle |
0°- 45° |
Max Wind Speed |
< 60m/s |
Snow Load |
< 80cm |
Standards |
AS/NZS 1170 &JIS C 8955-2011 |
Material |
Al6005-T5 for aluminum profiles and clamps.Stainless steel for fasten bolt and nut. |
Anti-corrosive |
Anodized |
Warranty / Duration |
12 years/ More than 25 years |
Details
