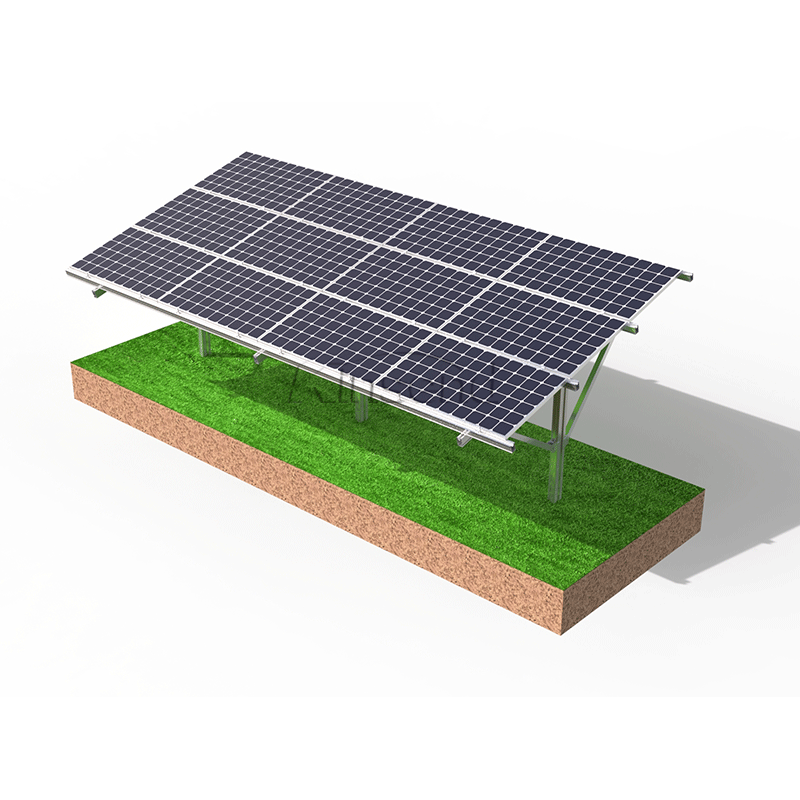

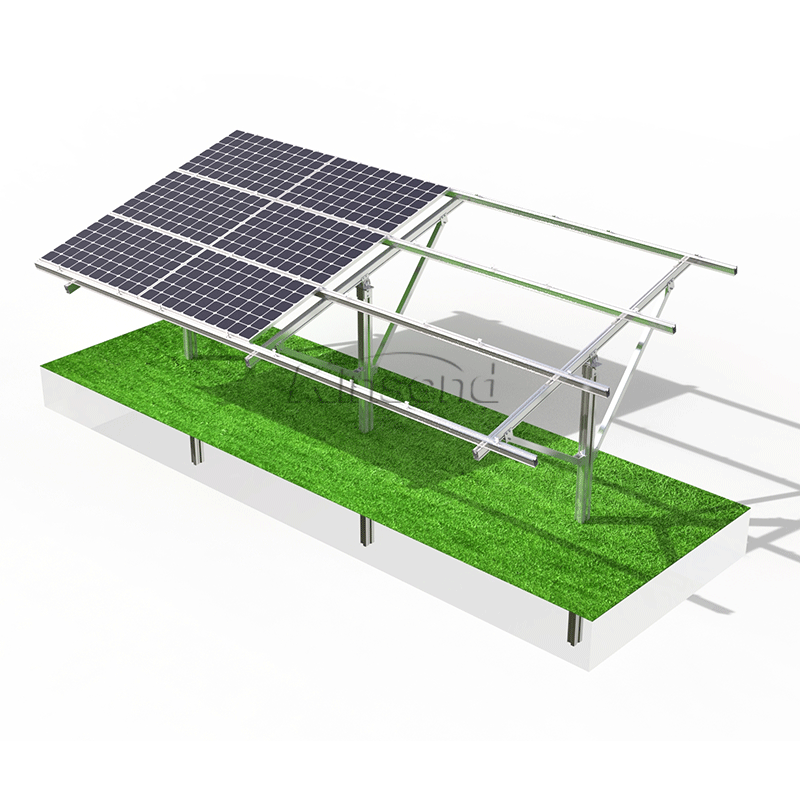

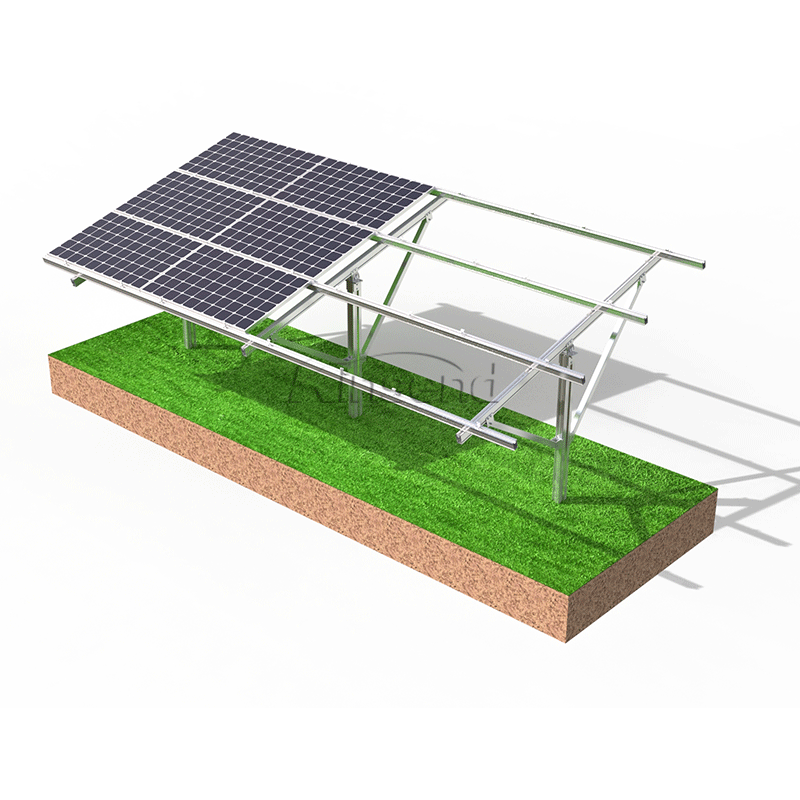

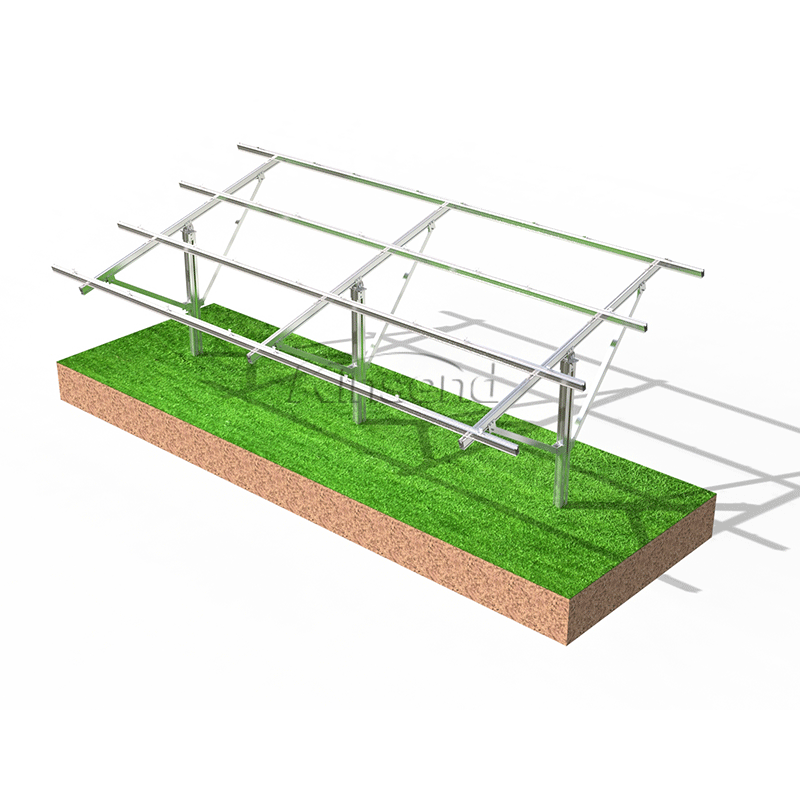

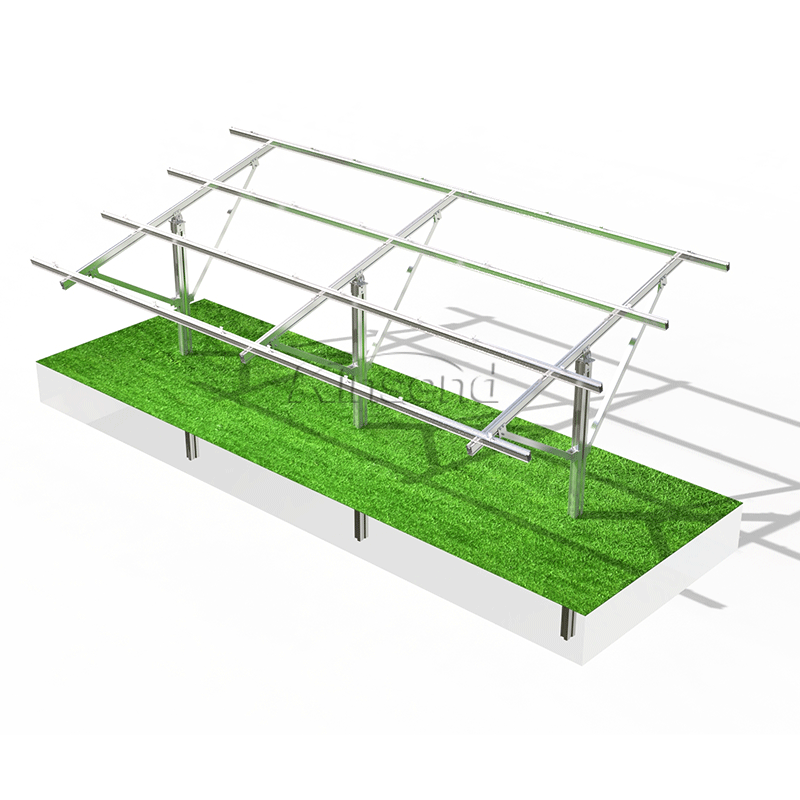

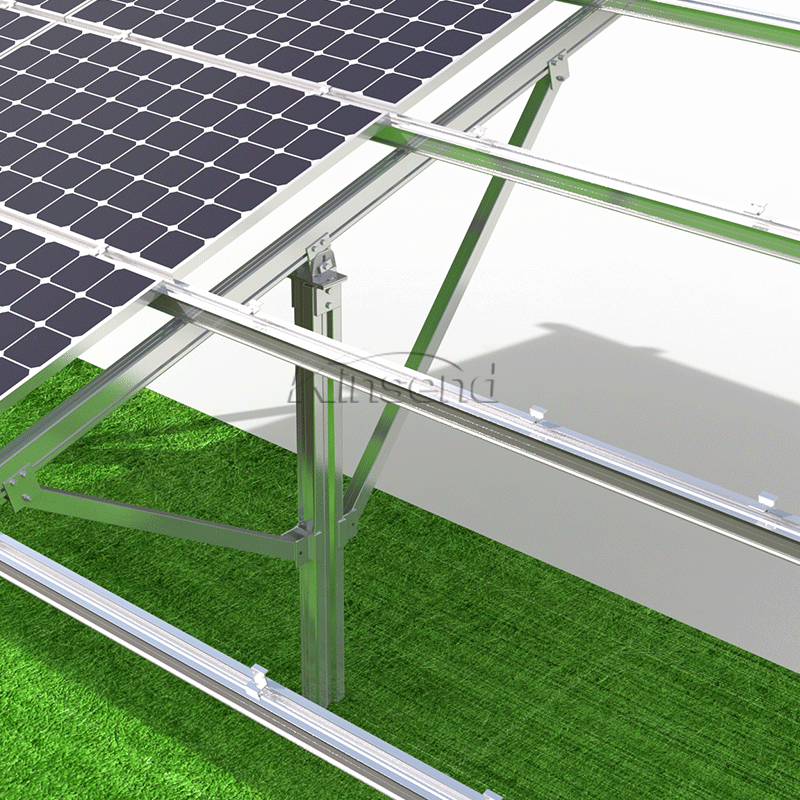

Ground Ramming Pile Mounting System_Single Column

Solar Ground Mounting System is typically applied on flat open field ground. Main components are high pre-assembled in our factory, which save lots of your on site installing time and cost. Components are full sides anodized even for small parts, which has a great anti-corrosion effect and long lifetime.

Solar ground mounting system is typically applied on flat open field ground. The concrete base is easy to build regardless of various soil conditions.

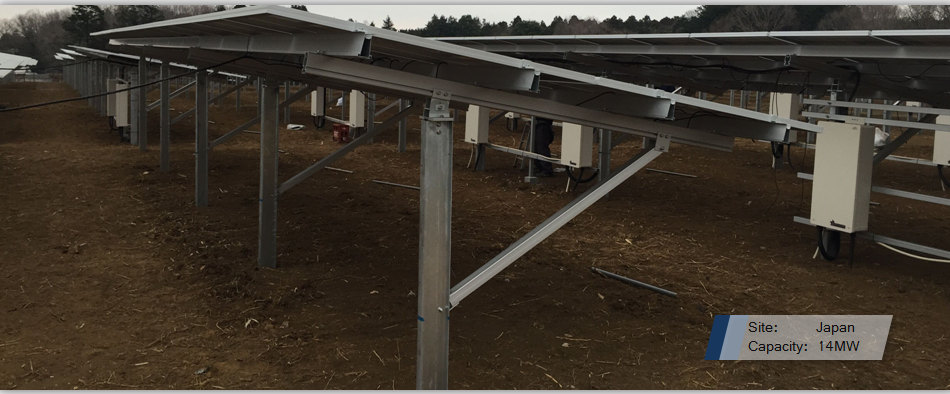

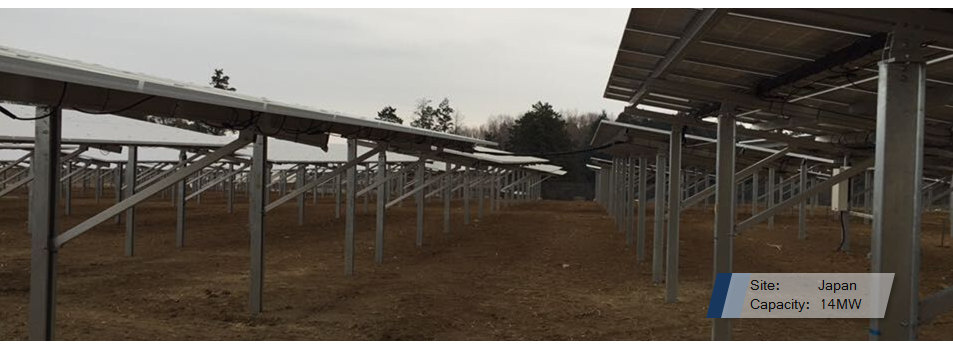

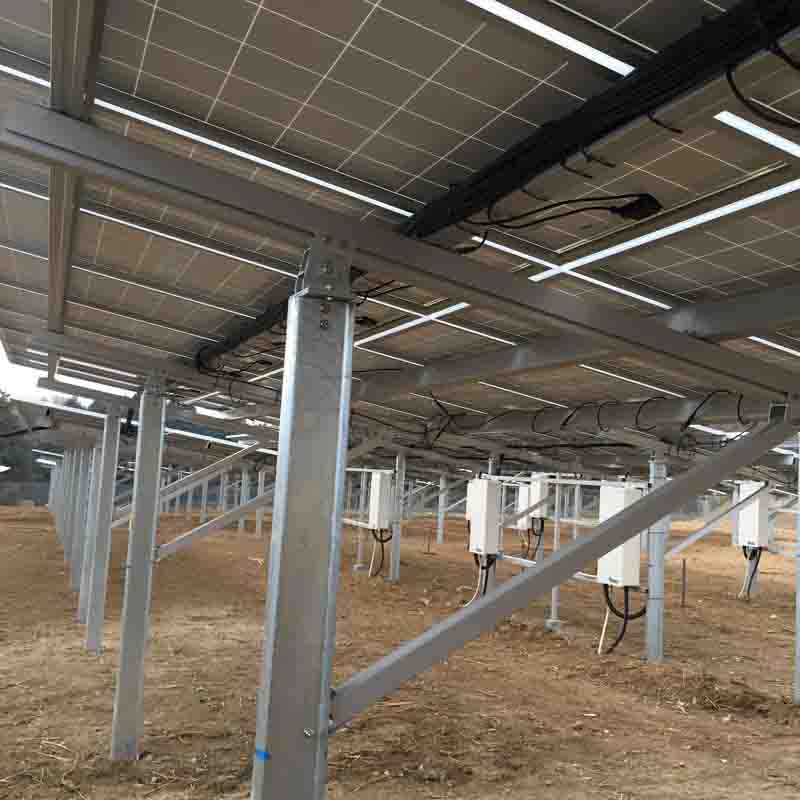

The Solar Ground Pile Mounting System uses Pile drivers to drive C-beams, H-beams or other structural steel directly into the Ground. Installation is simple. This type of installation is widely used in many soil plots.

The concrete foundation solar support system is the ground system with the best environmental protection. Prefabricate the concrete foundation.

The main material of the pv ground mounting system is high-purity aluminum alloy, which is light in weight, pre-assembled components are simple structural design, effectively reducing the onsite  cost. The support surface is anodized, with high corrosion resistance. The ground system with ground screws foundation has strong environmental adaptability and can be widely used in power station solar ground projects in different terrains. High pre assembly reduces on-site installation difficulties encountered. Light material, easy for install & delivery. Suitable for terrains environmental High pre-assembled in factory, save your on site cost & time 12 years warranty and 25 years service life Component List    Installation Site Open Field Area_Aluminum ground mounting system    Installation Base Ground screws and concrete foundations optional Tilt angle 0°- 45°    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011     Material Al6005-T5 for aluminum profiles and clamps.Stainless steel for fasten bolt and nut.     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years

Ground mounting system is made of aluminum to mount on concrete foundation or ground screws，Quick installation with large-scale ground photovoltaic system power station construction progress.

Double blade ground screw foundation ground system, suitable for sandy environment, with strong structural stability,
