C Steel Ground Moungting System C Rail

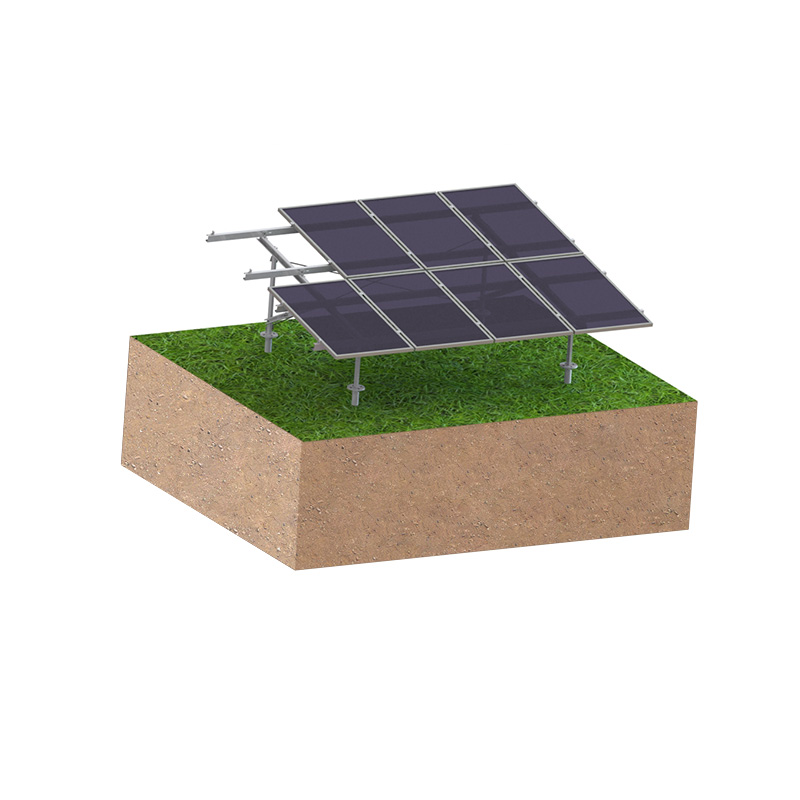

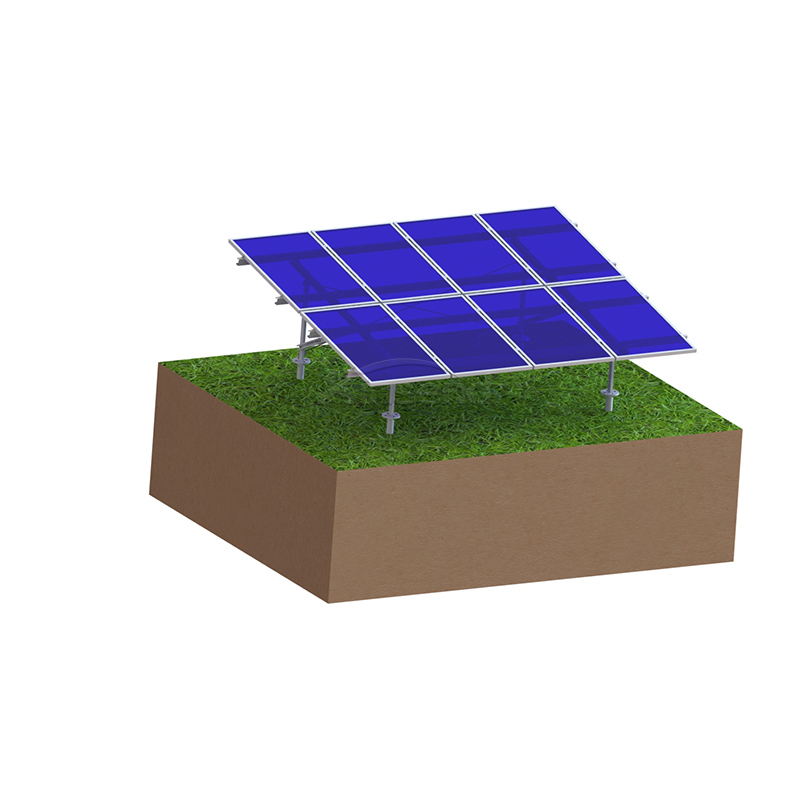

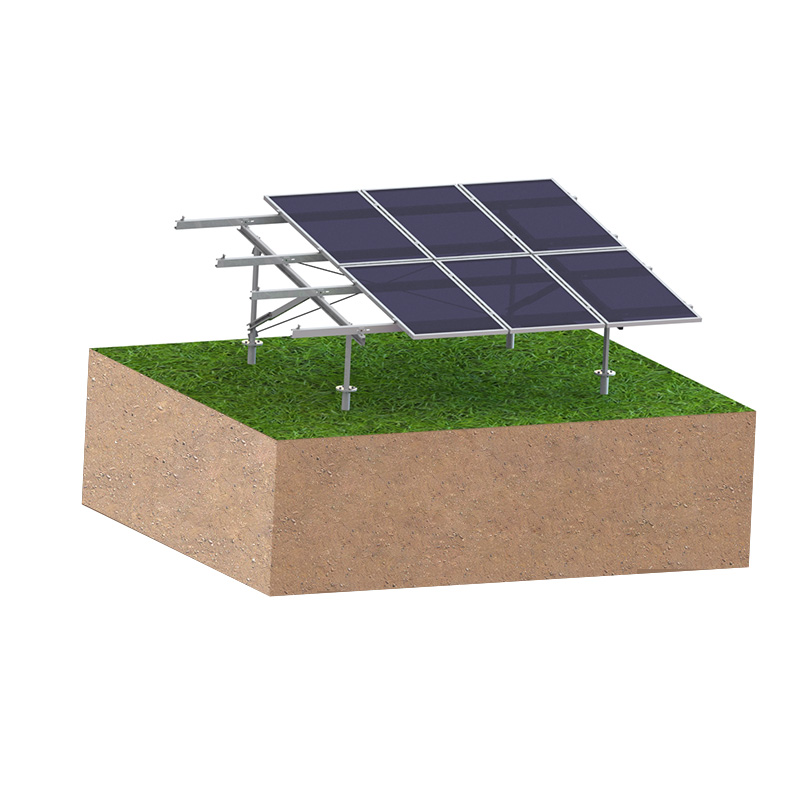

The steel solar ground installation structure is designed for large-scale commercial use on the ground and can be used with grounding screws or concrete bases.
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver, Black
  • Shipping port:

    Xiamen, China
  • Lead Time:

    7-14 days
  • Product Detail



The steel solar ground installation structure is designed for large-scale commercial use on the ground and can be used with grounding screws or concrete bases. Its main material is hot-dip galvanized steel Q235B, which meets high strength requirements. The entire structure has extremely strong corrosion resistance throughout its entire service life.




  • Pre-assembled in factory, save the onsite installing time and cost
  • Hot dipped galvanized Steel Q235B or ZAM

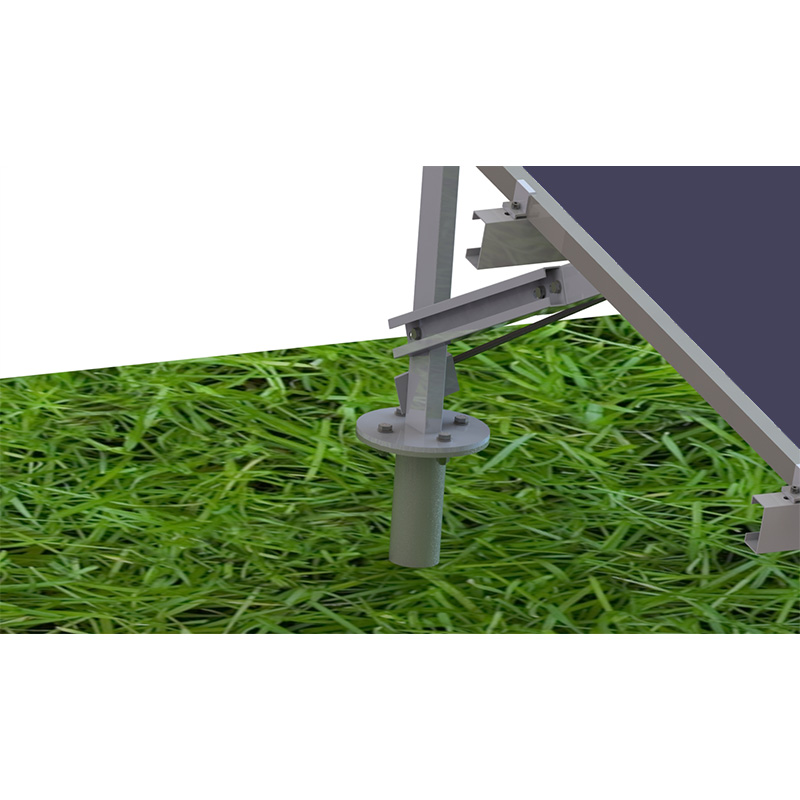

  • Strong structure suit for ground screws and concrete foundation
  • 10 years warranty and 20 years service life




   Installation Site

Open ground with dinas & clay soil /complex terrain

   Installation Base

Ground screw

Tilt angle

Up to 45° or Customized tilt angle

Panel placement

Vertical / horizontal

   Max Wind Speed

< 60m/s

   Snow Load

< 80cm   /1.4KN/m²

   Standards

AS/NZS 1170 &JIS C 8955-2011

    Material

Hot dipped galvanized steel

    Anti-corrosive

Hot dipped galvanized

    Warranty / Duration

 12 years/ More than 25 years

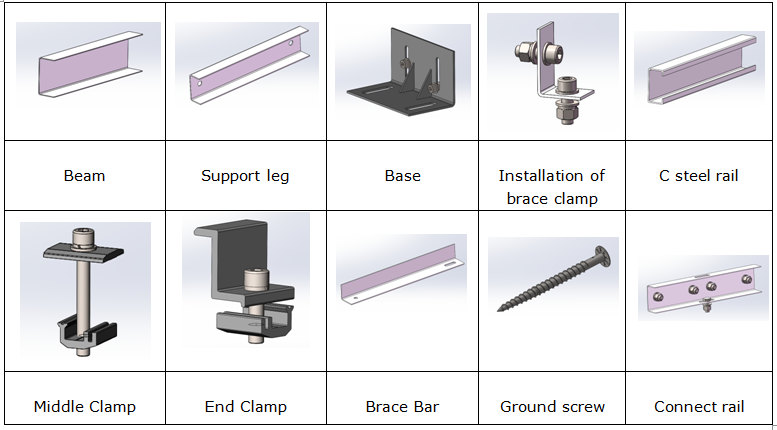

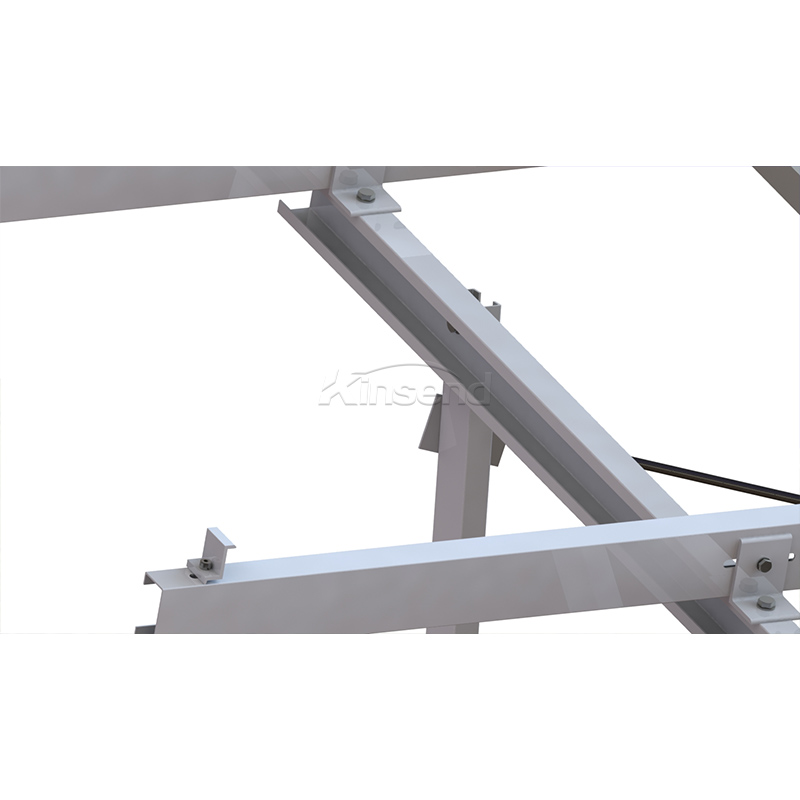

Components Details

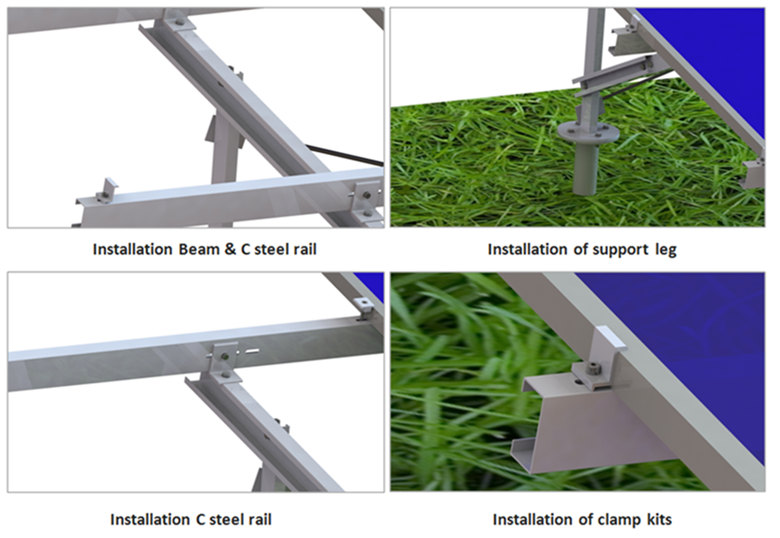

Installation Details
