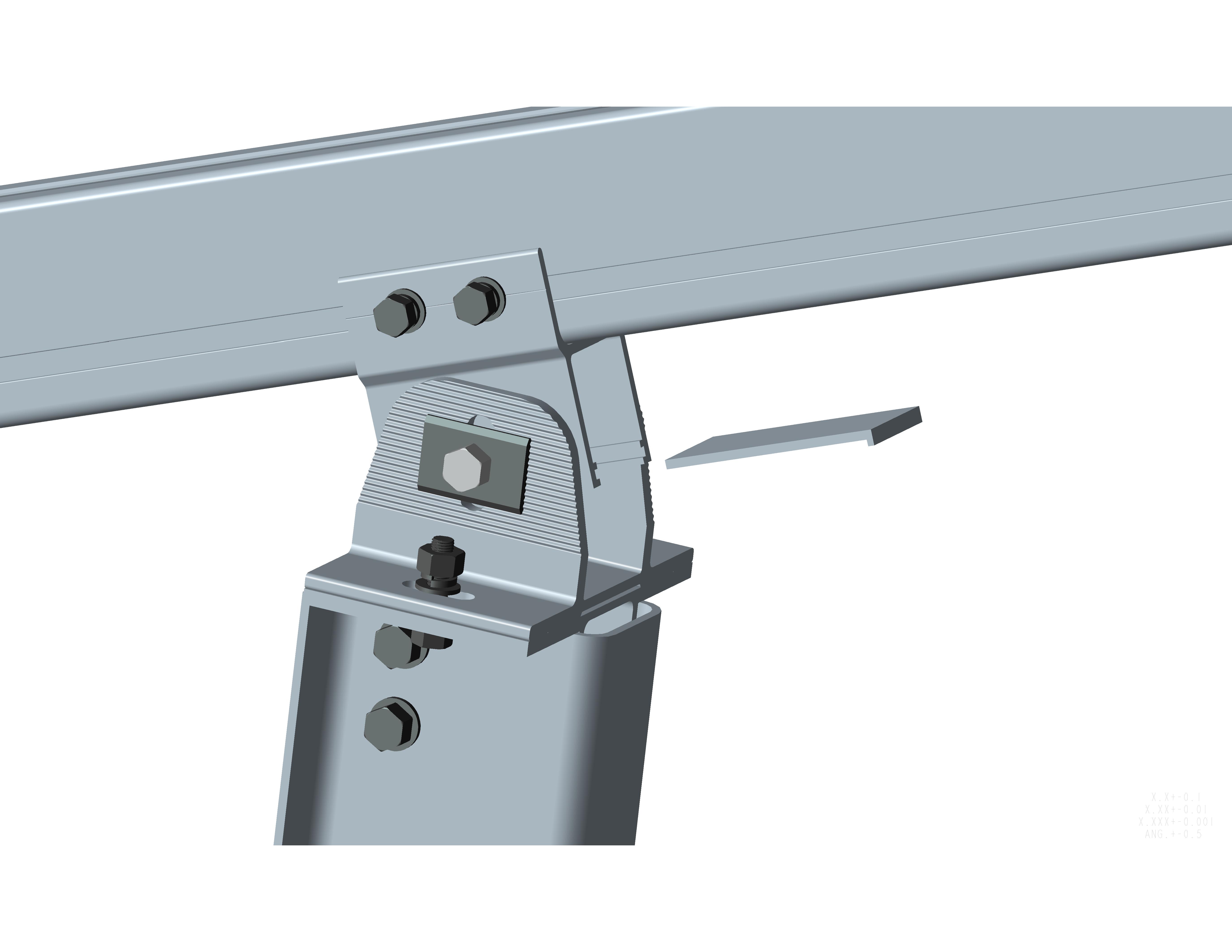

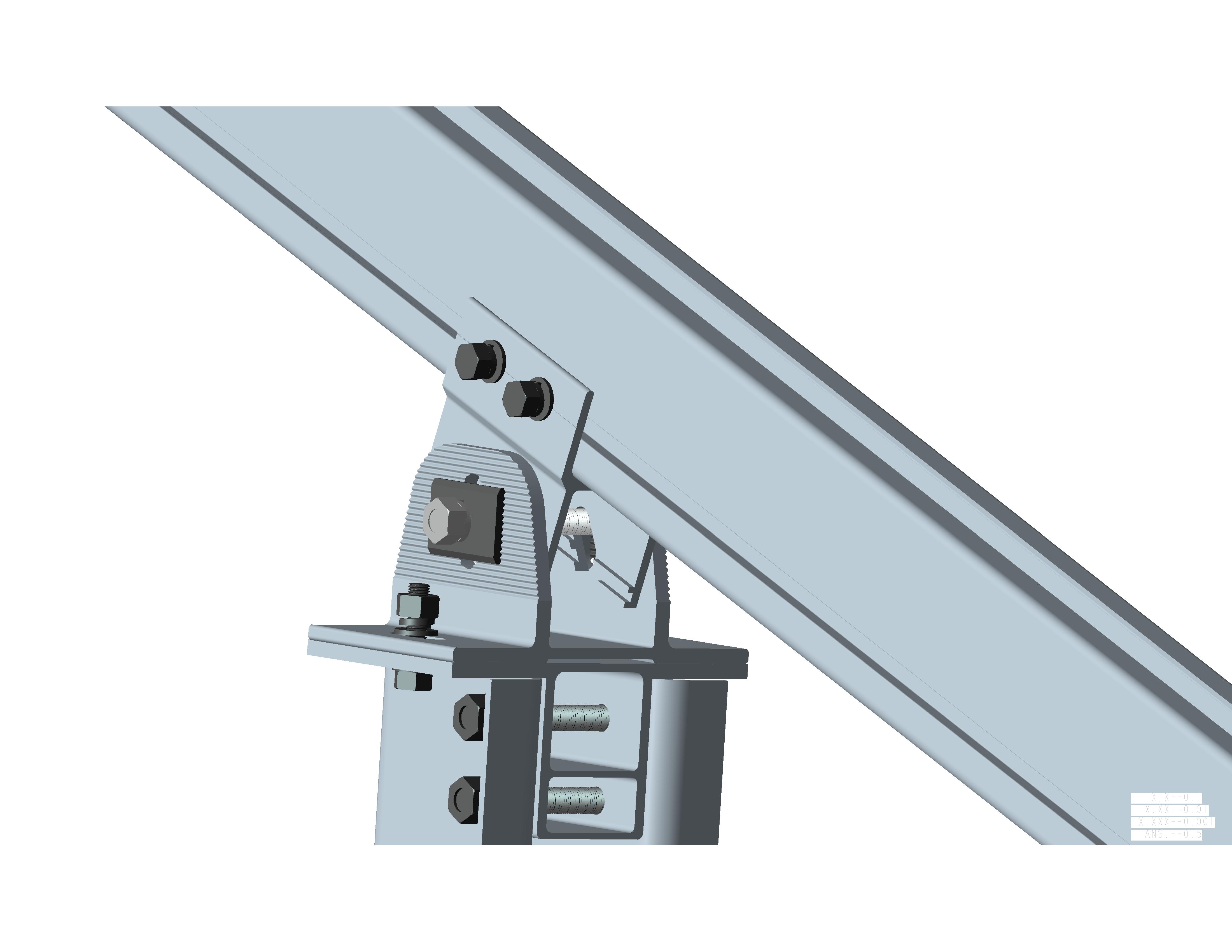

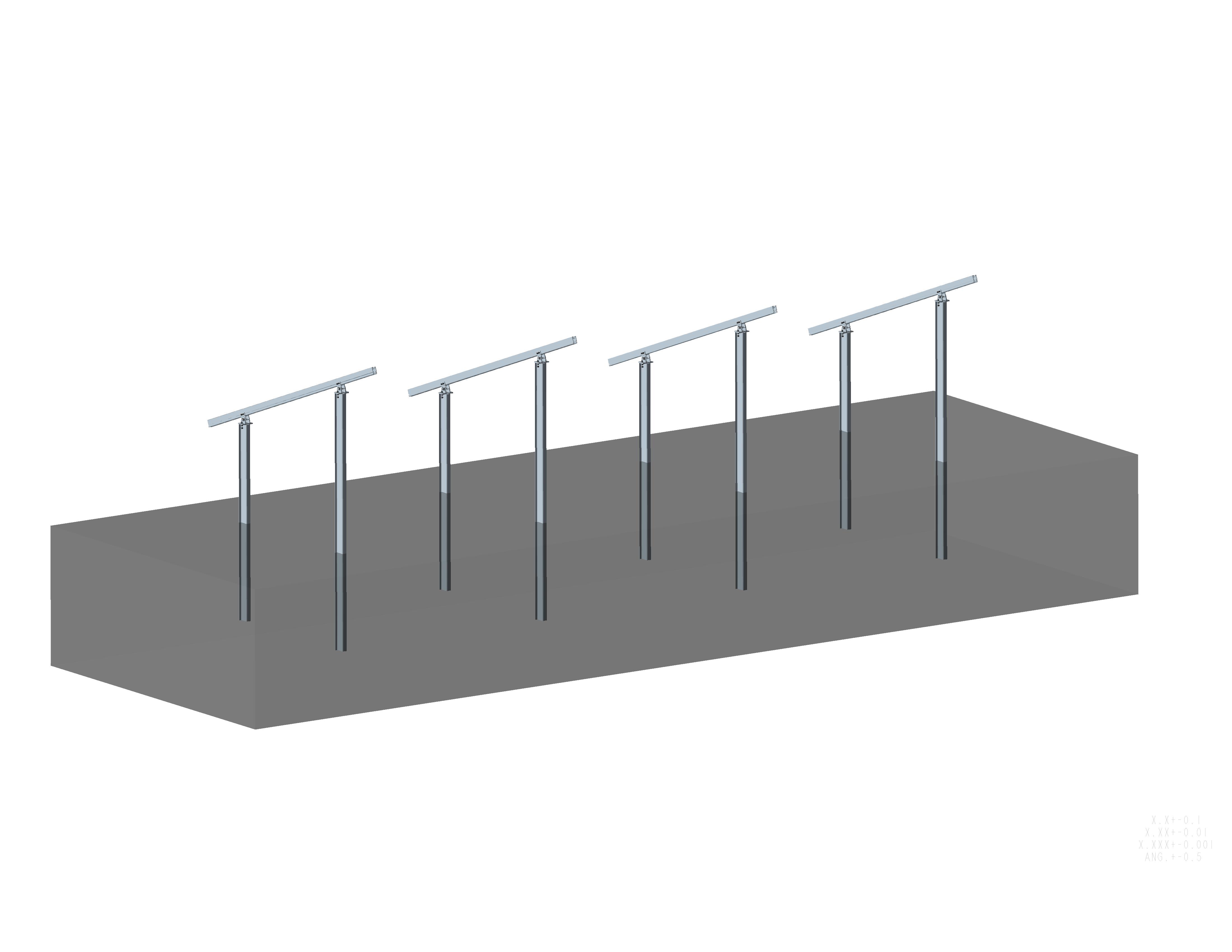

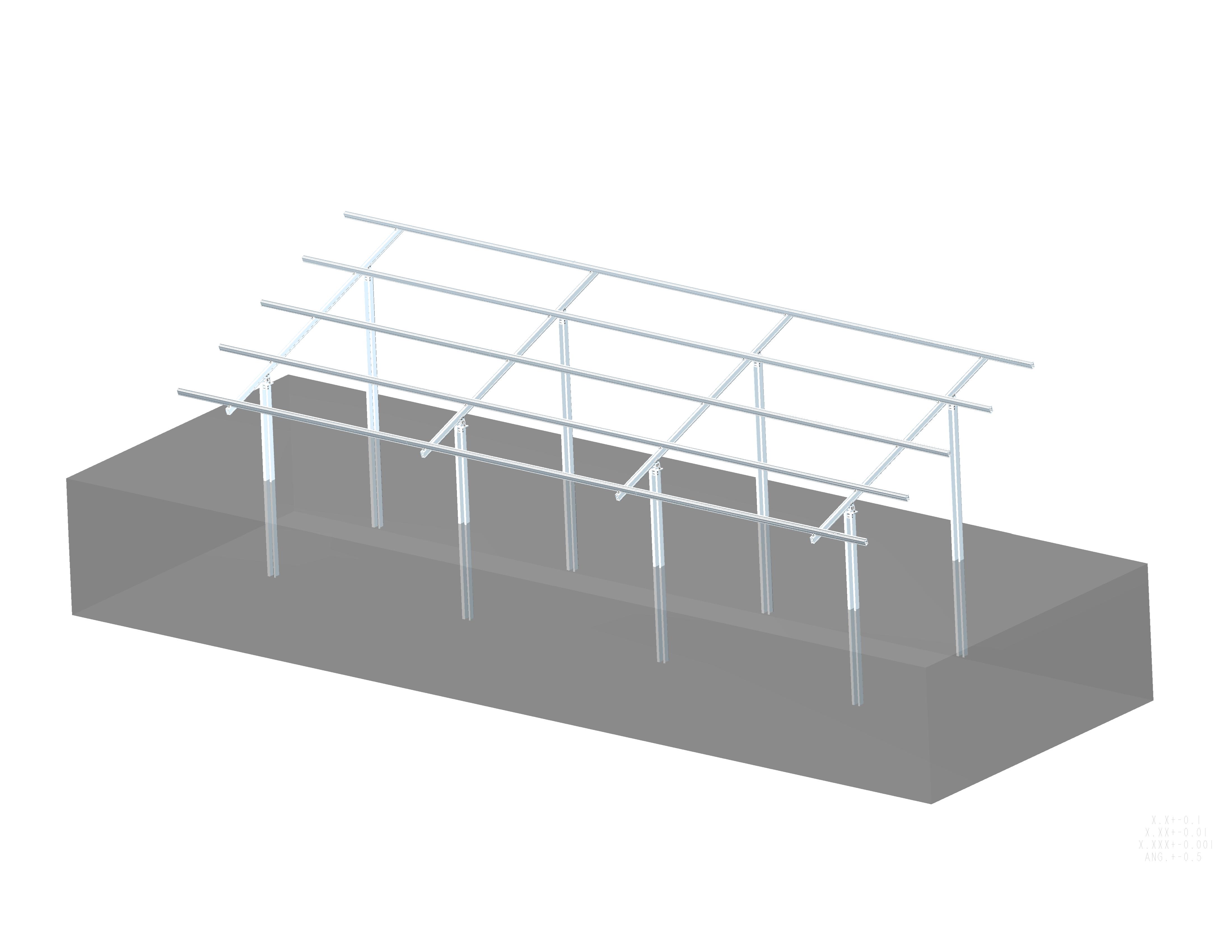

The Solar Ground Pile Mounting System uses Pile drivers to drive C-beams, H-beams or other structural steel directly into the Ground. Installation is simple. This type of installation is widely used in many uneven terrain. Using a pile driver to drive steel piles into the soil, there is no need to dig the ground, more environmentally friendly, not subject to seasonal temperature and other restrictions. Kinsend improves the strength of the ramming pile system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity.The system compatible with most kinds of framed and frameless modules.
- High corrosion resistance: Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized) Anodizing even after handling small parts
- Easy installation, highly pre-assembled design
- Safety and reliability
- 10 years warranty, more than 20 years service life
Installation Site |
Open Field Area, Level Ground or Slope Ground |
Installation Base |
Piling |
Tilt angle |
0°- 45° |
Max Wind Speed |
< 60m/s |
Snow Load |
< 80cm |
Standards |
AS/NZS 1170 &JIS C 8955-2011 |
Material |
Al6005-T5 for aluminum profiles and clamps Stainless steel for fasten bolt and nut Hot Dip galvanized Q235 for U Pile Post |
Anti-corrosive |
Anodized |
Warranty / Duration |
12 years/ More than 25 years |
Component List
