Ballast Solution Flat Rooftop System _ Pallet Base

Commodity name： Ballast Solution Flat Rooftop System _ Pallet Base

Ballast tripod flat rooftop mounting system is relatively easy to install and can be done quickly, which can reduce the installation time and labor costs.

Kinsend offers solar PV mounting solutions supported by a veteran R&D team, which provides tailored efficient design as per customer’s budget and project conditions.

Type:

Ballast Roof Pv System

Email:

Whatsapp:

Product Description
右侧描述

Ballast tripod flat rooftop mounting system is relatively easy to install and can be done quickly, which can reduce the installation time and labor costs. ballast tripod flat rooftop mounting system is an effective and efficient solution for flat rooftop solar panel installations that require stability and security without the need for roof penetration.

Reduce the installation time and labor costs
Makes it a versatile solution for a variety of flat rooftop applications
Pre-assembled Components Save Onsite Installation Time
Easy and quick installed by using our bolts and nuts

Components List

Installation Details

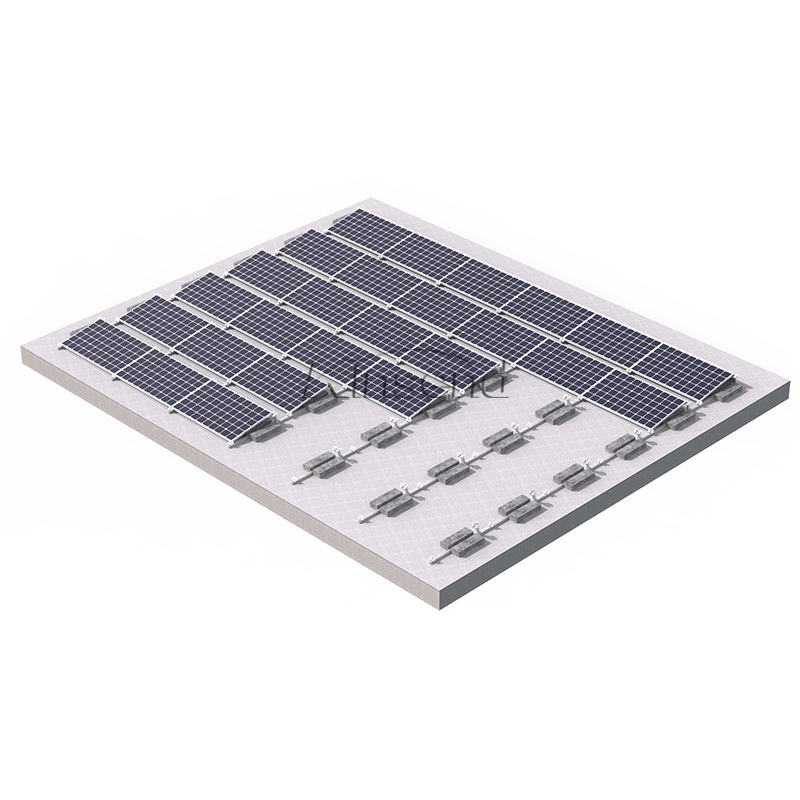

Put the concrete on the pallet and install Fix the panel with clamps

Installation Site	Open Field Area_Flat rooftop or Ground
Installation Base	Ballasted Tilt Solution
Tilt angle	5°- 45°
Max Wind Speed	< 60m/s
Snow Load	< 80cm
Standards	AS/NZS 1170 &JIS C 8955-2011
Material	Al6005-T5 for aluminum profiles and clamps.Stainless steel for fasten bolt and nut.
Anti-corrosive	Anodized
Warranty / Duration	12 years/ More than 25 years

Ballast tripod flat rooftop mounting system is a type of solar panel mounting system that is designed for flat rooftops. This system uses a tripod structure that is weighted down with ballasts to provide a stable and secure foundation for the solar panels.
