Metal rooftop triangle bracket mounting system

The metal rooftop triangle bracket mounting system is a type of mounting system designed for metal rooft.. It uses triangular-shaped brackets that are attached to the metal roof using screws or other fasteners.
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver, Black
  • Shipping port:

    Xiamen, China
  • Lead Time:

    7-14 days
  • Product Detail

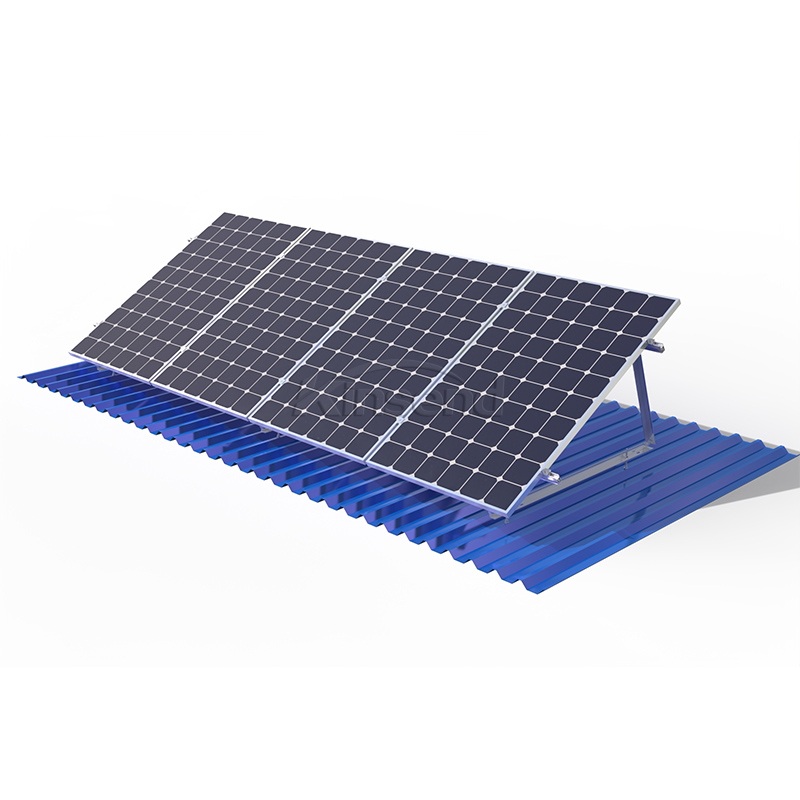

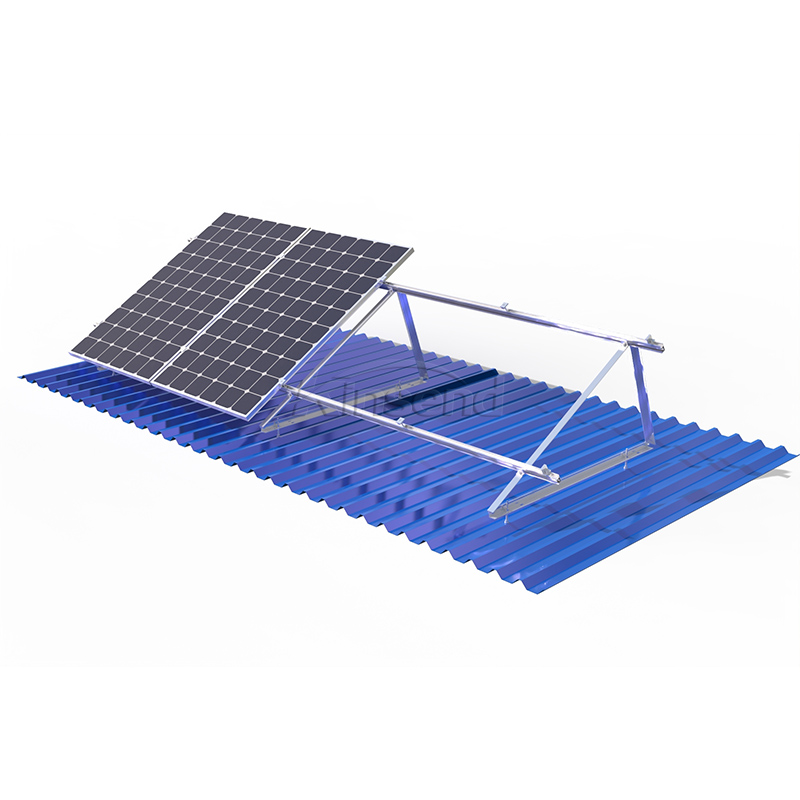

The metal rooftop triangle bracket mounting system is a type of mounting system designed for metal rooft. It uses triangular-shaped brackets that are attached to the metal roof using screws or other fasteners. The solar panels are then attached to the brackets, providing a secure and stable foundation for the solar panels.  Triangle roof mounting system is an effective and efficient solution for metal rooftop solar panel installations that require stability and security without the need for roof penetration.




  • Applicable to metal roof and concrete flat roof
  • Easy and quick installed by using our bolts and nuts
  • Suitable for installing framed and frameless modules
  • Pre-assembled Components Save Onsite Installation Time

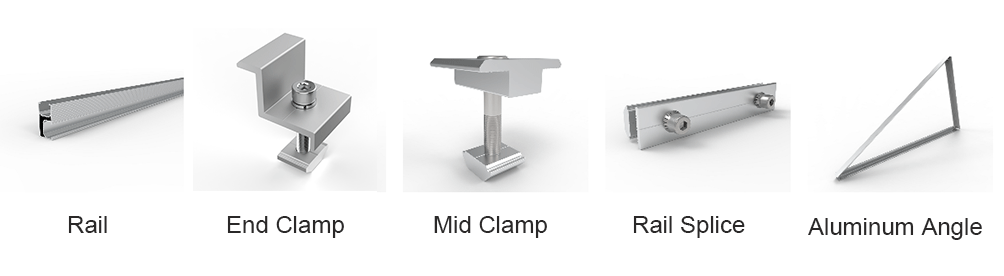

Components List

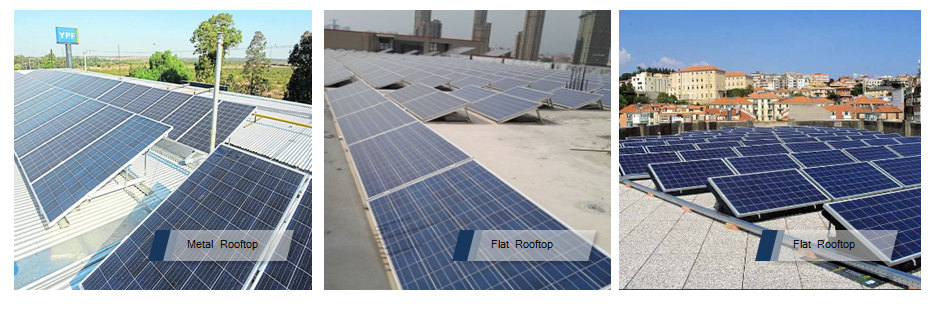

  Installation Site

Cements Roof / Metal Roof

   Installation Base

Riveted or screwed onto raised corrugations on metal roof, ormounted onto the Concrete block

Tilt angle

Up to 60 degrees

Tilt angle: 10°, 15°, 20°, 30°  (commonly used angle)

   Max Wind Speed

< 60m/s

   Snow Load

< 80cm

   Standards

AS/NZS 1170 &JIS C 8955-2011

    Material

Al6005-T5 for aluminum profiles and clamps

Stainless steel for fasten bolt and nut

    Anti-corrosive

 Anodized

    Warranty / Duration

 12 years/ More than 25 years


  Details

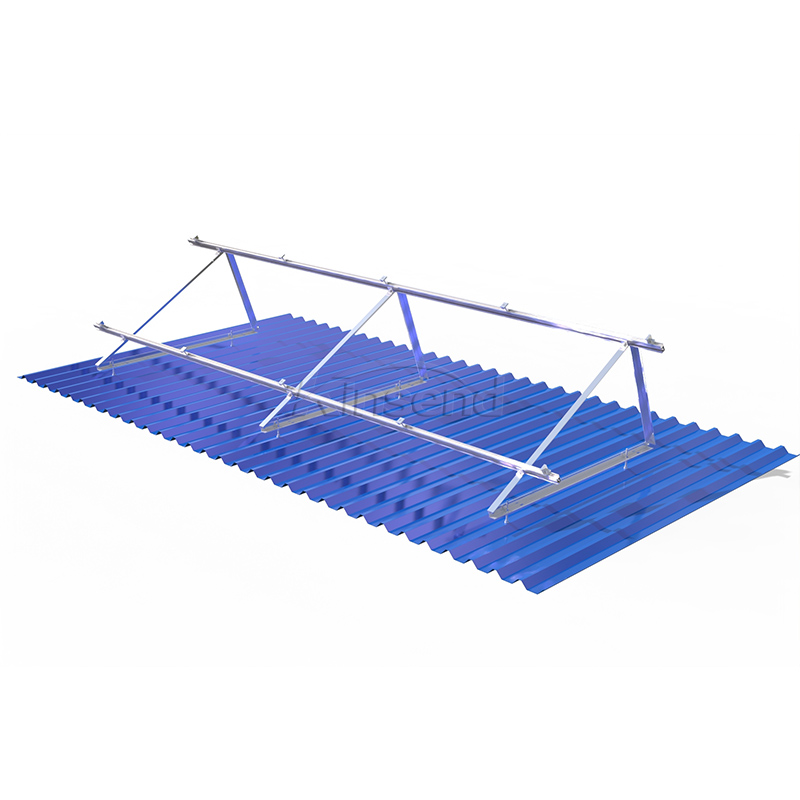

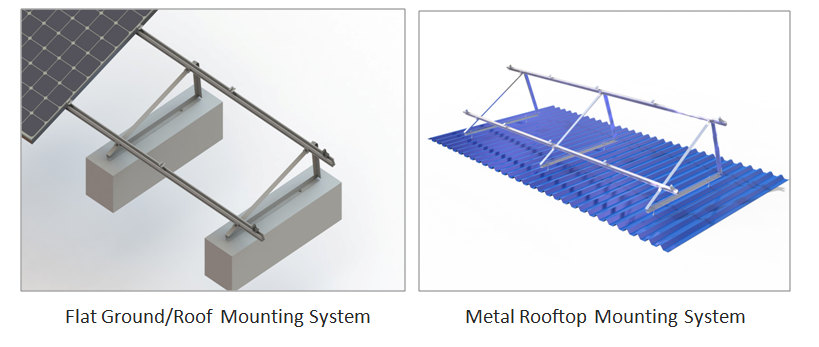

The tripod bracket system can be mounted on metal roof clamps or penetrated into concrete, Applicable to various places,metal roof, cement flat roof, or concrete foundation ground. Folding design for easy transport, cost-effective storage and easy installation.
