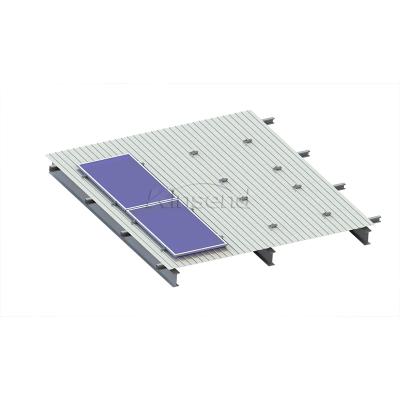

The metal rooftop triangle bracket mounting system is a type of mounting system designed for metal rooft.. It uses triangular-shaped brackets that are attached to the metal roof using screws or other fasteners.
Metal Roof Solar Panel Mount Tripod Angle Aluminum It can be installed on metal roof clamp or penetrate into concrete. Highly pre-assembly, easy installation Perfect also for small systems of 1,2,4 or 8 modules, Fixed angle, adjustable angle both available.
Highly pre-assembly, easy installation
Fixed angle, adjustable angle both available
Tilt angle: 5-45°
Strong structure with most competitive price
Installation Site
Flat Roof or
inclined metal/tin roof
Tilt angle
5-45°
Economic layout
Landscape/portrait , Perfect also for small systems of 1,2,4 or 8
modules
Max Wind Speed
< 60m/s
Snow Load
< 80cm
Standards
AS/NZS 1170, DIN 1055, JIS C 8955:2011
Material
Anodized aluminum 6005 T6 , Fasten bolt and nut
stainless steel 304
Anti-corrosive
Anodized
Warranty / Duration
12 years/ More than 25 years
Details
Ground mounting system is made of aluminum to mount on concrete foundation or ground screws,Quick installation with large-scale ground photovoltaic system power station construction progress.
The steel solar ground installation structure is designed for large-scale commercial use on the ground and can be used with grounding screws or concrete bases.
Fast Installation Solar Carport Racking,The N-shaped structure is more streamlined, reducing the cost of the entire carport system and reducing obstruction to vehicles.
High suitability carport mounting system with panels horizontally layout , and solar installations in both waterproof and non waterproof carport structure are optional.
