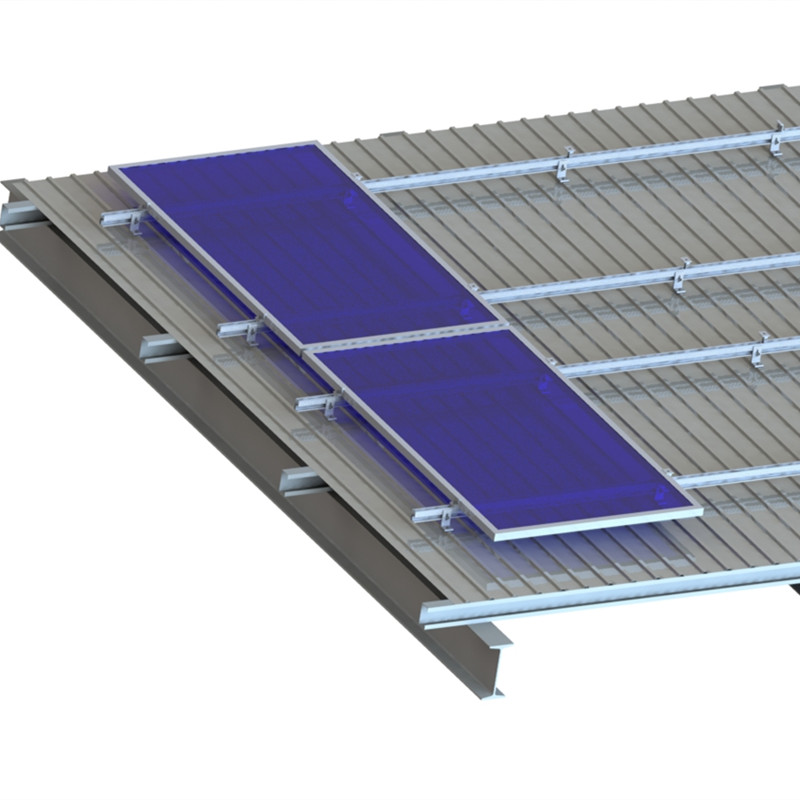

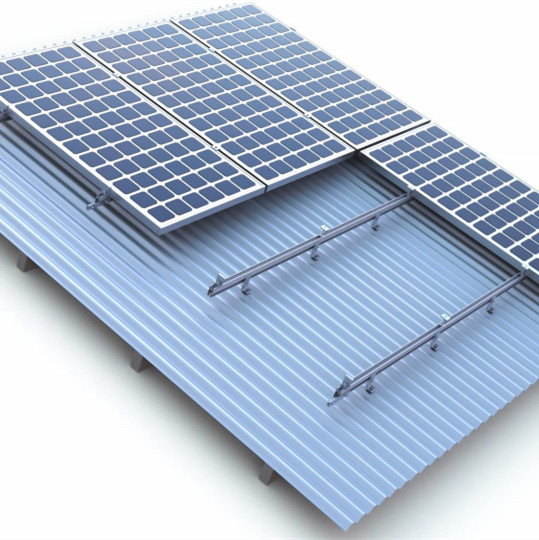

Trapezoid Metal Roof L feet Solar Mounting System

The aluminum L feet solar mounting system is widely used in commercial and residential metal rooftop, easy to install.
  • Item no.:

    KS-HK-L01/02
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver, Black
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days
  • Product Detail

Description

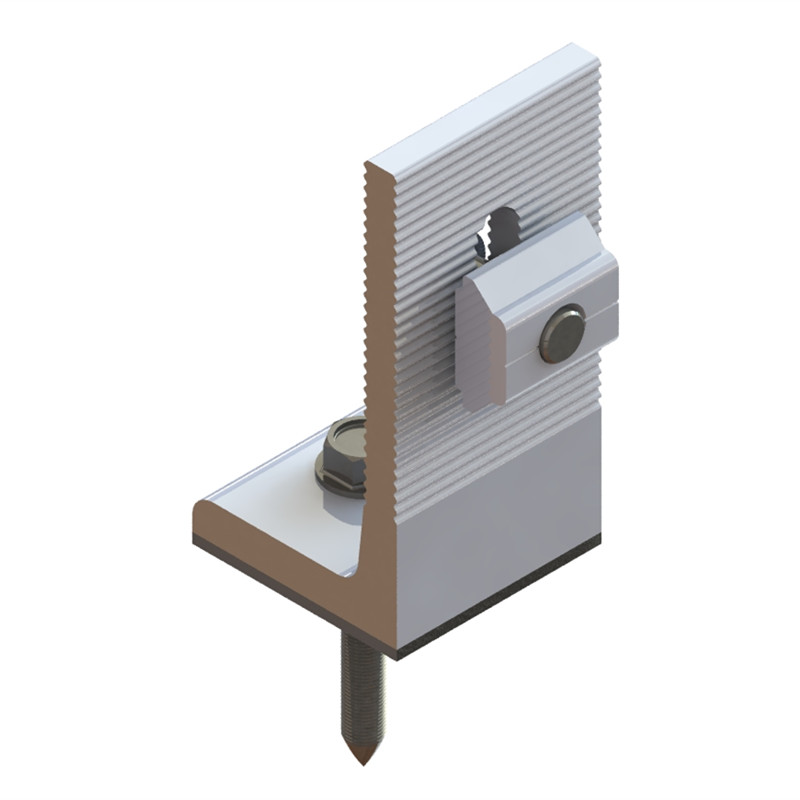

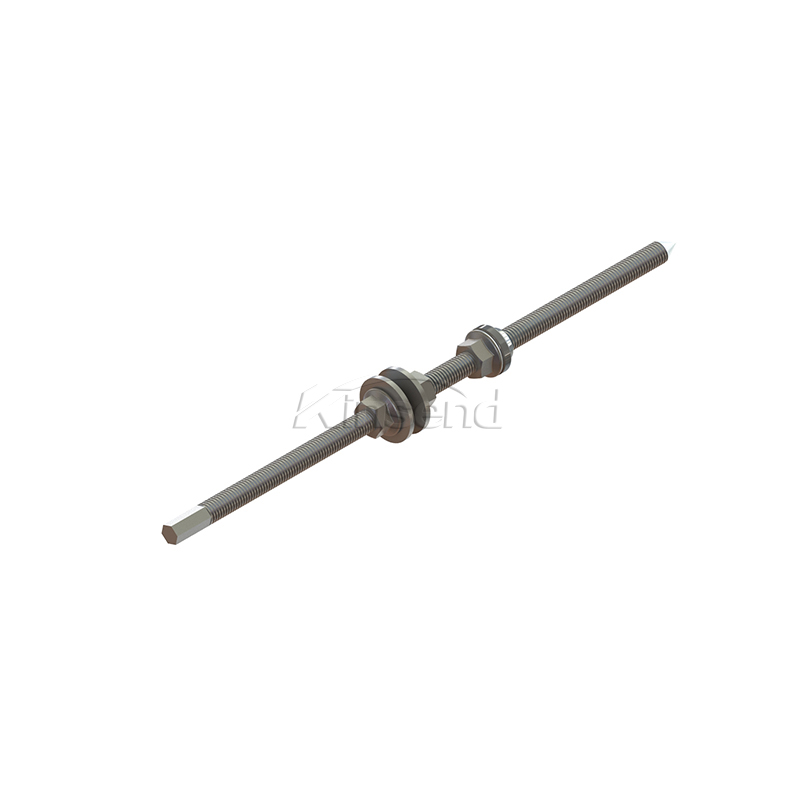

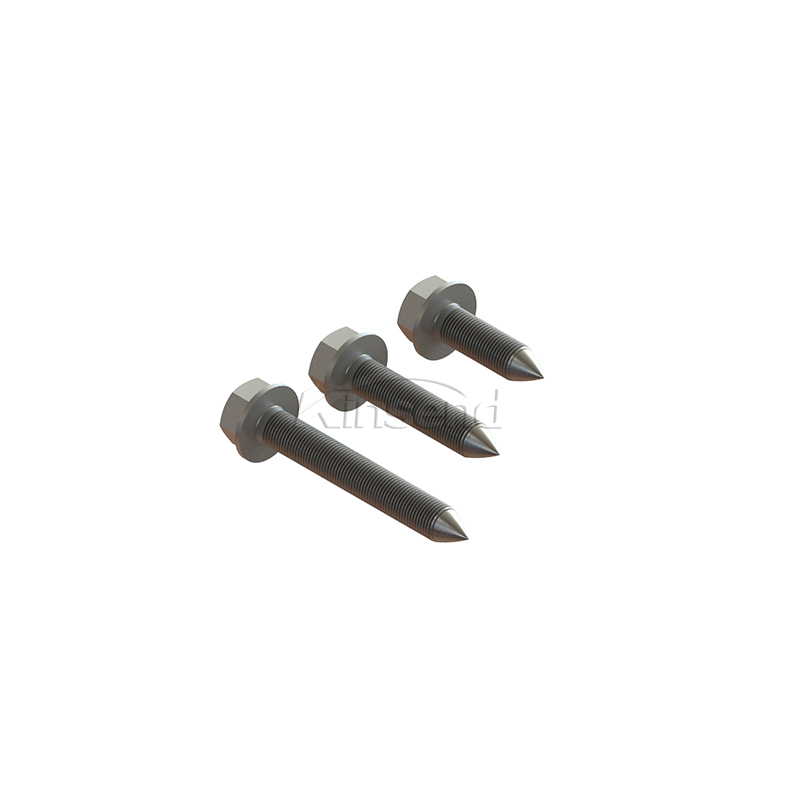

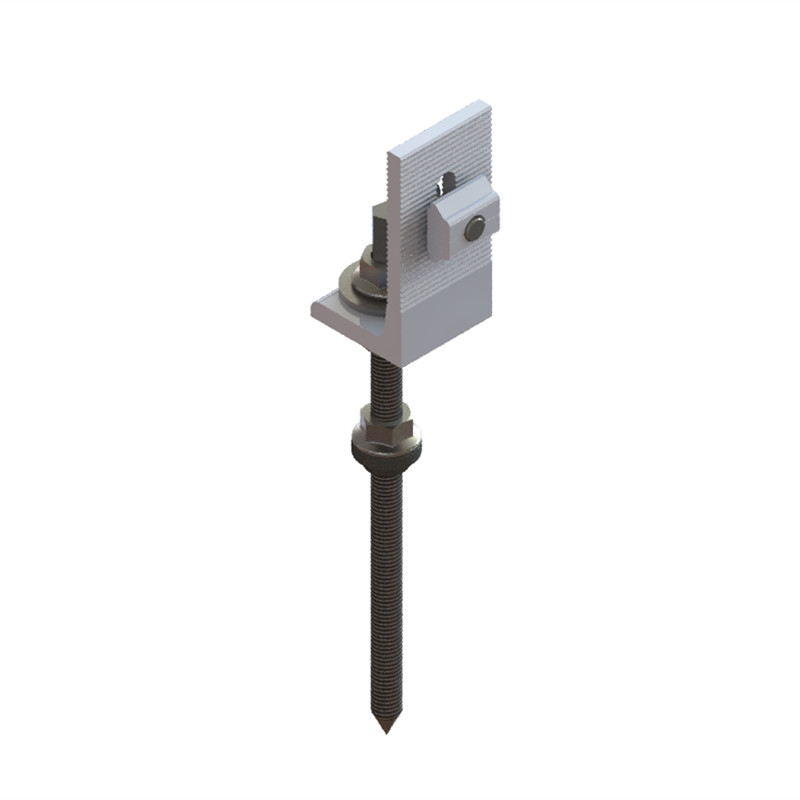

The aluminum L feet solar mounting system is widely used in commercial and residential metal rooftop, easy to install. System is stably installed on rooftop with self-tapping screw or hanger bolt, withstand heavy wind load.


Features

Widely used on metal roof

Withstand heavy wind speed

Light material

Full sides anodizing

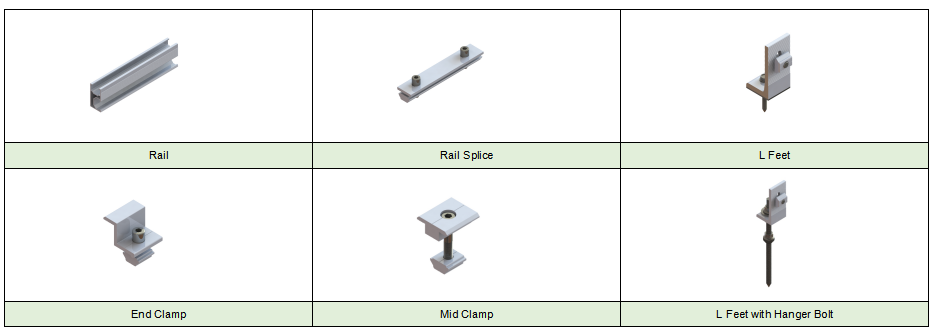

Components List



Technical Date

Install site Trapezoid / Corrugated Metal Rooftop
Max Wind Speed   ≤60m/s
Snow Load   ≤1.4KN/M2
Tilt Angle   0 degree
Applicable Module   Framed or frameless
Standards   AS/NZS 1170, ASCE 7-10, JIS2017
Material   AL6005-T5, SUS304
Anti-corrosive   Anodized
Color   Silver
Warranty   10 years warranty

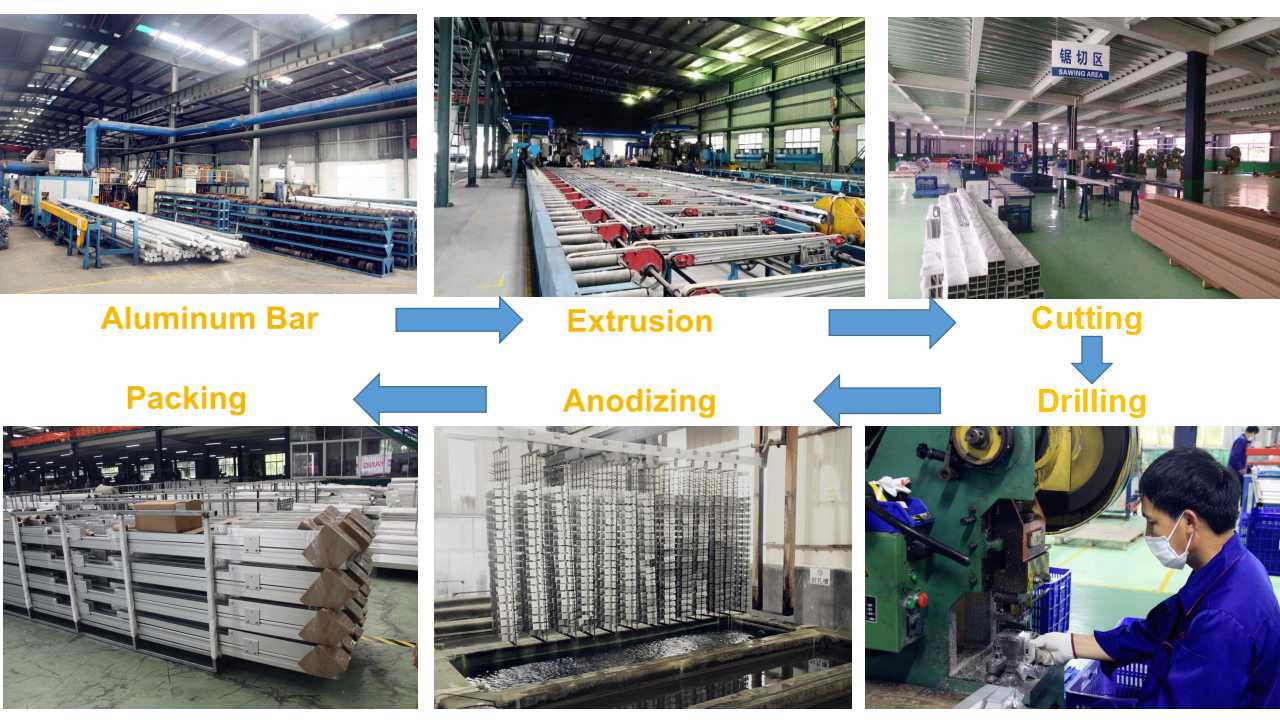

Production Processes
