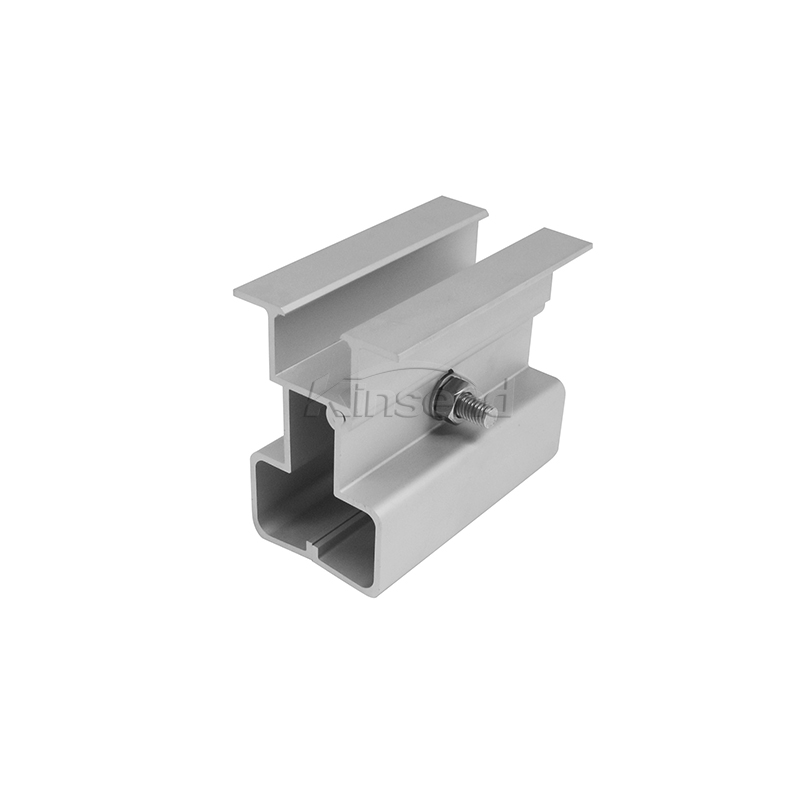

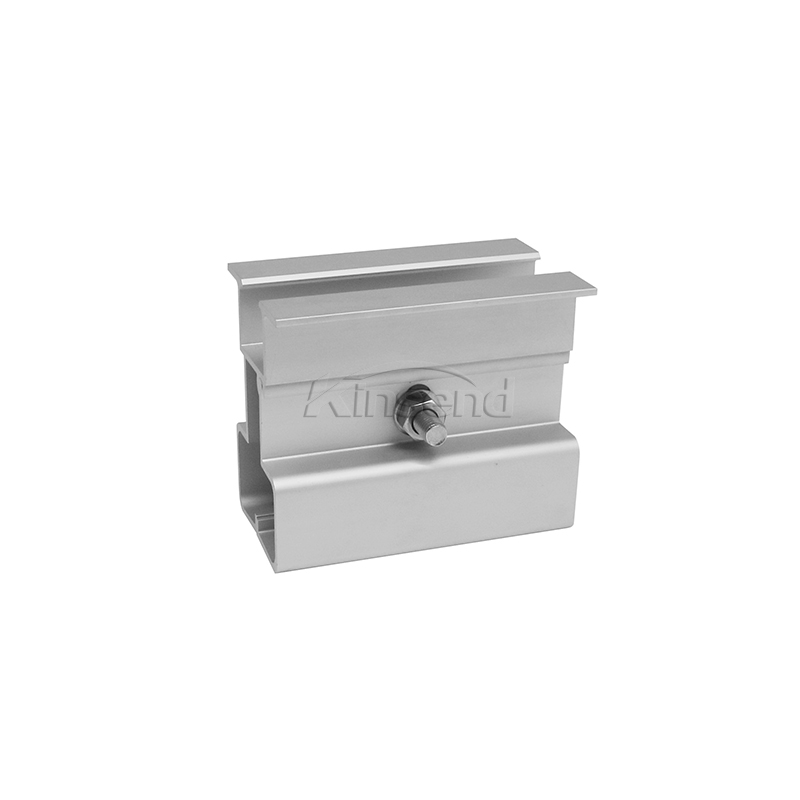

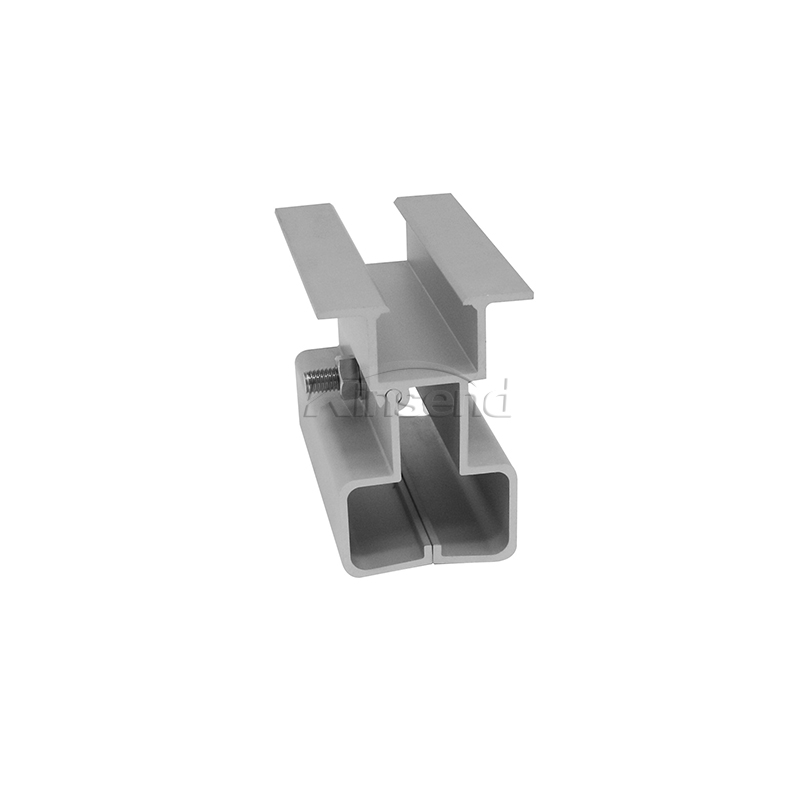

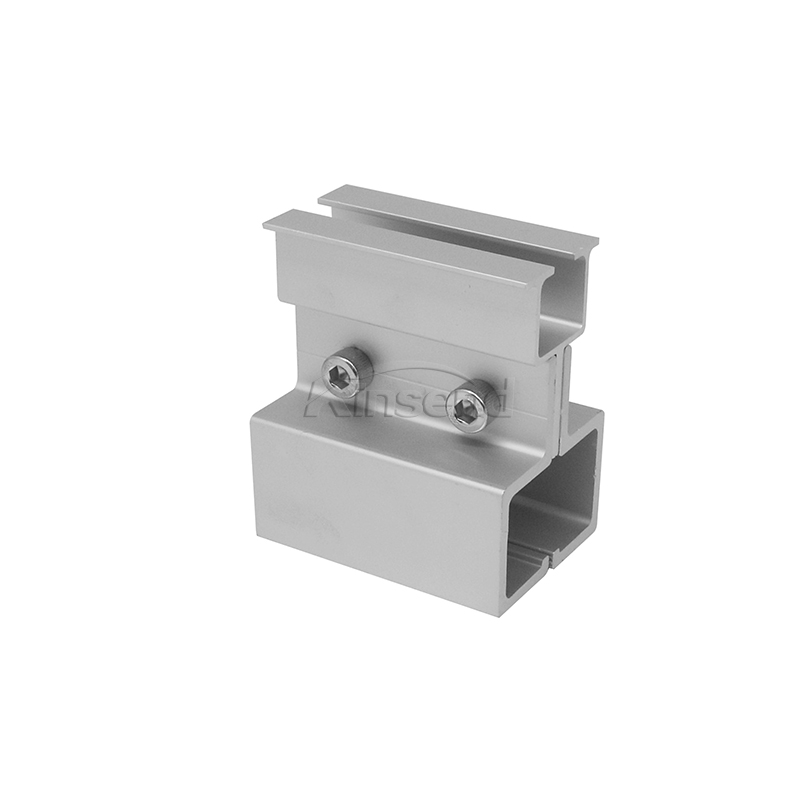

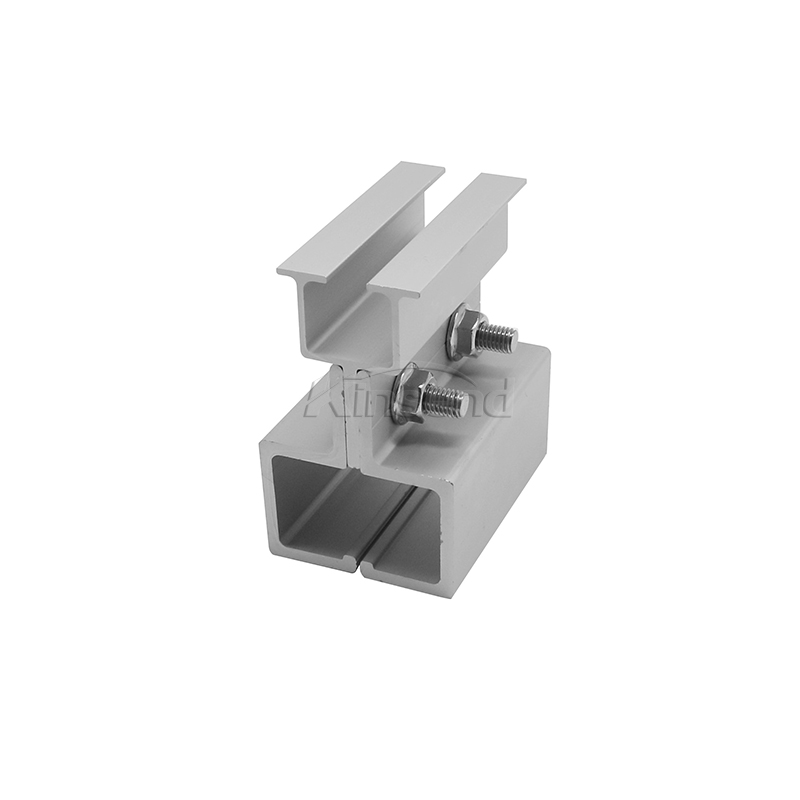

Standing Seam Solar Rooftop Mounting System

The standing seam roof clamps easy mounting on the folded seam rooftops. The clamps are designed to catch the standing seams effectively with ease. Clamps offer a secure fastening without penetrating the roof sheets, with maximum stability and minimum weight.
  • Item no.:

    KS-HK-S03
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver, Black
  • Shipping port:

    Xiamen
  • Product Detail

Description

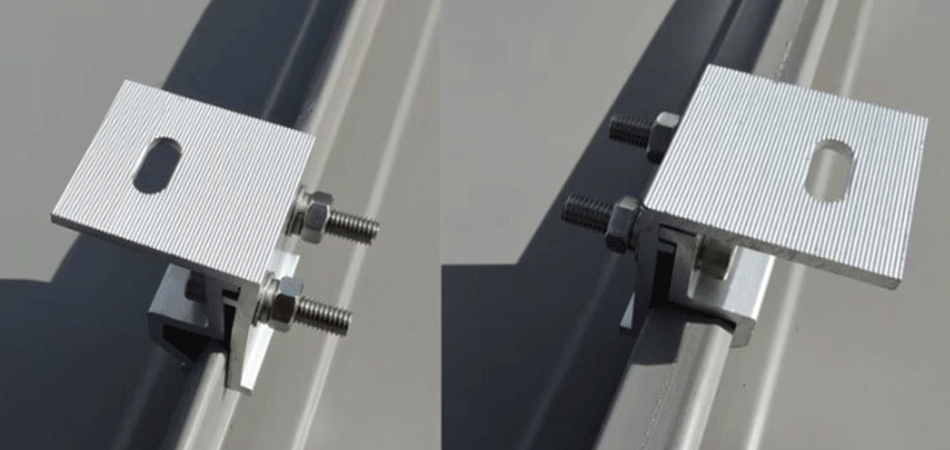

The aluminum standing seam rooftop clamps  are easily mounting on the folded seam rooftops. The clamps are designed to catch the standing seams effectively with ease. Clamps offer a secure fastening without penetrating the roof sheets, with maximum stability and minimum weight.


Feature

No penetrating

Railess for landscape placement

Exclusively designed to catch roof seam effectively

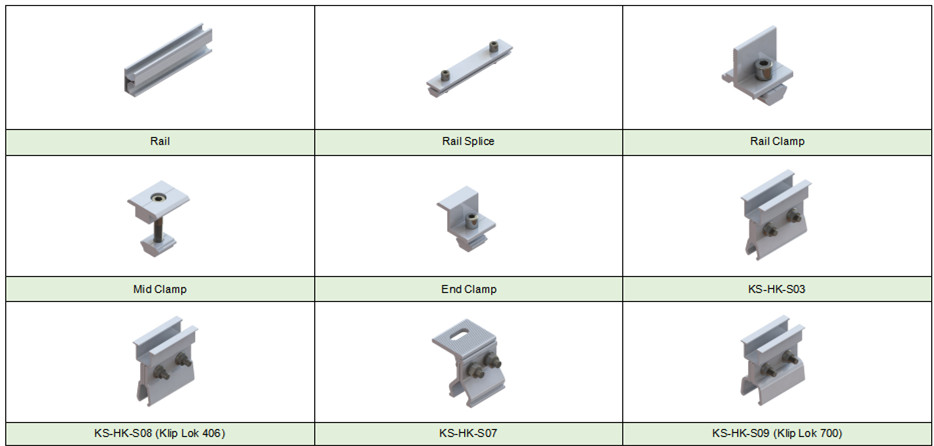

Component List



Technical Date

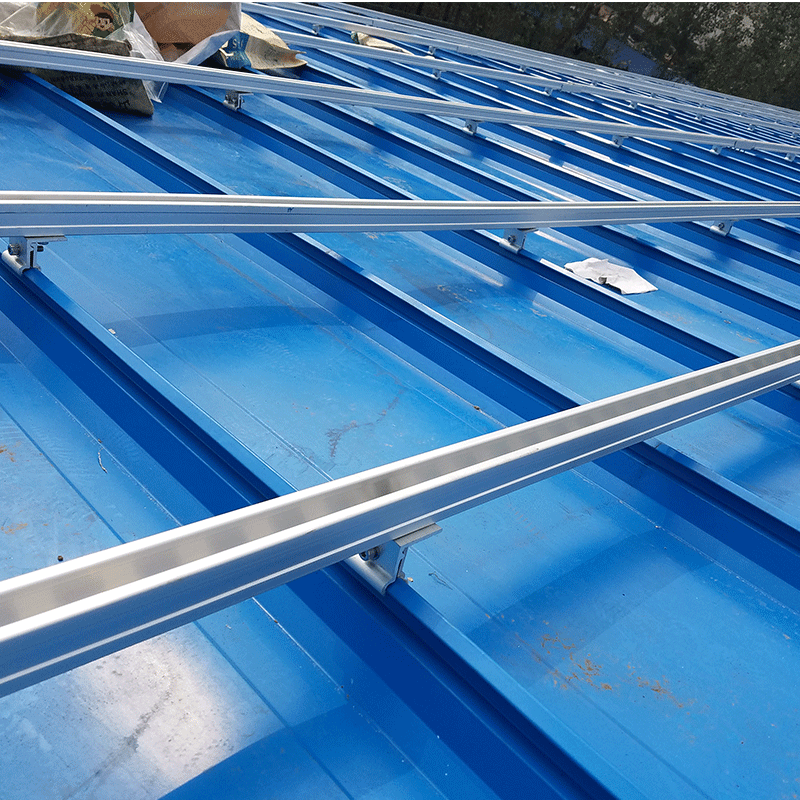

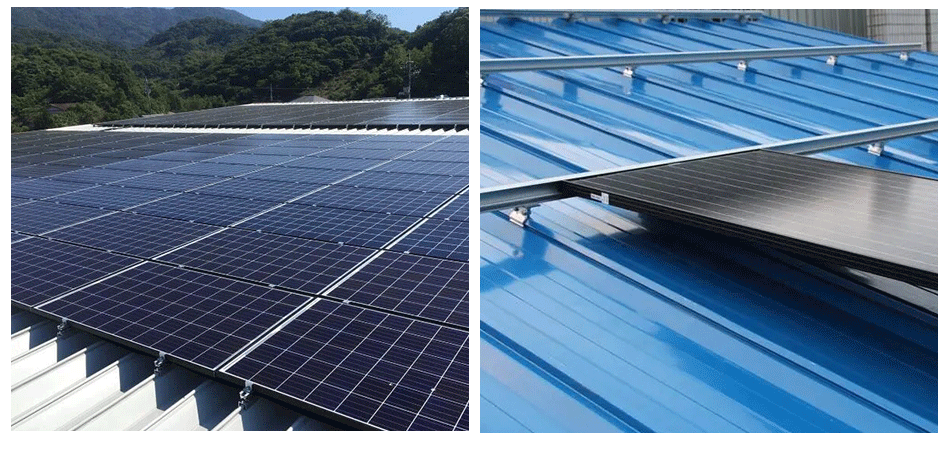

Install site Standing Seam Metal Rooftop
Max Wind Speed   ≤60m/s
Snow Load   ≤1.4KN/M2
Tilt Angle   0 degree
Applicable Module   Framed or frameless
Standards   AS/NZS 1170, ASCE 7-10, JIS2017
Material   AL6005-T5, SUS304
Anti-corrosive   Anodized
Color   Silver/Black
Warranty   10 years warranty

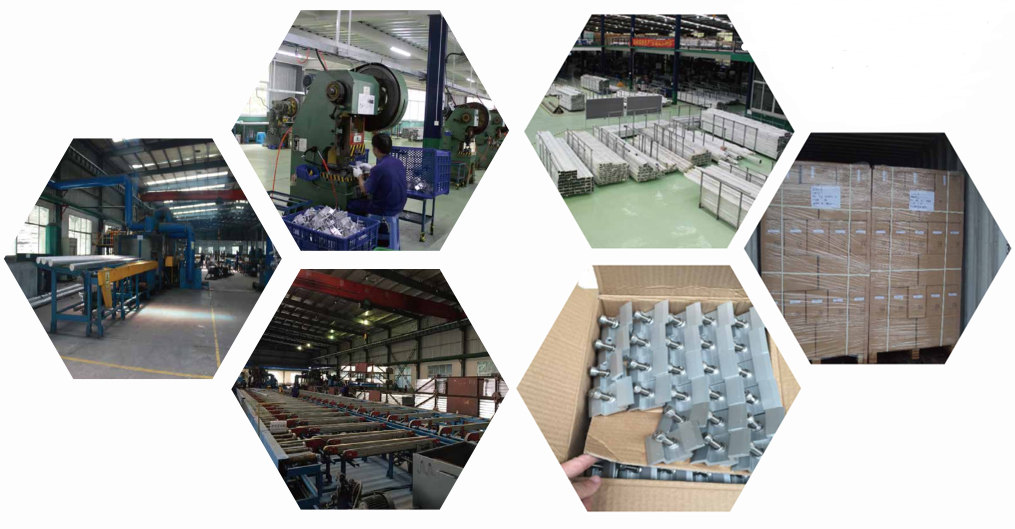

Production Process
