Double Glass Thin Film Solar Panel Mounting End Clamp

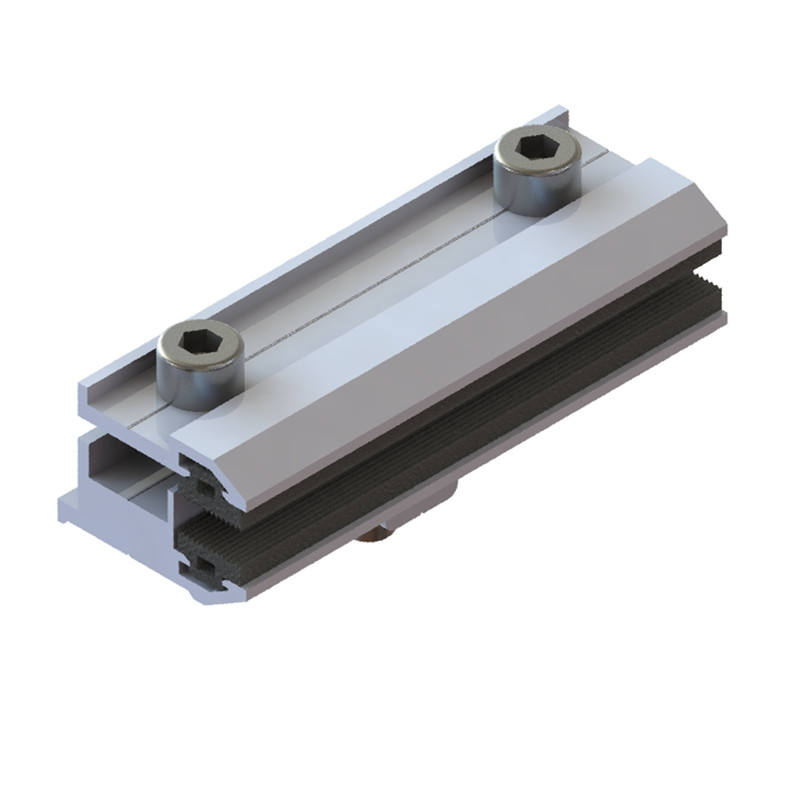

The Thin Film End Clamp for Solar Panel is made of aluminum AL6005-T5, combined with EPDM pads, tightly install the panel on rails.

  • Item no.:

    KS-TEC-03A

  • Payment:

    T/T,L/C

  • Product origin:

    China

  • Color:

    Silver

  • Shipping port:

    Xiamen, China

  • Lead Time:

    7 days
Inquire now
  • Product Detail
Description
The Thin Film End Clamp for Solar Panel is made of aluminum AL6005-T5, combined with EPDM pads, tightly fasten the frameless panel on rails. It is workable for the thin film panels with thickness 6-10mm. Pre-assembled in factory which save your on site installing time and cost.

Features
Fast delivery

Full sides anodizing

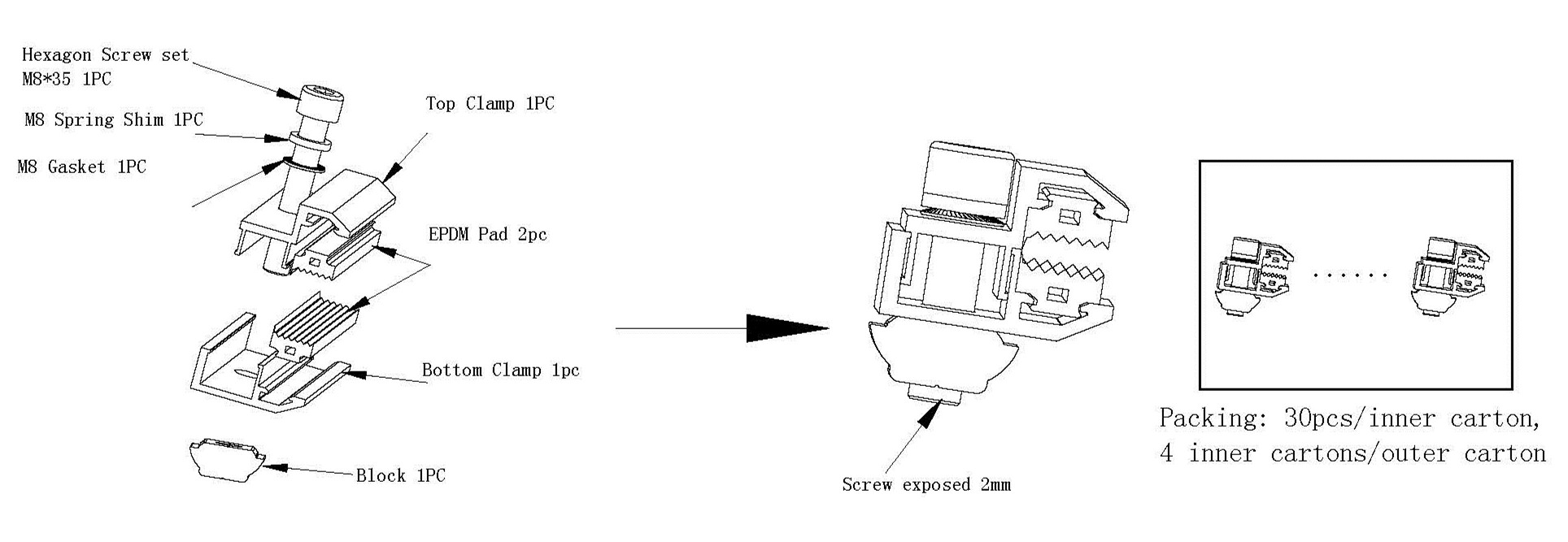

Pre-assembled in factory

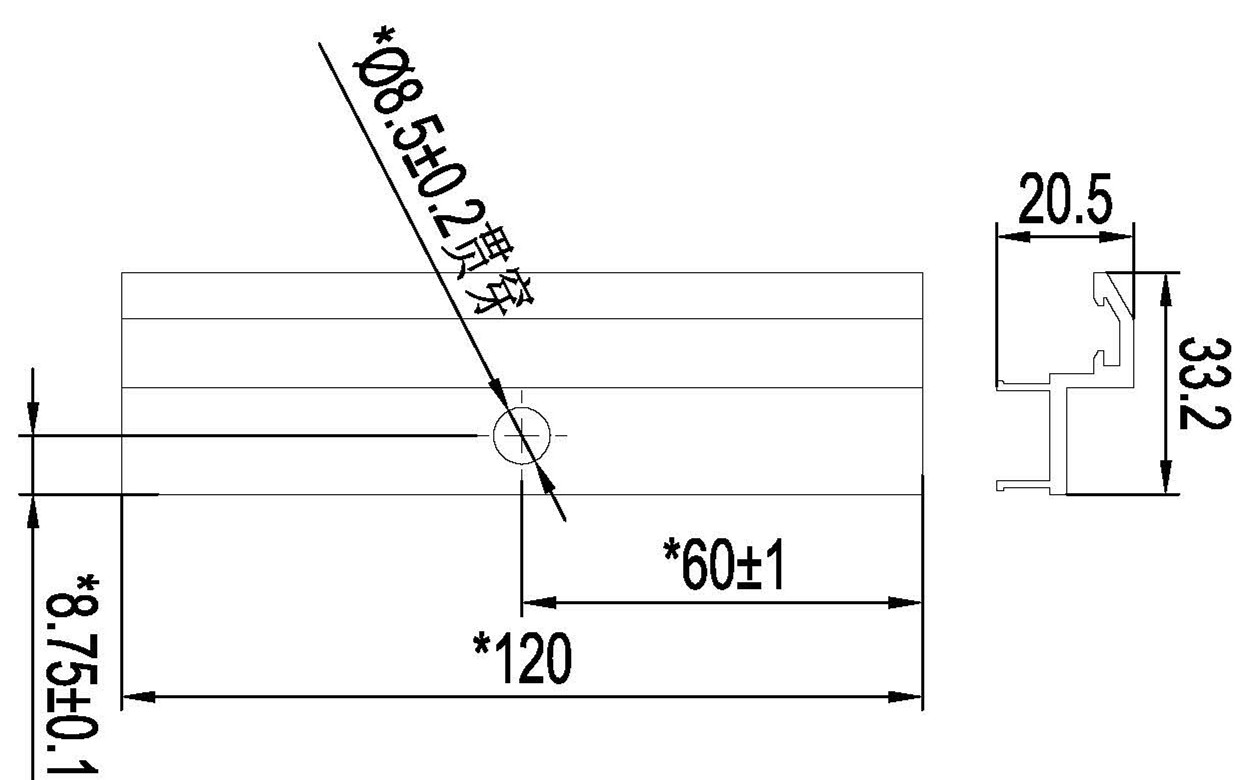

Length: 120mm
