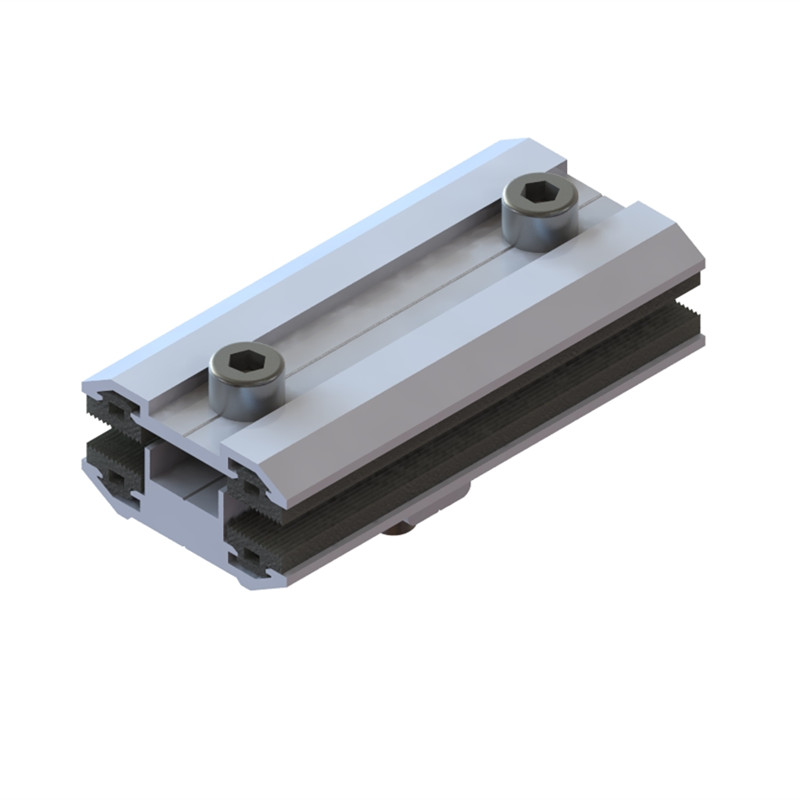

Thin Film Solar Panel Mounting Mid Clamp

The Thin Film Mid Clamp for Solar Panel is made of aluminum AL6005-T5, combined with EPDM pads, tightly fasten the frameless panel on rails.
  • Item no.:

    KS-TIC-03A
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Xiamen, China
  • Lead Time:

    7 days
  • Product Detail
Description
The Thin Film Mid Clamp for Solar Panel is made of aluminum AL6005-T5, combined with EPDM pads, tightly fasten the frameless panel on rails. It is workable for the panels with thickness 6-10mm. Pre-assembled in factory which save your on site installing time and cost.

Features
Fast delivery

Full sides anodizing

Pre-assembled in factory

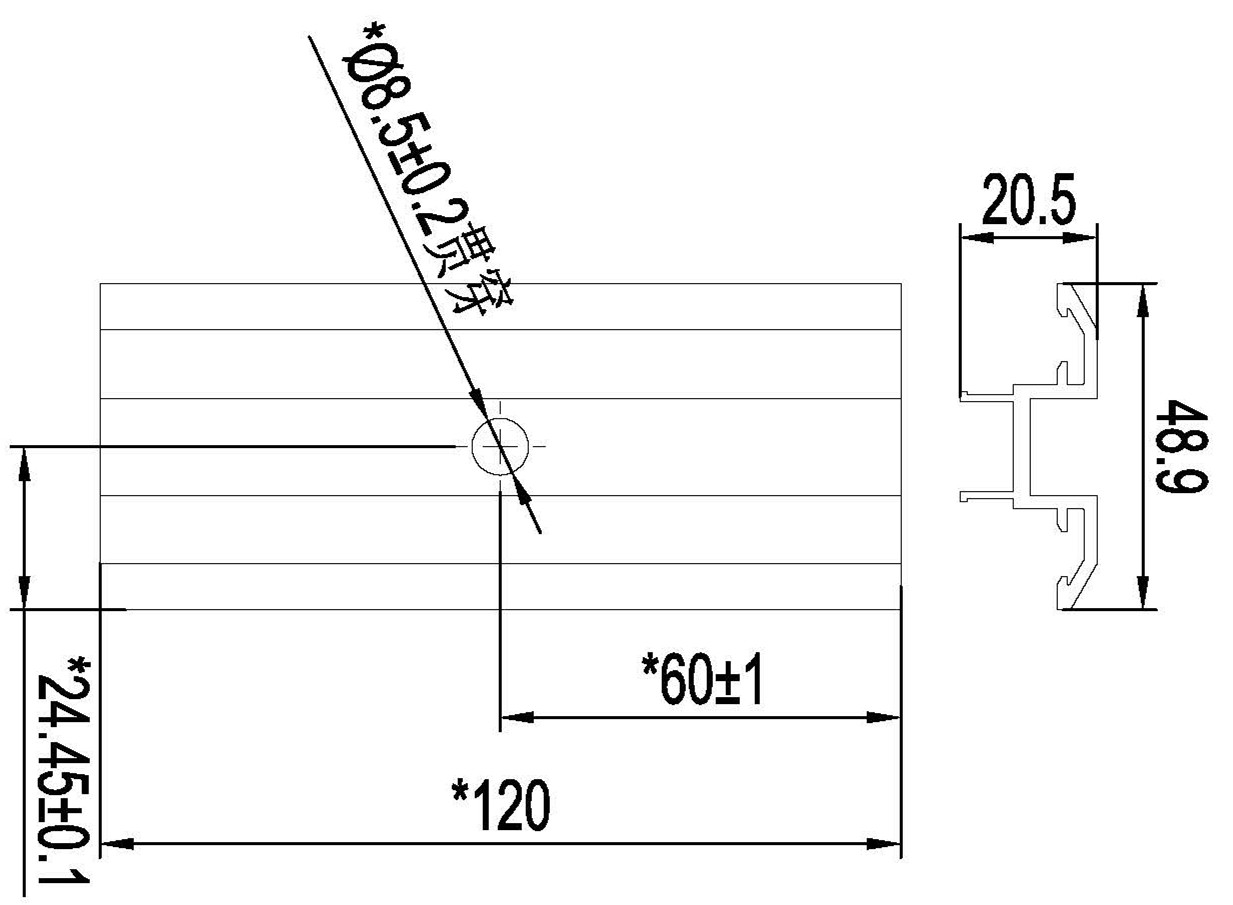

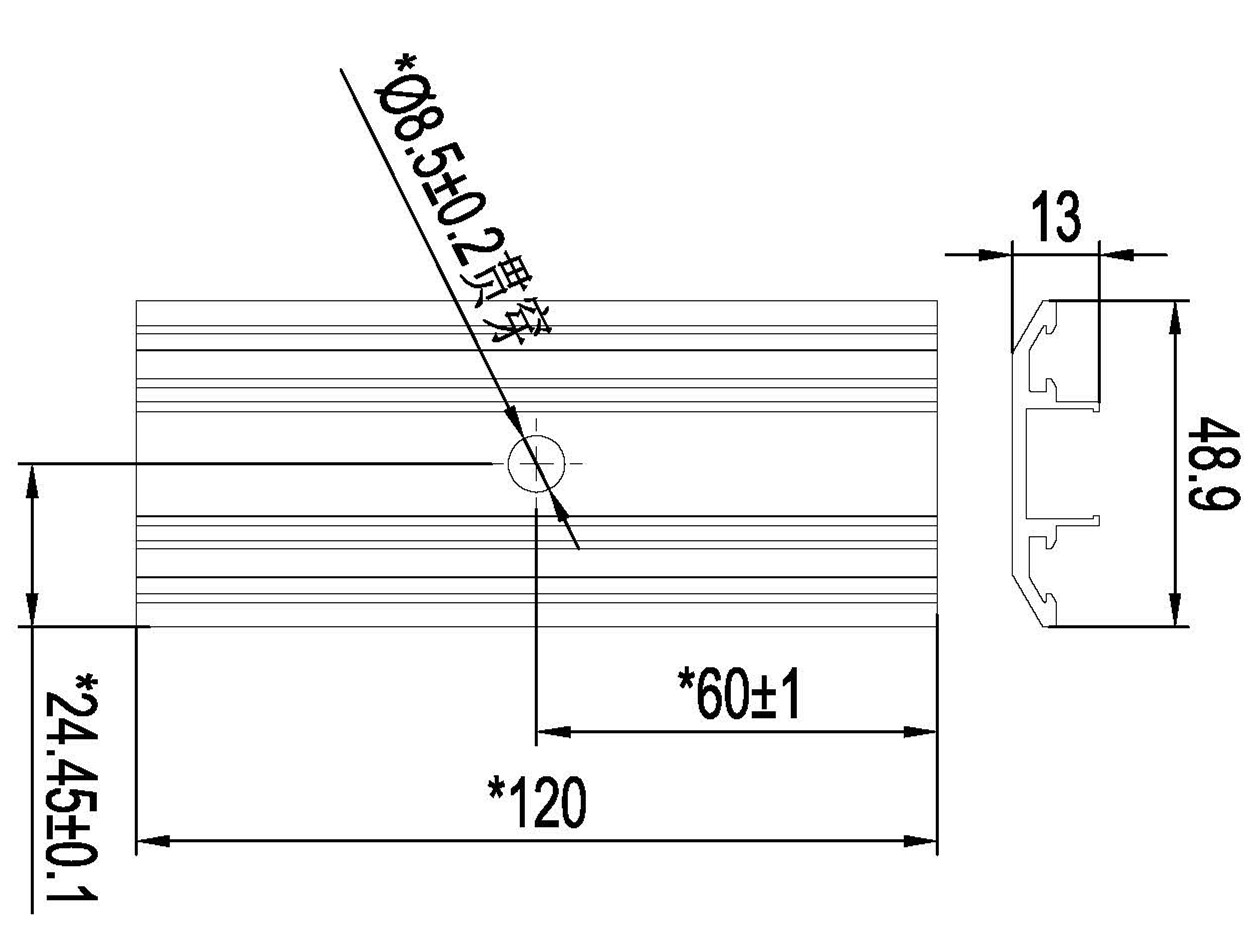

Length: 120mm
