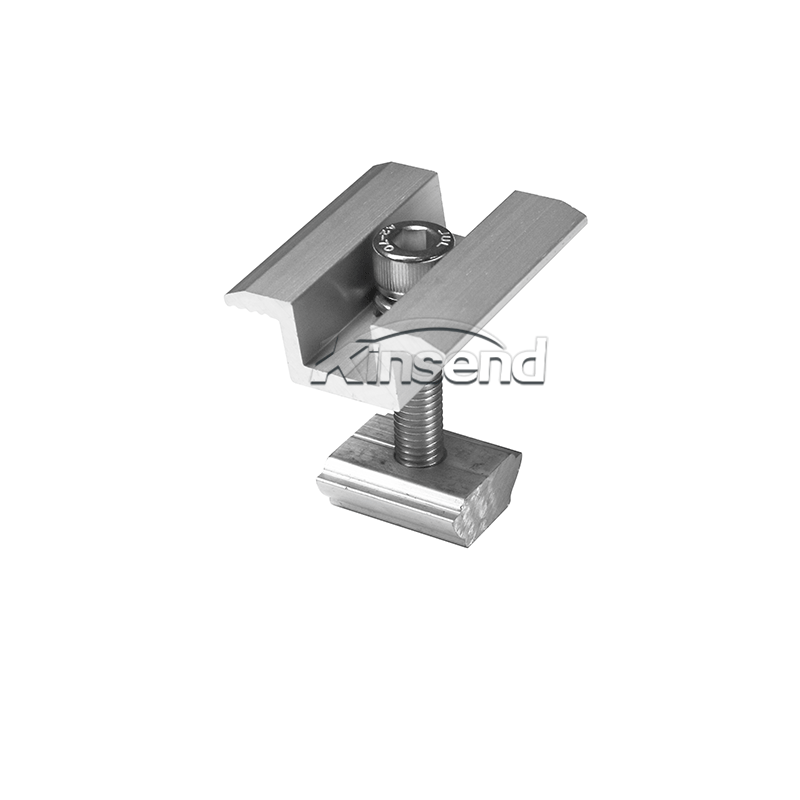

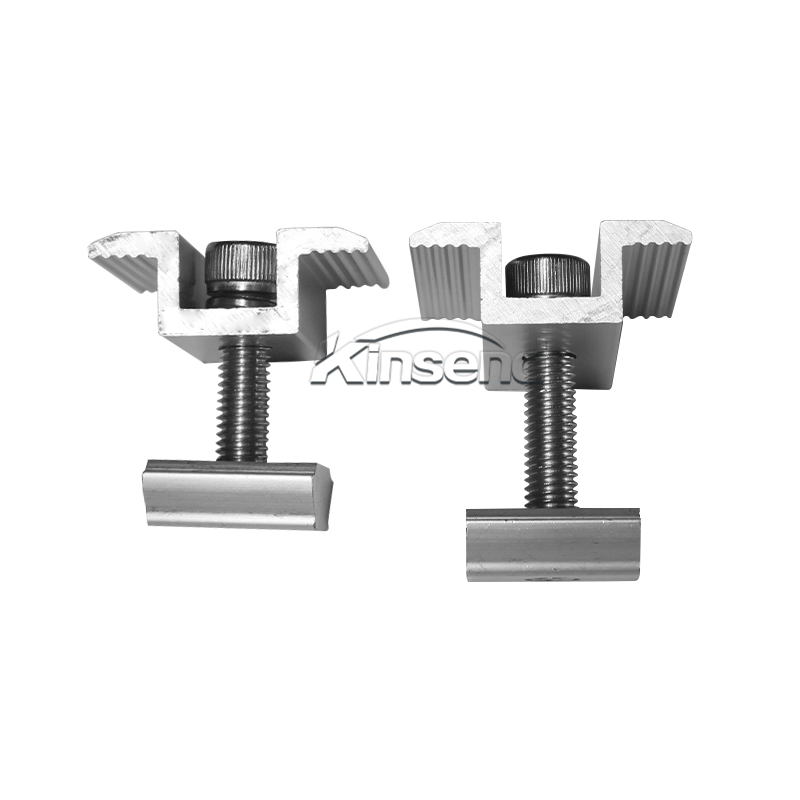

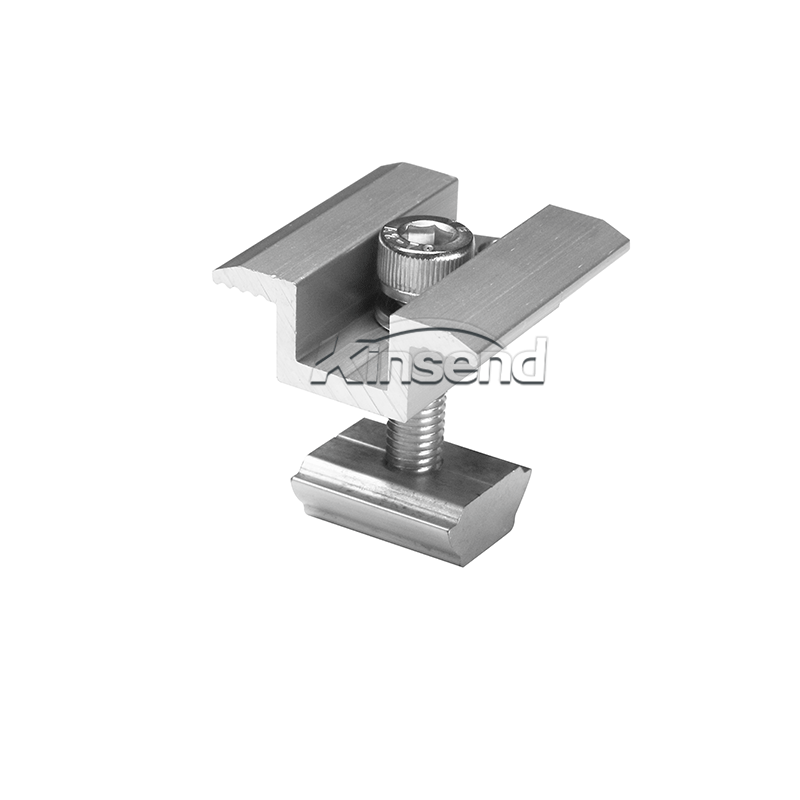

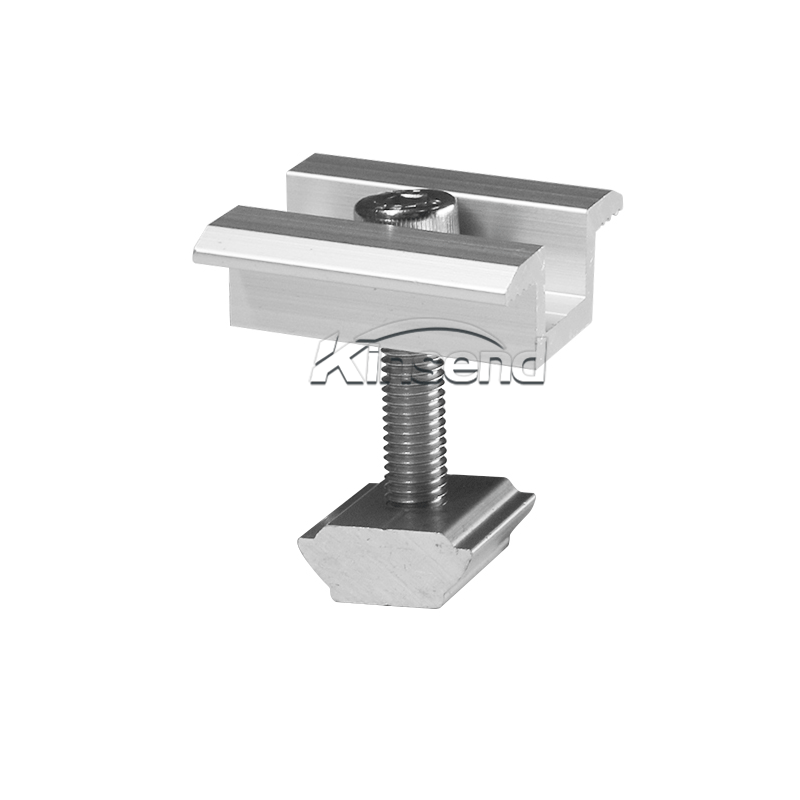

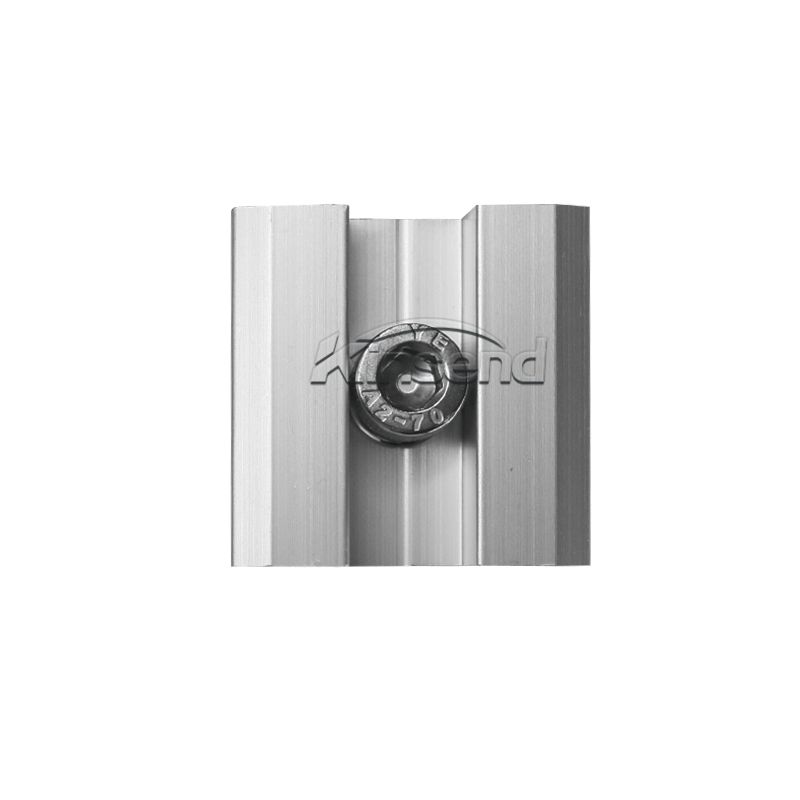

Solar Mid Clamps 30mm 35mm

Our Solar Mid Clamps (30mm-35mm) are engineered for secure and efficient solar panel installation. Made from high-quality materials, these clamps provide exceptional durability and stability, ensuring your solar array remains firmly in place. Designed to fit a range of panel sizes, they are the perfect choice for enhancing the performance and longevity of your solar energy systems.

  • Item no.:

    JTD288

  • Payment:

    T/T,L/C

  • Product origin:

    China

  • Color:

    Silver, Black

  • Shipping port:

    Xiamen, China

  • Lead Time:

    7-14 days
Inquire now
  • Product Detail

Solar Mid Clamps 30mm 35mm

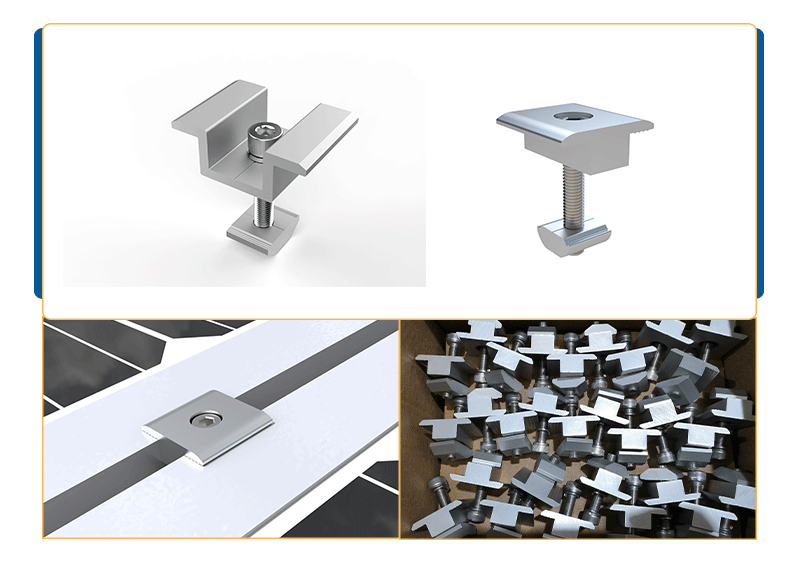

Main material is AL6005-T5 with average 12μm anodizing film. Unique design of Mid & End clamps are used in different types of solar panels. Special design of rail can make intallation simpler and faster. Parts have been high pre-assembly on factory to save your installation time.



  • Directly connect with rail, side fixed
  • Low fitting costs
  • Every size of module array possible
  • For all common rather distances




   Installation Site

Fix solar panel , End clamp & Mid clamp

Installation Base

Suit for panel thickness 30mm,35mm,40mm

Economic layout

Landscape/portrait

   Max Wind Speed

< 60m/s

   Snow Load

< 80cm

   Standards

AS/NZS 1170, DIN 1055, JIS C 8955:2011

    Material

Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304

    Anti-corrosive

 Anodized

    Warranty / Duration

 12 years/ More than 25 years
