In order to meet the installation requirements of larger battery modules and can be used in areas with high wind speed, we have designed a ground strengthening structure. The support system can adjust the horizontal angle as required. When installing the system, it does not need to carry out on-site welding. According to the assembly drawings provided by us, the bolts can be completely installed by placing them in the corresponding bolt holes. The solar ground fixed foundation adopts solar carbon steel piling column The C4 anti-corrosion grade can provide a 15 year warranty.
Features of large ground photovoltaic system support:
1. Rapid installation shall coordinate with the construction progress of large ground photovoltaic system power station.
2. Flexible adjustment forms meet the complex and changeable requirements of the construction site.
3. Simplify the number of accessories to facilitate the identification and installation of on-site workers.
Installation instructions:
Kinsend will provide complete instructions for each bracket product from the list of single accessories to the detailed installation steps of each component. If you want to get more detailed manual instructions and video demonstrations, we will have a professional design team responsible.
1. Safety precautions and preparation tool description
2. Project design drawings (high-definition design drawings)
3. Summarize the BOM of accessories list

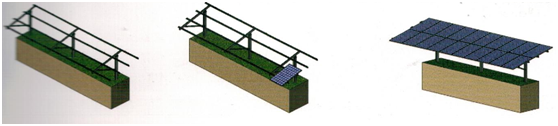

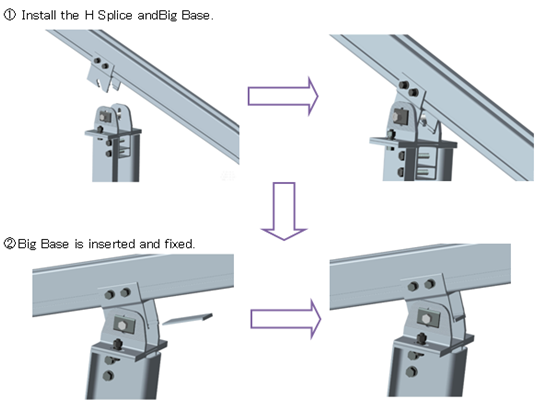

4. Detailed installation steps of accessories+picture display (simple view below)
5. Safety strength calculation description
6. Details of cargo transportation+international freight
7. Field installation completion strength+product qualification test
………

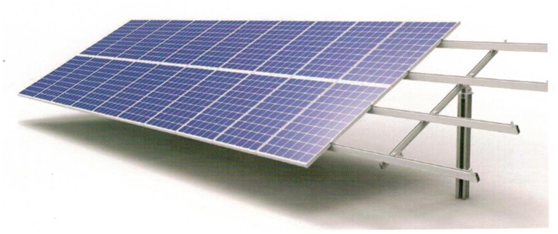

Simple renderings after installation:
The above is our main Pv ground system service arrangement, but this is not the whole content of our solar ground support installation. Kinsend gives priority to customer service We will provide the best design according to the customer's requirements and ensure the safe and stable installation of the support. Kinsend looks forward to exchanging ground case information with more customers and providing timely design solutions.
