Solar metal roof mounting solution - No drilling scheme, more efficient
Jul 26 , 2022

Solar metal roof mounting system is widely used in our life, Kinsend in the usual communication with many customers, many customers will be concerned about the waterproof problem of metal sheet system. Before the installation of the metal sheet roof system, it is necessary to check the integrity and no damage of the metal sheet. Because the metal sheet also has the corresponding service life, it should be ensured in advance that its service life can be greater than the photovoltaic system.


In order not to drill holes and achieve the metal roof system installation fastness, usually matching suitable fixture, most of its material is aluminum alloy material, and connected with the photovoltaic support, make the whole photovoltaic system stable operation. It is equipped with pre-installed bracket accessories, the site installation saves time and labor, can greatly reduce the construction cost, improve the engineering efficiency. The following are some common installation methods:

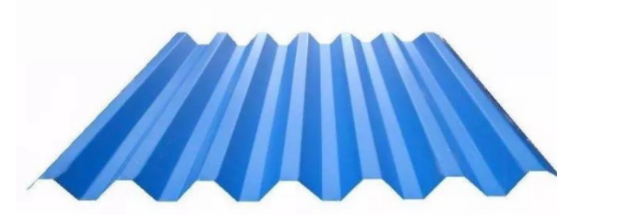

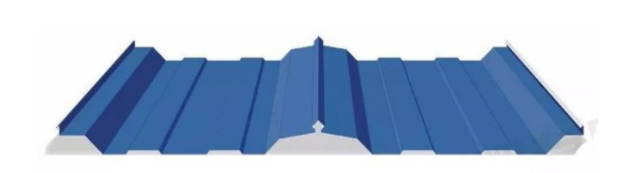

1。 structural form metal sheet roof is generally workshop roof, according to the specification of metal sheet is generally divided into lock seam metal roofing metal sheet, solar standing seam clamps type metal sheet and trapezoidal solar metal roof metal sheet its structure form is as follows.

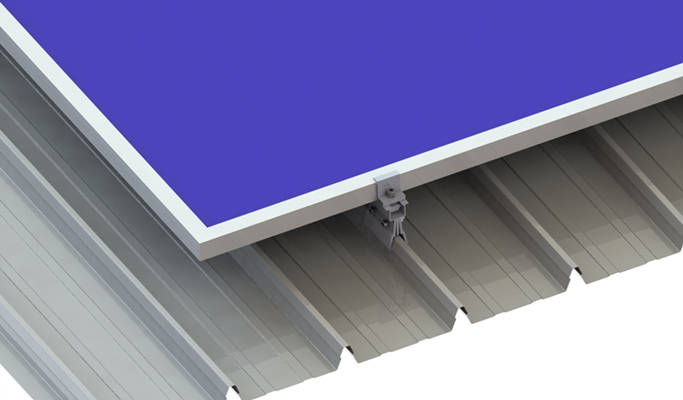

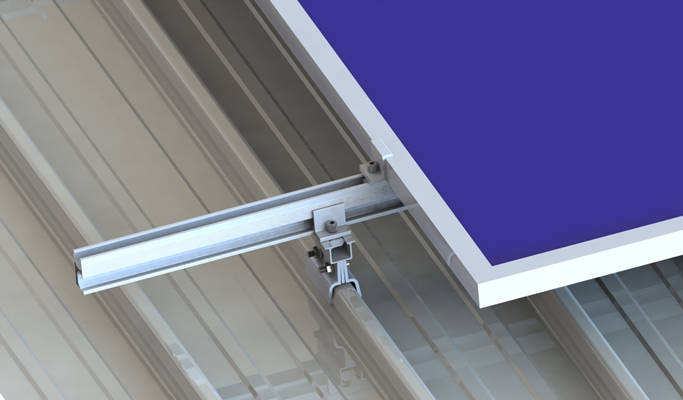

2. Installation mode according to different color steel tile form, can choose the corresponding fixture or support foundation, its installation mode is as follows:

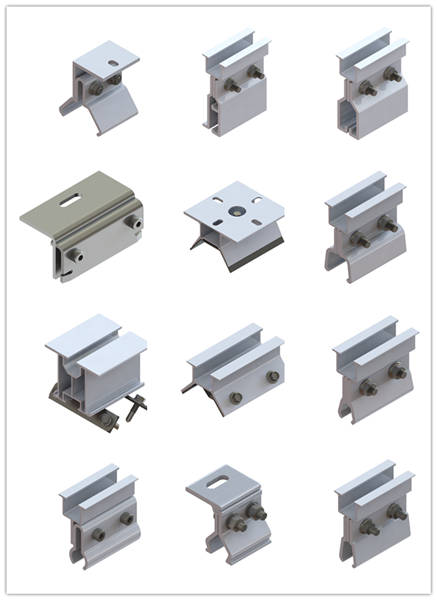

Kinsend has designed and produced dozens of different color steel tile fixtures to provide the most suitable installation scheme according to different countries and different types of tin roof.



Due to Angle chi type and vertical lock type color steel tile, its installation can directly use the fixture as the foundation of the roof distributed photovoltaic module, no damage to the integrity of the metal deck, so the two forms of factory roof is very suitable for the roof distributed photovoltaic power station, will not destroy the roof, will not cause waterproof problems. The trapezoidal metal roof due to the installation of solar panel support systems destroyed the integrity of the metal deck, so there is a hidden water leakage, this form of installation should do a good job of waterproof measures.


Kinsend has more new solutions for waterproofing design of different types of roofing installation systems. Looking forward to your consultation, we will provide you with more professional design services.
