Photovoltaic bracket, known as the "skeleton" of photovoltaic power station, is a special equipment designed to support, fix and rotate photovoltaic modules in the solar photovoltaic power generation system, and is an indispensable and important part of the photovoltaic power generation system. Our common roof system is classified into various types, such as solar metal pitched roof, flat roof, solar panel roof tile brackets and so on, which are common roof types in daily life. Many big shopping malls, industrial buildings, factories and so on almost use cement flat roof. As countries attach importance to photovoltaic energy, many customers begin to make good use of these rooftop sites to install photovoltaic systems. We will introduce you to the following two common flat roof mounting system.

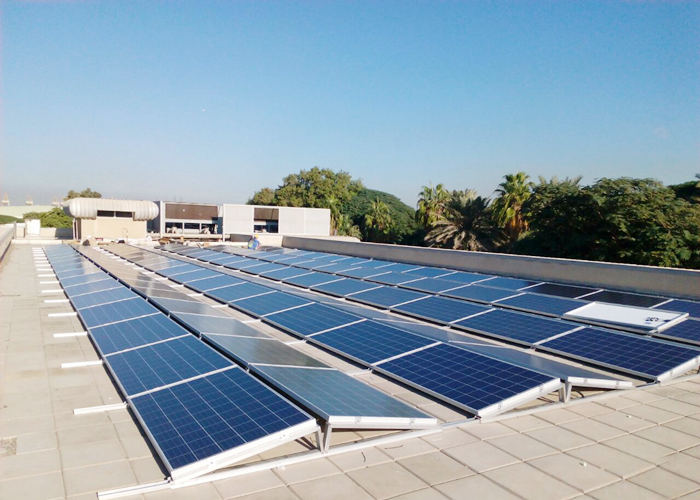

1. Ballast base flat roof mounting system

·Application: Most versatile commercial flat roof

Layout: Panels are horizontal, from east to west

· Angle: 10°, 15°, 20°, 25°, 30° Tilt Angle is optional

· Material: Mainly made of AL 6005-T5 support

· Oxidation treatment: Advanced anodic oxidation on surface treatment

· Installation: preassembled and collapsible, roof penetration, light roof loading

2. Flat roof adjustable tripod

· Application: Commercial flat roofs are most cost-effective

· Layout: panel vertical arrangement

· Angle: 10°-30° tilt Angle adjustable

· Material: AL 6005-T5

· Oxidation treatment: Advanced anodic oxidation on surface treatment

· Installation: preassembled and collapsible, roof penetration and light roof loading

We can understand preliminarily from the information above, housetop bracket program basically is given priority to with stable foundation and deft installation means. Opposite other type roof basically has the particularity on the following design.

1. Module inclination Angle can be 10°, 15°, 20°, 30°.

2. All standard types of flat roofs, concrete, film, asphalt roofing, etc., and allow a maximum pitch of 5° for flat roofs.

3. Even distribution of roof load, aerodynamic design, low load

4. Air baffle is optional to reduce the temperature of solar modules and improve the output of solar system.

5. All parts of the whole system are highly pre-assembled, and the number of single parts is small, and the installation is fast

The important design of cement flat roof is the reasonable span arrangement between the panels, so that the light absorption and productivity of the panels reach the most efficient state. Kinsend follows the design standards of different countries and receives high praise from many customers for the most convenient and efficient solutions. If you are interested in flat roof solar panel mounting system, welcome to send information to our official Email Info@kinsend.com, we will have a professional design team, to provide you with the best quality service.
