Solar photovoltaic support can be divided into ground support, roof support, water floating support, tracking support several categories, each category according to different installation environment and use scenarios.
Ground Mounting System

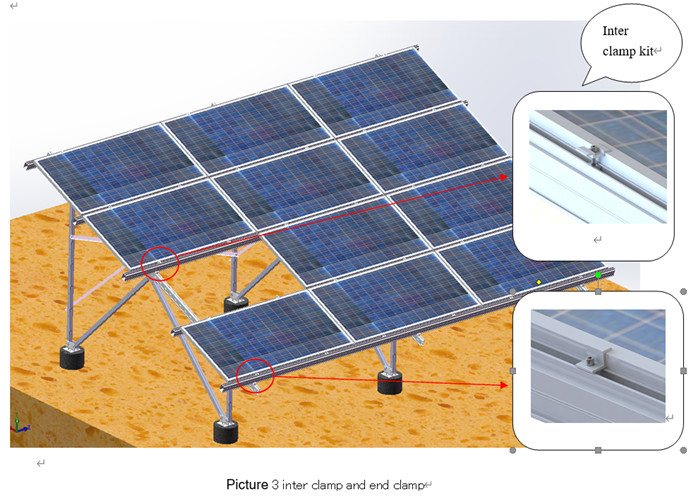

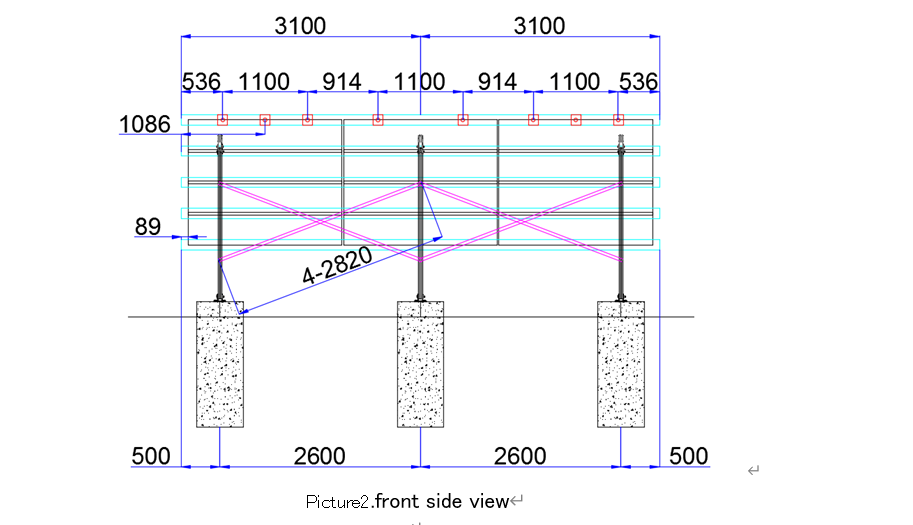

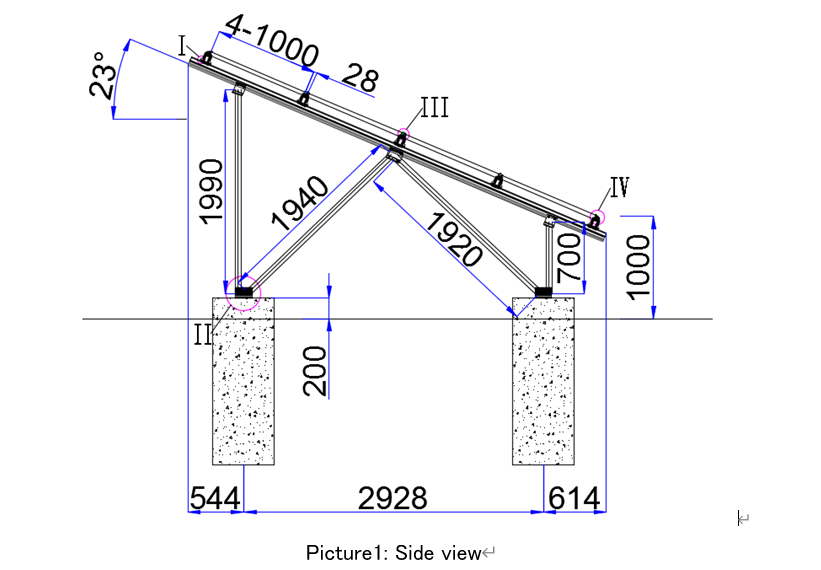

Conventional ground support types include spiral pile ground photovoltaic support, cast-in-place pile ground photovoltaic support, concrete pipe pile ground photovoltaic support, flexible cable ground photovoltaic support (special type), fixed season adjustable ground photovoltaic support and so on.
In addition, many largesolar ground mounted projectstracking supports are more and more in demand, with more diversified styles and high technical requirements.Under different foundation designs, the above structure is greatly affected by the wind pressure, snow pressure, component specifications and square arrangement of the project location. Therefore, all materials need to be checked and designed separately.Accurate survey and design drawings can provide timely reference for site planning of the case.
Kinsend solar carport structure design and farm system design is also well received by many customers.To obtain the complete design, send an email to Info@kinsend.com
Roof Mounting System
Conventional roof support types can be divided into several categories: color steel tile roof support, concrete roof support, ceramic tile roof support, saddle plate roof support, TPO/PVC flexible roof support and so on.Metal roof support according to the different types of color steel tile tile house panel, and can be divided into Angle, vertical lock, trapezoid and other fixture structure form, each roof type of fixture style is not the same, the upper beam structure is basically the same.Limited by the load of color steel tile roof, aluminum alloy support is generally used to reduce the load of the roof.
The concrete roof support and saddle board roof support are similar to the ground fixed support, and are generally installed in the form of concrete foundation or concrete ballast.Ceramic tile roof support most hook form installation, the upper beam structure is basically consistent with the conventional color steel tile roof support.TPO/PVC flexible roof support this is currently perforated, ballast, welding installation methods, waterproof requirements are particularly high.Such flexible roofing solutions, domestic manufacturers to provide solutions is very few, single watt cost has been high.It can provide a solution to reduce roof weight without drilling and ballast.
Different roof types need to strictly adopt the corresponding design drawing, so that customers can clearly understand the installation structure method before determining the design scheme.
Kinsend is specialized in photovoltaic bracket system design. We will provide you with the design drawing of the following scheme in a timely manner. We look forward to providing you with timely design service.
solar panel installation on tile roof
Flat roof ballast system
concrete roof solar mounting system
Rooftop tripod system
Standing seam metal roof clamps mounting system
Metal roof trapezoidal mounting system
....
For more detailed pv bracket design drawings, please send email toInfo@kinsend.com
