Kinsend Solar tile roof mounting system easy to adapt to most tile roof types: solar Roman tile roof, glazed tile roof, solar asphalt tile roof. Supports strong wind and snow loads, and the design of pre assembled accessories makes installation fast and simple. It can be matched with various solar panels and is suitable for vertical and horizontal installation solutions.
⊙ Roof angle: 0 - 45 ° and wall
⊙ Track length: 2, 3 and 4 components ,customized
⊙ Pre assembly fixture: Al6005-t5 material
⊙ Fixture color: silver or black
⊙ Connecting block: aluminum, without fastener installation
⊙ Wind speed: 60m/s
⊙ Snow load: 1.8 kn/m ²
⊙ PV module: applicable to all standard module types

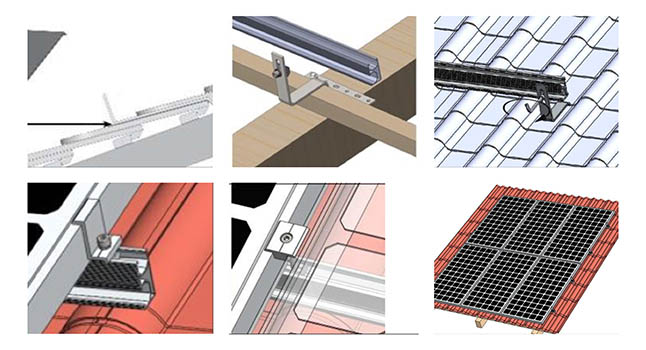

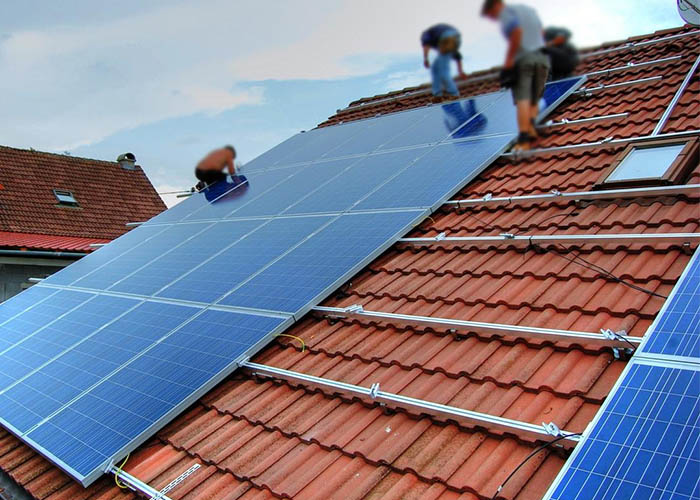

Installation Instruction:
1. Mark the position to be installed with balance line
2. Remove the tiles where the hooks need to be installed
3. Mark the drilling position at the position where the hook needs to be placed, and drill 3 locating holes with an electric drill
4. Fill the locating hole with sealant, and place the hook on the beam stably to ensure that the installation of tiles is not damaged.
5. Fix the installation hook with three M6.3 * 65 wood screws
6. Install the tiles back to their original positions
7. Loosen the M8 * 25 hexagon socket nut, fix the guide rail on the solar mounting hook, and then tilt the clamp block on the bolt so that the clamp block can be embedded into the groove on the guide rail. Tighten M8 * 25 nuts.
8. Fix the photovoltaic panel through medium voltage and edge pressing block. Install the panels in order.
According to different wind speed and snow load requirements in different countries, Kinsend will provide a complete tile roof mounting design scheme according to the customer's actual roof installation requirements. We look forward to cooperating with customers from all over the world. Kinsend is committed to serving the installation of global photovoltaic mounting systems, so that environmental energy can accompany your life. Mail: Info@kinsend.com Web: www.kinsend.com
