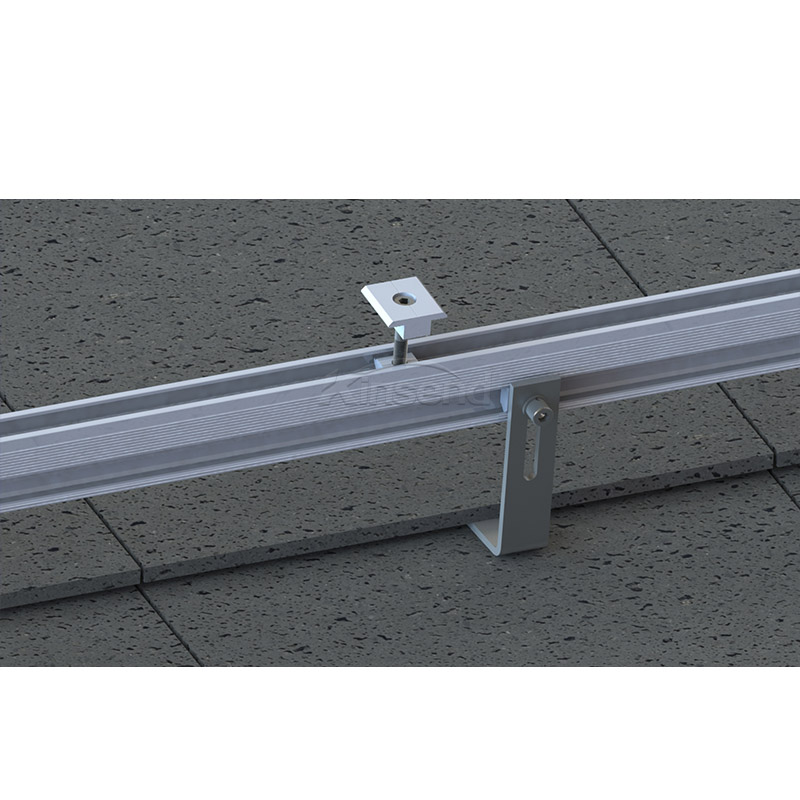

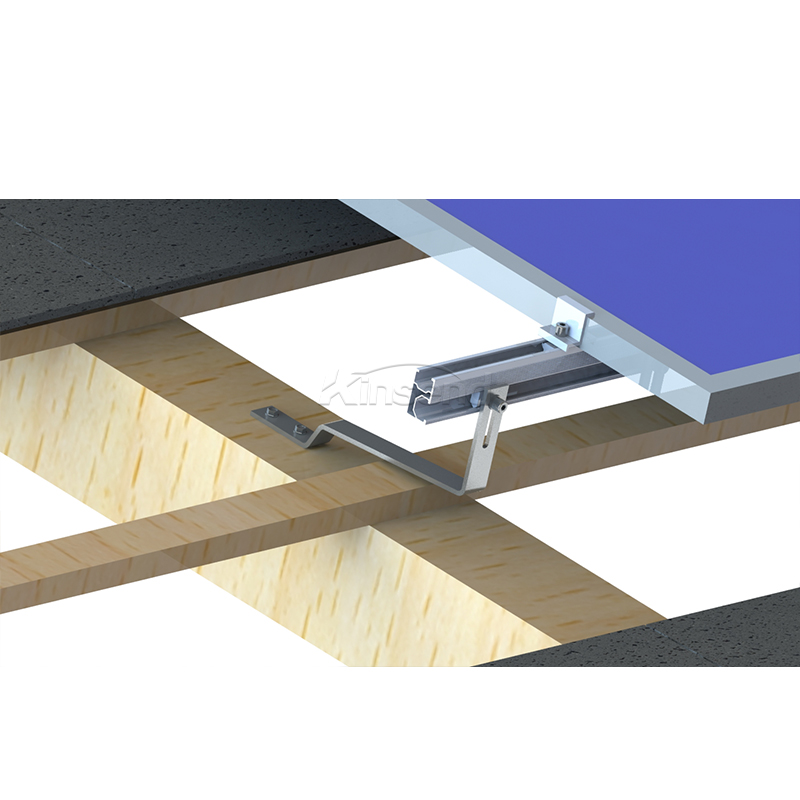

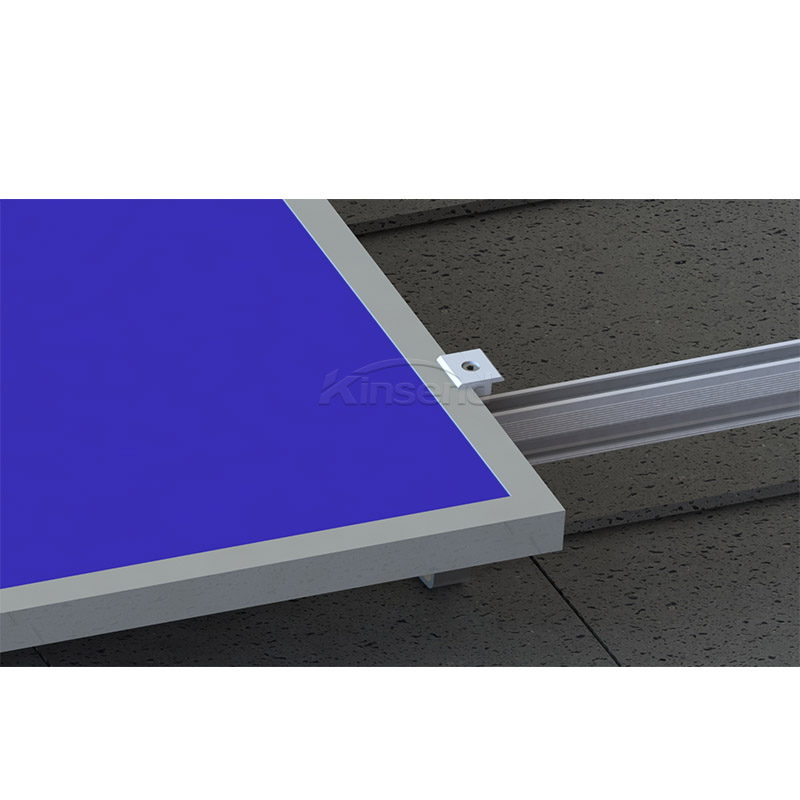

Slate Tile Roof Mounting System

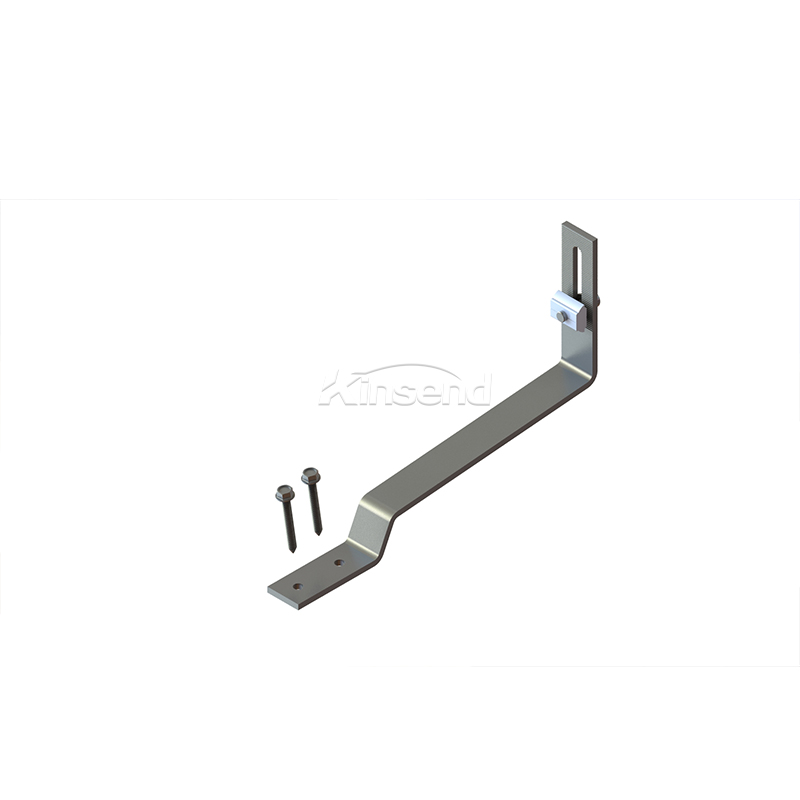

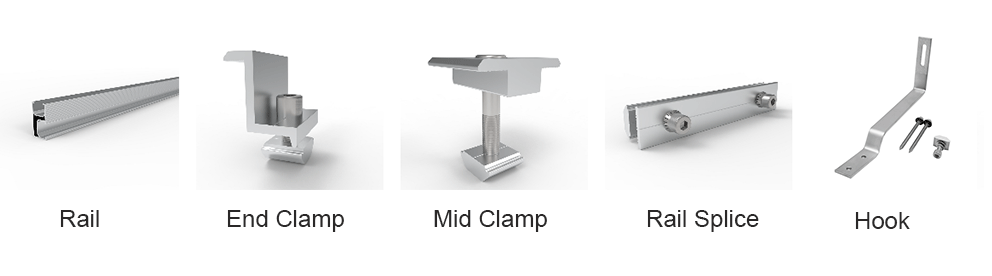

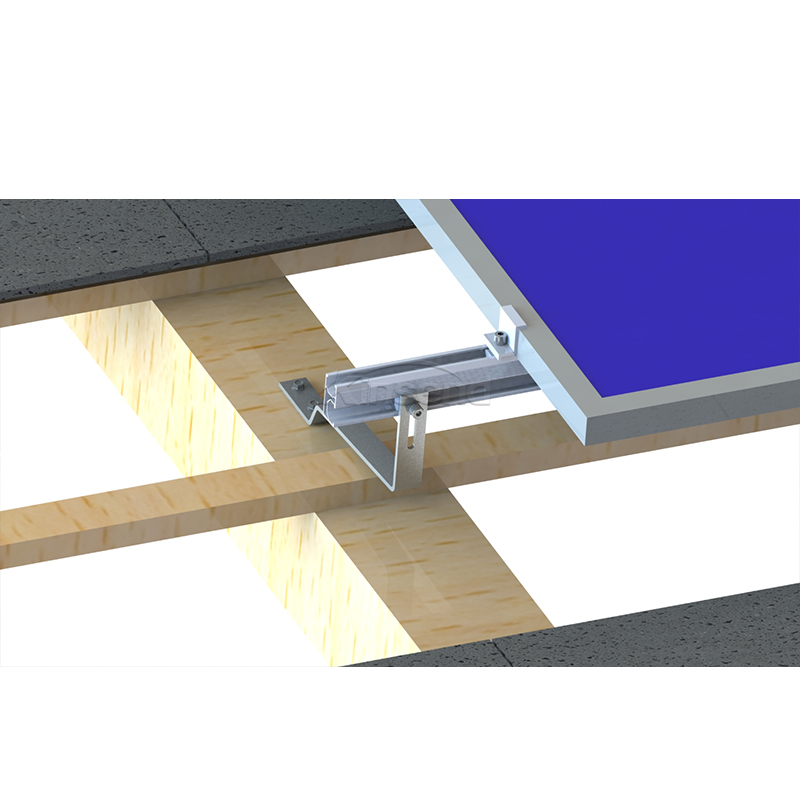

Use universal stainless steel roof hook for tile roof rack mounting system，stainless roof hook installation with Self-tapping screw M6.3*80mm

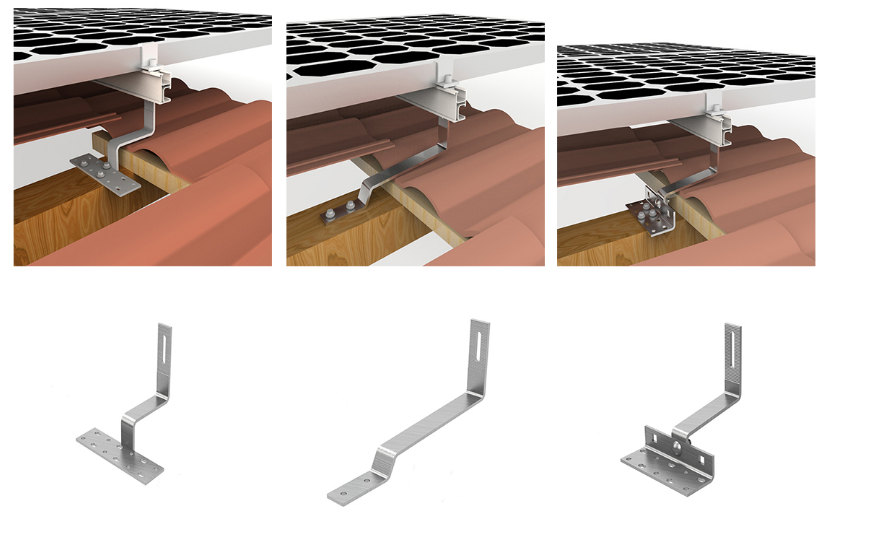

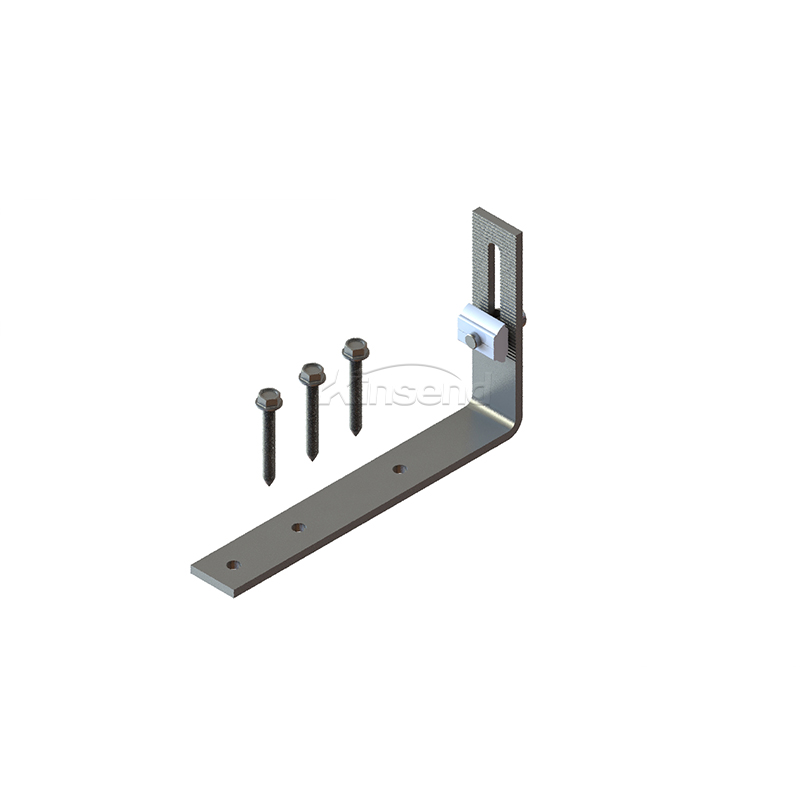

Solar Stainless Steel Hook ,Custom-made solar tile hooks based on tile specifications,They have adjustable and fixed tile hook type for choice.

Portable tripod brackets suitable for installation of solar panels mount in different sites.

The metal roof mounting system is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. L Feet .Tin roof solution, is available for almost all type of tin roof. Product designed with high strength which can resist max wind speed at 60m/s. Main material is AL6005-T5 with average 12μm anodizing film. Fasteners are stainless steel material which featured with high strength and high anti-corrosion.  Low fitting costs Every size of module array possible Height adjustable via elongated hole in the sheet metal bracket Suitable for large distances between rafters Details    Installation Site Trapezoidal and corrugated sheet metal Fastening Riveted or screwed onto raised corrugated Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years

Kinsend's New ECO SYSTEM Is a more lightweight and easy to install system. Fix the 406 cliplock  on the rooftop metal plate and tighten the bolts. Fix the ECO rail on the 406 cliplock with Hex screw. PV module on the ECO Rail with mid clamps and end clamps.

The Thin Film End Clamp for Solar Panel is made of aluminum AL6005-T5, combined with EPDM pads, tightly install the panel on rails.

Special greenhouse Agricultural Solar Mounting Systems allow crops to grow at a suitable temperature, increasing yields while allowing sunlight to be utilized. Farmers can fully exploit the sun energy for daily basic activities like irrigation, heating and lighting.  A solution with enough space, benefits to the machine work Excellent anti-corrosive performance Pre-assembled components, Customed shading rate     Installation Site Open Field Area, Above the planting Farmland    Installation Base Ground screw, ground clearance Over 1800mm Tilt angle Customized tilt angle Module orientation Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011    Material      Material: Anodized aluminum 6005 T6 stainless steel 304, 410; Hot-dipped galvanized steel Q235B    Warranty / Duration  12 years/ More than 25 years
