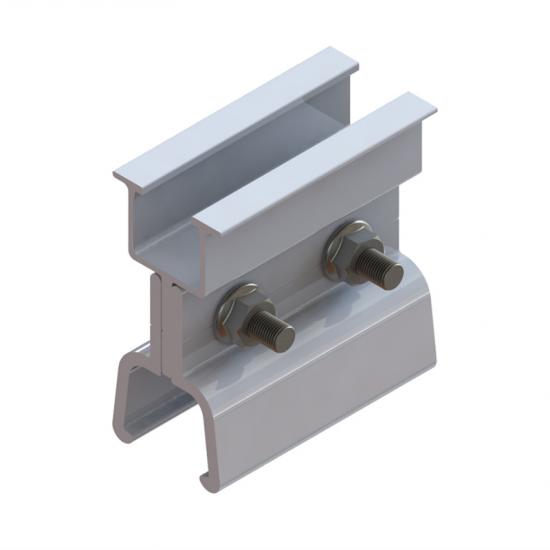

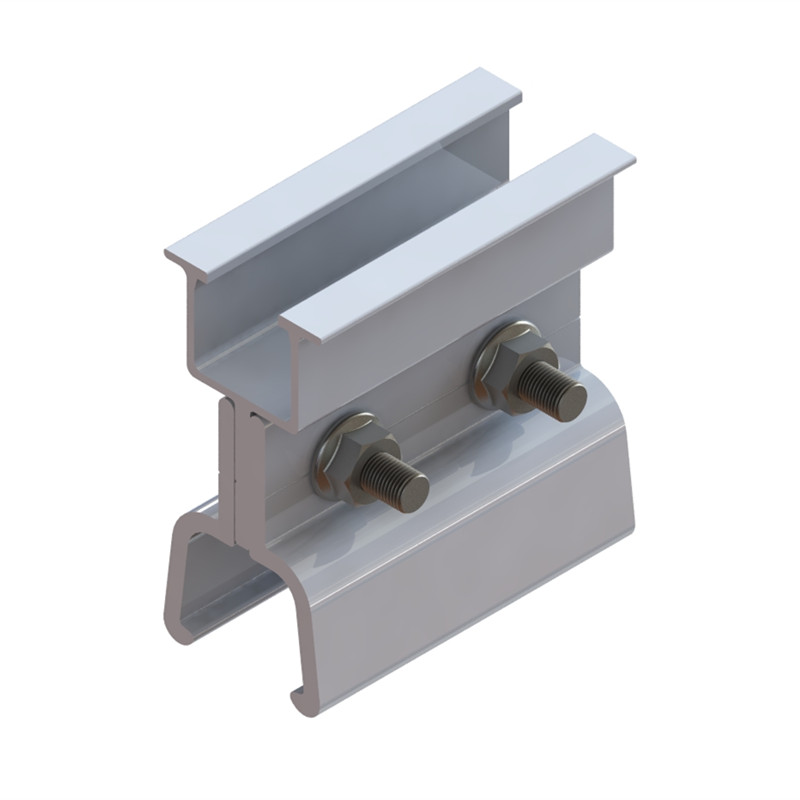

Kliplok 700 Metal Roof Solar Mounting System

The Kinsend KS-HK-S09 roof clamps are easily mounting on the metal klip lok 700 rooftop. The clamps are designed to catch the standing seams effectively with ease.
  • Item no.:

    KS-HK-S09
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Xiamen, China.
  • Lead Time:

    7 days
  • Product Detail

Description

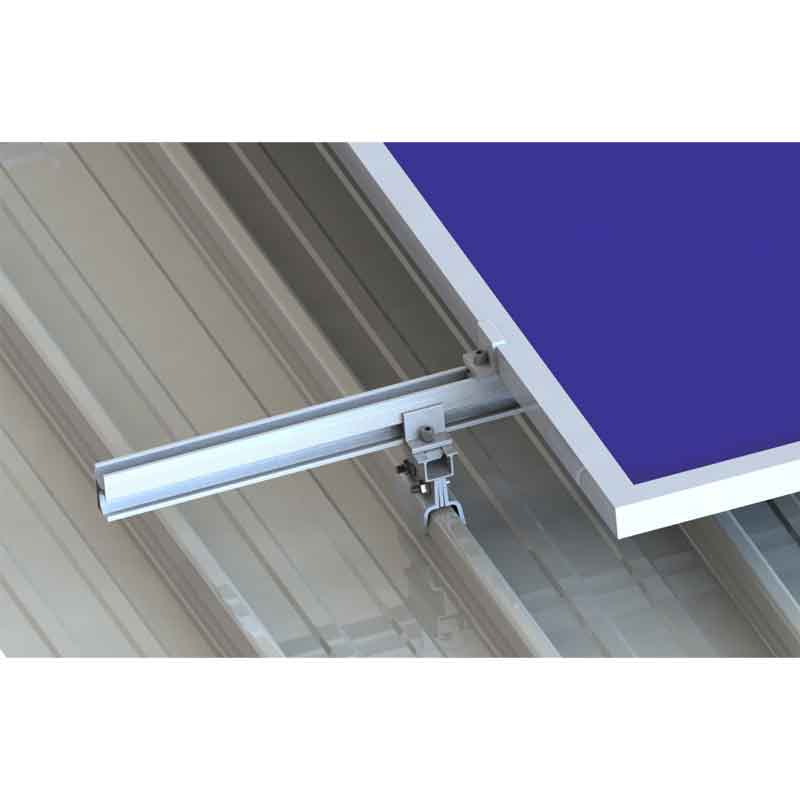

The Kinsend Kliplok 700 Rooftop Clamp are exclusively designed helps to mount the solar systems on rooftop. The clamps are designed to catch the standing seams effectively with ease. Clamps offer a secure fastening without penetrating the roof sheets, with maximum stability and minimum weight.


Feature

No penetrating

Railess for landscape placement

Exclusively designed to catch roof seam effectively

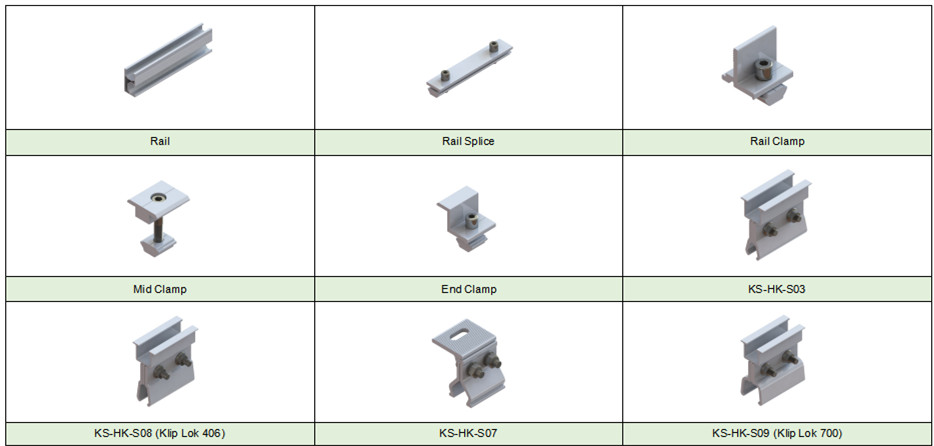

Components List



Technical Date

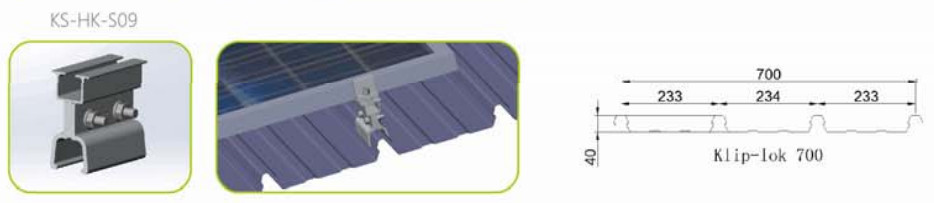

Install site  Metal Kliplok Roof 700
Max Wind Speed   ≤60m/s
Snow Load   ≤1.4KN/M2
Tilt Angle  0 degree
Applicable Module   Framed or frameless
Standards   AS/NZS 1170, ASCE 7-10, JIS2017
Material   AL6005-T5, SUS304
Anti-corrosive   Anodized
Color   Silver
Warranty   10 years warranty
