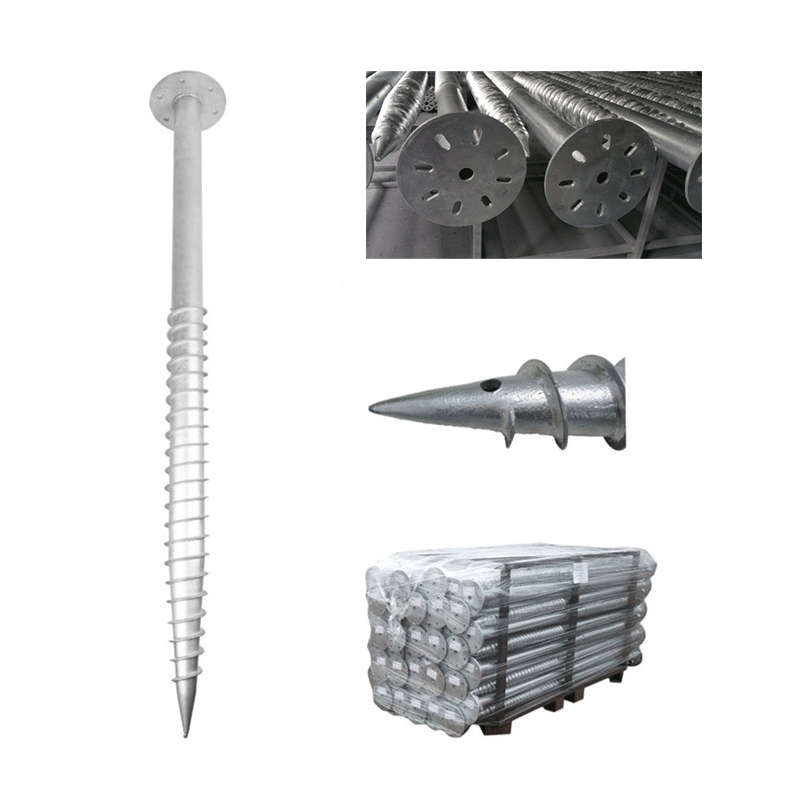

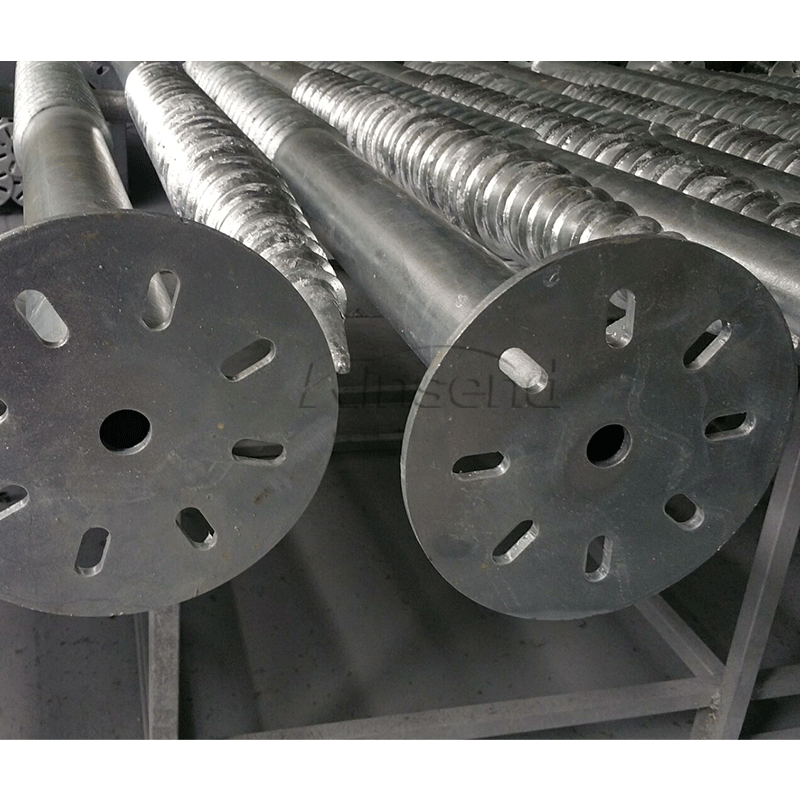

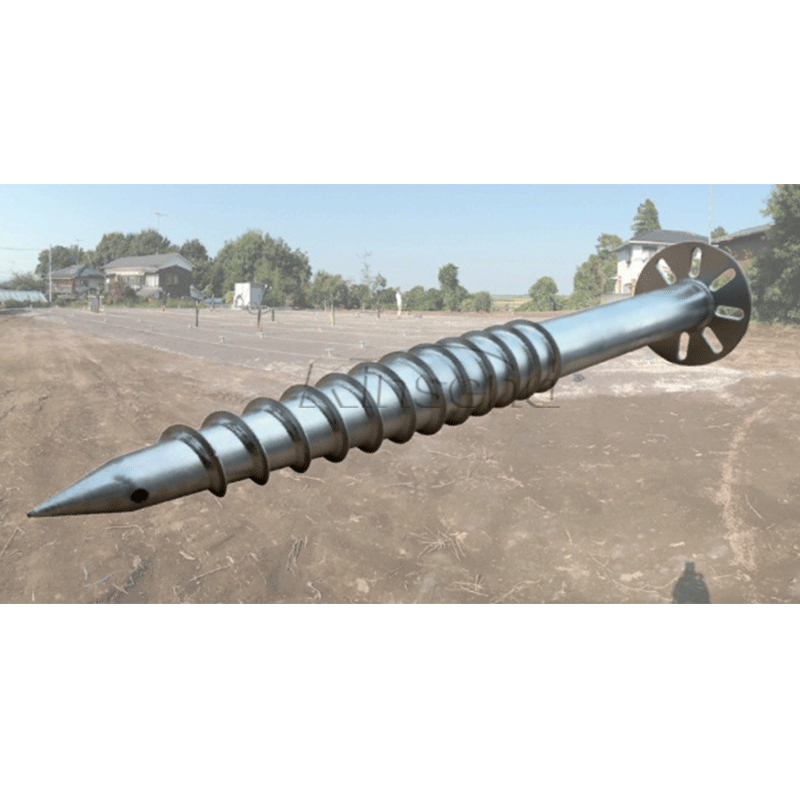

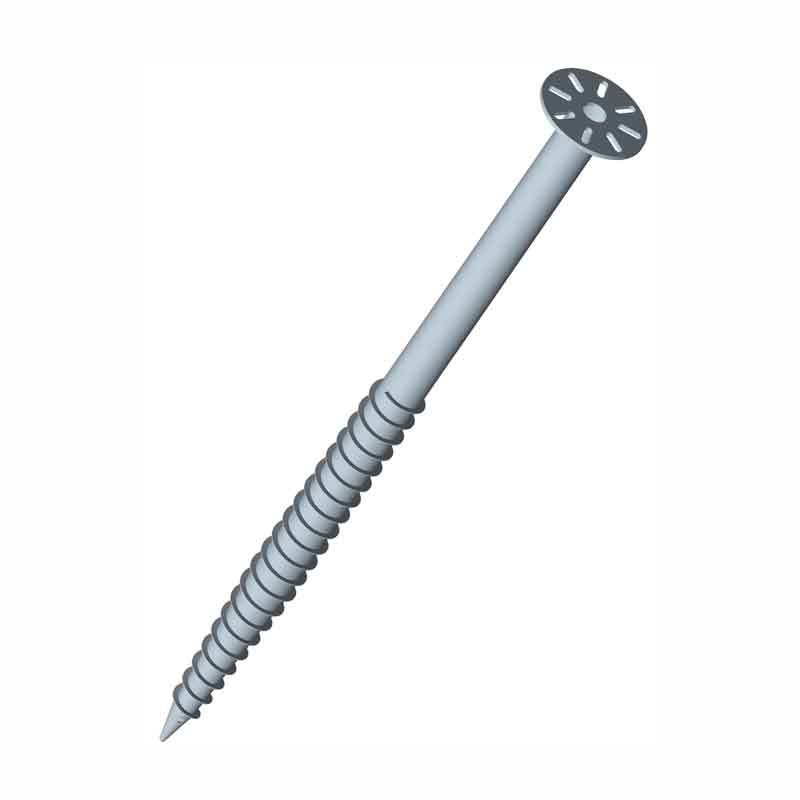

Galvanized Ground Screw With Flange

Hot Sale Ground screw with flange, the flange is convenient and easy to connect with the solar bracket from upward。
  • Item no.:

    FY76x1800x200
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Xiamen
  • Lead Time:

    10 days
  • Product Detail


Hot Sale Ground screw with flange, the flange is convenient and easy to connect with the solar bracket from upward。

Compared with concrete base, ground screw features lower cost, shorter construction period,environment friendly, all weather workable and resuable.




  • Lower cost
  • Faster construction
  • Enviroument friendly
  • The thickness of hot-dip galvanizing can be customized according to environmental requirements

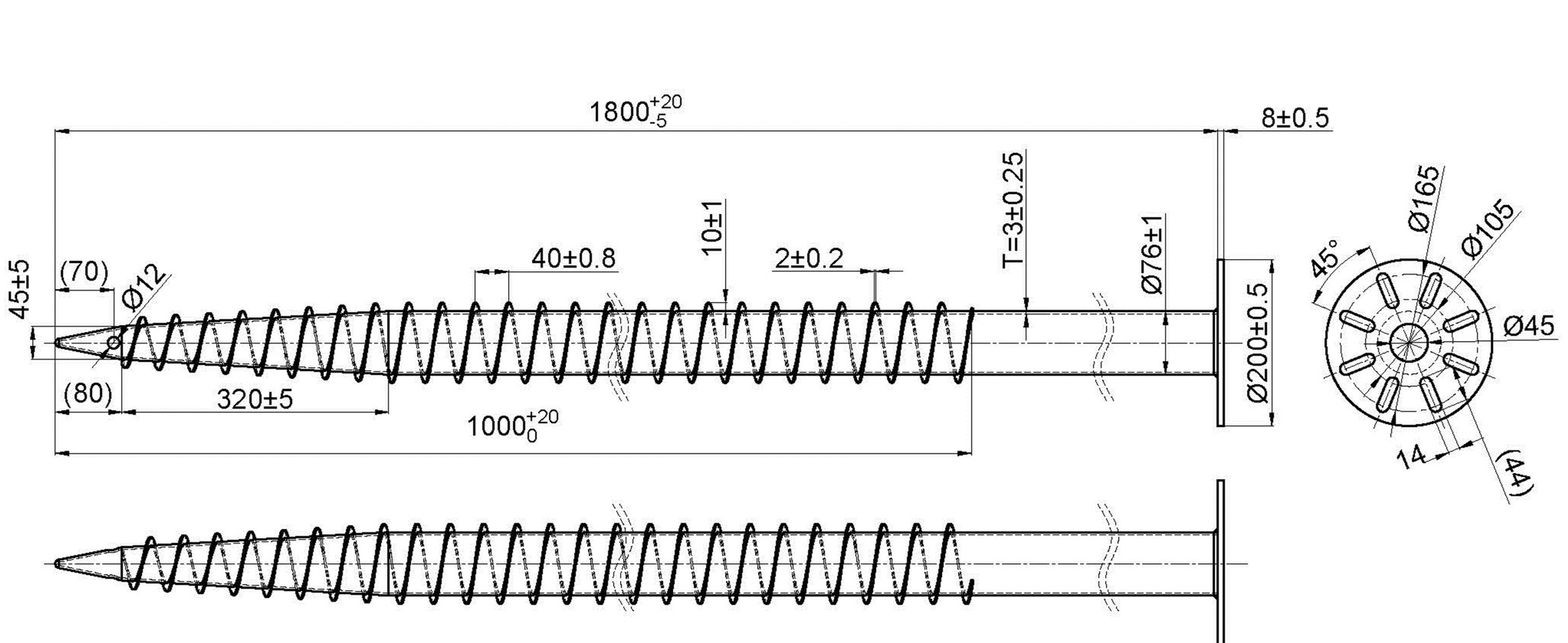

Drawing




Product Name Ground Screw With Flange
Material Steel Q235B
Anti-corrosive Hot-dip Galvanizing (DIN EN ISO1461)
Diameter of Pipe 76mm (68mm/89mm/114mm)
Pipe Thickness 3mm (2.5mm/3.5mm/3.75mm/4mm/5mm)
Flange Diameter 200mm/220mm
Length of Pipe 1600mm (as per customers requirement)
Color   Silver
Warranty   12 years warranty

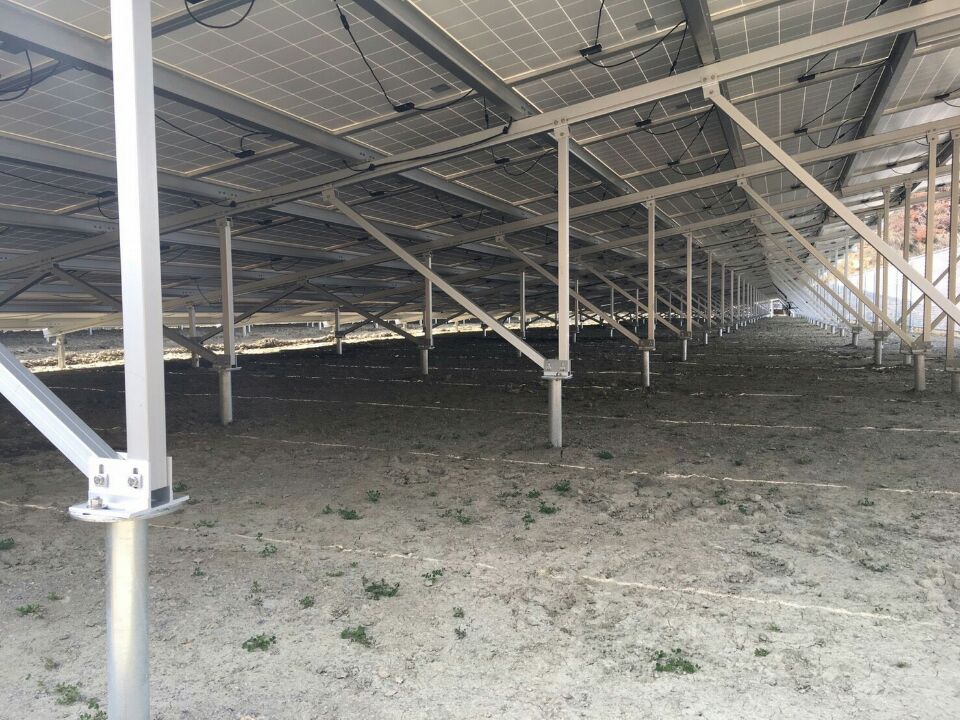

Project
