Galvanized Adjustable Ground Screw

The Adjustable Galvanized Ground Screw is ideal as a base for solar project installed on uneven open ground.
  • Item no.:

    KT_L0000-D76-T3.5_F2
  • Payment:

    T/T,L/C
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Xiamen
  • Lead Time:

    10 days
  • Product Detail


The Galvanized Adjustable ground screw is ideal for solar project installed on uneven open ground. Comparing with concrete base, ground screw features lower cost, shorter construction period, environment friendly, all weather workable and resuable.



Ideal for uneven field
Environment friendly
Lower construction cost

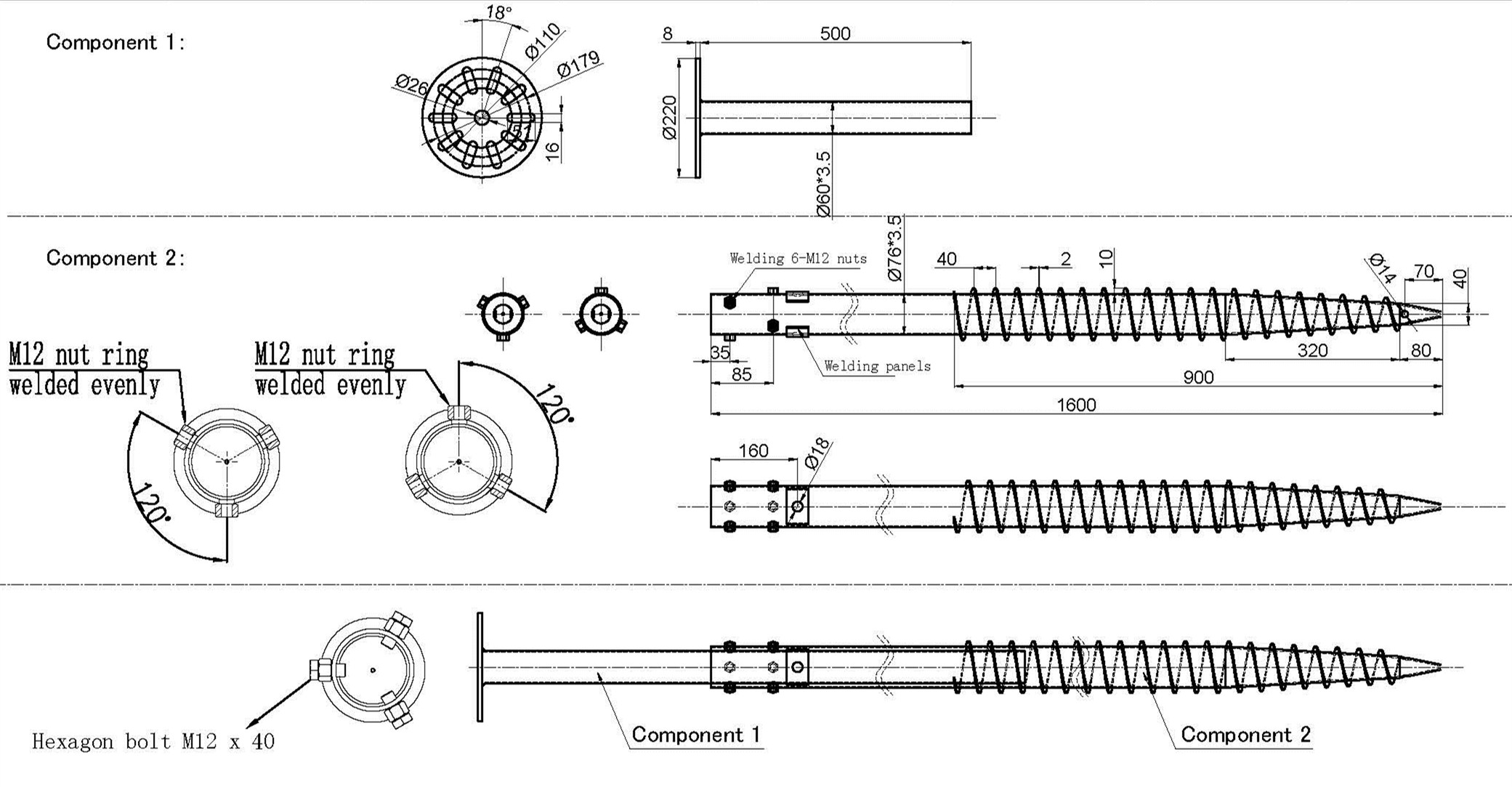

Drawing


Product Name Adjustable Ground Screw
Material Steel Q235B
Anti-corrosive Hot-dip Galvanizing (DIN EN ISO1461)
Diameter of Outer Pipe 76mm
Diameter of Inner Pipe 60mm
Pipe Thickness 3mm/3.5mm
Flange Diameter 200mm/220mm
Length of Outer Pipe 1600mm
Length of Inner Pipe 500mm
Color   Silver
Warranty   12 years warranty
