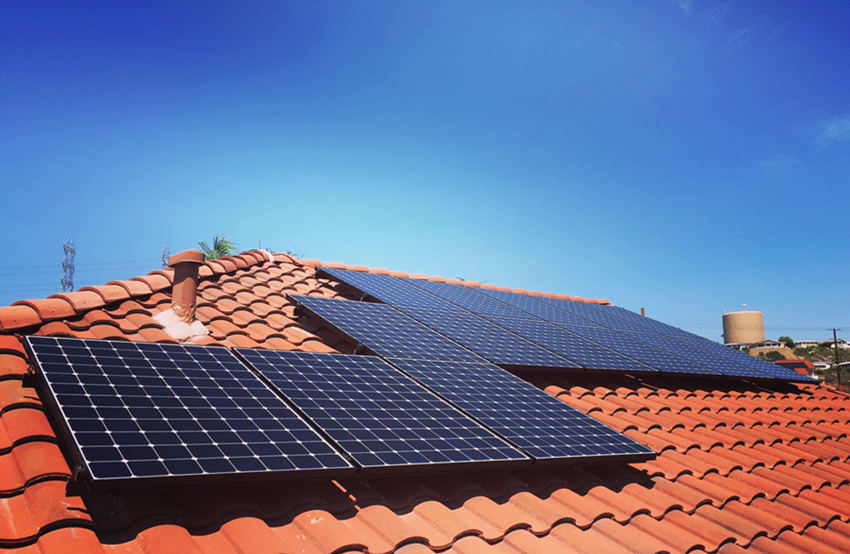

The tile roof
solar support system is mainly suitable for civil roofs and has great
flexibility. It is suitable for various types of solar panel flat sloping
roofs. Common tile types in domestic civil buildings include asphalt tiles,
glazed tiles, cement flat tiles, solar Roman tiles , Spanish tiles, and
stone tiles
Professional
design enables the perfect connection between the solar tile hook component and
the ceramic tile. A design scheme tailored to local conditions and excellent
structural strength calculation, saving installation time and reducing
installation costs; Patented accessory design brings you more quick
installation
Installation
requires confirmation of the specifications, materials, and spacing between
beams, columns, and purlins, as the solar bracket system hooks of the PV
tile roof are installed and fixed on the purlins.
If the cement
concrete layer is under the tile, use expansion bolts to fix the hook; If the
purlin is a wooden beam, use wooden screws to fix the hook.
During the
preliminary design, it is necessary to lift some tiles on site to check the
roof structure, and note the dimensions and spacing of the main beams and
purlins.
Bracket
installation method:
1. Firstly,
measure the installation area of the roof and install the glazed tile hooks
according to the drawings;
2. After the
glass tile hook is firmly installed, lay the guide rail and install the
components.
3. Install
parallel to the roof to ensure the stability of the support and obtain the
optimal lighting angle

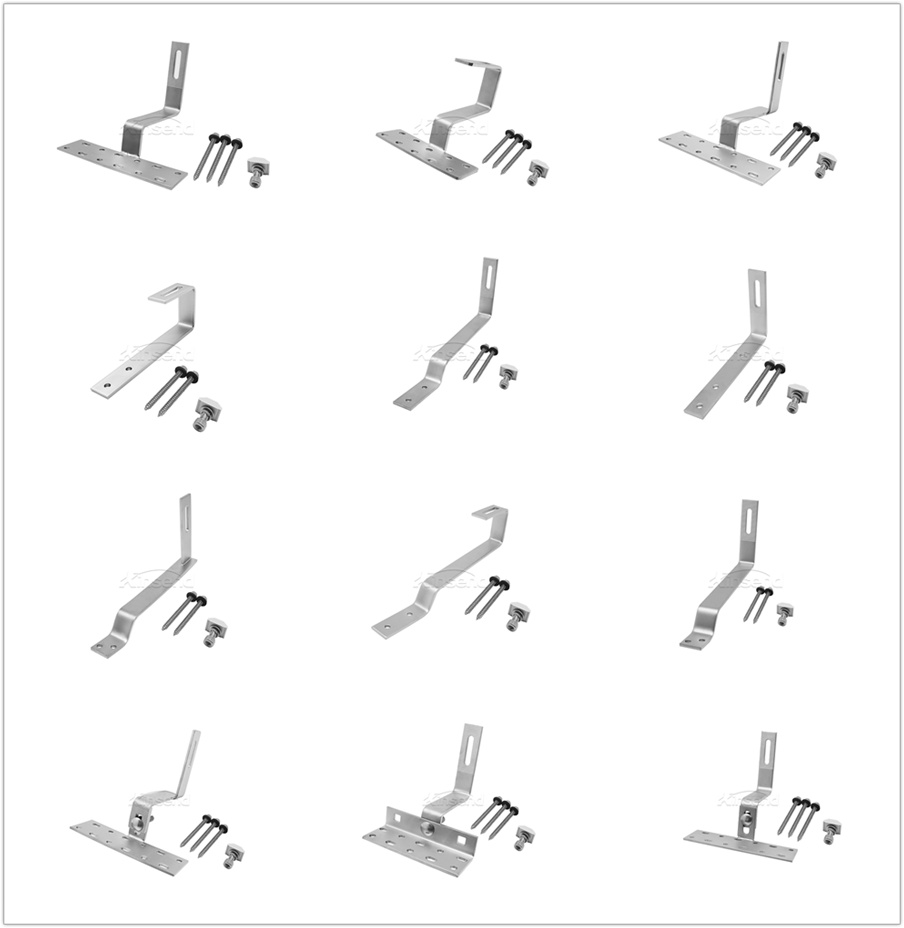

Kinsend has
obtained CE certification, and multiple styles of Roman tile hooks are popular
in Europe, providing photovoltaic bracket design and accessory supply
for many house solar tile roofs. Looking forward to your consultation on
the photovoltaic support system: Mail: Info@kinsend.com Web: www.kinsend.com
