How to Lightning Protection for Solar System ?
Nov 15 , 2022

If the photovoltaic power station is not designed for grounding, so the probability of being damaged by lightning is very high, which may also cause fire and personal and property losses. The main ways for lightning to invade the solar photovoltaic power generation system are as follows.



1. Direct lightning strike: the lightning directly strikes the battery array of the solar photovoltaic power generation system, damaging the battery panel.

2. Ground potential counterattack: when lightning strikes the external lightning protection device, the overvoltage generated near the grounding device will counterattack the high potential of the electronic equipment close to it through the grounding wire, and the intrusion voltage can be as high as tens of thousands of volts.

3. Electrostatic induction of solar panels: When charged clouds discharge to the ground, the entire photovoltaic array induces tens of thousands of volts of over-voltage like a large circular antenna, which is introduced through the DC input line and damages the photovoltaic system equipment connected to the line.

4. Lightning surge invades the output power supply line: when the power supply equipment and power supply line are struck by lightning, the average lightning overvoltage on the power line can reach tens of thousands of volts, and the lightning electromagnetic pulse can immerse into photovoltaic microelectronic equipment and systems along the power line, causing devastating strikes to the system equipment.





How should we prevent lightning electromagnetic pulse?


1. Shielding

In order to reduce electromagnetic interference, the incoming lines of solar panels should be laid in a suitable path and well shielded before being introduced into the building integrated with photovoltaic buildings. Cables with metal shielding layer shall be selected and laid through metal pipes. At the interface of lightning protection area, the metal shielding layer and metal pipes of cables shall be equipotential connected and grounded.


2. Surge protector

In order to prevent the intrusion of lightning electrophoresis into the DC and AC power lines of the integrated photovoltaic building power generation system, it is important to set up power surge protective devices (SPDs) at corresponding locations consistent with the system, especially the probability of lightning surge introduced by outdoor power lines from the battery matrix to indoor batteries, controllers, distribution cabinets, etc. cannot be ignored. At least one switch type arrester shall be installed at the front end of the transformer of the photovoltaic building integrated power generation system.

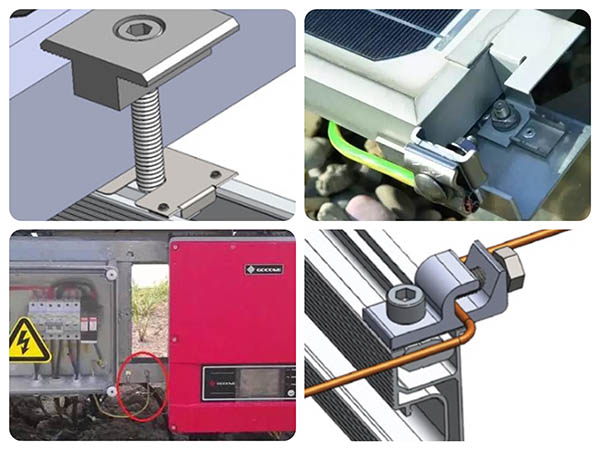

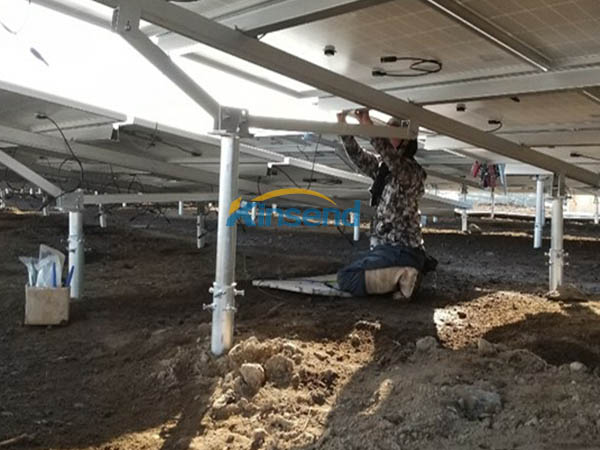

3. The most common photovoltaic support system installation accessories are equipped with solar mounting ground lug, solar earth clips, and Solar grounding bonding jumper. It is also helpful to reduce the damage of lightning impulse to photovoltaic modules.





Kinsend is a manufacturer specializing in the design of photovoltaic bracket systems. Because the lightning protection design of photovoltaic brackets requires multi position design layout. Looking forward to your consultation, we will exchange more photovoltaic knowledge with you .Mail: Info@kinsend.com Web: www.kinsend.com
