How are photovoltaic systems installed on the sloping roofs that can be seen everywhere around you? For the fixed installation scheme of pitched roof, considering that the bearing capacity of inclined roof is generally poor, most components are directly tiled and installed on the pitched roof, and the azimuth and inclination of components are generally close to the roof. According to the difference of inclined roof, the inclined roof can be divided into tile roof support system and metal roof support system.

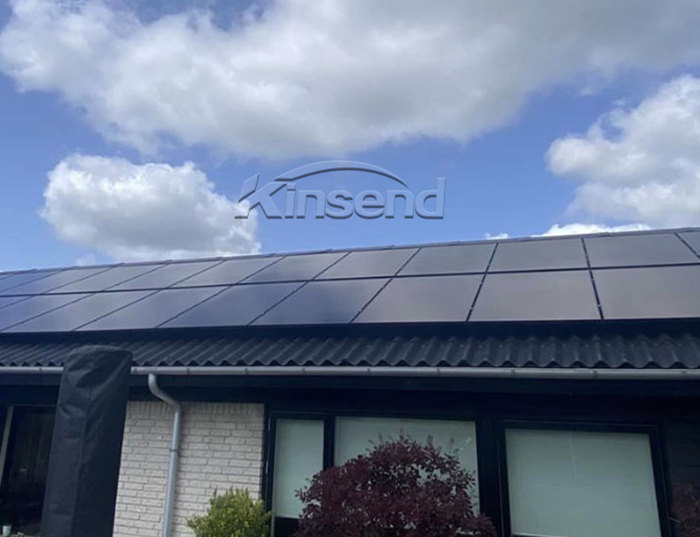

Tile roof support installation scheme:

The adjustable tile hook can be adjusted when the panel is installed horizontally and vertically, which extends the chance where regular tile hook can't be used Several information needs to be confirmed in advance before installation: 1. tile type, 2. roof height from the ground, 3. fixing method of tiles on the roof, 4 According to the snow and wind speed at the installation site, through the understanding of the roof, the information can be transmitted to the solar panel support structure technicians to reasonably calculate the safety strength and select the installation accessories, so that the system can reach the safest installation state.

Advantages:

1. It has heat insulation effect on the pitched solar roof

2. Conform different types of PV solar panels

3. No drill into tile and fast installation

4. Made of SUS304, super safe

Metal roof installation scheme:

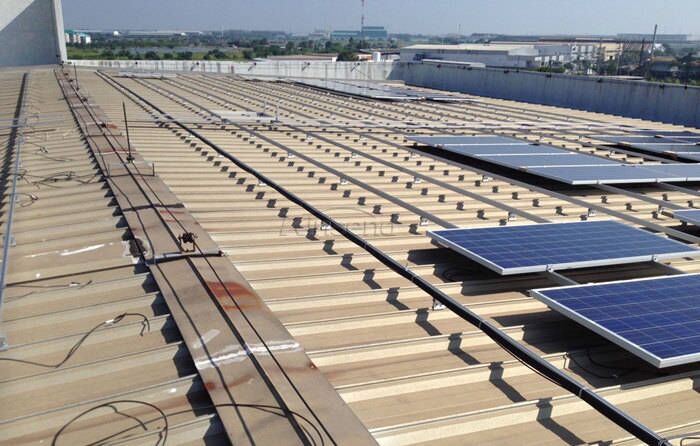

There is no need to increase the support and calculate the inclination for the installation of photovoltaic power plants on pitched roofs. During installation, according to the tilt angle of the roof itself, many industrial production rooms and warehouses adopt inclined iron roof photovoltaic systems. The installation scheme close to the roof is the most safe. The rail or no rail scheme is selected, and the clamp is matched. According to the size of metal deck optional Standing Seam clamp , Klip-Lok clamp.

The use of clamps will not damage the original structure, nor will it cause water leakage on the roof or damage to the overall structure. Some information should be checked before installation: 1. roof height 2. roof inclination angle 3. color steel tile size 4. flow direction and panel arrangement position.

Advantages:

1. simple and cost-effective installation

2. material: aluminum 6005-t5&SUS 304

3. waterproof rubber gasket integrated

4. apply for many kinds of metal roof

Kinsend conducts strict safety intensity accounting for the installation of each photovoltaic system project. The firmness of the panel installation on the inclined roof is the first, which ensures that the roof is not damaged and brings thermal insulation effect to the house. Professional metal products have 30 years of manufacturing and production experience. We look forward to discussing more photovoltaic project cooperation and parts supply with you.

Contact us : mail: Info@kinsend.com Web: www.kinsend.com
