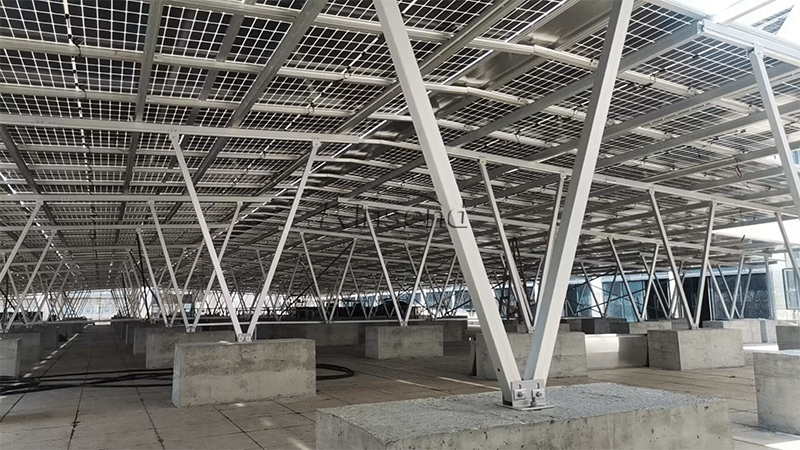

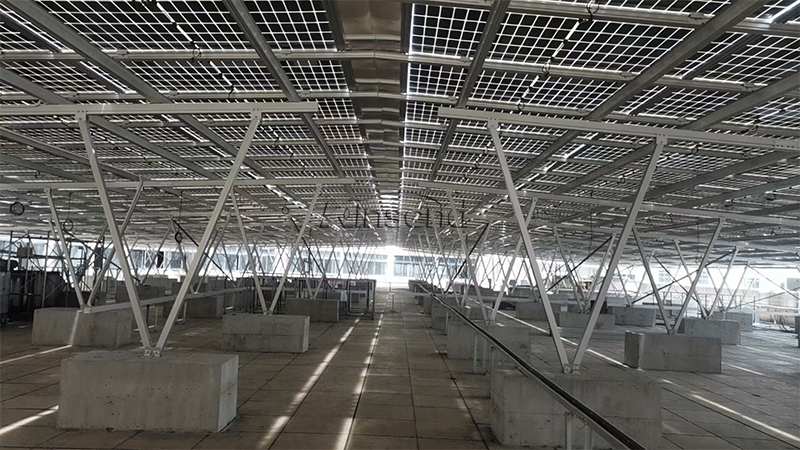

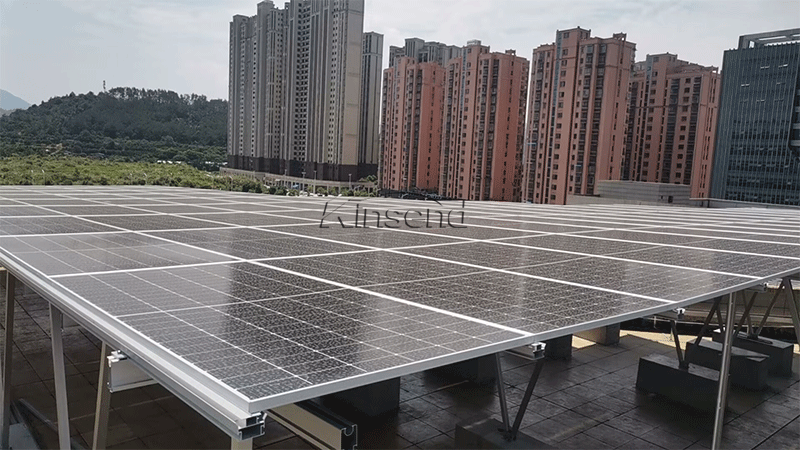

BIPV roof mounting system, Newly installed and passed test BIPV 700KW roof project ,In China . Flat roof pv mounting systems.


Building integrated photovoltaic (BIPV) is a technology that integrates solar power (PV) products into buildings. The integration of photovoltaic buildings can be divided into two categories: one is the combination of photovoltaic arrays and buildings; Another type is the integration of solar arrays with buildings. Such as flat roof solar panel mounting, photovoltaic curtain walls, and photovoltaic lighting roofs. Among these two methods, the combination of photovoltaic arrays and buildings is a commonly used form, especially the combination of photovoltaic modules and building roofs.

In the process of combining the photovoltaic array with the building roof, it is necessary to install the photovoltaic modules on the roof panel. The existing scheme usually sets up clamp parts at both ends of the roof panel, and a support beam in the middle. The top surface of the bearing part and support beam is flat, and there is no structure for the installation of photovoltaic modules on the roof panel. The photovoltaic modules can only be connected to the top surface of the bearing part and support beam through structural accessories. The rail has undergone multiple waterproof tests, with careful structural design and waterproof pads, as well as the multiple solidity design of adhesive. The connection between each profile has tight fittings installed.

Photovoltaic power plants generally operate for 25 or 30 years. In the face of complex outdoor environments such as natural gusts, hail, and ultraviolet radiation, the installation pv mounting structure needs to ensure safety and firmness. Reasonable design and testing require a professional technical team for design.
