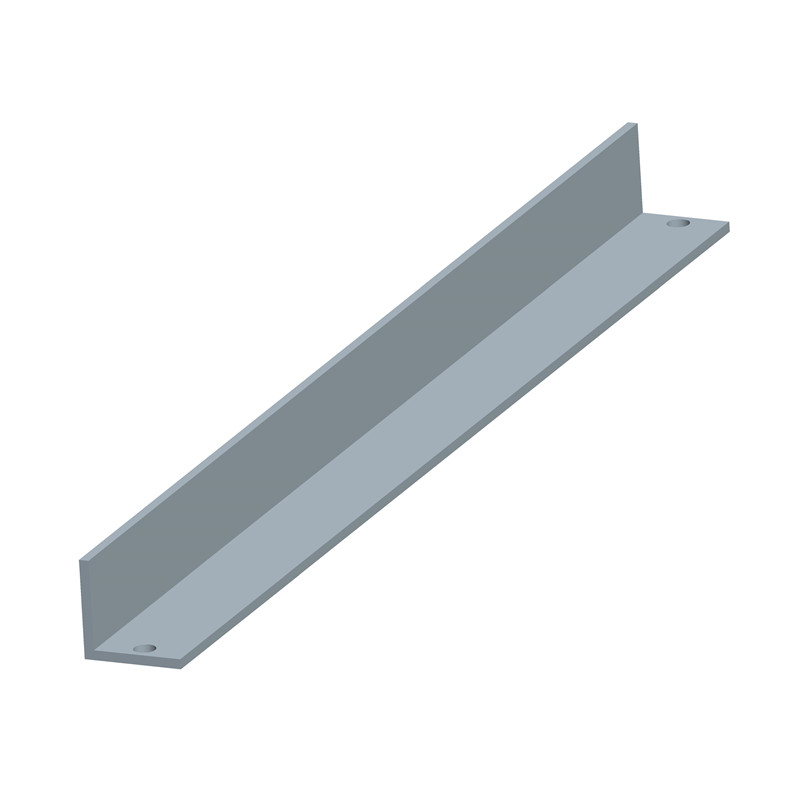

Anodized Angle Aluminum For Solar System

The JTD061 Solar Rail is made of material Aluminum AL6005-T5,suitable for the mounting of solar rooftop systems.

The CR1 Standard Solar Rail is made of material Aluminum AL6005-T5,suitable for the mounting of solar rooftop systems.

The CR3 Economic Solar Rail is made of material Aluminum AL6005-T5,suitable for the mounting of solar rooftop systems with small wind speed.

The quick installation rail does not require too many auxiliary installation accessories and is directly installed on the metal roof in close combination with the clamp

This guide rail has strong stability and a square structure in the middle, which reduces the overall weight of the guide rail and provides high safety.

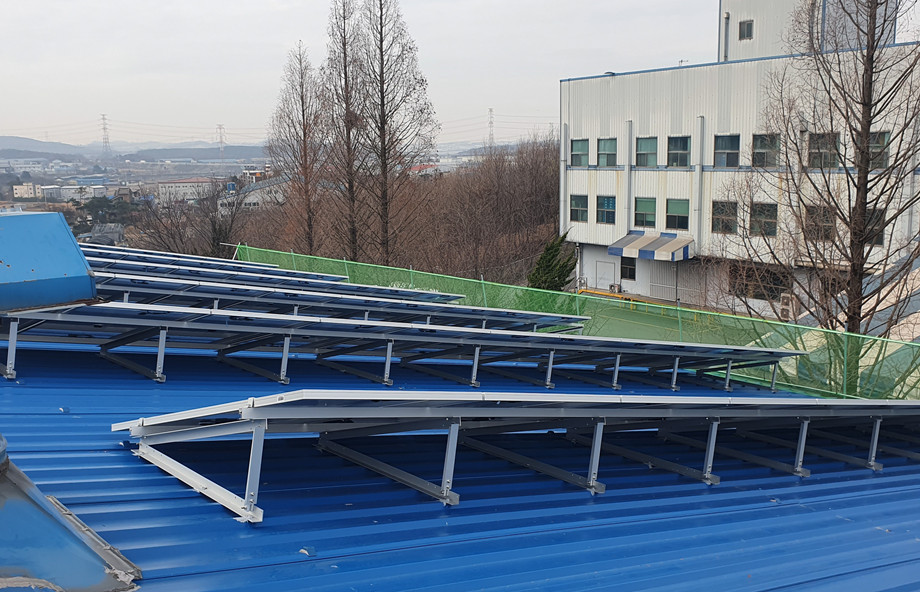

Lightweight rails can be installed on metal roofs, The U-shaped structure is a combination of guide rails and clamp. low cost and quick installation. Riveted or screwed onto raised corrugations. Every size of module array possible Simple and fast installation No Rails necessary Low material / Low fiting costs Details      Installation Site Trapezoidal and corrugated sheet metal    Installation Base Riveted or screwed onto raised corrugation    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170 &JIS C 8955-2011     Material Al6005-T5 & Stainless steel     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years

The balcony solar mount system is made of high-corrosion aluminum, lightweight and high-corrosion, and can be installed at different angles according to the requirements of sunlight exposure conditions.
