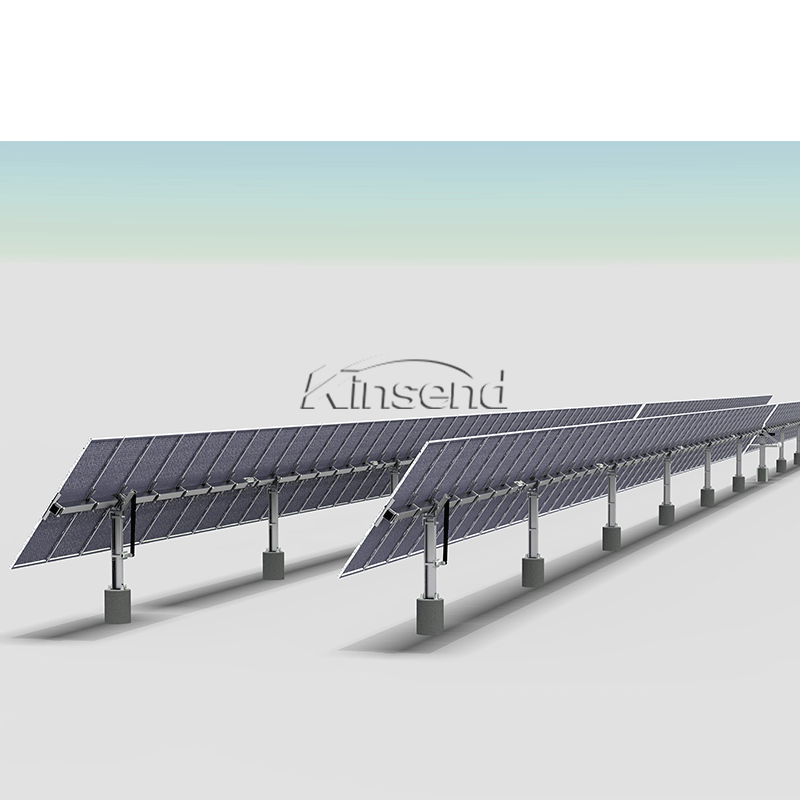

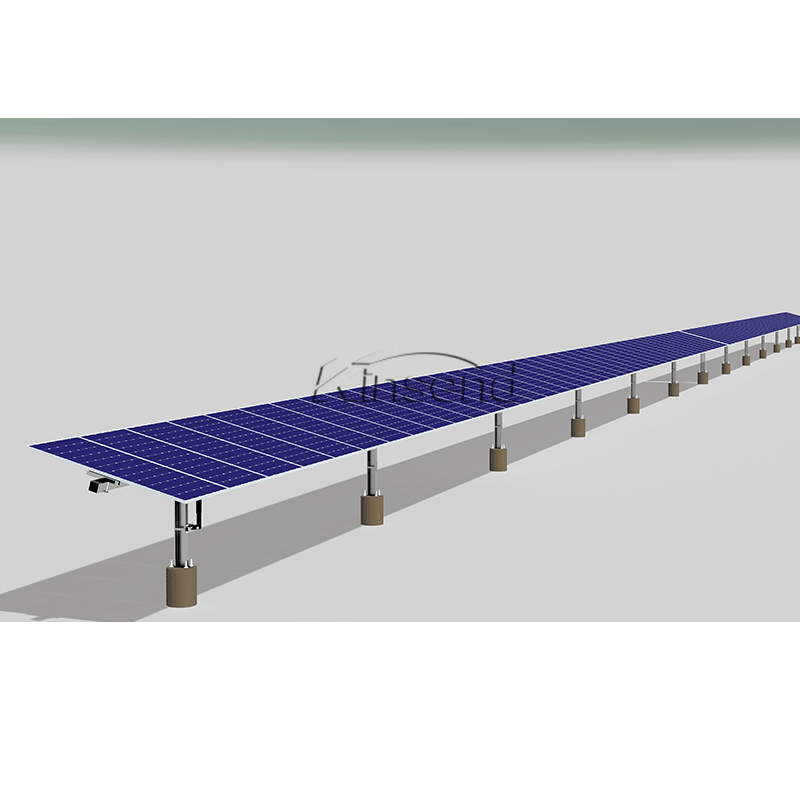

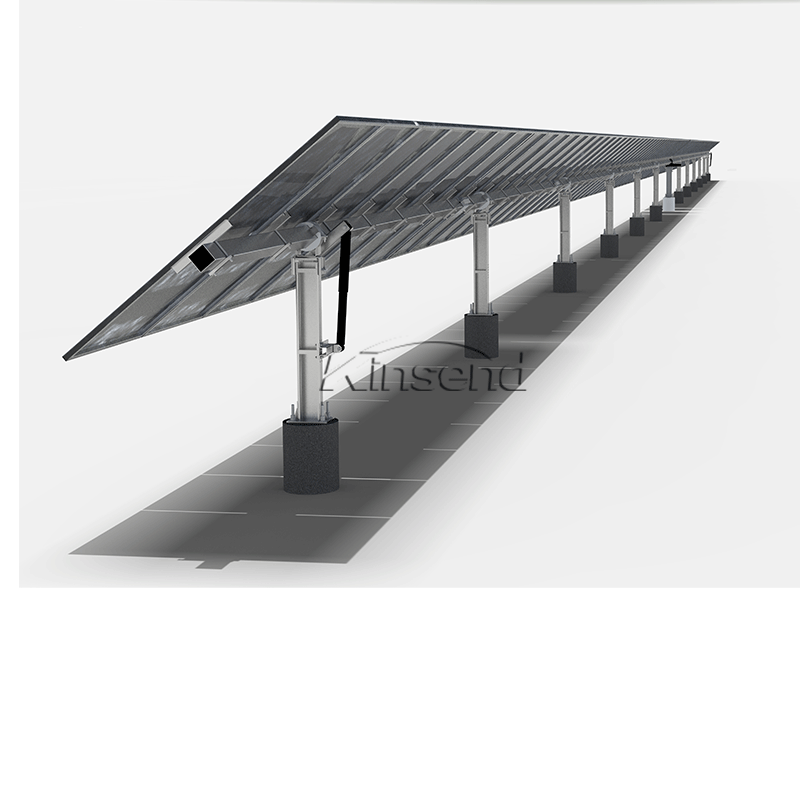

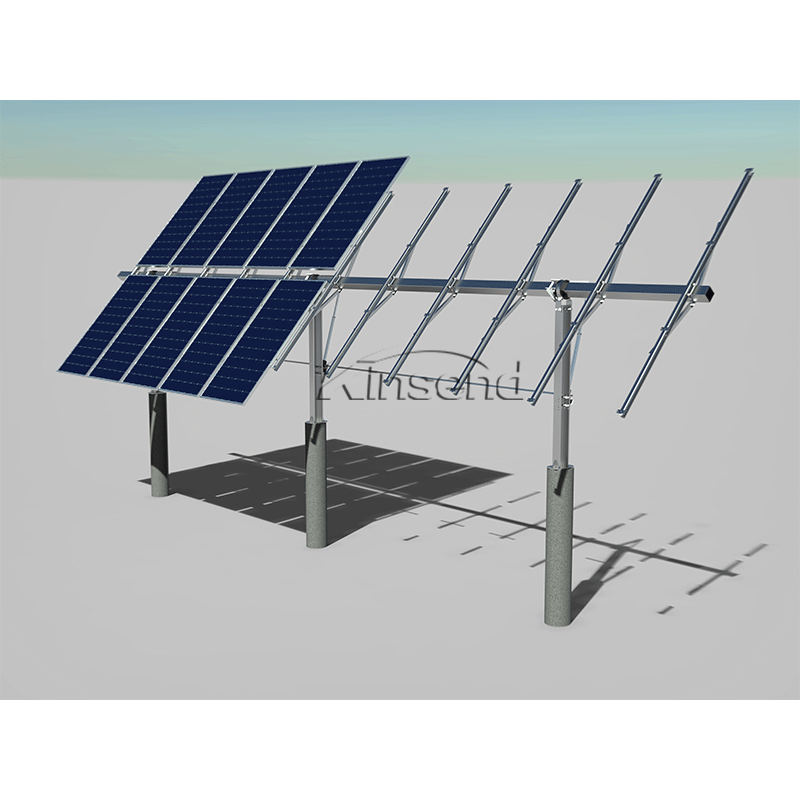

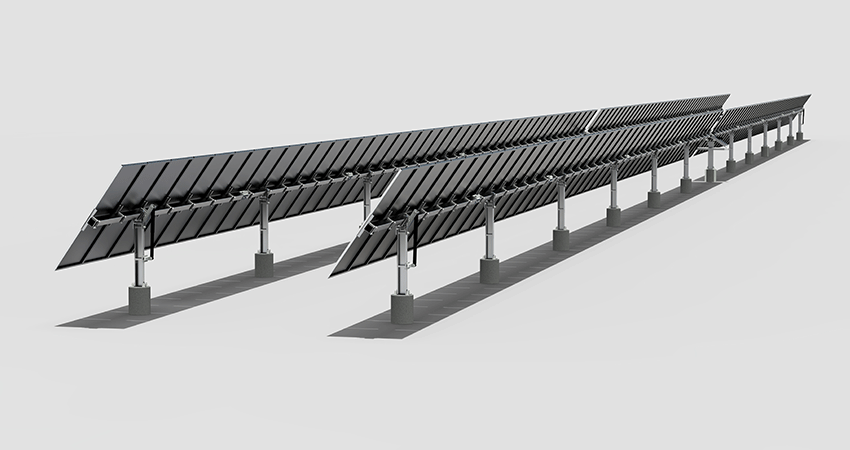

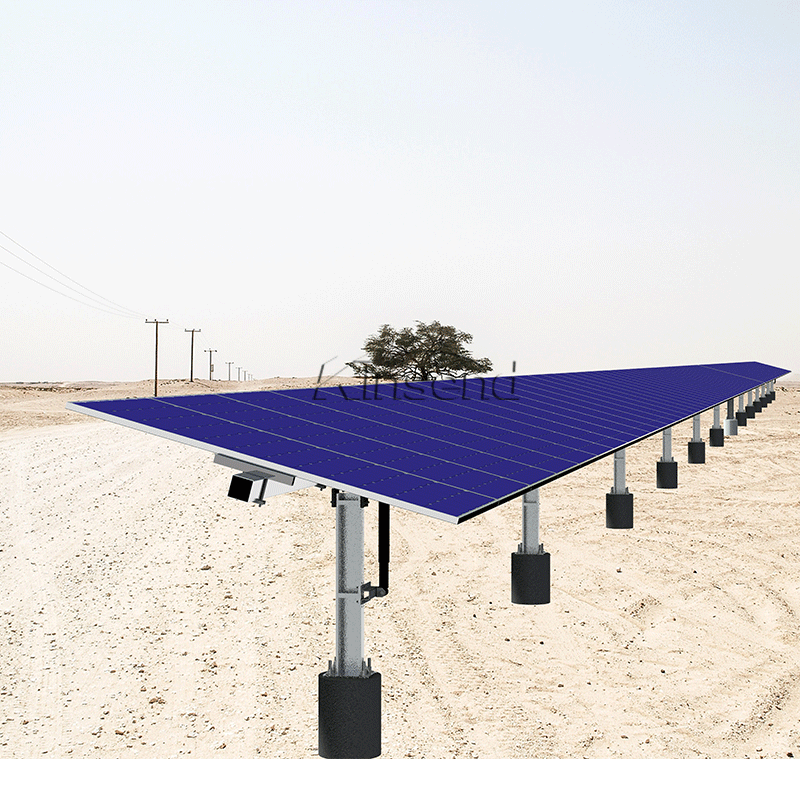

Single Solar Tracking system

Single Solar Tracking system improves power generation efficiency. single-row tracking bracket pv system can adapt to the 20% slope of the north and south slopes,

  • Payment:

    T/T,L/C

  • Product origin:

    China

  • Color:

    Silver, Black

  • Shipping port:

    Xiamen, China

  • Lead Time:

    7-14 days
Inquire now
  • Product Detail

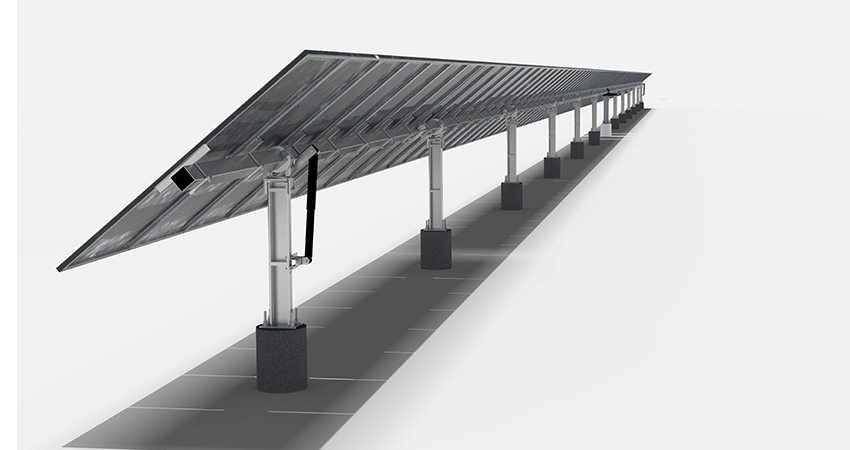

Single Solar Tracking system improves power generation efficiency. single-row tracking bracket pv system can adapt to the 20% slope of the north and south slopes, Overall power generation efficiency increased by 25%-35%. The entire structure has extremely strong corrosion resistance throughout its entire service life.




  • Pre-assembled in factory, save the onsite installing time and cost
  • Hot dipped galvanized Steel Q235B or ZAM steel
  • Strong structure suit for ground screws and concrete foundation
  • 10 years warranty and 20 years service life

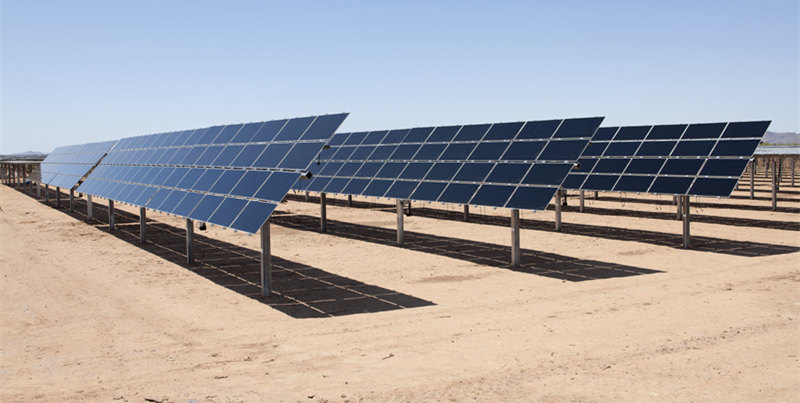

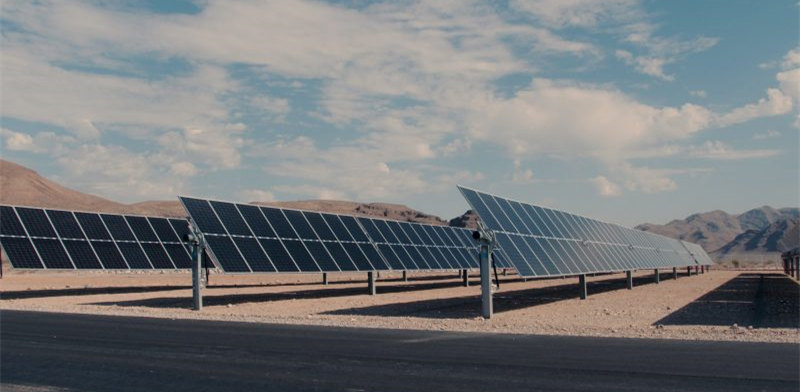

   Installation Site

Open ground clay soil /complex terrain

   Installation Base

Concrete Base or Ground screw or Pile

Tilt angle

Tracking range : ±60°

North-south land slope＜20%

Panel placement

Single row vertical

   Max Wind Speed

＜47m/s，3seconds gust

   Snow Load

＞500mm

   Standards

AS/NZS 1170 &JIS C 8955-2011

    Material

Hot Dip galvanizing for Q235 or  ZAM Steel

Stainless steel for fasten bolt and nut

    Warranty / Duration

 12 years/ More than 25 years
