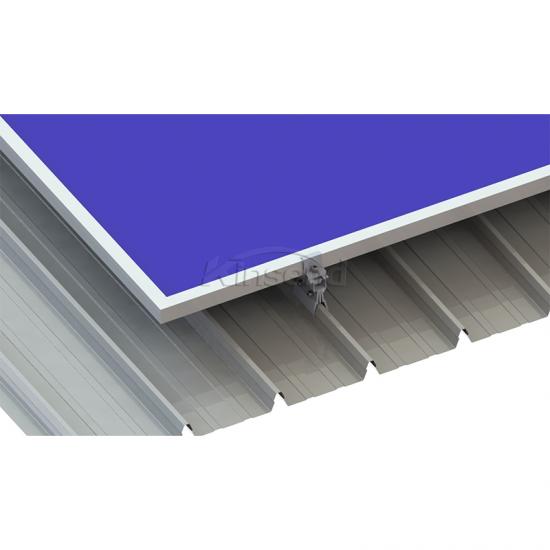

Standing Seam Metal Roof Solar Mount

The standing seam roof clamps easy mounting on the folded seam rooftops. The clamps are designed to catch the standing seams effectively with ease. Clamps offer a secure fastening without penetrating the roof sheets, with maximum stability and minimum weight.

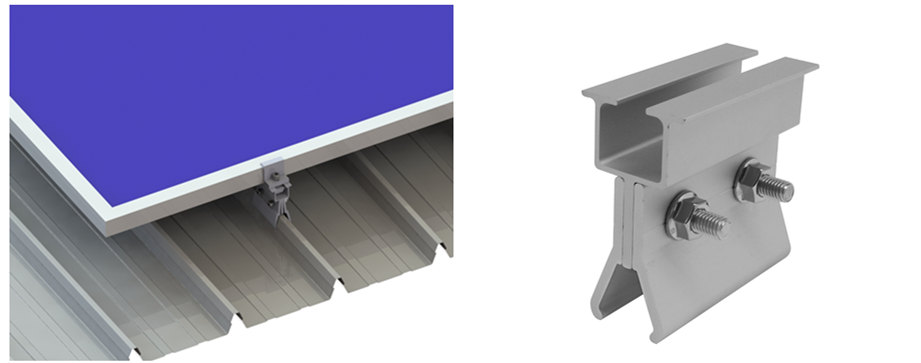

Kinsend's New ECO SYSTEM Is a more lightweight and easy to install system. Fix the 406 cliplock  on the rooftop metal plate and tighten the bolts. Fix the ECO rail on the 406 cliplock with Hex screw. PV module on the ECO Rail with mid clamps and end clamps.

The lightweight rail has a price advantage and is easy to install. Combined with Standing Seam Clamps, it ensures installation and safety,

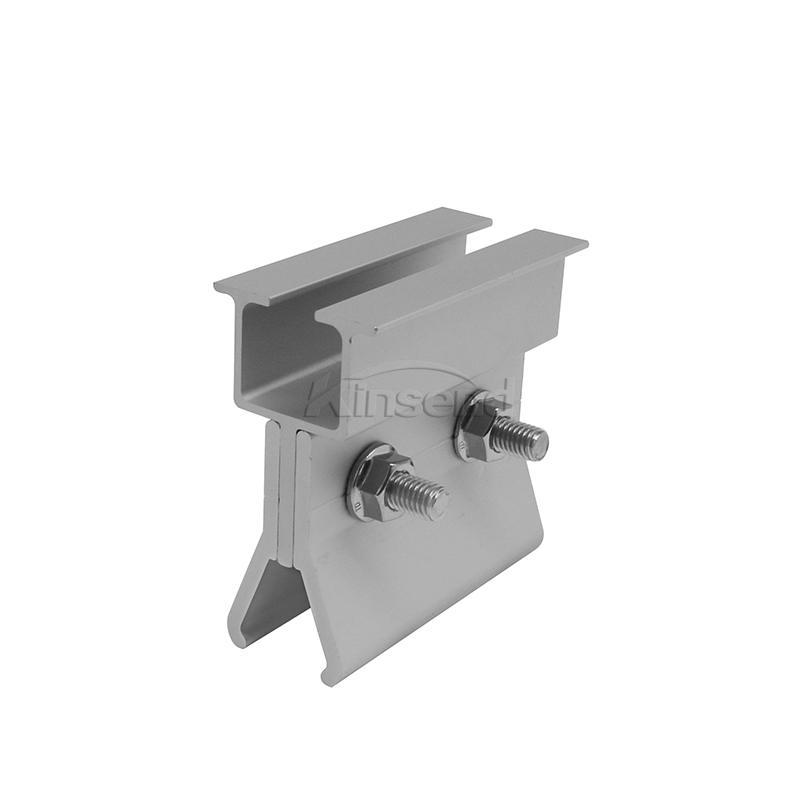

KLIP-LOK 406 Roof Hook

KLIP-LOK 700 Roof Hook , The standing seam roof clamps make mounting on folded seam roof particularly easy.

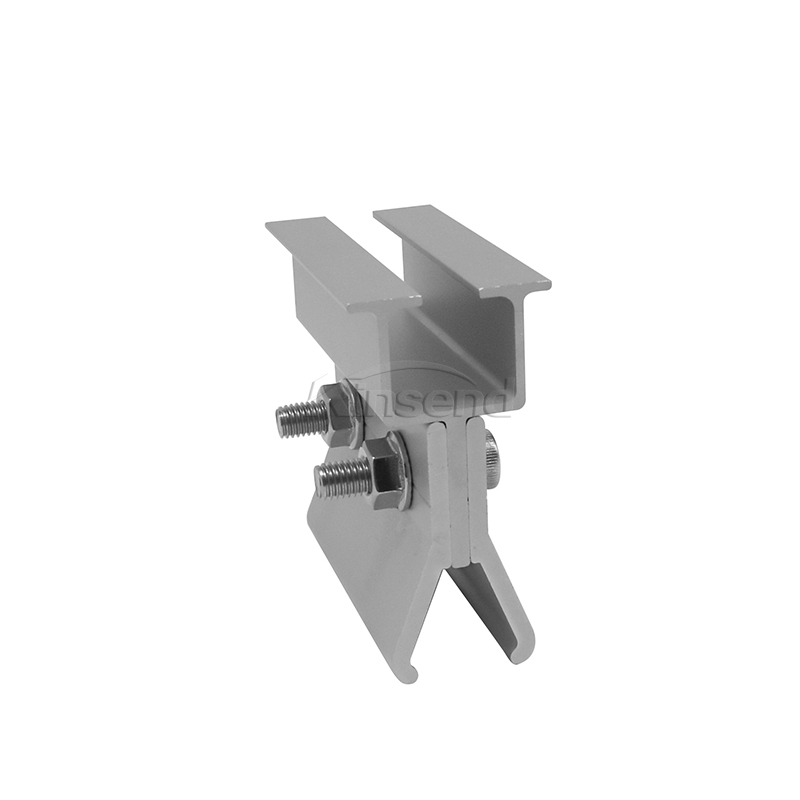

KLIP-LOK 700 Roof Hook

This clamp for fix rails . Main material is AL6005-T5 with average 12μm anodizing film. Unique design of Mid & End clamps are used in different types of solar panels. Special design of rail can make intallation simpler and faster. Parts have been high pre-assembly on factory to save your installation time. Solar clamps can work with most types of solar panels and rails. Quick and easy installation Strict QC over all components ensure the high reliability of the strength Made of aluminum, each section is anodized Economic layout Landscape/portrait    Max Wind Speed < 60m/s    Snow Load < 80cm    Standards AS/NZS 1170, DIN 1055, JIS C 8955:2011     Material Anodized aluminum 6005 T6 , Fasten bolt and nut stainless steel 304     Anti-corrosive  Anodized     Warranty / Duration  12 years/ More than 25 years Details

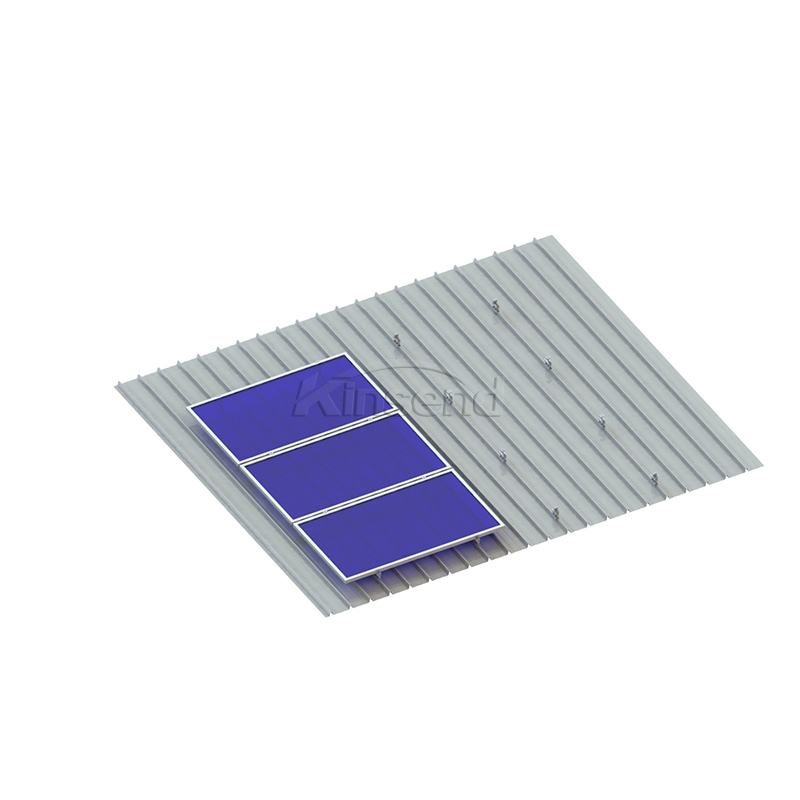

Lightweight rails can be installed on metal roofs, The U-shaped structure is a combination of guide rails and clamp.
